Gear reducers are essential components in mechanical systems, playing a crucial role in adjusting the speed and torque of motors to suit various applications. They are widely used in industries such as manufacturing, construction, and automotive, where precise control over machinery is necessary. In this article, we will delve into the function, types, and applications of gear reducers, along with their importance in modern machinery.

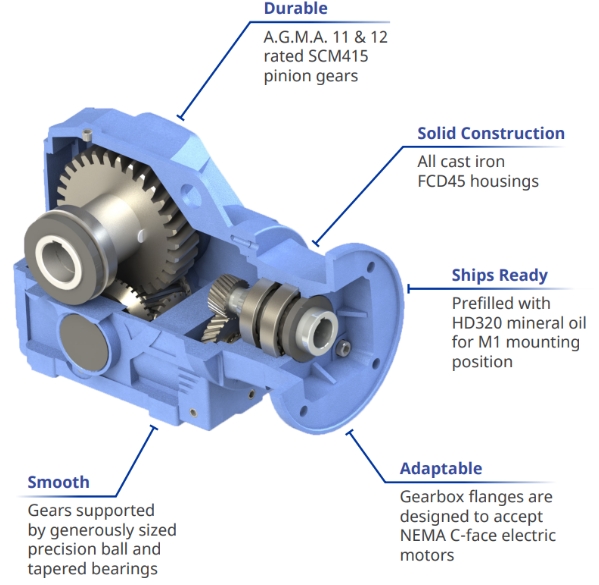

Gear reducers, also known as speed reducers or gearboxes, are mechanical devices that convert the high-speed, low-torque output of a motor into a low-speed, high-torque output. This conversion is achieved through a system of gears, where a smaller driver gear engages with a larger driven gear. The ratio of the number of teeth on the driven gear to the number of teeth on the driver gear determines the reduction ratio of the gearbox.
A common example is a gearbox with a reduction ratio of 2.76:1. This means that for every 2.76 rotations of the input shaft, the output shaft rotates once. This setup is typical in applications where high torque is required at lower speeds, such as in pumps or conveyor belts.
Video: How Gear Reducers Work
To better understand the operation of gear reducers, you can watch this video:

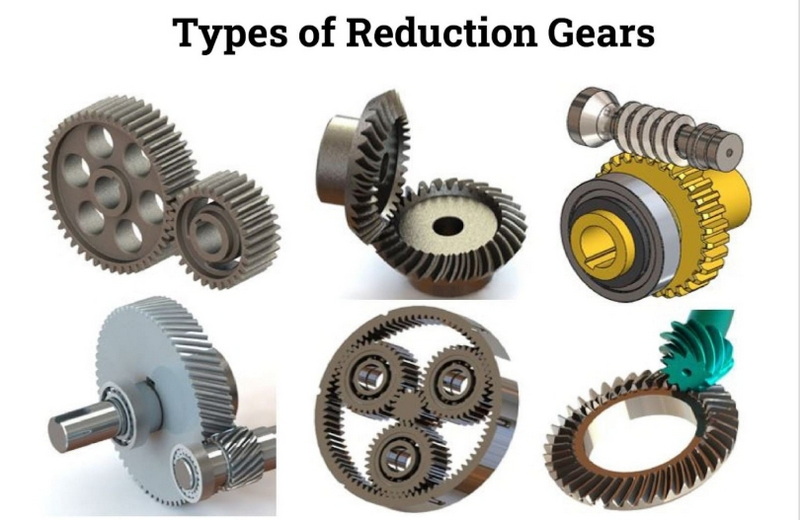

There are several types of gear reducers, each designed for specific applications and offering different advantages:
- These are more efficient and can handle higher horsepower in a smaller space.
- They are commonly used in applications requiring high precision and efficiency.
- These have a right-angled input and output shaft, making them suitable for applications where space is limited.
- However, they are less efficient due to higher friction.
- Known for their compact size and high torque density, they are often used in robotics and precision machinery.
- They offer a long service life and low noise operation.
- These allow for a change in the direction of rotation and are used in applications requiring angular adjustments.
Gear reducers are used in a wide range of applications where speed and torque need to be adjusted:
- They are crucial in conveyor belts, pumps, and industrial robots, where precise control over speed and torque is essential.
- Gear reducers are used in vehicles to adjust the high-speed rotation of engines to a lower speed suitable for tires.
- In wind turbines, gear multipliers (the opposite of reducers) are used to increase the speed of rotation to drive alternators efficiently.
Video: Gear Multipliers in Wind Turbines
For a better understanding of how gear multipliers work in wind turbines, watch this video:
Gear reducers are vital for ensuring that machinery operates efficiently and safely. They allow motors to run within their optimal speed range while providing the necessary torque for the application. This not only improves performance but also extends the lifespan of the motor and reduces energy consumption.
The technology behind gear reducers is continuously evolving, with advancements in digitalization, materials, and energy efficiency. Modern gearboxes are incorporating smart technologies, such as sensors and IoT connectivity, to enhance efficiency and performance. Additionally, the use of lightweight materials and advanced manufacturing techniques is becoming more prevalent, contributing to reduced weight and increased efficiency in applications like automotive and renewable energy systems.
Smart Gearboxes:
These are equipped with internal sensors and machine learning algorithms to optimize performance and predict maintenance needs. They provide real-time data on equipment performance, which can streamline workflows and reduce downtime.
Historically, companies like Nuttall Gear have played significant roles in developing gear technology. Founded in 1887, Nuttall Gear contributed to the development of single helical gears and integral gearmotors, and was instrumental in establishing the American Gear Manufacturers Association (AGMA).
When selecting a gear reducer, it's important to consider factors such as input horsepower, required output speed, and mounting method. Regular maintenance, including lubrication and inspections, is crucial for extending the service life of gear reducers.
The future of gear reducer technology is poised for significant advancements, with a focus on sustainability, electrification, and digitalization. Trends include the use of advanced materials, modular designs, and autonomous systems. These developments will enhance efficiency, reduce environmental impact, and improve performance across various industries.
In recent years, there has been a growing emphasis on environmental sustainability in gearbox design. This includes the use of recyclable materials, efficient lubrication systems, and life cycle analysis to minimize waste and energy consumption[8]. Advanced materials such as high-strength composites and recyclable alloys are being researched for their potential to reduce environmental impact while maintaining performance[3].
In robotics, gear reducers play a crucial role in achieving precise motion control. They enable robots to perform tasks that require high torque and low speed, such as heavy lifting or delicate machining[2]. Innovations in robot speed reducers include miniaturization, improved torque density, and the integration of smart sensors for real-time monitoring and predictive maintenance[7].
The automotive industry is witnessing significant growth in the demand for gear reducers, particularly with the rise of electric vehicles (EVs). EVs require efficient gear reducers to optimize power transfer from motors to wheels, enhancing vehicle efficiency and driving range[5]. The market for automotive gear reducers is projected to grow at a CAGR of 4.2% from 2025 to 2034, driven by the expanding EV market and the need for quieter, more efficient vehicles[5].
In the mining industry, gear reducers are used in heavy machinery to optimize performance and reduce costs. Advanced tools like the KISSsoft Gearbox Variant Generator help in designing and optimizing gear units for specific applications, leading to significant savings in weight and manufacturing costs[4].
In summary, gear reducers are indispensable in modern machinery, enabling the efficient operation of motors by adjusting speed and torque to meet specific application requirements. Their versatility and importance span across various industries, from manufacturing to renewable energy.
A gear reducer's primary function is to reduce the speed of a motor while increasing its torque, allowing machinery to operate efficiently at lower speeds with higher force.
Common types include helical, worm, planetary, and bevel gear reducers, each suited for different applications based on efficiency, space constraints, and torque requirements.
To select the right gear reducer, consider the input horsepower, required output speed, and mounting method. It's also important to choose a reducer that matches the application's torque and speed requirements.
Gear reducers are used in industrial machinery, automotive systems, renewable energy systems, and precision equipment like medical devices.
Regular maintenance includes lubrication to reduce friction and noise, inspections to identify wear, and ensuring proper installation to avoid overheating and seal damage.
