What Does Wcd To Center Mean in A Gear Reducer?

Content Menu

Introduction to Gear Reducers

>> Types of Gear Reducers

Understanding WCD in Gear Reducers

>> Importance of WCD

Calculating Gear Ratio and Torque

>> Torque Calculation

Applications of Gear Reducers

Selecting the Right Gear Reducer

>> Geometrical Considerations

>> Loading Factors

>> Operational Conditions

Maintenance of Gear Reducers

>> Oil Change Intervals

>> Flushing the Gear Reducer

Advanced Gear Reducer Designs

>> Cycloidal Gear Reducers

>> Planetary Gear Reducers with High Load Capacity

>> Custom Gearbox Design

Future Developments in Gear Reducers

>> Integration of IoT and AI

>> Sustainable Materials and Practices

Environmental Considerations

>> Use of Recyclable Materials

>> Energy Efficiency and Lubrication

Conclusion

FAQ

>> 1. What is the primary function of a gear reducer?

>> 2. How is the gear ratio calculated in a gear reducer?

>> 3. What does WCD stand for in the context of gear reducers?

>> 4. What are the common types of gear reducers?

>> 5. Why is proper alignment important in gear reducers?

Citations:

Gear reducers, also known as speed reducers, are crucial components in mechanical systems, designed to decrease the speed of an input rotation while increasing the torque output. They are widely used in various applications, including industrial machinery, vehicles, and robotics. One important specification in gear reducers is the "WCD," which stands for "Wheel Center Distance" or more commonly in the context of gear reducers, "Wheel Center Diameter" or simply refers to the distance between the center of the input and output shafts. However, in many contexts, especially when discussing worm gear reducers, WCD can refer to the center distance between the worm and the worm gear. Understanding this term is essential for selecting and installing the appropriate gear reducer for specific applications.

What Does Wcd To Center Mean in A Gear Reducer_1

Introduction to Gear Reducers

Gear reducers are mechanical devices that use a series of interlocking gears to adjust the speed and torque of a rotating shaft. They are essential for optimizing the performance of machinery by ensuring that the output speed and torque match the requirements of the application. The gear ratio, which is determined by the relative sizes of the gears, is critical in achieving the desired speed reduction and torque increase.

Types of Gear Reducers

There are several types of gear reducers, each designed for specific applications:

- Worm Gear Reducers: These are compact and suitable for applications requiring high transmission ratios. They are often used in conveyors and material handling systems due to their non-reversibility.

- Planetary Gear Reducers: Known for their compact size, high load capacity, and low noise, these are ideal for applications requiring rapid acceleration and high torque, such as machine centers and agricultural machinery.

- Bevel Gear Reducers: These are used for applications that require a right-angle speed reduction. They are designed to handle high power and torque.

Understanding WCD in Gear Reducers

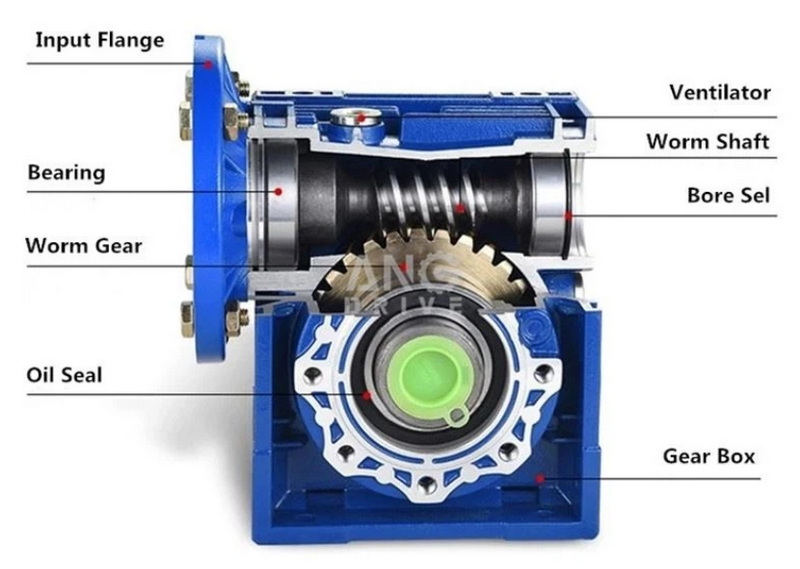

In the context of gear reducers, particularly worm gear reducers, WCD refers to the center distance between the worm and the worm gear. This measurement is crucial for ensuring proper alignment and efficient power transmission between the input and output shafts. The WCD is typically specified in inches and varies depending on the gear reducer model and application.

For example, the WWE HdRS175-15/1-L worm gear reducer has a WCD of 1.75 inches, which is a common specification for many worm gear reducers. This measurement helps in selecting the appropriate reducer for specific machinery configurations, ensuring that the input and output shafts are properly aligned to achieve optimal performance.

Importance of WCD

The WCD is important for several reasons:

1. Alignment: Proper alignment of the input and output shafts is crucial for efficient power transmission and to prevent wear on the gears.

2. Performance: Incorrect WCD can lead to reduced efficiency, increased noise, and premature wear on the gear reducer.

3. Installation: Knowing the WCD helps in planning the installation layout, ensuring that there is enough space for the gear reducer and that it fits properly with other machinery components.

Calculating Gear Ratio and Torque

Understanding the gear ratio and how it affects torque is essential for selecting the right gear reducer. The gear ratio is calculated by dividing the number of teeth on the output gear by the number of teeth on the input gear. This ratio determines how much the speed is reduced and how much the torque is increased.

Gear Ratio=Number of Teeth on Output Gear/Number of Teeth on Input Gear

For example, if the output gear has 30 teeth and the input gear has 7 teeth, the gear ratio is approximately 4.3:1. This means the output shaft will rotate about once for every 4.3 rotations of the input shaft, resulting in a significant increase in torque.

Torque Calculation

Torque is calculated using the formula:

Torque=Power/Angular Velocity

In a gear reducer, the power remains constant, but the angular velocity (speed) decreases, resulting in an increase in torque.

Applications of Gear Reducers

Gear reducers are used in a wide range of applications:

- Industrial Machinery: They are essential for optimizing the performance of machinery by adjusting the speed and torque to match the application requirements.

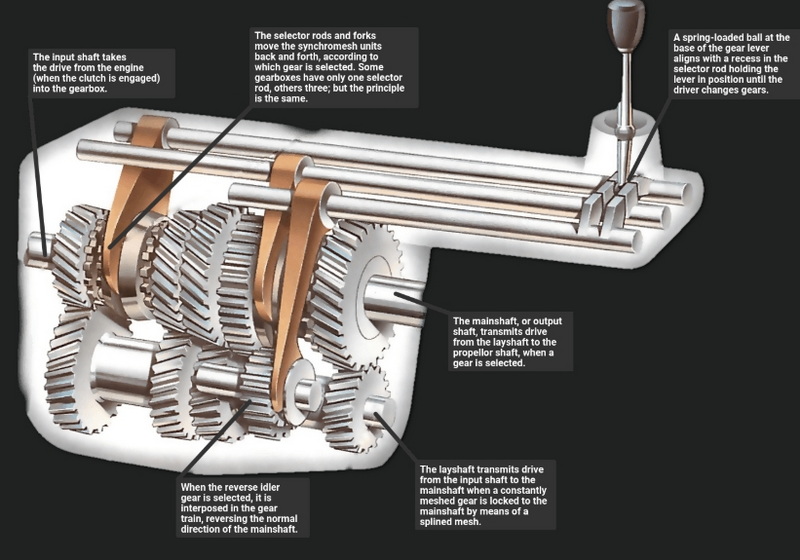

- Vehicles: Gear reducers are used in vehicles to adjust the high-speed rotation of the engine to a lower speed suitable for the wheels, ensuring efficient power transmission and safety.

- Robotics: In robotics, gear reducers are used to achieve precise control over movements by adjusting the speed and torque of motors.

Selecting the Right Gear Reducer

Selecting an appropriate gear reducer involves a careful balance of cost, performance, and reliability. Factors such as the geometry of the housing, input and output shafts, loading factors (input and output torque, speed, horsepower), and operational conditions (environmental factors like temperature, vibration) must be considered.

Geometrical Considerations

The geometry of the gear reducer, including the housing and shafts, must match the equipment it will be integrated with. This ensures proper installation and efficient operation.

Loading Factors

Understanding the required torque and speed is crucial. Gear reducers are designed to handle specific loads, and exceeding these can lead to premature failure.

Operational Conditions

The environment in which the gear reducer operates is also important. For example, gear reducers used in harsh environments may require special lubricants or materials to withstand conditions like high temperatures or vibrations.

What Does Wcd To Center Mean in A Gear Reducer_2

Maintenance of Gear Reducers

Regular maintenance is essential for extending the lifespan of gear reducers. This includes tasks such as oil changes and flushing the gear reducer to remove contaminants.

Oil Change Intervals

Following the manufacturer's guidelines for oil change intervals is crucial. Using the right type and viscosity of oil ensures smooth operation and reduces wear on moving parts.

Flushing the Gear Reducer

Flushing involves circulating clean oil through the system to remove dirt and debris. This can be done using flushing oil or clean operating oil, and it helps maintain the efficiency and longevity of the gear reducer.

Advanced Gear Reducer Designs

Cycloidal Gear Reducers

Cycloidal gear reducers are known for their precision and efficiency. They use a cycloidal disc that meshes with a cam follower to achieve high reduction ratios without backlash, making them ideal for applications requiring precise control, such as robotics and machine tools.

Planetary Gear Reducers with High Load Capacity

Planetary gear reducers are compact and offer high load capacity, making them suitable for applications that require rapid acceleration and high torque, such as in machine centers and agricultural machinery. Their design allows for multiple stages of gear reduction, enabling high gear ratios in a compact package.

Custom Gearbox Design

In some cases, custom gearbox designs are necessary to meet specific application requirements. This involves calculating the gear ratio, selecting materials, and ensuring proper spacing between gears to account for thermal expansion and backlash.

Future Developments in Gear Reducers

As technology advances, gear reducers are becoming more efficient and compact. Innovations in materials and design are leading to higher torque densities and quieter operation. Additionally, the integration of smart technologies allows for real-time monitoring and optimization of gear reducer performance, enhancing reliability and reducing maintenance needs.

Integration of IoT and AI

The integration of IoT and AI in gear reducers enables real-time monitoring of performance metrics such as temperature, torque, and vibration. This allows for predictive maintenance strategies, reducing downtime and extending the lifespan of the gear systems[2][5].

Sustainable Materials and Practices

There is a growing focus on designing gear reducers that are more energy-efficient and environmentally friendly. This includes using materials that are recyclable and reducing energy consumption through optimized gear ratios and lubrication systems[3][6].

Environmental Considerations

The design of gearboxes holds significant implications for environmental sustainability, extending far beyond their mechanical function. By prioritizing environmentally-conscious design principles, engineers can mitigate the environmental impact of gearboxes, contributing to global efforts towards sustainability[3][6].

Use of Recyclable Materials

The use of recyclable materials in gearbox construction can significantly enhance environmental sustainability. Modular designs with standardized components facilitate efficient recycling at the end of the gearbox's life cycle[3].

Energy Efficiency and Lubrication

Optimizing energy efficiency and using environmentally friendly lubricants are crucial for reducing the environmental footprint of gearboxes. This includes assessing factors such as energy consumption, emissions, and maintenance requirements during the operational phase[3][6].

Conclusion

In conclusion, understanding the term "WCD" in the context of gear reducers is crucial for ensuring proper installation and optimal performance of machinery. Gear reducers play a vital role in adjusting the speed and torque of rotating shafts, making them indispensable in various industrial and mechanical applications. By selecting the appropriate gear reducer with the correct WCD and gear ratio, users can achieve efficient power transmission and enhance the overall performance of their machinery.

What Does Wcd To Center Mean in A Gear Reducer_3

FAQ

1. What is the primary function of a gear reducer?

A gear reducer is designed to decrease the speed of an input rotation while increasing the torque output, making it suitable for applications where high torque at lower speeds is required.

2. How is the gear ratio calculated in a gear reducer?

The gear ratio is calculated by dividing the number of teeth on the output gear by the number of teeth on the input gear. This ratio determines the speed reduction and torque increase.

3. What does WCD stand for in the context of gear reducers?

In the context of gear reducers, particularly worm gear reducers, WCD typically refers to the center distance between the worm and the worm gear, which is crucial for proper alignment and efficient power transmission.

4. What are the common types of gear reducers?

Common types include worm gear reducers, planetary gear reducers, bevel gear reducers, and spur gear reducers, each designed for specific applications based on their characteristics.

5. Why is proper alignment important in gear reducers?

Proper alignment is essential to ensure efficient power transmission, prevent wear on the gears, and maintain optimal performance of the machinery.
