Hydraulic motors are essential components in hydraulic systems, converting fluid power into mechanical energy to drive machinery and equipment. This article will delve into the principles behind hydraulic motors, their types, applications, and selection criteria, along with visual aids and FAQs to provide a comprehensive understanding.
Hydraulic motors are mechanical actuators that convert hydraulic energy into rotational motion. They are widely used in industrial, agricultural, and mobile applications due to their ability to provide high torque at low speeds. The operation of a hydraulic motor involves the flow of pressurized hydraulic fluid into the motor, which pushes against internal components like gears, vanes, or pistons, causing the motor's output shaft to rotate.
The working principle of a hydraulic motor can be summarized as follows:
1. Fluid Inlet: Pressurized hydraulic oil enters the motor through the inlet port.
2. Pressure Conversion: The fluid's pressure is converted into mechanical energy as it moves through the motor's internal components.
3. Rotational Motion: The force generated by the fluid's movement causes the motor's output shaft to rotate.
4. Fluid Outlet: The fluid exits the motor through the outlet port, typically returning to the hydraulic oil tank.
Hydraulic motors are categorized into several types based on their design and functionality:

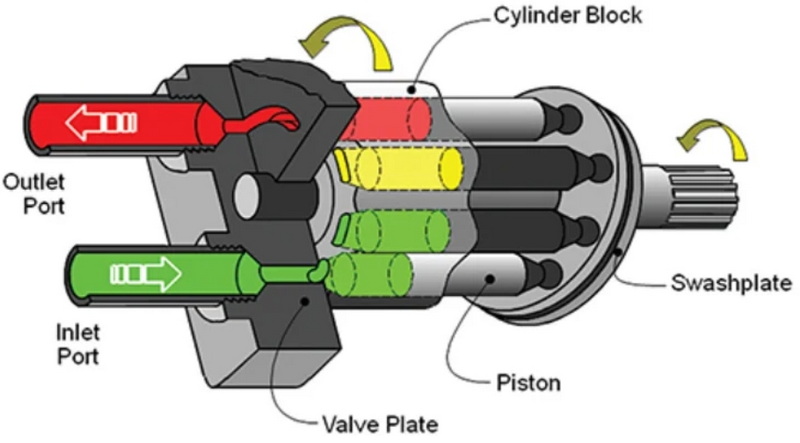

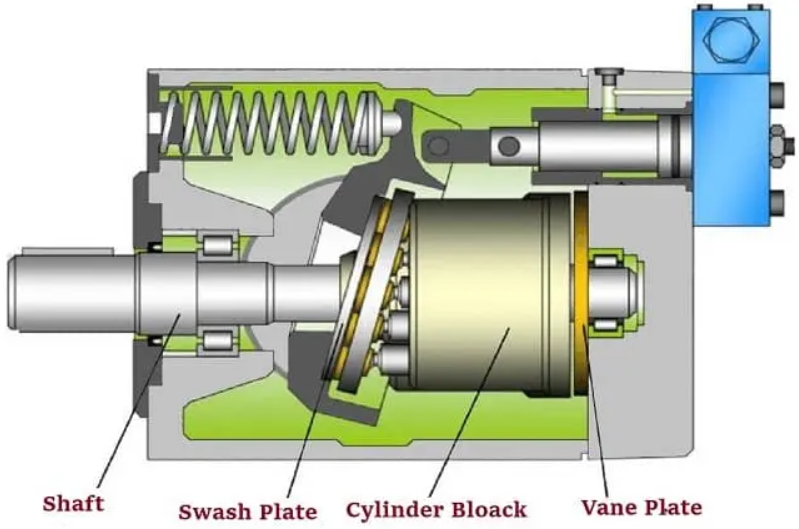

- Description: These motors use reciprocating pistons aligned axially with the drive shaft. The pistons move in and out of the cylinder block, causing the drive shaft to rotate.
- Application: Suitable for high-pressure applications and provide smooth operation.
- Description: These motors have pistons arranged radially around the drive shaft. The pistons push against a cam ring, generating torque.
- Application: Ideal for high-torque, low-speed applications.

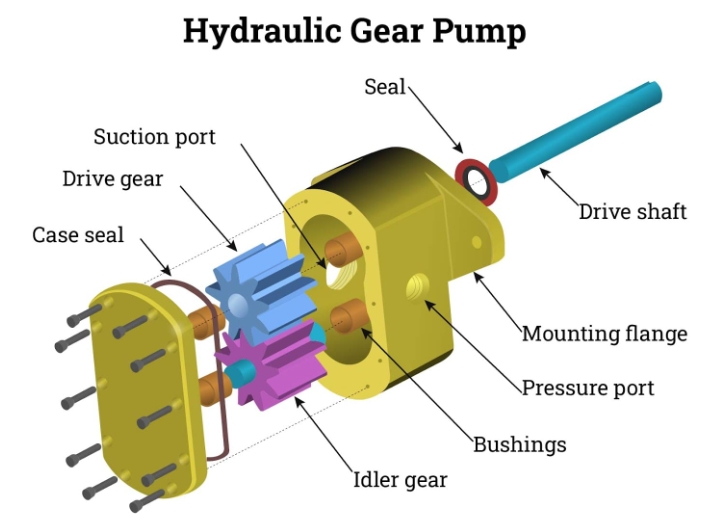

- Description: These motors use two gears to convert fluid pressure into rotational motion. High-pressure oil flows between the gears, causing them to rotate.
- Application: Suitable for low to moderate torque applications.
- Description: These motors use vanes that slide in and out of slots in the rotor, driven by fluid pressure.
- Application: Known for their simplicity and compact design.
Hydraulic motors are versatile and are used in various industries:
- Industrial Applications: Used in machinery like winches, conveyors, and cranes.
- Agricultural Applications: Found in combine harvesters and tractors.
- Mobile Applications: Used in construction equipment and vehicles.
Choosing the right hydraulic motor involves several considerations:
1. Torque and Speed Requirements: Determine the required torque and speed for your application.
2. Operating Pressure: Consider the operating pressure of your system.
3. Environmental Conditions: Evaluate the operating environment, including temperature and exposure to contaminants.
4. Space Constraints: Consider the physical size and shape of the motor.
5. Cost and Maintenance: Balance your budget with the motor's performance and maintenance requirements.
Comparison of Hydraulic Motor Types
| Motor Type | Torque | Speed | Pressure | Application |
|---|---|---|---|---|
| Axial Piston | High | Medium | High | High-pressure applications |
| Radial Piston | High | Low | High | High-torque applications |
| Gear Motor | Medium | Medium | Medium | Low to moderate torque |
| Vane Motor | Low | High | Low | Compact designs |
Regular maintenance is crucial to ensure the longevity and efficiency of hydraulic motors. Common issues include:
- Leakages: Check for signs of fluid leaks around seals and connections.
- Contamination: Regularly inspect and clean the system to prevent contamination.
- Wear and Tear: Monitor for signs of wear on moving parts and replace them as needed.
Hydraulic motors offer several advantages over other types of motors:
- High Torque at Low Speeds: Ideal for applications requiring significant power at low speeds.
- Compact Design: Many hydraulic motors are compact, making them suitable for space-constrained applications.
- Smooth Operation: Provide smooth and consistent operation, reducing vibration and noise.
As technology advances, hydraulic motors are becoming more efficient and environmentally friendly. Innovations include:
- Energy-Efficient Designs: New designs focus on minimizing energy loss and improving efficiency.
- Sustainable Materials: The use of sustainable materials in construction is becoming more prevalent.
- Digital Integration: Integration with digital systems for better monitoring and control.
Hydraulic motors are often used in crane systems to provide the high torque needed for lifting heavy loads. Their ability to operate smoothly under heavy loads makes them ideal for such applications.
In agricultural settings, hydraulic motors are used in tractors to power attachments like plows and harvesters. Their compact design and high torque output make them suitable for these tasks.
In construction, hydraulic motors are used in excavators and bulldozers. They provide the necessary power for moving heavy machinery and performing tasks like digging and lifting.
When working with hydraulic motors, safety is paramount. Ensure that all personnel are trained on proper handling and maintenance procedures. Always follow safety guidelines to prevent accidents and injuries.
Hydraulic motors, like other hydraulic systems, can have environmental implications if not managed properly. Proper disposal of hydraulic fluids and adherence to environmental regulations are essential to minimize their ecological footprint.
The future of hydraulic motors is likely to involve more integration with advanced technologies, such as IoT sensors for real-time monitoring and predictive maintenance. This integration will enhance efficiency and reduce downtime.
Hydraulic motors play a crucial role in converting hydraulic energy into mechanical energy, making them indispensable in various industrial and mobile applications. Understanding the working principle, types, and selection criteria of hydraulic motors is essential for optimizing their performance and ensuring efficient operation.
Hydraulic motors work by converting the kinetic energy of pressurized fluid into rotary motion. The fluid pushes against internal components like gears, vanes, or pistons, causing the motor's output shaft to rotate.
The main types include axial piston motors, radial piston motors, hydraulic gear motors, and hydraulic vane motors. Each type is suited for different applications based on torque, speed, and pressure requirements.
When selecting a hydraulic motor, consider factors such as torque and speed requirements, operating pressure, environmental conditions, space constraints, and cost and maintenance.
Hydraulic motors are commonly used in industrial machinery, agricultural equipment, and mobile applications like construction vehicles and winches.
Hydraulic motors can fail due to issues like failed seals, clogged case drain filters, and contamination. Regular maintenance and inspection are crucial to prevent such failures.
