Hydraulic motors are widely used in various industrial applications, including construction machinery, conveyor belts, and mobile equipment. When hydraulic motors are connected in series, they can provide a constant high speed by maintaining a consistent flow rate through each motor. However, stopping a hydraulic motor in a series connection requires careful consideration to avoid damage and ensure safe operation.

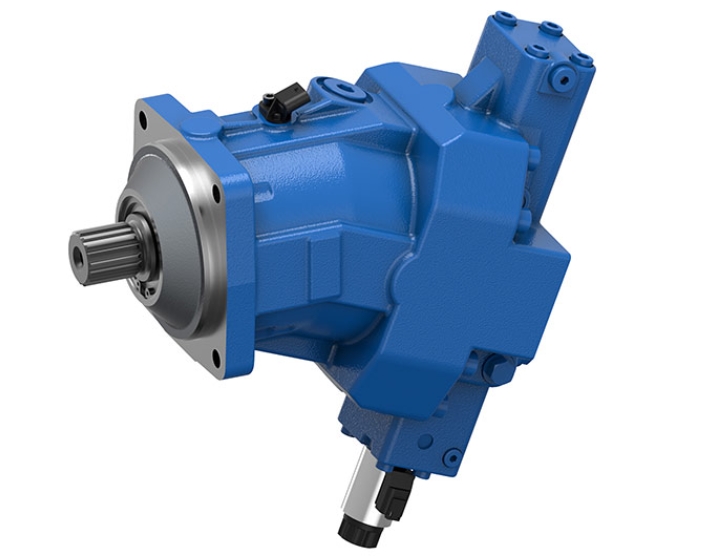

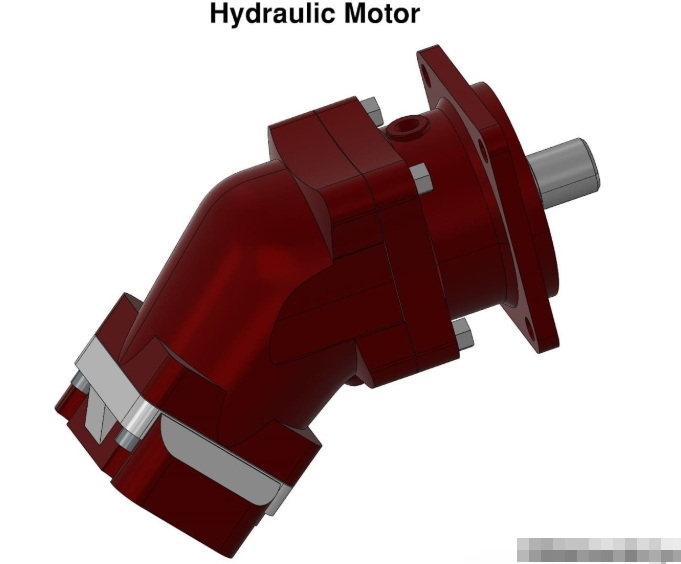

Hydraulic motors convert hydraulic energy into mechanical energy, using pressurized hydraulic fluid to generate rotational force. They are essential components in systems requiring high torque and low speed, such as winches and excavators.
- Driven Gear: Attached to the output shaft, it transmits rotational motion generated by hydraulic fluid pressure.
- Output Shaft: Transfers torque created by the driven gear to external machinery.
- Pistons/Vanes: Internal components that convert fluid pressure into mechanical energy.
In a series connection, hydraulic motors are linked so that the outlet of one motor becomes the inlet of the next. This setup ensures that the volume flow remains constant through each motor, unlike parallel connections where flow is divided among motors.
- Constant Speed: Maintains a consistent speed across all motors.
- Simplified Piping: Requires fewer lines and valves compared to parallel circuits.
- Reduced Torque: The available torque for each motor is reduced due to the pressure drop across each motor.
- Pressure Drop: Each motor experiences a decrease in inlet pressure, affecting its performance.
When stopping a hydraulic motor in a series connection, several factors must be considered to prevent damage:
1. Pressure Buildup: If the motor is stopped abruptly, pressure can build up, potentially damaging the motor or hoses.
2. Cross-Port Braking: This technique involves using relief valves to gradually reduce pressure and prevent sudden stops, which can be catastrophic.
Cross-port braking is essential when dealing with overrunning loads, such as flywheels. It involves directing the flow from the motor (acting as a pump) through relief valves to control pressure and prevent damage.
To better understand cross-port braking, watch this video demonstrating how relief valves are used to manage pressure during motor stoppage:
These valves are crucial during braking sequences to replenish fluid lost due to leakage, preventing cavitation in the motor circuit.
- Leakage Oil Line: Always connect a leakage oil line when motors are in series to manage return pressure.
- Regular Maintenance: Regularly inspect and maintain motors to prevent issues like overheating or seal damage.
Series connections are commonly used in applications requiring constant speed, such as:
- Conveyor Belts: Where consistent movement is necessary.
- Scraper Floor Drives: In loader wagons, where high speed and reliability are crucial.
In some systems, series connections can be combined with parallel connections using hydraulic valves. This allows for flexibility in managing torque and speed requirements.
The following diagram illustrates how series and parallel connections can be combined:
Modern hydraulic systems often incorporate advanced control systems, including electronic controls and sensors. These systems can monitor pressure, flow rate, and temperature in real-time, allowing for precise control over the operation of hydraulic motors.
- Improved Efficiency: Real-time monitoring helps optimize system performance.
- Enhanced Safety: Automatic shutdowns can be triggered in case of anomalies.
- Reduced Maintenance: Predictive maintenance reduces downtime and extends component life.
Hydraulic systems must also consider environmental factors, such as fluid leakage and noise pollution. Using environmentally friendly hydraulic fluids and implementing noise reduction measures are important considerations.
Eco-friendly hydraulic fluids are designed to be biodegradable and non-toxic, reducing the environmental impact of hydraulic systems.
In mining operations, series-connected hydraulic motors are used to drive conveyor belts. These systems require constant speed to ensure efficient material transport. Implementing cross-port braking ensures safe operation during shutdowns.
In agricultural machinery, series connections are used in scraper floor drives to maintain high speed and reliability. Regular maintenance and proper braking techniques are crucial to extend the lifespan of these systems.
In construction, hydraulic motors are used in excavators and cranes. Series connections help maintain consistent speed, which is essential for precise control during operations.
As technology advances, hydraulic systems are becoming more efficient and environmentally friendly. Future developments include the integration of renewable energy sources and advanced materials to reduce system weight and increase durability.
- Electric-Hydraulic Hybrids: Combining electric motors with hydraulic systems to improve efficiency and reduce emissions.
- Smart Sensors: Implementing AI-powered sensors for real-time monitoring and predictive maintenance.
In series connections, maintaining consistent pressure across all motors is crucial. Pressure compensators can be used to adjust the pressure at each motor, ensuring optimal performance.
Flow control valves are essential in managing the flow rate through each motor. They help maintain a consistent speed by regulating the volume of fluid passing through each motor.
Hydraulic motors generate heat during operation, which can affect performance and longevity. Implementing cooling systems or using heat-resistant materials can help manage thermal issues.
- Causes: Insufficient cooling, high ambient temperatures, or excessive load.
- Solutions: Implement cooling systems, reduce load, or use heat-resistant materials.
- Causes: Blockages in lines, faulty valves, or excessive leakage.
- Solutions: Inspect and clear blockages, replace faulty valves, or repair leaks.
Stopping a hydraulic motor in a series connection requires careful management of pressure and flow to prevent damage. Techniques like cross-port braking and the use of anti-cavitation valves are essential for safe operation. Understanding the principles of hydraulic motors and their connections is crucial for optimizing performance and longevity in industrial applications.
Hydraulic motors consist of key components such as gears, vanes, pistons, and actuators, which work together to convert hydraulic energy into mechanical energy.
In a series connection, the available torque for each motor is reduced due to the pressure drop across each motor. This means that while speed remains constant, the torque output decreases.
Cross-port braking involves using relief valves to manage pressure when a hydraulic motor stops, preventing sudden pressure spikes that could damage the motor or hoses. It is crucial for safe operation, especially with overrunning loads.
Anti-cavitation valves help replenish fluid lost during braking sequences, preventing cavitation in the motor circuit. They ensure that the motor remains operational by maintaining adequate fluid levels.
Series connections maintain a constant speed across all motors and simplify piping by requiring fewer lines and valves compared to parallel circuits.
