A 15 gear reducer, commonly referred to as a 15:1 gear reducer, is a mechanical device designed to reduce the speed of an input rotation while increasing the torque output. This is achieved through a gear train where a smaller input gear drives a larger output gear, resulting in a slower output speed and higher torque. The "15" in a 15 gear reducer indicates that the output shaft rotates once for every 15 rotations of the input shaft, effectively reducing the speed by a factor of 15 and increasing the torque by the same factor.
Gear reducers are essential components in machinery and vehicles, allowing high-speed motors to drive applications that require lower speeds but higher torques. They are widely used in conveyor systems, pumps, and automotive transmissions[6].

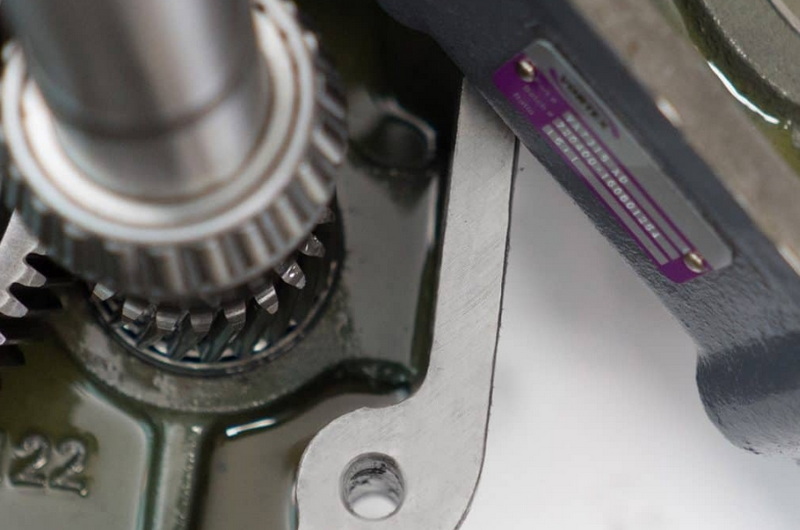

Gear reducers operate by using a series of interlocking gears. The input shaft, typically connected to a motor, drives a smaller gear that meshes with a larger gear on the output shaft. The ratio of the number of teeth on the output gear to the number of teeth on the input gear determines the reduction ratio. For example, if the output gear has 150 teeth and the input gear has 10 teeth, the reduction ratio is 15:1[6]. Gear reduction works by using gears to change the speed and torque of a mechanical system[6].
There are several types of gear reducers, each suited for different applications:

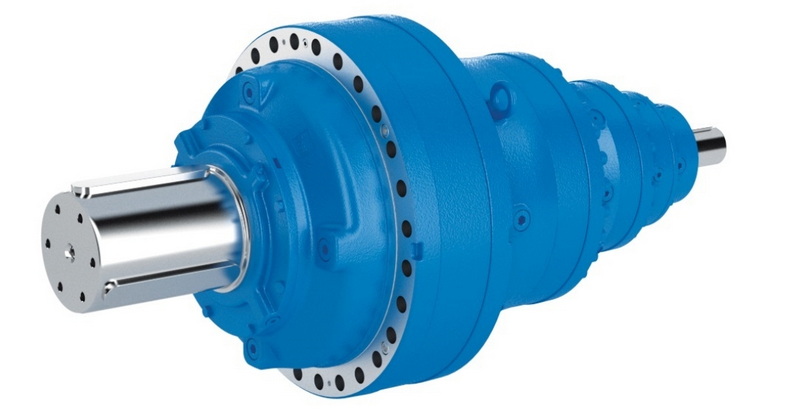

1. Planetary Gear Reducers: These use a central sun gear, orbiting planet gears, and a ring gear to achieve high torque and efficiency. They are compact and versatile, making them suitable for applications requiring rapid acceleration and high torque[8][6].
Planetary gear reducers are highly efficient, with efficiency losses as low as 3% per stage, making them ideal for applications where energy efficiency is crucial[4].
2. Helical Gear Reducers: Known for their durability and compact design, helical gear reducers are ideal for medium to high-speed applications. They feature slanted teeth that enhance meshing ratio and reduce noise[6].

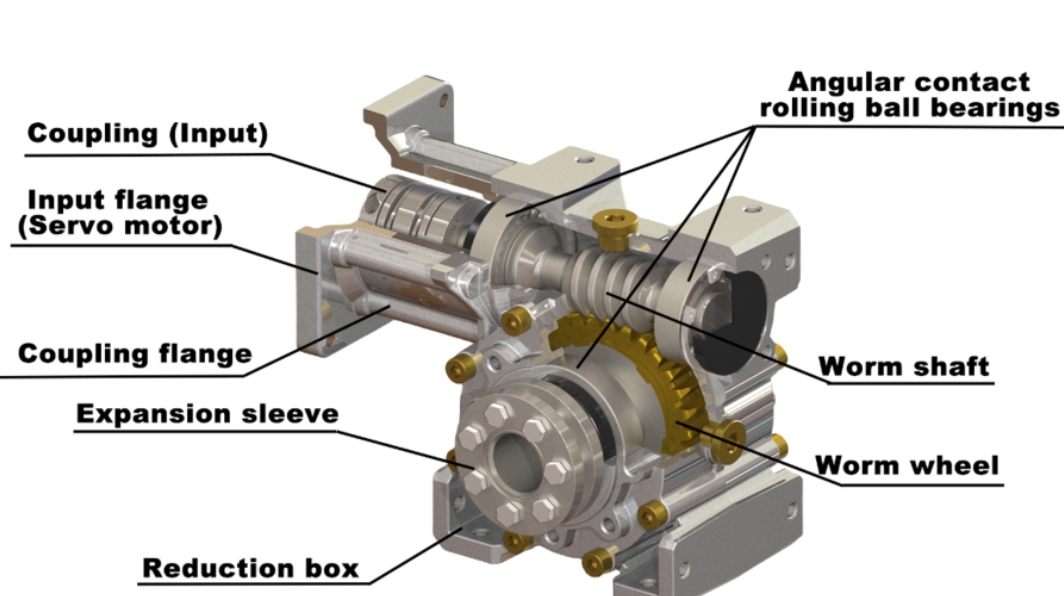

3. Worm Gear Reducers: These are compact and suitable for applications requiring high transmission ratios. They are often used in conveyors and material handling due to their non-reversibility[6].
Worm gear reducers provide efficient, space-saving solutions for speed reduction and increased torque. However, they have lower efficiency compared to other types, often around 50%[4].
4. Bevel Gear Reducers: Used for applications requiring a right-angle speed reduction, bevel gear reducers are designed to handle high power and torque[6].
5. Parallel Shaft Gear Reducers: These have input and output shafts that are parallel, offering high precision and transmission efficiency. They are commonly used in cranes and elevators[6].
Gear reducers are used in a wide range of applications:
- Conveyor Systems: Gear reducers are essential for driving conveyors in industries like aggregate, agriculture, and material handling[6].
- Packaging Machinery: They provide the necessary torque for machinery that requires precise control over speed and force[6].
- Robotics: Gear reducers are used in robotic arms and grippers to achieve precise movements[6].
- Automotive Systems: They are crucial in vehicle transmissions to adjust engine speed to wheel speed[6].
- Renewable Energy Systems: Used in wind turbines and solar trackers to optimize energy output[5].
1. High Efficiency: Gear reducers can achieve high efficiency by minimizing energy loss during transmission[6].
2. Compact Design: Many types of gear reducers are designed to be compact, making them suitable for space-constrained applications[5].
3. High Torque Output: They provide increased torque, which is essential for applications requiring significant force[6].
4. Quiet Operation: Many gear reducers, such as helical and bevel gear reducers, operate with minimal noise[6].
1. Complexity: Some gear reducers, like planetary gearboxes, can be complex and require precise assembly[6].
2. Cost: High-quality gear reducers can be expensive, especially those with advanced features[6].
3. Maintenance: Regular maintenance is necessary to ensure optimal performance and extend lifespan[6].
Regular maintenance is crucial for extending the lifespan of gear reducers. This includes:
- Lubrication: Proper lubrication reduces friction and wear between gears. For example, worm gearboxes require regular lubrication to prevent overheating and wear[4].
- Inspection: Regular inspections help detect signs of wear or damage early[6].
- Temperature Monitoring: Excessive heat can lead to lubricant breakdown and increased wear. Monitoring temperature is essential, especially in worm gearboxes[4].
- Cleaning: Regular cleaning prevents dirt buildup and maintains efficiency[6].
The automotive industry is seeing a significant increase in the demand for gear reducers, particularly with the rise of electric vehicles (EVs). EVs require high-ratio gear reducers in their powertrains to enhance efficiency and reduce noise[2]. The use of advanced materials like carbon and aluminum in vehicles also drives the demand for compact, high-efficiency gear reducers[2]. Gear reduction is an essential component in transmissions, differentials, and steering systems, ensuring the smooth and controlled operation of vehicles[6].
Companies like ISHIBASHI Manufacturing have developed specialized gear reducers for various applications, including rainwater drainage pumps and levelling rolls[1]. These custom solutions highlight the versatility and importance of gear reducers in diverse industrial settings[1].
The future of gear reducers involves advancements in materials and design[5]. The integration of smart technologies and IoT (Internet of Things) can enhance monitoring and predictive maintenance, reducing downtime and improving overall efficiency[5][7]. Additionally, the increasing focus on sustainability is driving the development of more energy-efficient gear reducers[5]. Smart gear motors with built-in sensors help detect issues before failures occur, reducing downtime in industries like logistics and manufacturing[5].
The GR Reducer Kit is designed to enhance the performance of hoists by providing a 15:1 gear ratio[1]. This kit is used in industries such as manufacturing, construction, and material handling, where precise and powerful lifting capabilities are essential[1]. It allows for more precise load control and improved lifting performance by reducing the lifting speed while increasing the lifting capacity[1].
Advancements in 3D printing enable rapid prototyping and customization of gear reducers for specific applications[5][7]. This technology allows for the creation of complex geometries and tailored designs that can improve efficiency and reduce production time[7].
In summary, a 15 gear reducer is a specialized device used to reduce speed and increase torque in various mechanical systems. Understanding the types, applications, and advantages of gear reducers is essential for selecting the right device for specific industrial needs.
A gear reducer's primary function is to reduce the speed of an input rotation while increasing the torque output. This is achieved through a series of interlocking gears with different numbers of teeth[6].
Common types include planetary, helical, worm, bevel, and parallel shaft gear reducers. Each type is suited for different applications based on factors like speed, torque, and space constraints[6].
By reducing the load on a motor through gearing, gear reducers can extend motor lifespan. Greater gearing reduction can mean less stress on the motor, potentially improving longevity[6].
Gearmotors combine a motor and gearbox into one unit, simplifying design and reducing engineering costs. They provide high torque at low speeds and are compact[6].
Regular maintenance, including lubrication and inspections, should be performed according to the manufacturer's guidelines to ensure optimal performance and longevity[6].
