In the ever-evolving world of mechanical engineering and automation, the 90 degree gear reducer—often called a right-angle gear reducer—stands out as a vital component for efficient power transmission. These devices are engineered to change the direction of rotational power by 90 degrees, making them indispensable in situations where space is limited or where machinery layouts require a shift in axis. This article provides a comprehensive exploration of 90 degree gear reducers, delving into their design, operation, types, applications, selection criteria, maintenance, and troubleshooting. Richly illustrated with images and videos, and capped with an in-depth FAQ, this guide is your go-to resource for understanding and leveraging the power of the 90 degree gear reducer.
A 90 degree gear reducer is a mechanical transmission device that redirects rotational motion between two shafts set at a right angle to each other. Its primary purpose is to reduce the input speed from a motor, thereby increasing the output torque, while simultaneously altering the axis of rotation by 90 degrees. These gear reducers are essential in countless industrial and commercial applications where spatial constraints or machinery design dictate a change in power transmission direction.
The operation of a 90 degree gear reducer is rooted in the interplay of specialized gears—such as worm gears, bevel gears, or hypoid gears—that mesh at right angles. When rotational energy is supplied to the input shaft, the gear set transmits this energy to the output shaft, which is oriented perpendicularly to the input. The gear ratio determines the extent of speed reduction and torque multiplication.
- Input: Rotational energy is delivered to the input shaft, typically from an electric motor or engine.
- Gear Engagement: The input shaft engages with the gear set (worm, bevel, or hypoid), which redirects the motion by 90 degrees.
- Output: The output shaft, now perpendicular to the input, delivers reduced speed and increased torque to the connected machinery.
This right-angle power transfer is what distinguishes the 90 degree gear reducer from inline or parallel shaft gear reducers.
The design and internal gearing of a 90 degree gear reducer determine its performance characteristics and suitability for various applications. The primary types include:

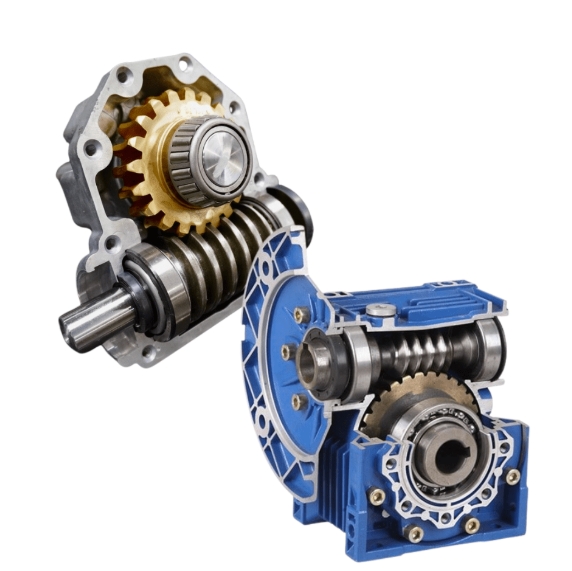

Worm gear reducers utilize a screw-like worm that meshes with a worm wheel. This configuration allows for high reduction ratios in a compact form factor. Worm gear reducers are known for their quiet operation and, in many cases, their self-locking ability, which prevents the output shaft from back-driving the input.
Bevel gear reducers employ conically shaped gears with intersecting axes. These gears are highly efficient, offering smooth and reliable power transmission. Bevel gear reducers are ideal for applications requiring high-speed operation and robust torque handling.
Hypoid gear reducers are similar to bevel gear reducers but feature offset axes, allowing for higher torque transmission and smoother operation at elevated speeds. They are commonly found in automotive and heavy machinery applications.
These advanced gear reducers combine bevel gears for the 90-degree redirection with planetary gear sets for high reduction ratios and precision. They are particularly suited for robotics and automation systems that demand accuracy and compactness.

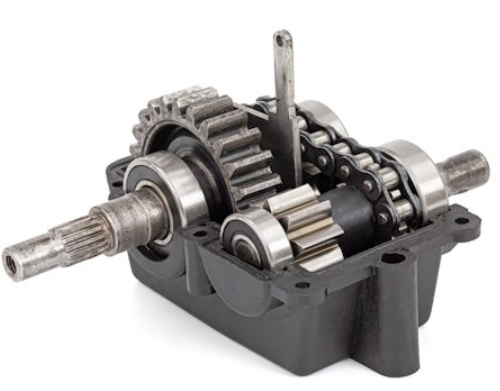

A 90 degree gear reducer is composed of several critical components, each contributing to its performance and durability:
- Input Shaft: Receives rotational power from the driving source.
- Output Shaft: Delivers the reduced speed and increased torque at a right angle to the input.
- Gear Set: The heart of the reducer, consisting of worm, bevel, or hypoid gears.
- Bearings: Support the shafts and minimize friction during operation.
- Housing: Encases the internal components, providing protection and maintaining alignment.
- Seals: Prevent lubricant leakage and protect against contaminants.
- Lubrication System: Ensures smooth gear operation and prolongs component life.
The precise engineering of these elements ensures the reliable and efficient function of the gear reducer.
The versatility and compact design of 90 degree gear reducers make them indispensable in a broad spectrum of industries and applications:
- Conveyor Systems: Used to alter the direction of movement and control speed in material handling lines.
- Packaging Equipment: Essential for compact machinery layouts and precise motion control.
- Robotics: Enable joint articulation and compact actuator designs for advanced automation.
- Automotive: Integral to steering systems, differential drives, and power transmission.
- Material Handling: Power lifts, hoists, and cranes for efficient load movement.
- Printing Presses and Machine Tools: Deliver accurate and reliable power transmission for high-precision operations.
- Textile Machinery: Facilitate directional changes in complex weaving and spinning systems.
- Food Processing: Used in compact, sanitary conveyors and mixers.
- Space Efficiency: The right-angle design allows for installation in tight spaces where inline reducers would not fit.
- Versatility: Suitable for a wide range of orientations and mounting configurations.
- High Reduction Ratios: Particularly with worm gear designs, enabling significant speed reduction in a single stage.
- Quiet Operation: Especially in worm gear reducers, due to the sliding action of the gears.
- Self-Locking Capability: Prevents back-driving in certain worm gear configurations, enhancing safety.
- Lower Efficiency: Worm gear reducers, in particular, can experience energy losses due to sliding friction.
- Heat Generation: High reduction ratios and friction can lead to increased heat, necessitating proper cooling and lubrication.
- Limited Torque Capacity: Compared to some inline or parallel shaft reducers, right-angle reducers may have lower torque limits.
- Maintenance Requirements: Regular lubrication and inspection are essential to prevent premature wear and failure.
Selecting the right 90 degree gear reducer for your application involves careful consideration of several factors:
- Output Torque and Speed Requirements: Match the reducer's capabilities to the demands of your machinery.
- Input Power and Speed: Ensure compatibility with the driving motor or engine.
- Desired Gear Ratio: Choose a ratio that provides the necessary speed reduction and torque multiplication.
- Mounting Configuration: Assess available space and orientation options.
- Duty Cycle: Consider whether the application is continuous or intermittent.
- Efficiency Needs: Higher efficiency may be critical in energy-sensitive environments.
- Noise and Vibration Tolerance: Some applications, like medical equipment, require ultra-quiet operation.
- Environmental Conditions: Account for temperature extremes, humidity, dust, or corrosive substances.
- Maintenance Accessibility: Ensure that the reducer can be easily serviced in its intended location.
Proper installation is crucial to the performance and longevity of a 90 degree gear reducer. Here are some best practices:
- Alignment: Ensure precise alignment between the input and output shafts to minimize wear and vibration.
- Mounting: Securely fasten the reducer to a stable base to prevent movement during operation.
- Lubrication: Fill the reducer with the recommended lubricant before startup and check for leaks.
- Load Testing: Gradually apply load to the system to verify smooth operation and detect any abnormal noise or vibration.
- Environmental Protection: Install guards or covers if the reducer is exposed to harsh conditions.
Following these guidelines helps prevent premature failure and ensures optimal performance.
Regular maintenance is essential for reliable operation and extended service life of a 90 degree gear reducer:
- Lubrication: Check and replenish lubricant at recommended intervals. Use only manufacturer-approved lubricants.
- Inspection: Regularly inspect for abnormal noise, vibration, or overheating.
- Seal and Gasket Checks: Ensure seals are intact to prevent leaks and contamination.
- Alignment Verification: Misalignment can lead to increased wear and early failure.
- Load Monitoring: Avoid overloading, which can cause gear and bearing damage.
| Problem | Possible Cause | Solution |
|---|---|---|
| Overheating | Overload, poor lubrication | Reduce load, improve lubrication |
| Excessive Noise | Misalignment, gear wear | Realign, replace worn components |
| Vibration | Bearing failure, imbalance | Replace bearings, inspect gears |
| Leakage | Damaged seals | Replace seals, tighten fasteners |
The field of power transmission is constantly evolving, and 90 degree gear reducers are no exception. Recent advancements include:
- Advanced Materials: Use of lightweight, high-strength alloys and composites for improved durability and efficiency.
- Precision Manufacturing: CNC machining and advanced gear-cutting techniques for tighter tolerances and smoother operation.
- Integrated Sensors: Smart gear reducers with built-in sensors for real-time monitoring of temperature, vibration, and load.
- Lubrication Systems: Automated lubrication systems that extend maintenance intervals and reduce downtime.
- Compact Designs: Miniaturized right-angle reducers for use in robotics, medical devices, and aerospace applications.
- Eco-Friendly Lubricants: Adoption of biodegradable and low-toxicity lubricants for environmentally sensitive industries.
These innovations are driving greater efficiency, reliability, and versatility in 90 degree gear reducer technology.
The 90 degree gear reducer is a cornerstone of modern mechanical design, enabling efficient, reliable, and compact power transmission in countless industries. Its ability to redirect motion, reduce speed, and increase torque makes it an essential component in applications ranging from robotics and automation to heavy machinery and automotive systems. By understanding the types, working principles, selection criteria, and maintenance requirements of 90 degree gear reducers, engineers and technicians can ensure optimal performance and longevity for their systems. As technology advances, these gear reducers will continue to evolve, offering even greater efficiency, precision, and versatility for the challenges of tomorrow.
A standard gear reducer typically has input and output shafts aligned in the same direction (inline or parallel), while a 90 degree gear reducer has input and output shafts arranged at a right angle (90 degrees) to each other, allowing for directional changes in power transmission.
Worm gear reducers are commonly used for high-torque, low-speed applications due to their high reduction ratios and self-locking capabilities. However, for higher efficiency and continuous duty, bevel or hypoid gear reducers may be preferable.
The gear ratio is calculated by dividing the input speed by the output speed. For example, if the input shaft rotates at 1500 RPM and the output shaft at 75 RPM, the gear ratio is 1500 divided by 75, resulting in a 20:1 ratio.
Routine maintenance tasks include regular lubrication, checking for leaks, inspecting for unusual noise or vibration, ensuring proper alignment, and replacing worn components as needed.
Not always. While many modern designs offer flexible mounting options, some types (especially worm gear reducers) have specific installation requirements to ensure proper lubrication and avoid premature wear. Always consult the manufacturer's instructions for mounting guidelines.
