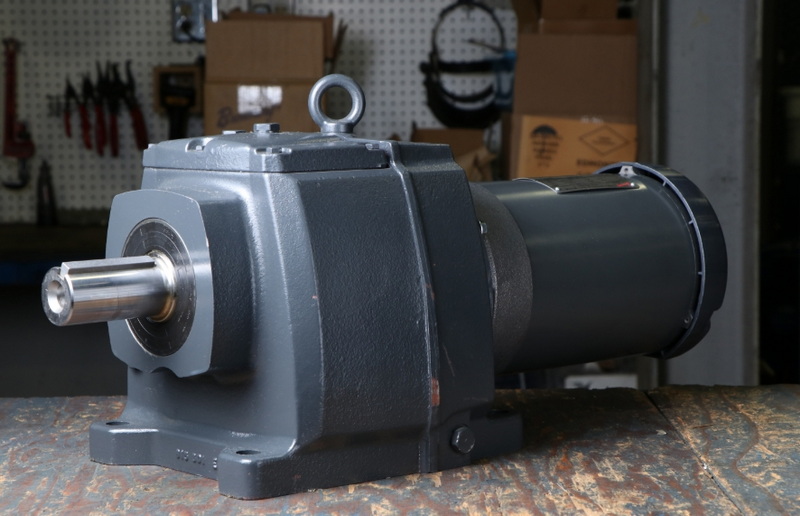

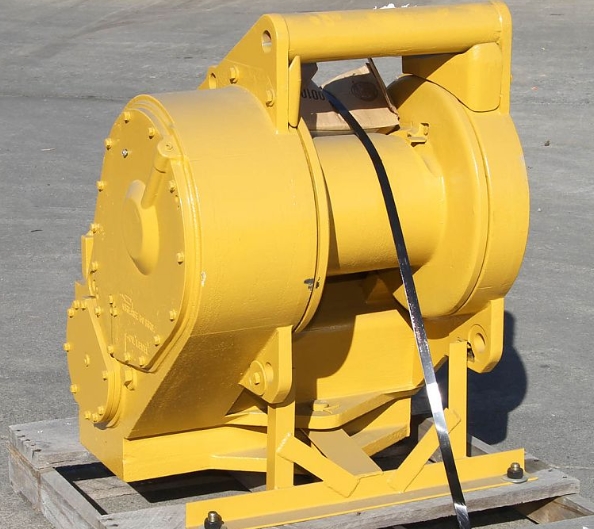

A gear reducer motor, often referred to as a gear motor, is a device that combines an electric motor with a gear reducer. This integration allows the motor to produce lower rotational speeds and higher torque outputs compared to a standard motor alone. The gear reducer is a critical component that adjusts the rotational speed from the motor before it reaches the machinery, ensuring that the machinery can effectively utilize the motor's power.
Gear reducers, also known as speed reducers, are mechanical devices that use a set of interlocking gears to reduce the speed of rotation from a power source while increasing the torque. They consist of a gear train that reduces the high-speed rotation of the motor's shaft to a slower speed, thereby increasing the output torque. The gears in a speed reducer have more teeth compared to the input gear, allowing the output gear to turn more slowly while providing greater torque.
Positioned between a motor and machinery, a speed reducer moderates the motor's speed to ensure that the machinery can effectively utilize the motor's power. It achieves this by employing a combination of large and small gears that work in tandem to decrease the input speed and boost the torque. This adjustment in speed enables finer control over processes, leading to improved performance and results.
Gear reducers can incorporate various types of gearboxes, including planetary, cylindrical, parallel shaft, worm, or screw types, each serving specific functions to meet application needs. Most gear reducers feature multiple gear series with varying gear ratios, which facilitate substantial gear reduction.
Spur gear reducers feature straight teeth that are aligned parallel to the axis. They are the most common type of gear reducer and can incorporate multiple gears with varying gear ratios. Spur gear gearboxes are known for their high efficiency, minimal backlash, and robust stability.

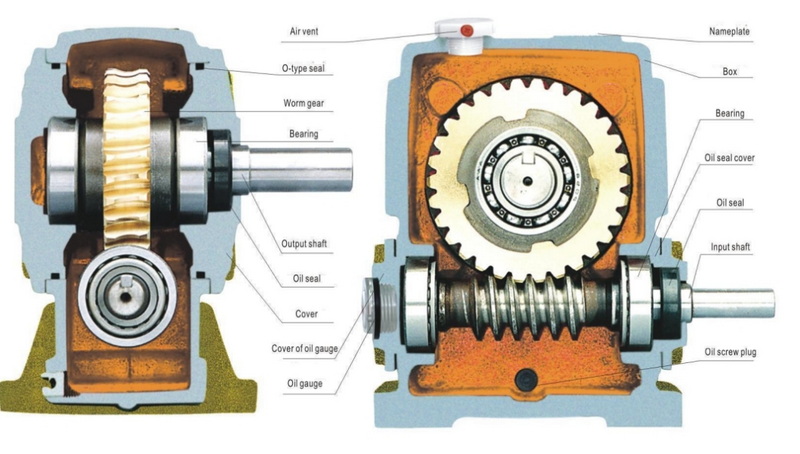

Worm gear reducers feature a worm pinion input and an output worm gear arranged at a right angle. They convert the motor's high speed into a lower speed output with increased torque. Worm gear reducers are especially suited for space-saving applications due to their compact design and the small diameter of the output gear, while still providing excellent speed reduction in a compact package.
Bevel gear reducers use an angled bell crank that enables the system's rotational direction to shift from transverse to longitudinal. They are designed to be compact yet capable of handling substantial power from three-phase asynchronous motors, synchronous motors, or asynchronous servo motors. Bevel gear reducers operate with minimal noise while delivering high performance and exceptional energy efficiency.
Planetary gear reducers have a sun gear in the middle and multiple planetary gears inside a ring gear. There are fixed and movable internal gears. Using gears with different numbers of teeth allows these reducers to produce high gear ratios and large reductions in speed.
Strain wave gear reducers are high-performance reduction gears that use the strain wave gearing principle. They are driven by an elliptical wave generator that is placed inside a thin, cup-shaped elastic metal body. When the wave generator rotates and creates waves in the elastic metal body, the body comes into contact with the external circular gear. As the teeth of the elastic metal body engage the teeth of the external circular gear, the body rotates.
In addition to high torque, low inertia, and compact size, strain wave gear reduction gears have almost no backlash and have low vibration and noise, allowing for quiet and stable operation.
A gear reducer consists of a set of interlocking gears of different sizes mounted on shafts. One small drive gear engages with a larger driven gear. Due to the size difference, the drive gear must rotate multiple times to turn the driven gear once. This step-down of speed produces gear reduction.
The gear ratio determines the amount of reduction. It is calculated by comparing the number of teeth on the drive gear to the teeth on the driven gear. For example, if the drive gear has 10 teeth and the driven gear has 40 teeth, the ratio would be 1:4. This means for every 1 rotation of the drive gear, the driven gear only rotates 0.25 times. The output speed is reduced by 75% but torque is multiplied by 4X.
Gear reducers are widely used in various applications where speed reduction and torque increase are necessary. Some common applications include:
- Conveyor Systems: Gear reducers are used to control the speed of conveyor belts, ensuring smooth and efficient material handling.
- Packaging Machinery: They are used in packaging machines to adjust the speed and torque according to the packaging requirements.
- Robotics: Gear reducers are essential in robotic systems for precise movement and control.
- Automotive Systems: Used in vehicles for gearboxes and other mechanical systems.
- Renewable Energy Systems: Applied in wind turbines and solar panels to optimize energy output.
The advantages of gear reducers include:
- High Efficiency: Gear reducers are designed to minimize energy loss during the speed reduction process.
- Compact Size: Many types of gear reducers, such as worm gear reducers, are compact and suitable for space-saving applications.
- Quiet Operation: Gear reducers like bevel and helical gear reducers operate with minimal noise.
- High Torque Output: They significantly increase the torque output, making them suitable for applications requiring high power.
The future of gear reducers is evolving with advancements in technology and industry demands. Key trends include:
- Increased Efficiency: Manufacturers are focusing on high-efficiency gearboxes to reduce energy loss and enhance performance[1].
- Compact Designs: There is a growing demand for miniaturized gear reducers, especially in medical devices and automation systems[1].
- Smart Technologies: Integration with IoT and predictive maintenance sensors allows for real-time monitoring and improved efficiency[1].
- Advanced Materials: The use of high-strength composites and lightweight alloys is becoming more prevalent[1].
Several industries have seen significant improvements through the implementation of gear reducers:
In the cement sector, robust gearboxes like GP101GP124 have been used to handle abrasive raw materials and high temperatures. These gearboxes have reduced maintenance costs and downtime, leading to increased operational efficiency[3].
Steelmakers have benefited from HSBW Series gear motors, which provide high torque and precision. This has resulted in increased output velocity and precision, meeting rising demands without compromising quality[3].
In food processing, GR101–GR124 gearboxes have ensured efficient operation while maintaining hygiene standards. They have improved productivity and safety by reducing processing times and minimizing downtime[3].
In the automotive industry, motor gear reducers play a crucial role in enhancing vehicle performance and efficiency:
- Electric Vehicles: Gear reducers optimize power delivery, improving acceleration and range[5].
- Hybrid Vehicles: They manage power from both internal combustion engines and electric motors, ensuring seamless transitions and maximizing efficiency[5].
- Advanced Driver-Assistance Systems (ADAS): Gear reducers provide precise torque and speed adjustments, enhancing ADAS functionality[5].
Regular maintenance is crucial for the longevity of gear reducers. This includes:
- Lubrication: Regular lubrication of gears to reduce friction and wear.
- Inspections: Periodic inspections to detect any signs of wear or damage.
- Safety Precautions: Ensuring proper grounding and following lockout/tagout procedures during maintenance.
Technological advancements are transforming the landscape of gear reducers, with a focus on efficiency, compactness, and smart integration:
- Digital Integration: Modern gearboxes are incorporating digital technologies such as IoT sensors and machine learning to enhance performance and predict maintenance needs[2].
- Energy Efficiency: High-efficiency gearboxes, such as helical and planetary gears, are being developed to minimize energy loss[1].
- Compact Designs: The use of advanced materials like high-strength composites and lightweight alloys is increasing, allowing for more compact designs[1].
The future of gear reducers is marked by several trends that will shape their development and application:
- Increased Electrification: As industries move towards electrification, gear reducers will play a crucial role in optimizing power delivery in electric and hybrid vehicles[5].
- Integration with Autonomous Technologies: Gear reducers will need to support complex power requirements and real-time adjustments in autonomous vehicles[5].
- Harmonic Drive Advancements: Harmonic drive gear reducers are evolving with advancements in materials and manufacturing techniques, offering increased efficiency and precision[7].
Gear reducers are impacting various industries by enhancing efficiency, reducing costs, and improving performance:
- Renewable Energy: Advanced gear reducers are used in wind turbines and solar tracking systems to optimize energy output[1].
- Manufacturing: Gear reducers are essential in robotics and CNC machines for precise control and high torque applications[1].
- Automotive: They are crucial in electric vehicles for optimizing power delivery and enhancing vehicle performance[5].
Despite the benefits, gear reducers face challenges such as heat generation and noise issues. However, these challenges also present opportunities for innovation:
- Cooling Solutions: Developing advanced cooling systems to mitigate heat generation and improve efficiency[5].
- Noise Reduction: Designing gear reducers with noise-reduction technologies to enhance user comfort[5].
Gear reducer motors are versatile devices that combine the efficiency of electric motors with the mechanical advantages of gear reducers. By reducing speed and increasing torque, they enable machinery to operate more effectively and efficiently. Understanding the types and applications of gear reducers is essential for selecting the right device for specific industrial needs.
A gear reducer's primary function is to decrease the rotational speed of a motor while increasing its torque output, allowing machinery to operate more efficiently.
Common types include spur gear reducers, worm gear reducers, bevel gear reducers, planetary gear reducers, and strain wave gear reducers.
Gear reducers achieve speed reduction by using a set of interlocking gears where a smaller drive gear engages with a larger driven gear, resulting in a lower output speed.
Common applications include conveyor systems, packaging machinery, robotics, automotive systems, and renewable energy systems.
Yes, gear reducers can be repaired by replacing worn components or repairing connections, though in many cases, replacing the entire unit may be more economical.
