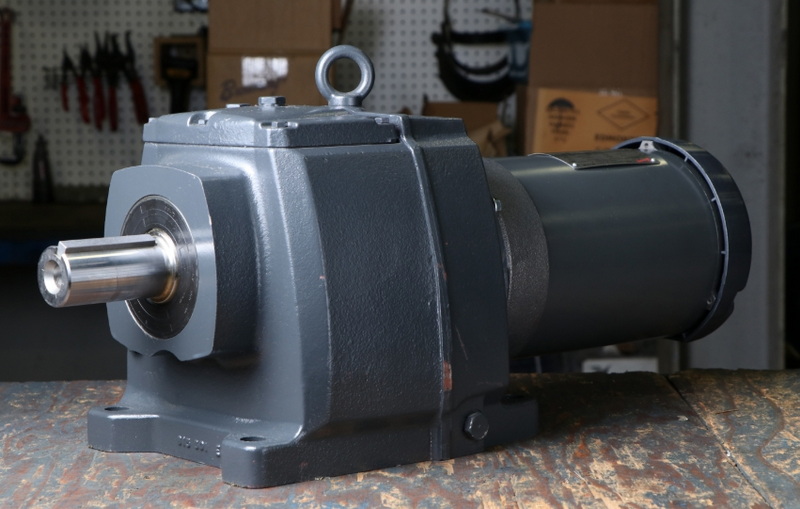

A gear reducer, also known as a gearbox or speed reducer, is a mechanical transmission device that connects a motor to a driven load. Its primary function is to modify the torque and speed between the motor and the load, allowing for more efficient operation of machinery by adjusting the output characteristics to match the requirements of the application.

Introduction to Gear Reducers

Gear reducers are essential components in mechanical systems, widely used in industries such as manufacturing, construction, and automotive. They are designed to reduce the speed of the motor while increasing the torque, which is crucial for applications that require significant force to move heavy loads or perform precise operations.

How Gear Reducers Work

The basic principle of a gear reducer involves using a set of gears with different sizes to achieve a reduction in speed and an increase in torque. The gear reduction ratio is determined by the number of teeth on the input and output gears. For example, if the input gear has 50 teeth and the output gear has 100 teeth, the reduction ratio is 2:1. This means the output gear rotates at half the speed of the input gear but with twice the torque.

Illustration of Gear Reduction:

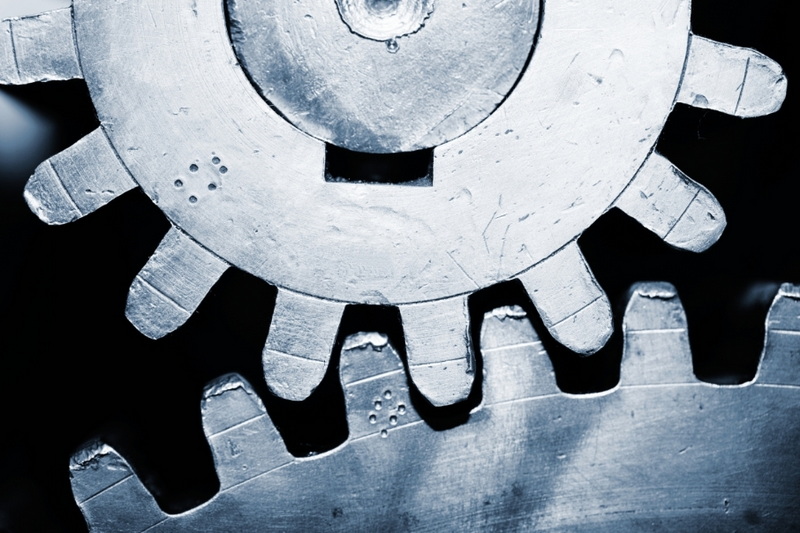

A simple gear reduction setup involves a small input gear engaging with a larger output gear. The smaller gear rotates faster and has less torque, while the larger gear rotates slower and has more torque.

Types of Gear Reducers

There are several types of gear reducers, each designed for specific applications:

1. Worm Gear Reducers: These use a threaded worm gear and a helical worm wheel. They provide high reduction ratios in a single stage and are often used in applications like elevators and conveyor systems.

Worm gear reducers are self-locking, meaning they cannot be reversed without external force, making them suitable for applications where reversibility is not required, such as controlling conveyors or hoists[8].

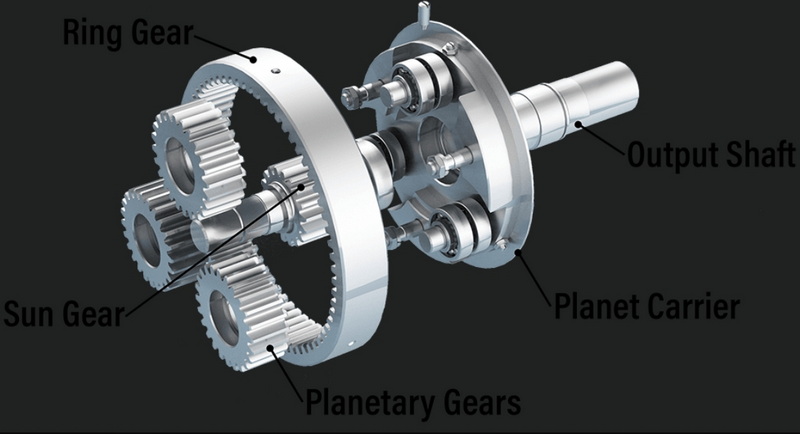

2. Planetary Gear Reducers: These feature a central sun gear, multiple planet gears, and an outer ring gear. They offer versatility in achieving various reduction ratios and are used in robotics and precision machinery.

Planetary gear reducers are highly compact and provide high torque output, making them ideal for applications requiring precise control and low speed[8].

3. Bevel Gear Reducers: These use conical teeth to transmit power between intersecting shafts. They are valuable in applications requiring a change in shaft direction, such as differentials in vehicles.

Bevel gear reducers are best suited for low ratio speed reduction and can handle very high power throughput, making them suitable for heavy-duty machinery like agricultural equipment and mining gear[8].

4. Helical Gear Reducers: These have angled teeth that engage more gradually than spur gears, resulting in smooth and quiet operation. They are employed in applications demanding precision and efficiency.

Helical gear reducers are characterized by their compact size, high transmission torque, and stable starting performance. They are widely used in industries such as mining, petroleum, and construction[2].

5. Cycloidal Gear Reducers: Also known as harmonic drives, they offer precise and zero-backlash gear reduction. They are popular in applications requiring high-precision motion control, like robotics and aerospace technology.

Cycloidal gear reducers are known for their high precision and are used in applications where precise control is essential. The future of harmonic drives involves advancements in materials, miniaturization, and smart technologies to enhance efficiency and precision[6].

Applications of Gear Reducers

Gear reducers are used in a wide range of applications where speed reduction and torque increase are necessary:

- Industrial Machinery: Gear reducers are crucial in manufacturing processes, such as conveyor systems, packaging machinery, and robotics.

- Automotive Systems: They are used in vehicles to adjust the high-speed rotation of the engine to a lower speed suitable for the tires.

- Renewable Energy Systems: Gear reducers are used in wind turbines to optimize energy production by adjusting the speed of the turbine blades.

- Mobility Equipment: Gear reducers are used in elevators and escalators to provide smooth and efficient movement.

- Precision Equipment: They are used in medical, surveying, and optical equipment where precise control is required[1].

Advantages of Gear Reducers

Gear reducers offer several advantages over other types of motor-gear combinations:

1. Simplified Design: They eliminate the need for separate motor and gearbox design, reducing engineering costs.

2. High Torque Output: Gear reducers provide high torque at low speeds, making them ideal for applications requiring significant force.

3. Compact Size: Many gear reducers are designed to be compact, allowing for efficient use of space in machinery.

4. Quiet Operation: Some types, like helical gear reducers, operate quietly, reducing noise pollution in industrial environments.

Maintenance and Repair

Regular maintenance is essential for extending the lifespan of gear reducers. This includes:

- Lubrication: Regular lubrication helps reduce wear and tear, ensuring smooth operation. The choice of lubricant should be based on the environmental and mechanical conditions of the reducer[1].

- Inspections: Regular inspections can identify potential issues before they become major problems.

- Repairs: While repairs are possible, the cost often makes replacement more economical.

Future Developments

The future of gear reducers involves advancements in materials, design, and technology. For instance, harmonic gear drives are evolving with the integration of advanced materials and additive manufacturing techniques to enhance precision and efficiency[6]. Additionally, there is a trend towards miniaturization and the use of smart technologies for real-time monitoring and predictive maintenance[6].

Conclusion

Gear reducers are vital components in mechanical systems, providing the necessary speed reduction and torque increase for efficient operation. Understanding the types, applications, and maintenance requirements of gear reducers is crucial for selecting the right device for specific applications.

FAQ

1. What is the primary function of a gear reducer?

A gear reducer's primary function is to reduce the speed of a motor while increasing its torque, allowing for more efficient operation of machinery by matching the output characteristics to the application's requirements.

2. What types of gear reducers are commonly used?

Common types include worm gear reducers, planetary gear reducers, bevel gear reducers, helical gear reducers, and cycloidal gear reducers, each suited for different applications based on their design and functionality.

3. How do gear reducers protect motors?

Gear reducers protect motors by bearing the increased torque during operation. When an overload occurs, the load on the motor is reduced by the gear ratio, preventing damage to the motor.

4. What are the advantages of using gear reducers?

Advantages include simplified design, high torque output, compact size, and quiet operation, making them ideal for various industrial applications.

5. Can gear reducers be repaired?

Yes, gear reducers can be repaired, but the cost often makes replacement more economical. Regular maintenance is key to extending their lifespan.
