Hydraulic motors are essential components in many industrial and mobile applications, converting hydraulic energy into mechanical power. Understanding how these motors rotate is crucial for engineers, technicians, and anyone working with hydraulic systems. This article will delve into the intricacies of hydraulic motor rotation, exploring various types of motors, their working principles, and applications.
Hydraulic motors operate on a simple principle: they convert the energy of pressurized fluid into rotational mechanical energy. When pressurized hydraulic fluid enters the motor, it creates a force that causes internal components to move, resulting in the rotation of the output shaft.
The rotation of a hydraulic motor is determined by viewing the motor from the shaft end while pressurizing the A Port and observing shaft rotation. The A Port is typically located on the right when viewed from the shaft end.
There are several types of hydraulic motors, each with its unique design and rotation mechanism. The most common types include:
1. Gear Motors
2. Vane Motors
3. Piston Motors (Axial and Radial)
Gear motors are simple and robust, making them popular in many applications. They consist of two meshing gears inside a housing. As pressurized fluid enters the motor, it forces the gears to rotate, which in turn rotates the output shaft.
Vane motors have a slotted rotor mounted on a driveshaft. Vanes, closely fitted into the rotor slots, move radially to seal against the cam ring. The ring has two major and two minor radial sections joined by transitional sections or ramps.
Piston motors come in two main types: axial and radial.
Axial piston motors have a series of pistons arranged parallel to the drive shaft. As hydraulic fluid enters the motor, it pushes the pistons, causing them to reciprocate and rotate the shaft via a swashplate or wobble plate.
Radial piston motors have pistons arranged radially around the drive shaft. As hydraulic fluid enters, it pushes the pistons outward, causing the shaft to rotate.
Several factors influence the rotation of a hydraulic motor:
1. Fluid Pressure: The higher the pressure, the more torque the motor can produce.
2. Flow Rate: This determines the speed of rotation.
3. Displacement: The volume of fluid required for one complete revolution of the motor.
4. Port Configuration: The arrangement of inlet and outlet ports affects the direction of rotation.
Hydraulic motors find applications in various industries due to their high power density and ability to operate in harsh environments. Some common applications include:
1. Construction Equipment (excavators, bulldozers)
2. Agricultural Machinery (tractors, harvesters)
3. Industrial Manufacturing (conveyor systems, presses)
4. Marine Systems (winches, propulsion systems)
5. Renewable Energy (wind turbines)
Controlling the rotation of a hydraulic motor involves managing several parameters:
1. Direction Control: Achieved by changing the flow direction of the hydraulic fluid.
2. Speed Control: Managed by adjusting the flow rate of the hydraulic fluid.
3. Torque Control: Accomplished by regulating the pressure of the hydraulic system.
Modern hydraulic systems often incorporate sophisticated control systems to enhance performance and efficiency. These may include:
- Proportional valves for precise flow control
- Electronic controllers for real-time adjustment
- Feedback sensors for closed-loop control
Proper maintenance is crucial for ensuring optimal performance and longevity of hydraulic motors. Regular checks should include:
1. Fluid level and quality inspection
2. Checking for leaks
3. Monitoring operating temperature
4. Inspecting seals and bearings
Common issues that may affect hydraulic motor rotation include:
1. Cavitation
2. Contamination
3. Overheating
4. Seal failure
Implementing a robust preventive maintenance program can significantly extend the life of hydraulic motors and prevent unexpected downtime. Key strategies include:
- Regular oil analysis to detect contamination and wear
- Scheduled component replacement based on operating hours
- Thermal imaging to identify potential hotspots
- Vibration analysis to detect early signs of bearing wear
Recent advancements in hydraulic motor technology have focused on improving efficiency, reducing noise, and enhancing control precision. Some notable developments include:
1. Variable displacement motors
2. Digital hydraulic motors
3. Hybrid electro-hydraulic systems
These innovations are pushing the boundaries of what's possible with hydraulic motor rotation, opening up new applications and improving performance in existing ones.
Digital hydraulics is an emerging field that combines traditional hydraulic systems with advanced digital control technologies. This approach offers several advantages:
- Improved energy efficiency
- Enhanced system responsiveness
- Greater flexibility in system design
- Reduced component wear
As sustainability becomes increasingly important, the hydraulic industry is adapting. Some eco-friendly trends in hydraulic motor technology include:
1. Use of biodegradable hydraulic fluids
2. Development of more energy-efficient designs
3. Integration with renewable energy systems
One innovative approach to improving the environmental impact of hydraulic systems is the implementation of energy recovery systems. These systems capture and store energy that would otherwise be lost during operation, such as:
- Braking energy in mobile equipment
- Potential energy in lifting applications
- Kinetic energy in cyclical processes
To illustrate the practical applications of hydraulic motor rotation, let's examine a few case studies:
1. Wind Turbine Pitch Control: Hydraulic motors are used to adjust the angle of wind turbine blades, optimizing energy capture and protecting the turbine in high winds.
2. Excavator Swing Mechanism: The rotating upper structure of an excavator is often powered by a hydraulic motor, providing the necessary torque for smooth and precise movement.

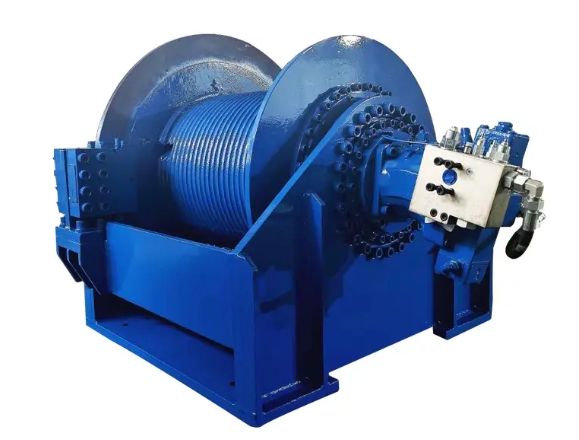

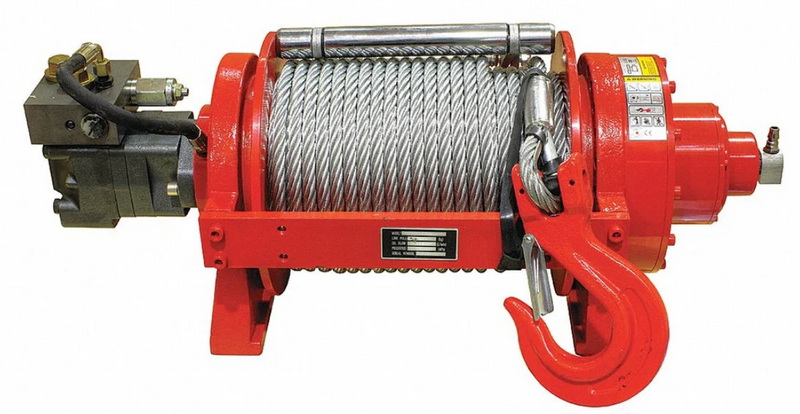

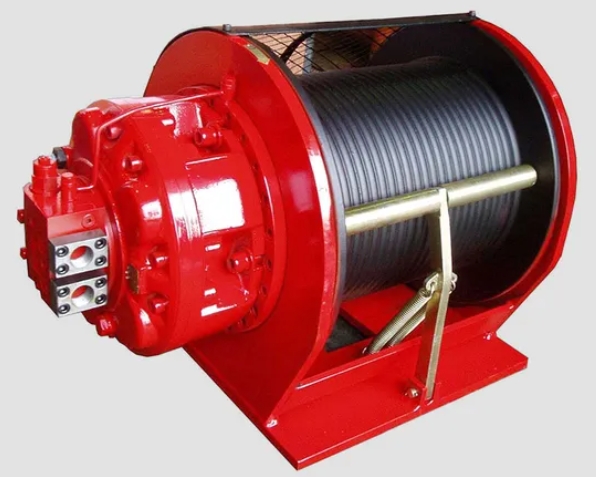

3. Marine Winch Systems: Hydraulic motors power winches on ships, providing the high torque needed for lifting heavy loads and anchoring operations.
Offshore wind turbines present unique challenges due to their harsh operating environment and the need for high reliability. Hydraulic motors play a crucial role in several subsystems of these turbines:
- Blade pitch control for optimizing power output
- Yaw control for aligning the turbine with the wind direction
- Emergency braking systems for safety
The use of hydraulic motors in these applications offers advantages such as:
- High power density, reducing the size and weight of components
- Ability to operate in harsh marine environments
- Precise control for optimal turbine performance
The future of hydraulic motor rotation looks promising, with several trends shaping the industry:
1. Increased Integration with IoT: Smart sensors and connectivity will enable predictive maintenance and real-time performance optimization.
2. Electrification: While not replacing hydraulics entirely, there's a trend towards hybrid systems that combine the benefits of hydraulic and electric technologies.
3. Miniaturization: As technology advances, we can expect more compact and powerful hydraulic motors.
4. Advanced Materials: New materials may lead to lighter, more durable, and more efficient hydraulic motors.
The integration of artificial intelligence (AI) and machine learning algorithms into hydraulic control systems is an exciting area of development. These technologies can:
- Optimize system performance in real-time
- Predict maintenance needs before failures occur
- Adapt to changing operating conditions automatically
Hydraulic motor rotation is a fascinating and complex subject that plays a crucial role in many industries. From the basic principles of operation to the latest technological advancements, understanding how hydraulic motors rotate is essential for anyone working with these powerful devices. As we look to the future, it's clear that hydraulic motors will continue to evolve, becoming more efficient, environmentally friendly, and integrated with other technologies. Whether you're an engineer designing new systems or a technician maintaining existing equipment, a solid grasp of hydraulic motor rotation is invaluable.
The ongoing advancements in hydraulic motor technology, coupled with the integration of digital controls and smart systems, promise to extend the capabilities and applications of these versatile devices. As industries continue to demand more power, precision, and efficiency, hydraulic motors will undoubtedly play a crucial role in meeting these challenges. By staying informed about the latest developments and best practices in hydraulic motor rotation, professionals in the field can ensure they are well-prepared to harness the full potential of these powerful and adaptable components.
The rotation direction of a hydraulic motor is crucial for its proper functioning in a system. Most hydraulic motors are designed to operate efficiently in both directions, but some may have a preferred direction for optimal performance. The rotation direction can affect factors such as:
- Efficiency: Some motors may have slightly higher efficiency in one direction.
- Wear patterns: Long-term operation in one direction can create specific wear patterns.
- System design: The rotation direction must match the intended application and system layout.
Always consult the manufacturer's specifications to ensure the motor is used in the correct orientation for your specific application.
Yes, many hydraulic motors can function as pumps when driven mechanically. This bi-directional capability is known as motor-pump reversibility. However, there are some considerations:
- Efficiency may be lower when used as a pump.
- Not all hydraulic motors are suitable for pump operation.
- The sealing system may need to be modified for long-term use as a pump.
This versatility can be advantageous in certain applications, such as regenerative braking systems in mobile equipment.
The displacement of a hydraulic motor is the volume of fluid required to produce one revolution of the output shaft. The relationship between displacement and rotation speed is inverse:
- Larger displacement motors tend to produce higher torque but lower speeds.
- Smaller displacement motors generally produce lower torque but higher speeds.
The rotation speed (RPM) can be calculated using the formula:
RPM = (Flow Rate in GPM x 231) / (Displacement in cubic inches)
This relationship is crucial for selecting the right motor for a specific application.
Variable displacement hydraulic motors can change their displacement during operation, allowing for adjustable speed and torque output. They typically work by:
- Altering the stroke length of pistons in a piston motor.
- Changing the eccentricity in a vane motor.
- Adjusting the meshing depth in a gear motor.
This variability provides greater control and efficiency across a range of operating conditions, making these motors ideal for applications with varying load requirements.
While both hydraulic and electric motors convert energy into rotational motion, they have several key differences:
- Power source: Hydraulic motors use pressurized fluid, while electric motors use electricity.
- Torque characteristics: Hydraulic motors typically provide high torque at low speeds, while electric motors often require gearing for similar performance.
- Size and weight: Hydraulic motors often have a higher power-to-weight ratio.
- Control: Hydraulic systems can provide precise control over speed and position, but electric motors are generally easier to control electronically.
- Maintenance: Hydraulic systems require more maintenance due to fluid management and potential leaks.
- Efficiency: Electric motors are generally more efficient, especially in constant-speed applications.
The choice between hydraulic and electric motors depends on the specific application requirements, including power needs, control precision, environmental conditions, and system integration.
