Hydraulic piston motors are crucial components in hydraulic systems, converting fluid pressure into rotational force. These motors are widely used in various industries, including construction, agriculture, and manufacturing, due to their high efficiency and ability to handle high pressures. This article will delve into the types, applications, and operational principles of hydraulic piston motors, providing detailed explanations and visual aids to enhance understanding.

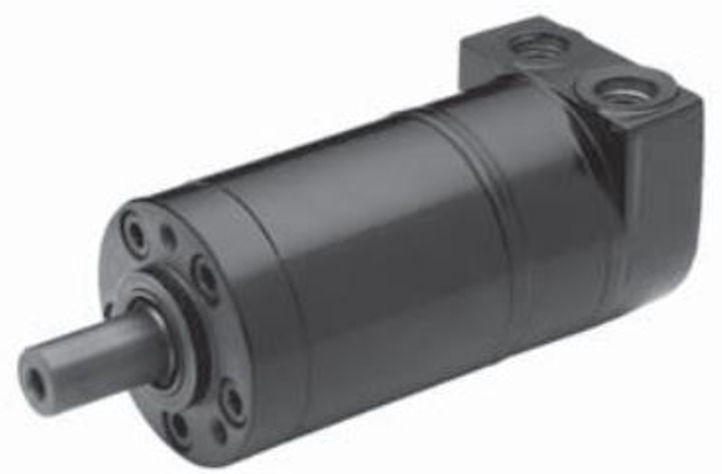

Hydraulic piston motors are mechanical actuators that convert hydraulic pressure and flow into torque and angular displacement (rotation). They are the rotary counterparts of hydraulic cylinders, which are linear actuators. The primary function of a hydraulic motor is to provide rotational motion, making them essential in applications requiring controlled mechanical power.
There are two main types of hydraulic piston motors: axial piston motors and radial piston motors.

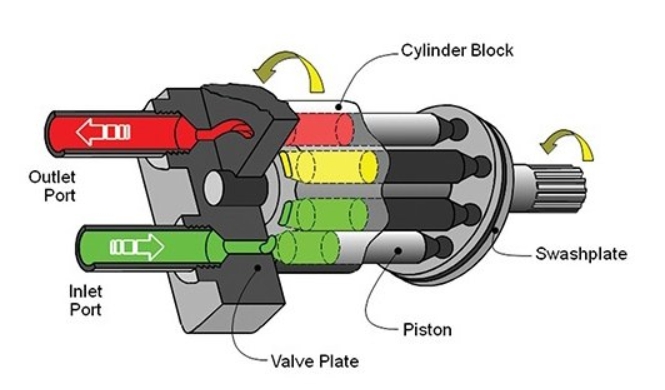

Axial piston motors, often referred to as barrel motors, feature a drive shaft plate set at an angle relative to the motor's barrel. As fluid enters the cylinders, it moves the pistons, causing the drive shaft to rotate. Each cylinder experiences one phase of fluid intake and output per rotation. The pistons exert force on the inclined plate, which is proportional to the hydraulic pressure. This force decreases the angle and generates rotational force, driving the plate's movement.
This video provides a detailed explanation of axial piston motors, including their components and operational principles.

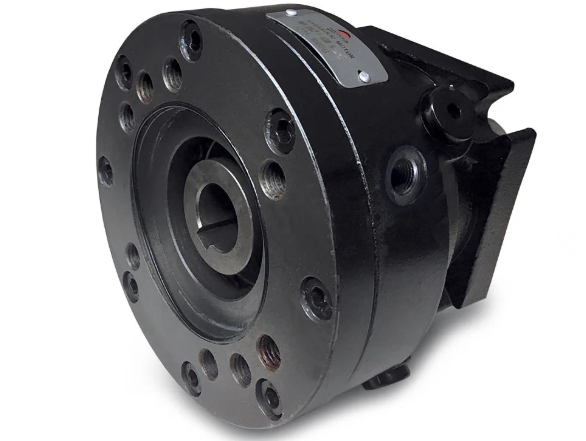

Radial piston motors convert fluid pressure into mechanical rotation using radial bores that enable pistons to float freely and move. The rotor within the directional valve features radial bores, and as the pistons make contact with the fixed track, they produce a reciprocating motion relative to the rotor. To maintain consistent torque, these motors typically use an odd number of cylinders.
Hydraulic piston motors are used in a variety of applications due to their versatility and performance.
Axial piston motors are particularly popular in industrial settings, such as conveyors and production machinery, where precise power control is required. They enable the generation of the desired power and movement in plants and machines.
These motors are used in mobile applications like construction equipment, agricultural equipment, truck cranes, and aerial lifts. They provide the performance and precision required for these demanding tasks.
Axial piston motors are ideal for hydrostatic travel drives in agricultural, construction, and industrial vehicles. Their ability to reach high speeds and perform stroke rotation makes them suitable for these applications.
The operational principle of hydraulic piston motors involves converting hydraulic pressure into rotational force. In axial piston motors, pressurized fluid fills the cavities in the cylinder, pushing the pistons, which then act upon the flange, causing it to turn. The angle at which the pistons push against the flange can be adjusted to control the displacement of the motor.
Hydraulic piston motors offer several advantages, including high pressure resistance, adaptability to both open and closed hydraulic circuits, and the ability to reach high speeds. These features make them ideal for applications requiring fast movement and high operating speeds.
Hydraulic piston motors are characterized by their high pressure resistance, making them suitable for high-pressure applications in industries like construction and mining.
Their adaptability for both open and closed hydraulic circuits allows a wide range of applications in different systems.
Hydraulic piston motors are highly efficient, converting a significant portion of the input energy into mechanical work. This efficiency is crucial in reducing energy consumption and increasing productivity in industrial settings.
These motors are designed for durability and require less maintenance compared to other types of motors. Their reliability ensures consistent performance over time, reducing downtime and increasing overall system efficiency.
When selecting a hydraulic piston motor, several design considerations must be taken into account:
1. Displacement: The displacement of a hydraulic motor determines its ability to produce torque. Higher displacement motors can generate more torque but may require more fluid flow.
2. Pressure Rating: The pressure rating is critical for ensuring the motor can handle the system's operating pressure without damage.
3. Speed Range: The speed range of the motor should match the application's requirements. Some motors are designed for high-speed applications, while others are better suited for low-speed, high-torque tasks.
4. Efficiency: Efficiency is crucial for minimizing energy loss and maximizing system performance.
5. Mounting Options: The motor's mounting style should be compatible with the system's design to ensure easy integration and maintenance.
As technology advances, hydraulic piston motors are becoming more efficient and environmentally friendly. Innovations in materials and design are leading to lighter, more compact motors with improved performance. Additionally, the integration of electronic controls and sensors allows for better monitoring and optimization of motor performance in real-time.
Regular maintenance is essential for extending the lifespan of hydraulic piston motors and ensuring optimal performance. This includes:
- Fluid Quality: Maintaining clean hydraulic fluid is crucial. Contaminated fluid can lead to premature wear and damage to the motor's components.
- Seal Inspection: Regularly inspecting seals for signs of wear or leakage can prevent fluid loss and maintain system pressure.
- Pressure Checks: Monitoring operating pressures ensures that the motor operates within its designed specifications, preventing over-pressurization.
- Lubrication: Proper lubrication of moving parts helps reduce friction and wear, extending the motor's lifespan.
Troubleshooting hydraulic piston motors involves identifying common issues such as low pressure, excessive noise, or reduced performance. Common causes include:
- Low Fluid Pressure: This can result from leaks in the system or insufficient pump output. Checking for leaks and ensuring adequate pump performance can resolve this issue.
- Excessive Noise: Noise can indicate worn components or improper alignment. Inspecting and replacing worn parts and ensuring proper motor alignment can resolve noise issues.
- Reduced Performance: This might be due to clogged filters or dirty fluid. Cleaning or replacing filters and flushing the system with clean fluid can restore performance.
By incorporating these maintenance and troubleshooting strategies, users can optimize the performance and longevity of their hydraulic piston motors.
Hydraulic piston motors, when properly maintained and integrated into efficient systems, can contribute to reducing environmental impact by minimizing energy consumption and waste. Modern designs focus on reducing fluid leakage and improving efficiency, which helps in reducing the overall carbon footprint of hydraulic systems.
Hydraulic piston motors are essential components in hydraulic systems, providing rotational motion and high efficiency. Their versatility and performance make them widely used in various industries. Understanding the types, applications, and operational principles of these motors is crucial for selecting the appropriate motor for specific needs.
The main types of hydraulic piston motors are axial piston motors and radial piston motors. Axial piston motors use a series of pistons in a cylinder to create linear motion, while radial piston motors convert fluid pressure into mechanical rotation using radial bores.
Axial piston motors are used in hydrostatic travel drives, industrial applications, and mobile applications such as construction equipment and agricultural equipment. They are ideal for applications requiring high speeds and precise power control.
Radial piston motors work by using pistons that move radially within a rotor. As the pistons make contact with a fixed track, they produce a reciprocating motion, converting fluid pressure into mechanical rotation.
Hydraulic piston motors offer high pressure resistance, adaptability to both open and closed hydraulic circuits, and the ability to reach high speeds. These features make them suitable for applications requiring fast movement and high operating speeds.
While hydraulic motors and pumps perform opposite functions, not all hydraulic pumps can be used as motors because they cannot be backdriven. Hydraulic motors are designed to work under pressure at both sides, unlike most pumps.
