What Is A Servo Gear Reducer And How Does It Work?

Views: 222     Author: Ella     Publish Time: 2025-04-18      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

Introduction to Servo Gear Reducers

The Working Principle of Servo Gear Reducers

Types of Servo Gear Reducers

>>> Video: Low Ratio Right Angle Servo Gearbox

Key Components and Internal Structure

Benefits of Using Servo Gear Reducers

Applications Across Industries

How to Select the Right Servo Gear Reducer

>> Example Selection Table

Installation and Maintenance Tips

Common Issues and Troubleshooting

>> Troubleshooting Steps

Conclusion

FAQ: Servo Gear Reducer

>> 1. What is the main function of a servo gear reducer?

>> 2. What are the most common types of servo gear reducers?

>> 3. How do I choose the right gear ratio for my application?

>> 4. What are the signs of a failing servo gear reducer?

>> 5. Can I use a servo gear reducer with any servo motor?

Citations:

Servo gear reducers are foundational components in modern automation, robotics, and precision machinery. They enable servo motors to deliver high torque, precise motion, and efficient energy transfer, making them indispensable in industries ranging from manufacturing to aerospace. This comprehensive guide will explore what a servo gear reducer is, how it works, its types, applications, selection criteria, and maintenance. Visuals and videos are included throughout to enhance understanding.

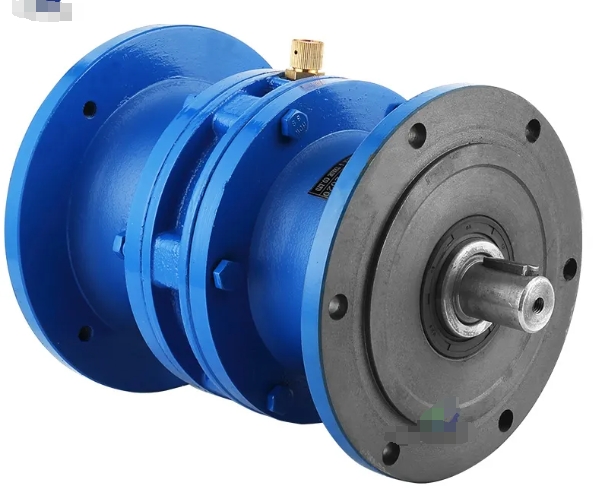

What Is A Servo Gear Reducer And How Does It Work

Introduction to Servo Gear Reducers

A servo gear reducer—also known as a servo gearbox or precision gear reducer—is a mechanical device designed to reduce the speed and increase the torque of a servo motor. By combining a servo motor with a gear reducer, engineers can achieve high-precision motion control and adapt the motor's output to the specific needs of an application[3][12][18].

The Working Principle of Servo Gear Reducers

At its core, a servo gear reducer uses a series of gears to decrease the rotational speed from the servo motor while increasing output torque[2][9][13]. This process is essential for applications requiring precise positioning, heavy load movement, or high torque at low speeds.

Key Steps in Operation:

- Input: The servo motor provides high-speed, low-torque rotational energy.

- Gear Reduction: The gear reducer, using various gear arrangements (planetary, helical, worm, bevel, etc.), lowers the speed and multiplies the torque.

- Output: The output shaft delivers the desired speed and torque to the machinery or application.

Types of Servo Gear Reducers

Servo gear reducers come in various configurations, each suited for different applications and spatial constraints[2][3][7][13].

Type Gear Arrangement Shaft Alignment Key Features Typical Applications
Planetary Planetary gears Inline High efficiency, high torque, low backlash Robotics, CNC, automation
Helical Helical gears Inline Smooth, quiet operation, high precision Conveyors, material handling
Worm Worm and worm wheel Right-angle High reduction ratio, compact, quieter Robotics, packaging, indexing
Bevel/Hypoid Bevel/hypoid gears Right-angle High durability, handles heavy loads Automotive, heavy machinery

Video: Low Ratio Right Angle Servo Gearbox

Key Components and Internal Structure

A typical servo gear reducer consists of:

- Input Shaft: Connected to the servo motor.

- Gear Train: The core mechanism, which can include planetary, helical, worm, or bevel gears.

- Output Shaft: Delivers the reduced speed and increased torque to the load.

- Housing: Protects internal components and maintains alignment.

- Lubrication System: Reduces friction, noise, and wear, extending service life[7].

Benefits of Using Servo Gear Reducers

Integrating a servo gear reducer with a servo motor offers several advantages[3][9][12][18]:

- Increased Torque: Gear reduction multiplies the output torque, enabling the motor to move heavier loads.

- Enhanced Precision: Lower output speed allows for finer motion control, crucial in robotics and CNC machines.

- Improved Efficiency: Allows use of smaller, less expensive motors while achieving required torque.

- Reduced Wear and Tear: Lower speeds and optimized torque reduce mechanical stress on both the motor and application.

- Energy Savings: More efficient power transfer and the ability to use smaller motors can reduce energy consumption.

- Noise and Vibration Reduction: Properly selected gear reducers minimize operational noise and vibration.

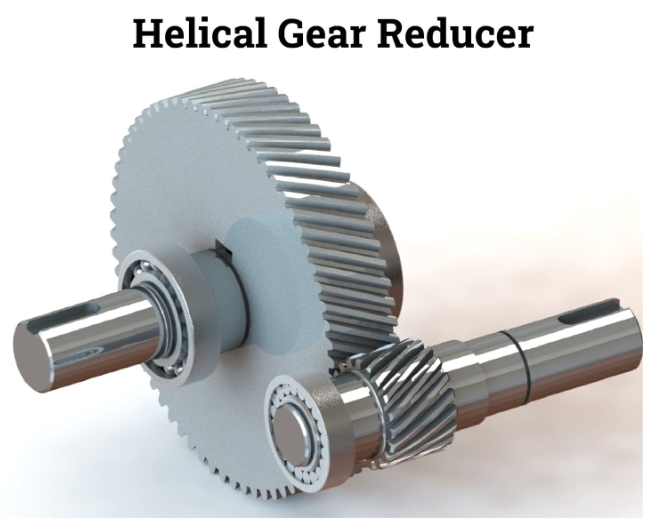

servo gear reducer_1

Applications Across Industries

Servo gear reducers are found in a wide array of industries and applications where precision, reliability, and efficiency are paramount[3][10][12]:

- Robotics: Precise arm movement, joint control, and mobile platforms.

- CNC Machinery: Accurate tool positioning and feed control.

- Material Handling: Conveyor systems, automated storage, and retrieval.

- Aerospace: Satellite positioning, avionics, and flight simulators.

- Medical Devices: Surgical robots, diagnostic equipment.

- Packaging: High-speed, precise movement for sorting and packing.

How to Select the Right Servo Gear Reducer

Choosing the optimal servo gear reducer requires considering several factors[3][12][13][18]:

- Required Torque and Speed: Match the gear ratio to achieve the desired output torque and speed.

- Backlash: Select low-backlash models for high-precision applications.

- Efficiency: Consider gear type; planetary and helical gears typically offer higher efficiency.

- Mounting Space: Inline vs. right-angle configurations depending on spatial constraints.

- Service Life and Maintenance: Look for robust designs with good lubrication and minimal maintenance needs.

- Cost: Balance performance requirements with budget constraints.

Example Selection Table

Application Required Torque Speed (RPM) Recommended Gear Type Notes
Robotics Arm High Low Planetary, low-backlash Precision positioning needed
Conveyor System Medium Medium Helical Quiet operation preferred
Indexing Table High Very Low Worm High reduction ratio needed

Installation and Maintenance Tips

Proper installation and maintenance are crucial for maximizing the life and performance of a servo gear reducer[7][12]:

- Alignment: Ensure accurate alignment between motor and reducer shafts.

- Lubrication: Use recommended lubricants and check levels regularly.

- Fastening: Secure all mounting bolts to prevent vibration and misalignment.

- Inspection: Periodically check for unusual noise, vibration, or heat.

- Replacement: Replace worn or damaged gears, bearings, or seals promptly.

Common Issues and Troubleshooting

Servo gear reducers are reliable, but issues can arise. Common problems include:

- Excessive Backlash: May indicate worn gears or improper assembly.

- Noise and Vibration: Often due to misalignment, insufficient lubrication, or damaged components.

- Overheating: Can result from overloading, poor lubrication, or excessive speed.

- Leakage: Typically caused by worn seals or gaskets.

Troubleshooting Steps

- Inspect alignment and mounting.

- Check and replenish lubricant.

- Examine gears and bearings for wear.

- Replace seals if leaks are detected.

Conclusion

A servo gear reducer is an essential component for achieving high-precision, high-torque, and efficient motion control in modern automation systems. By understanding how these devices work, their types, applications, and selection criteria, engineers and technicians can optimize their systems for performance, reliability, and cost-effectiveness. Whether in robotics, CNC machines, or aerospace, servo gear reducers are the unsung heroes that enable the precise, powerful, and efficient movement required in today's advanced machinery.

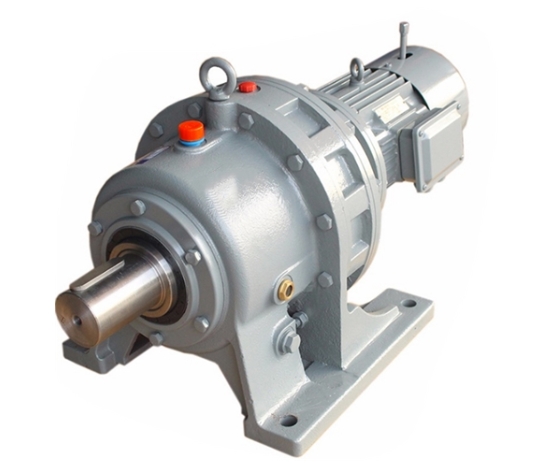

servo gear reducer_2

FAQ: Servo Gear Reducer

1. What is the main function of a servo gear reducer?

A servo gear reducer reduces the speed and increases the torque of a servo motor, enabling precise control and the ability to move heavier loads in automation and robotics applications[3][12][18].

2. What are the most common types of servo gear reducers?

The most common types are planetary, helical, worm, and bevel/hypoid gear reducers. Each type offers different advantages in terms of efficiency, torque, backlash, and spatial configuration[2][3][7][13].

3. How do I choose the right gear ratio for my application?

Select the gear ratio based on the required output torque and speed for your application. Higher ratios provide more torque and lower speed, while lower ratios give higher speed and less torque. Consider application needs, backlash, and efficiency when choosing[3][12][13][18].

4. What are the signs of a failing servo gear reducer?

Signs include excessive noise, vibration, backlash, overheating, or oil leakage. Regular inspection and maintenance can prevent most failures[7][12].

5. Can I use a servo gear reducer with any servo motor?

Most servo gear reducers are designed to be compatible with a range of servo motors, but it's important to match the reducer's input size, mounting configuration, and performance specifications to the motor and application[2][3][12].

Citations:

[1] https://eshop.se.com/in/blog/post/understanding-servo-motors-working-principles-applications.html

[2] https://tt-net.tsubakimoto.co.jp/tecs/pdct/gen/pdct_gen_5gsv.asp

[3] https://hvhindustrial.com/sub-category/servo-gear-reducers

[4] https://www.youtube.com/watch?v=8sq4pHdSXYM

[5] https://www.youtube.com/watch?v=xCJrCUkyxPE

[6] https://www.gamweb.com/faq-gam.html

[7] https://orbray.com/magazine_en/archives/3045

[8] https://industrialautomationco.com/blogs/news/servo-drive-errors-solved-a-technician-s-troubleshooting-guide

[9] https://www.sesamemotor.com/blog_detail/en/what-are-speed-reducers

[10] https://www.gamweb.com/gear-reducers-main.html
