Gear reducers are indispensable components in modern industrial machinery, enabling motors to deliver the right combination of speed and torque for various applications. Among the many manufacturers worldwide, Sumitomo stands out as a leader, renowned for its innovative and robust gear reducers. This article provides an in-depth exploration of what a Sumitomo gear reducer is, how it functions, its unique design features, diverse applications, installation and maintenance best practices, and answers to frequently asked questions. By the end, you will gain a comprehensive understanding of why Sumitomo gear reducers are trusted globally.

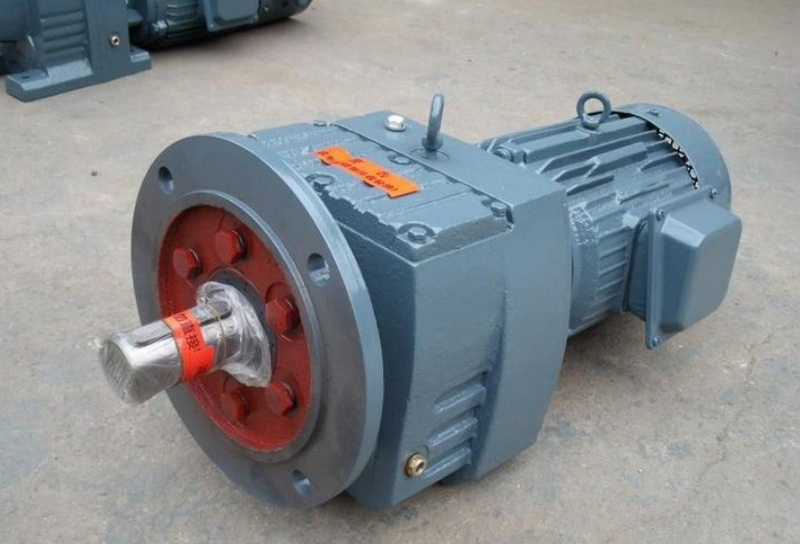

What Is a Sumitomo Gear Reducer?

A Sumitomo gear reducer is a mechanical device designed to reduce the rotational speed of an input shaft, typically from an electric motor, while increasing the torque output proportionally. This transformation is essential because most industrial motors operate at high speeds but low torque, whereas many applications require slower speeds with higher torque to drive heavy loads efficiently.

Sumitomo gear reducers are distinguished by their innovative Cyclo® mechanism, a patented design that offers superior durability, compactness, and efficiency compared to traditional gear reducers. With over 130 years of history, Sumitomo has become a trusted name in power transmission, supplying gear reducers to industries ranging from manufacturing and robotics to food processing and mining.

How Does a Sumitomo Gear Reducer Work?

Basic Gear Reduction Principle

At its core, a gear reducer works by meshing gears of different sizes. The input shaft, connected to the motor, drives a smaller gear (the driver), which turns faster. This gear meshes with a larger gear (the driven gear), which rotates slower but delivers higher torque. The ratio of the number of teeth on the driven gear to the driver gear defines the reduction ratio, directly affecting the output speed and torque.

The Cyclo® Mechanism: Sumitomo's Innovation

What sets Sumitomo gear reducers apart is the Cyclo® mechanism, which uses cycloidal discs instead of traditional involute gears. This mechanism consists of several key components:

- Eccentric bearing on the high-speed shaft: This bearing causes the cycloidal discs to move in a rolling motion.

- Cycloidal discs: These discs rotate in a unique manner, rolling inside the ring gear housing.

- Ring gear housing with pins: The outer pins engage with the cycloidal discs.

- Driving pins with rollers: These pins transmit motion to the slow-speed output shaft.

As the eccentric bearing rotates, it drives the cycloidal discs to roll inside the ring gear housing. The discs rotate opposite to their orbital motion, engaging with the pins to produce a reduced speed and increased torque output. This design provides several advantages:

- High durability: The gear teeth operate primarily in compression, reducing wear and risk of breakage.

- Smooth operation: Rolling contact reduces vibration and noise.

- Compact size: High torque density allows for smaller, lighter gear reducers.

- Wide range of reduction ratios: Sumitomo gear reducers can achieve ratios from as low as 2.5 up to over 600,000 in specialized models.

This innovative mechanism results in gear reducers that are not only efficient but also exceptionally reliable under heavy loads and harsh conditions.

Visualizing the Cyclo® Mechanism

To better understand the Cyclo® mechanism, animated videos are invaluable. They illustrate how the eccentric bearing drives the cycloidal discs and how the interaction with the ring gear pins produces the output motion. These animations highlight the smooth rolling action and the compact arrangement of components, which contribute to the gear reducer's longevity and efficiency.

Types and Features of Sumitomo Gear Reducers

Sumitomo offers a broad spectrum of gear reducers tailored to various industrial needs. Below are the main types and their key features.

1. Cyclo® Drive Gear Reducers

- Core Technology: Utilize the patented Cyclo® mechanism.

- Power Range: From fractional horsepower (0.1 kW) up to 132 kW.

- Reduction Ratios: Wide range from 2.5 to over 658,000.

- Mounting Options: Foot, flange, and case mount configurations.

- Durability: High shock load resistance and long service life.

- Additional Features: Available with torque limiters for overload protection.

- Applications: Heavy machinery, robotics, conveyors, and more.

- Environmental Options: Explosion-proof and outdoor-rated models for harsh environments.

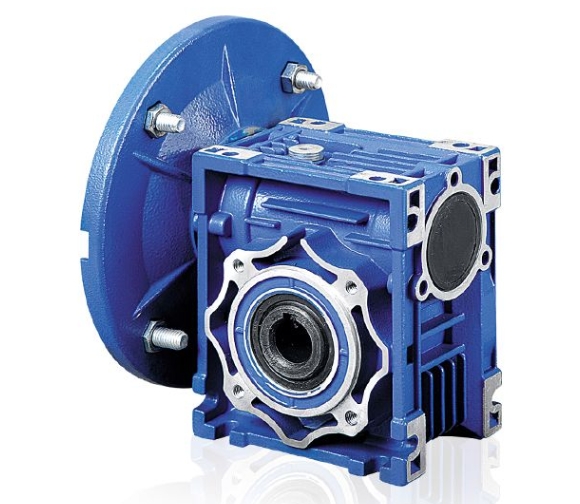

2. Worm Gear Reducers

- Design: Compact with self-locking capability.

- Use Cases: Ideal for conveyors, lifts, and gates.

- Advantages: Simple design and cost-effective.

- Considerations: Prone to overheating if not properly maintained; lubrication is critical.

3. Bevel and Helical Gear Reducers

- Configuration: Right-angle gearboxes for space-saving installations.

- Gear Types: Spiral bevel and hypoid gears for quiet and efficient operation.

- Applications: Screw conveyors, mixers, and other heavy-duty industrial equipment.

4. Specialized Models

- Stainless Steel Gear Reducers: For food, beverage, and pharmaceutical industries requiring hygienic design.

- Wash-Down Duty Gearmotors: Designed to withstand frequent cleaning and harsh chemicals.

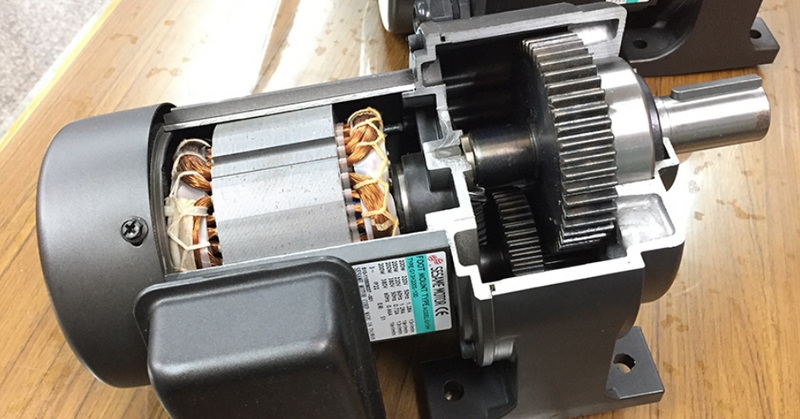

- Integrated Motor Gear Reducers: Combine motor and reducer for compact, efficient power transmission.

- Custom Solutions: Tailored gear reducers for unique industrial requirements.

Applications of Sumitomo Gear Reducers

Sumitomo gear reducers find applications across a broad range of industries due to their versatility and reliability.

- Manufacturing: Powering conveyors, presses, and assembly lines.

- Robotics and Automation: Providing precise speed control and high torque in robotic arms and automated machinery.

- Elevators and Lifts: Ensuring smooth and safe operation.

- Material Handling: Driving conveyors, cranes, and hoists.

- Food and Beverage: Stainless steel and wash-down models for hygienic processing.

- Mining and Heavy Industry: Withstanding harsh environments and heavy loads.

- Amusement Parks: Operating rides requiring reliable torque and speed control.

- Hazardous Environments: Explosion-proof models for chemical plants and oil refineries.

Installation and Maintenance

Proper installation and regular maintenance are vital to maximize the lifespan and performance of Sumitomo gear reducers.

Installation Guidelines

- Alignment: Ensure precise alignment between the motor shaft and the gear reducer bore to prevent premature wear.

- Lubrication: Apply anti-seize paste on the motor shaft and hollow bore to facilitate installation and future removal.

- Mounting: Securely tighten mounting bolts to manufacturer specifications without applying excessive force.

- Environmental Protection: Use protective covers or enclosures if operating in dusty or corrosive environments.

Maintenance Best Practices

- Visual Inspection: Regularly check for oil leaks, unusual noises, or overheating.

- Cleaning: Keep the gear reducer free from dust and debris to prevent overheating.

- Lubrication: Monitor oil levels and change oil according to manufacturer guidelines, typically after a certain number of operating hours.

- Oil Type: Use recommended lubricants to ensure proper viscosity and protection.

- Component Replacement: Replace worn seals, bearings, or other parts promptly to avoid catastrophic failure.

- Scheduled Maintenance: Establish a routine maintenance schedule based on operating conditions and usage intensity.

Maintenance Video Resources

Sumitomo and authorized distributors provide instructional videos demonstrating proper maintenance procedures, including oil changes, seal replacement, and troubleshooting common issues. These resources are invaluable for maintenance personnel to ensure optimal operation.

Advantages of Sumitomo Gear Reducers

Sumitomo gear reducers offer several key advantages that make them a preferred choice in many industries:

- Exceptional Durability: The Cyclo® mechanism's compression-based tooth engagement reduces wear and breakage.

- High Torque Density: Compact design delivers high torque output without bulky size.

- Smooth and Quiet Operation: Rolling contact reduces vibration and noise.

- Wide Range of Options: Extensive product line caters to diverse applications.

- Global Support Network: Localized technical support and spare parts availability worldwide.

- Energy Efficiency: Reduced mechanical losses translate to energy savings.

- Customization: Ability to tailor gear reducers to specific application needs.

Conclusion

In summary, the Sumitomo gear reducer represents a pinnacle of innovation and reliability in the field of power transmission. Its unique Cyclo® mechanism offers superior durability, compactness, and efficiency, making it ideal for a wide range of industrial applications. Whether you are operating heavy machinery, automating a production line, or managing material handling systems, Sumitomo gear reducers provide dependable performance backed by decades of engineering excellence and global support. Proper installation and maintenance further ensure these gear reducers deliver long-lasting, trouble-free service.

Frequently Asked Questions (FAQ)

1. What makes Sumitomo gear reducers different from other brands?

Sumitomo gear reducers utilize the patented Cyclo® mechanism, which employs cycloidal gears operating primarily in compression rather than shear. This design enhances durability, shock resistance, and operational life compared to conventional gear reducers.

2. How do I select the right Sumitomo gear reducer for my application?

Selecting the appropriate gear reducer depends on factors such as required torque, speed reduction ratio, motor compatibility, and environmental conditions. Consulting Sumitomo's technical experts or authorized distributors ensures the best fit for your specific needs.

3. Can Sumitomo gear reducers be used in harsh or explosive environments?

Yes, Sumitomo offers explosion-proof and outdoor-rated gear reducers designed to withstand harsh and hazardous environments, including chemical plants and oil refineries.

4. How often should I perform maintenance on my Sumitomo gear reducer?

Maintenance frequency depends on usage intensity and operating conditions. Regular inspections should be conducted weekly or monthly, with oil changes and lubrication performed as recommended by the manufacturer, typically after a set number of operating hours.

5. Are Sumitomo gear reducers customizable?

Absolutely. Sumitomo provides custom-engineered gear reducers tailored to unique operational requirements, including special mounting options, integrated motors, and specific reduction ratios.
