Worm gear reducers are essential components in various industrial and mechanical applications, providing efficient power transmission, torque multiplication, and speed reduction. This article will delve into the workings of worm gear reducers, their benefits, types, applications, and common issues, along with a comprehensive guide on how to choose the right worm gear reducer for your needs.

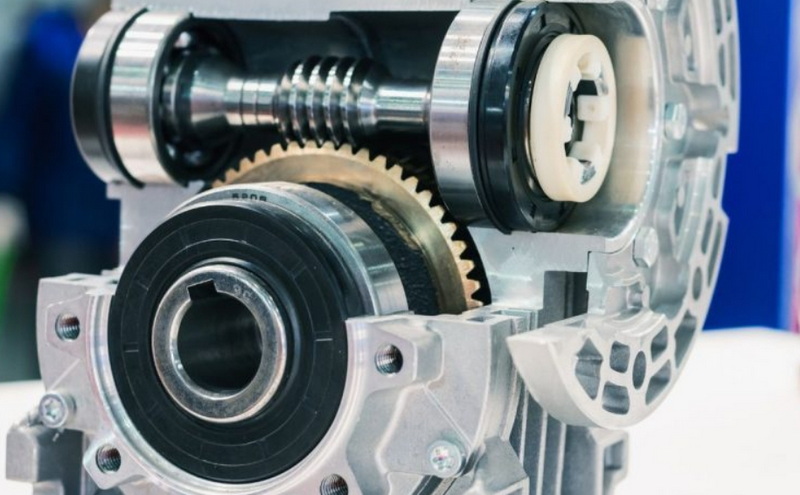

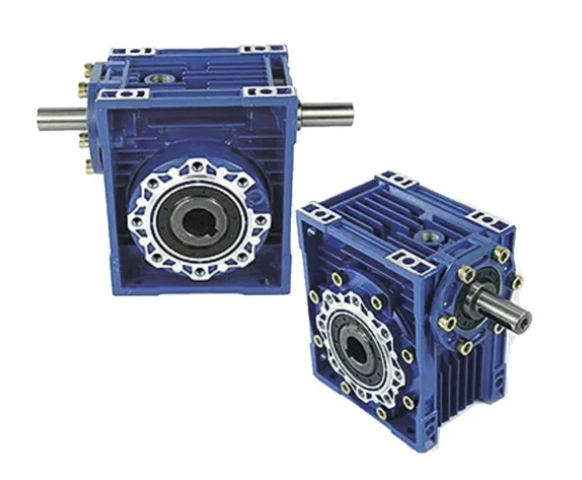

A worm gear reducer is a mechanical device consisting of two main components: a worm (a screw-like gear) and a worm wheel (a helical gear). The worm meshes with the worm wheel, converting rotational motion into linear motion or vice versa. This configuration allows for high torque and speed reduction, making worm gear reducers suitable for heavy-duty applications.
- Worm: A screw-like gear that drives the worm wheel.
- Worm Wheel: A helical gear that receives the motion from the worm.
In a worm gear reducer, the worm's rotation drives the worm wheel, causing it to rotate around its axis. As the worm turns, its threads engage with the teeth of the worm wheel, transferring motion and force between the two gears. This interaction results in a change in the speed and direction of the output shaft, providing the desired speed reduction and torque multiplication.
1. High Torque Capacity: Worm gear reducers can handle large torque loads, making them suitable for heavy-duty applications.
2. Compact Design: The worm and worm wheel arrangement allows for a compact design, saving space in machinery and equipment.
3. Self-Locking Capability: In some cases, worm gear reducers can be self-locking, preventing back-driving and ensuring safety in applications where holding a load is necessary.
4. Smooth, Quiet Operation: Due to the sliding contact between the worm and worm wheel, worm gear reducers offer smooth and quiet operation, ideal for noise-sensitive environments.

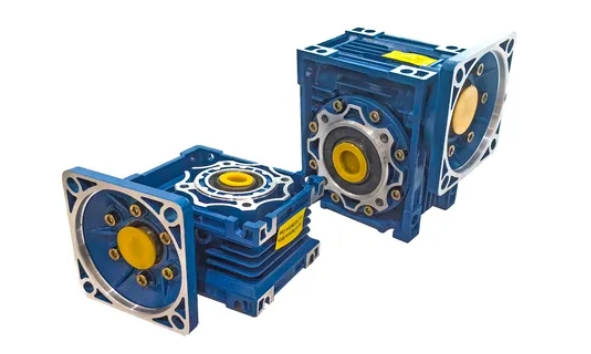

1. Single Reduction Worm Gear Reducers: These reducers have a single worm and worm wheel set, providing a specific reduction ratio.
2. Double Reduction Worm Gear Reducers: These reducers have two sets of worm and worm wheel pairs, offering higher reduction ratios and increased torque capacity.
3. Hollow Shaft Worm Gear Reducers: These reducers feature a hollow output shaft, allowing for direct mounting onto driven equipment.
Worm gear reducers are used in various industries and applications, such as:
- Material Handling: Conveyor systems, lifting equipment, and packaging machinery.
- Industrial Machinery: Mixers, crushers, and extruders.
- Automotive: Steering systems and power transmission components.
- Robotics: Actuators and positioning systems.
- Elevators and Lifts: Worm gears are integral to the drive mechanisms in elevators and lifts, providing the high torque necessary to lift heavy loads safely. Their self-locking characteristic guarantees that the elevator can hold its position securely. Additionally, worm gears operate with minimal noise, which reduces sound pollution within the elevator. Their compact design also allows for efficient use of space within the elevator shaft[1].
- High Reduction Ratios and Torque Capacity
- Compact Design and Space-Saving Capabilities
- Self-Locking Features for Safety and Load Holding
- Smooth and Quiet Operation
- Cost-Effective: Worm gear reducers are less expensive than other gearboxes and provide excellent shock absorption.
- Lower Efficiency Compared to Other Gear Types: Due to the sliding contact between gears, worm gear reducers are less efficient and generate more heat.
- Increased Wear and Potential for Overheating: Requires proper lubrication and maintenance to prevent wear and overheating.
1. Worm Gear Reducer Overheating: Adjust working load, ensure adequate lubrication, and use proper lubricating oil.
2. Noise from Gearbox Internal Parts: Maintain or replace worm gear or worm shaft, add adequate lubrication oil.
3. Worm Wheel Over Damage: Adjust working load, fill adequate lubrication oil, use proper lubricating oil.
4. Lubrication Oil Leakage: Use proper lubrication oil, ensure assembly quality.
Table: Common Problems and Solutions
| Problem | Reason | Solution |
|---|---|---|
| Overheating | Incorrect load, poor lubrication | Adjust load, ensure lubrication |
| Noise | Worn parts, insufficient lubrication | Maintain/replace parts, add lubrication |
| Worm Wheel Damage | Overload, poor lubrication | Adjust load, ensure lubrication |
| Oil Leakage | Thin oil due to heat | Use proper oil, ensure assembly quality |
When selecting a worm gear reducer, consider the following factors:
1. Application Requirements: Load capacity, speed requirements, torque, and environmental conditions.
2. Gear Ratio and Efficiency: Balance between torque and efficiency based on your application.
3. Mounting Options: Choose a mounting style that integrates well with your machinery.
4. Lubrication and Maintenance: Consider the lubrication method and maintenance schedule.
Modern worm gear sets are produced using the latest CNC machines, inspection equipment, and materials technology, providing innovative and reliable solutions for precision machinery and equipment. The Renold-Holroyd tooth form, used by Renold Gears, offers enhanced lubrication and efficiency, making it a market leader in precision applications[8].
Worm gears are used in high-precision applications such as rotary tables and machine tools, where positional accuracy is crucial. The self-locking feature of worm gears ensures that once the motor is stopped, the gear system will not move under an external load, making them ideal for applications requiring secure holding positions[8].
In recent years, there has been an increased focus on environmental sustainability in manufacturing. Worm gear reducers, with their compact design and efficient operation, contribute to reducing the overall size and energy consumption of machinery, making them a more environmentally friendly choice compared to bulkier gear systems.
As technology advances, worm gear reducers are likely to see further improvements in materials and manufacturing processes. This could lead to even higher efficiency and durability, expanding their use in emerging fields like renewable energy and advanced robotics.
Worm gear reducers are used in vehicle steering mechanisms, providing precise control and smooth operation. Their high torque transmission capability allows for effortless steering, even in heavy vehicles, while their compact design fits well within the limited space available. The minimal noise generated by worm gears also contributes to a quieter cabin environment[1].
The use of advanced manufacturing techniques such as whirling has significantly improved the production efficiency of worm gears. This process reduces the number of manufacturing steps by up to 60%, resulting in faster and more cost-effective production of high-quality worm gears[2].
In robotics, miniature worm gear motors are used in joints and actuators where precision and compact design are essential. Their self-locking ability is particularly valuable in holding positions without requiring constant power[3].
The global worm reduction gearbox market is projected to grow significantly due to technological advancements and increasing demand from end-use industries. High investments in automotive and construction machinery sectors are expected to drive up the demand for worm reduction gearboxes[7].
Worm gear reducers are utilized in industrial mixers for their high torque transmission capabilities, which are crucial for mixing viscous materials thoroughly. Their low-noise operation is beneficial for maintaining quiet work environments, and their compact design allows them to be integrated into mixers without taking up excessive space[1].
The use of CNC machines and advanced materials has significantly improved the efficiency and reliability of worm gear reducers. These technologies enable precise manufacturing, reducing errors and increasing the lifespan of the gears. Additionally, innovations like the Renold-Holroyd tooth form enhance lubrication and efficiency, making worm gears suitable for high-precision applications[8].
Technological advancements in materials science and manufacturing processes are expected to further enhance the efficiency and durability of worm gear reducers. Techniques such as 3D printing and advanced CNC machining allow for more precise and complex designs, potentially expanding the use of worm gears in advanced robotics and renewable energy applications[5].
In emerging industries like medical devices and precision instruments, worm gear motors are increasingly used due to their compact size and quiet operation. Their ability to provide precise control and maintain positions without constant power makes them ideal for applications requiring high accuracy and reliability[3].
Worm gear reducers are versatile components used across various industries for their ability to provide high torque and speed reduction in a compact design. Understanding their working principles, benefits, and common issues can help in selecting the appropriate worm gear reducer for specific applications.
A worm gear reducer consists of two main components: a worm (a screw-like gear) and a worm wheel (a helical gear).
The advantages include high torque capacity, compact design, self-locking capability, and smooth, quiet operation.
Worm gear reducers are used in material handling, industrial machinery, automotive, robotics, and elevators and lifts.
Common problems include overheating, noise from internal parts, worm wheel damage, and lubrication oil leakage.
Consider application requirements, gear ratio and efficiency, mounting options, and lubrication and maintenance when selecting a worm gear reducer.
