Hydraulic motors are crucial components in various machinery, including skid steers, excavators, and other heavy equipment. They convert hydraulic energy into mechanical energy, enabling these machines to perform tasks like lifting, digging, and moving. A key aspect of maintaining the efficiency and longevity of hydraulic motors is the case drain system. In this article, we will delve into the world of hydraulic motors, focusing on the role and importance of case drains.
Hydraulic motors are designed to operate under high pressure and flow rates, converting hydraulic fluid pressure into rotational energy. They come in various types, including piston, gear, and vane motors, each with its unique characteristics and applications. For instance, piston motors are common in heavy machinery due to their high efficiency and power output, while gear motors are often used in applications requiring lower pressure but higher flow rates.

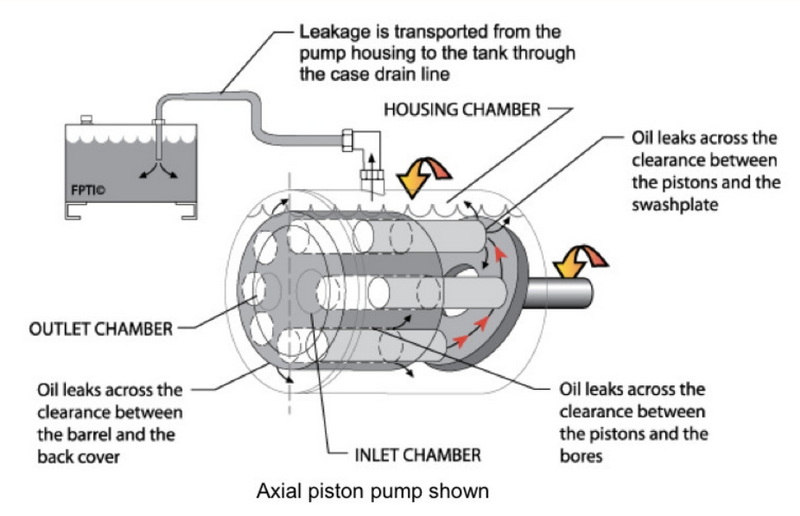

A case drain is a low-pressure hydraulic line that runs from the motor back to the hydraulic fluid reservoir. Its primary function is to remove excess internal leakage from the motor, which is essential for maintaining the motor's efficiency and preventing damage. This leakage is inherent in the design of hydraulic motors and serves as a form of lubrication for moving parts.

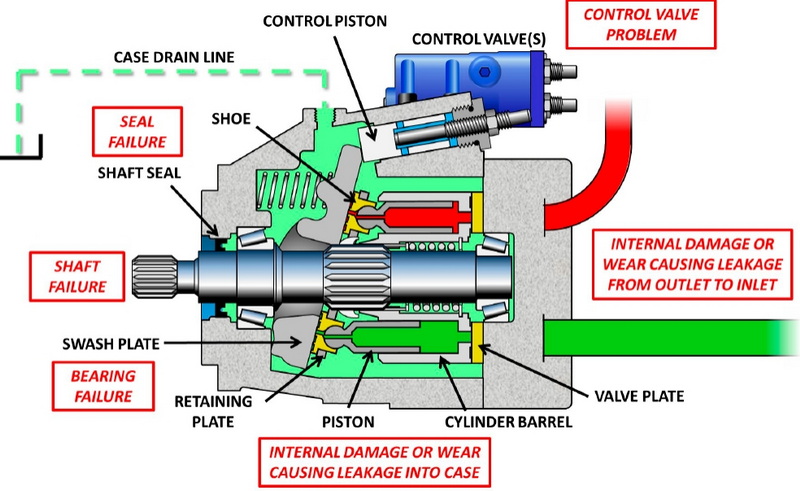

1. Pressure Relief: Case drains relieve internal pressure in the motor housing caused by leakage past seals. This prevents excessive pressure from building up against the outer seal, which could lead to seal failure or motor damage.
2. Cooling and Contamination Removal: Case drains help remove heat generated by internal friction and contamination, which can affect motor performance and longevity. By circulating fluid through the motor case, they aid in dissipating heat and removing debris that might otherwise accumulate.
3. Lubrication: In some motors, the case drain ensures that internal components remain lubricated by allowing a small amount of fluid to circulate within the motor case. This is particularly important in piston motors, where the pistons operate with some internal leakage to prevent metal-on-metal contact.
- Prevents Seal Failure: Without a case drain, internal pressure can build up and blow out the shaft seal, leading to costly repairs. Seal failure not only results in fluid loss but also requires downtime for maintenance, impacting productivity.
- Reduces Maintenance: By removing contaminants and excess heat, case drains extend the life of the hydraulic system and reduce maintenance needs. Regular maintenance of case drains is crucial to ensure they function properly.
Piston motors are common in heavy machinery due to their high efficiency and power output. They rely heavily on case drains because the pistons operate with some internal leakage, which is necessary for lubrication and to prevent metal-on-metal contact. In piston motors, the case drain is essential for maintaining the motor's performance and longevity.
Gear motors typically do not require a case drain unless they are used in applications where the outlet pressure exceeds the seal rating. In such cases, a case drain is necessary to prevent seal damage. Gear motors are often simpler and less expensive than piston motors but may not offer the same level of efficiency.
Vane motors are another type of hydraulic motor that uses a rotor with vanes to convert fluid pressure into rotational energy. They are known for their compact size and simplicity but generally require less maintenance than piston motors. However, they may still benefit from a case drain in certain applications to manage internal pressure.
1. Excessive Back Pressure: High back pressure in the case drain line can indicate blockages or improper installation, leading to motor damage. This can be diagnosed by checking the flow rate and pressure in the case drain line.
2. Clogged Filters: Failure to regularly clean or replace case drain filters can cause contaminants to enter the motor, affecting performance. Clogged filters can also increase back pressure, exacerbating the problem.

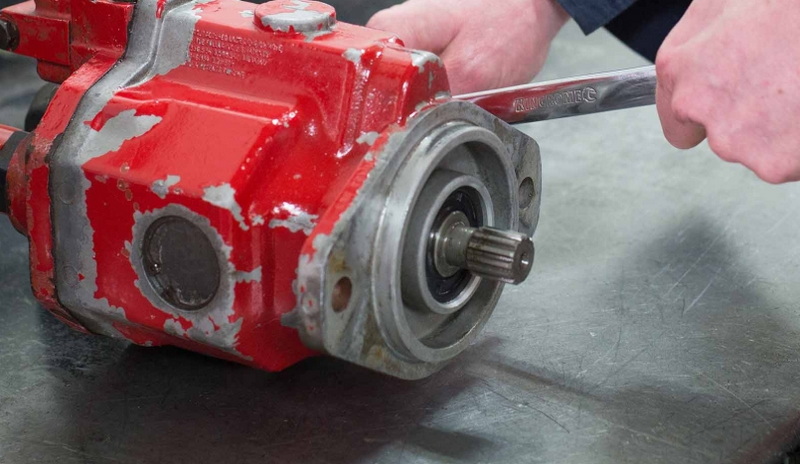

Testing case drains involves checking for proper flow and pressure. This can be done by disconnecting the case drain line and observing the flow into a drain pan while the motor is under load. It's essential to ensure that the flow is consistent and not restricted, indicating a healthy case drain system.
1. Proper Installation: Ensure the case drain line is connected correctly and has no restrictions to prevent back pressure buildup. The line should be sized appropriately for the motor's flow rate.
2. Regular Maintenance: Check and replace case drain filters regularly to prevent contamination. This is crucial for maintaining the cleanliness of the hydraulic fluid and preventing premature wear on motor components.
3. Monitor Pressure: Keep case drain pressure below recommended levels to avoid seal failure. High pressure can indicate issues with the case drain system that need immediate attention.
- Pressure Monitoring Systems: Implementing pressure monitoring systems can provide real-time feedback on case drain pressure, allowing for proactive maintenance and reducing downtime.
- Scheduled Inspections: Regularly inspecting the case drain system for signs of wear or damage can help identify potential issues before they become major problems.
In a recent case study involving a fleet of excavators, implementing a regular maintenance schedule for case drains resulted in a significant reduction in downtime and repair costs. By ensuring that case drains were functioning properly, operators were able to maintain optimal performance from their hydraulic motors, leading to increased productivity and efficiency.
The economic benefits of maintaining case drains cannot be overstated. By reducing downtime and extending the life of hydraulic motors, companies can save thousands of dollars annually. Additionally, maintaining a well-functioning hydraulic system reduces the need for costly repairs and replacements, further enhancing profitability.
Properly maintained case drains also contribute to a cleaner environment by reducing fluid leaks and preventing contamination of soil and water. This is particularly important in industries where environmental regulations are stringent, as compliance can be a significant factor in operational costs.
As technology advances, hydraulic motors are becoming more efficient and environmentally friendly. Innovations in materials and design are leading to motors that require less maintenance and produce fewer emissions. The integration of advanced monitoring systems and predictive maintenance tools will further enhance the reliability and performance of hydraulic motors, making them even more indispensable in modern machinery.
In summary, case drains are essential components of hydraulic motor systems, ensuring the longevity and efficiency of these motors by relieving internal pressure, removing contaminants, and aiding in cooling. Proper installation and regular maintenance of case drains are crucial to prevent costly repairs and system failures. By understanding the role of case drains and implementing best practices for their maintenance, operators can optimize the performance of their hydraulic equipment.
A case drain primarily functions to relieve internal pressure in the motor housing by removing excess fluid leakage, preventing seal failure and motor damage.
Case drains are crucial for piston motors as they allow internal leakage to escape, which is necessary for lubrication and preventing metal-on-metal contact between moving parts.
Gear motors typically do not require a case drain unless the outlet pressure exceeds the seal rating. In such cases, a case drain is necessary to prevent seal damage.
Troubleshooting excessive back pressure involves checking for blockages or improper installation. Testing the flow while the motor is under load can help identify issues.
Operating without a case drain can lead to seal failure, motor damage, and potentially catastrophic system failure due to excessive internal pressure buildup.
