Converting a Power Take-Off (PTO) system to a hydraulic motor involves several key components and considerations. This process is often necessary for adapting machinery to different operational requirements, such as changing the power transmission method from mechanical to hydraulic. Below, we will explore the necessary steps and components for such a conversion.
PTO systems are used to transfer power from a vehicle's engine to auxiliary equipment. They are commonly found in tractors, trucks, and construction machinery. The power is typically transmitted through a mechanical shaft, which can be converted to hydraulic power using a PTO pump.
A PTO pump converts the mechanical energy from the engine into hydraulic energy. This hydraulic energy is then used to operate various hydraulic systems, such as lifts, cranes, or mixers. The most common types of PTO pumps are gear pumps and piston pumps, each suited to different applications based on pressure and flow requirements[8].
To convert a PTO system to a hydraulic motor, you will need the following components:

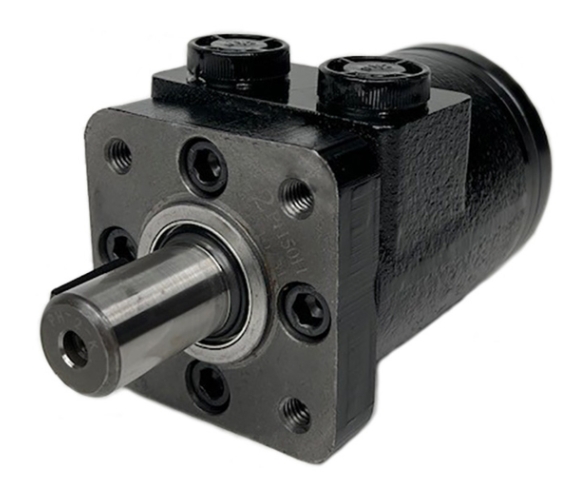

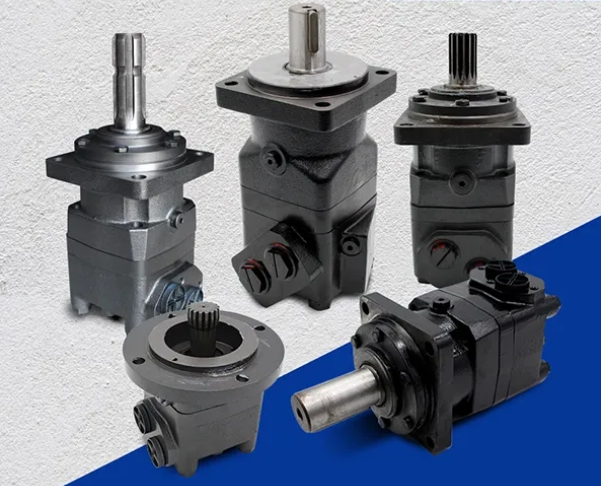

1. Hydraulic Motor: This is the core component that converts hydraulic energy back into mechanical energy. The motor must be sized correctly to match the power requirements of the application.
2. PTO Pump: This pump is used to generate hydraulic pressure from the mechanical power of the PTO shaft. It is essential for creating the hydraulic flow needed to drive the hydraulic motor.
3. Hydraulic Valves and Lines: These are necessary for controlling the flow of hydraulic fluid to and from the motor. Proper sizing and selection of valves and lines are crucial for efficient operation.
4. Reservoir and Cooling System: A hydraulic reservoir stores the hydraulic fluid, and a cooling system may be required to manage the temperature of the fluid during operation.
5. Control Systems: Depending on the complexity of the application, electronic or mechanical control systems may be needed to manage the hydraulic motor's operation.
- Calculate Horsepower and Torque: Use formulas like HP=GPM×PSI÷1714 and T=HP×5252÷RPMT=HP×5252÷RPM to determine the horsepower and torque needed for your application[1].
- Match Power Requirements: Ensure the hydraulic motor can handle the calculated horsepower and torque. Consider factors like motor efficiency and pressure rating.
- Mounting and Alignment: Properly mount the PTO pump to the PTO shaft, ensuring alignment to prevent vibration and wear. For example, when installing a PTO pump on a tractor, ensure the gearbox assembly is fully engaged with the PTO shaft and secure it with drawbar stop plates.
- Sizing and Routing: Size the hydraulic lines correctly to minimize pressure drop and ensure efficient flow. Route lines safely to avoid damage. Avoid sharp bends in hoses that can restrict flow.
- Electronic or Mechanical Controls: Install control systems to manage the hydraulic motor's operation, including speed, direction, and pressure.
- Oil Flow and Pressure: Ensure that the hydraulic system can provide sufficient oil flow and pressure to operate the motor efficiently without compromising other hydraulic functions. For instance, if the system uses engine oil instead of hydraulic fluid, it may affect motor performance[7].
- Space and Mounting: Consider the physical space available for mounting the hydraulic motor and other components. Ensure the mounting location is stable and easily accessible.
- Cost and Complexity: Assess the cost and complexity of the conversion against potential benefits. Sometimes, simpler solutions like using a hydraulic drive straight onto the PTO shaft can be more cost-effective[4].
Converting PTO attachments to hydraulic drive can offer flexibility and efficiency in various applications:

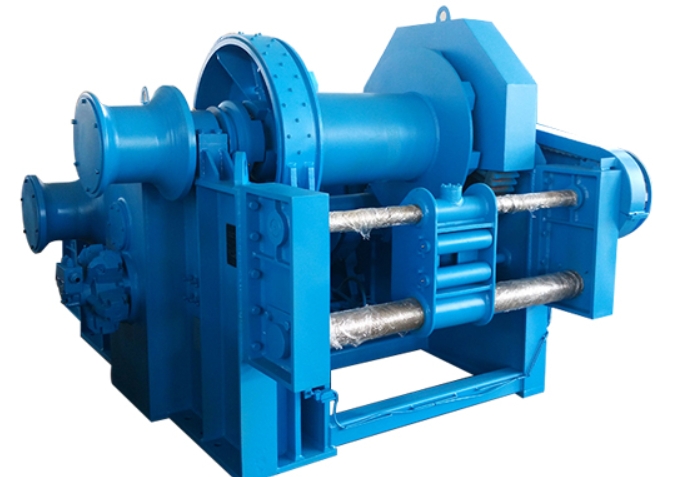

- Agricultural Equipment: Converting a PTO-driven chipper or log winch to hydraulic can simplify operation and reduce mechanical complexity. For example, converting a Jinma chipper or a Wallenstein log winch to hydraulic drive can enhance their usability on different machinery[7].
- Construction Machinery: Hydraulic motors can be used in place of PTO-driven systems for cranes or mixers, providing smoother operation and easier control.
- Wave Energy Converters: Hydraulic PTO systems are also used in wave energy converters to smooth energy fluctuations and maintain stable power output.
Regular maintenance is crucial for the longevity and efficiency of hydraulic systems:
- Daily Checks: Check oil levels and inspect hoses for leaks before operation.
- Fluid Management: Use the recommended hydraulic fluid and change it as per the manufacturer's schedule.
- System Testing: Test the system at low pressure before full operation to ensure there are no leaks or issues.
Hydraulic PTO systems are also used in advanced applications such as wave energy converters. These systems convert wave energy into hydraulic energy, which is then used to drive a generator. The hydraulic system helps smooth out energy fluctuations, ensuring stable power output.
As technology advances, hydraulic PTO systems are becoming more efficient and versatile. Future developments may include more sophisticated control systems that optimize energy conversion and transmission. Additionally, advancements in materials and design could lead to more compact and efficient hydraulic motors, further expanding their application range.
PTO through-drive motors offer flexibility by allowing the mounting of drive systems anywhere, as long as they are powered by a hydraulic pump elsewhere. This technology enables creative solutions such as mounting a drive shaft for a pond pump at the end of an excavator's arm[2].
PTO hydraulic pumps are known for their reliability, effectiveness, and versatility. They provide high-pressure hydraulic fluid, increasing output and efficiency in heavy machinery operations. These pumps are designed to handle rough working conditions, maximizing their lifespan and reducing noise during operation[3].
PTO hydraulic power packs play a crucial role in heavy-duty equipment by providing the necessary power to operate various hydraulic systems. These systems are versatile, efficient, and cost-effective, making them ideal for industries like agriculture, construction, and manufacturing[6].
A PTO hydraulic power pack consists of several key components:
- PTO Shaft: Connects to the vehicle's engine.
- Hydraulic Pump: Pressurizes the hydraulic fluid.
- Reservoir: Stores the hydraulic fluid.
- Control Valves: Regulate fluid flow and pressure.
- Hoses and Fittings: Distribute fluid throughout the system.
- Filters: Keep the hydraulic fluid clean[6].
Safety is paramount when working with PTO hydraulic systems. Always follow manufacturer safety guidelines, use proper personal protective equipment (PPE), and keep clear of moving parts during operation. Regularly inspect safety guards and emergency shut-off systems, and train all operators on proper use and safety procedures[6].
Converting a PTO system to a hydraulic motor requires careful planning and selection of components. Understanding the power requirements, selecting the right hydraulic motor, and ensuring proper installation are crucial for a successful conversion. This approach can enhance the flexibility and efficiency of machinery across various industries.
A PTO pump is used to convert mechanical energy from a vehicle's engine into hydraulic energy, which powers various hydraulic systems.
Use the formula HP=GPM×PSI÷1714 to calculate the horsepower needed based on the hydraulic flow and pressure.
The most common types are gear pumps and piston pumps, each suited to different applications based on pressure and flow requirements.
Key considerations include matching the motor's power output to the application's requirements, ensuring sufficient hydraulic flow and pressure, and considering space and mounting constraints.
Ensure efficient operation by properly sizing hydraulic lines, using appropriate control systems, and maintaining optimal hydraulic fluid temperature and pressure.
