Hydraulic motors are crucial components in hydraulic systems, converting hydraulic energy into mechanical energy. They are widely used in various applications, including industrial machinery, construction equipment, and agricultural machinery. The control of hydraulic motors is essential for achieving precise operation and efficiency in these applications. This article will delve into the types of control used in hydraulic motors, including speed control methods and direction control techniques.

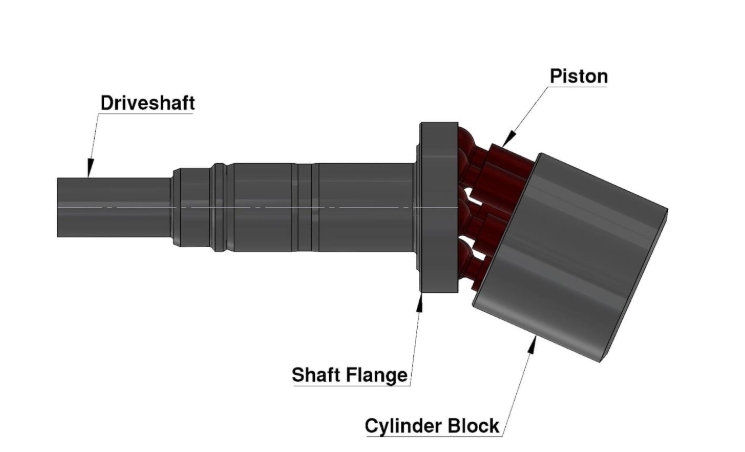

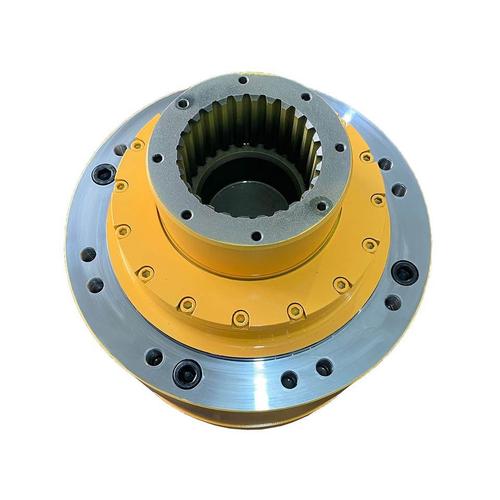

Hydraulic motors are designed to convert hydraulic pressure and flow into rotational mechanical energy. They come in different types, such as gear motors, piston motors, and vane motors, each with its own characteristics and applications. The power output of a hydraulic motor is determined by the flow rate and pressure drop across the motor.
- Fixed Displacement Motors: These motors provide constant torque and variable speed, depending on the input flow rate.
- Variable Displacement Motors: These motors offer variable torque and speed by adjusting the displacement.
Speed control in hydraulic motors is crucial for optimizing performance and efficiency. There are primarily two methods used for controlling the speed of hydraulic motors:
1. Variable Displacement Pump Control:

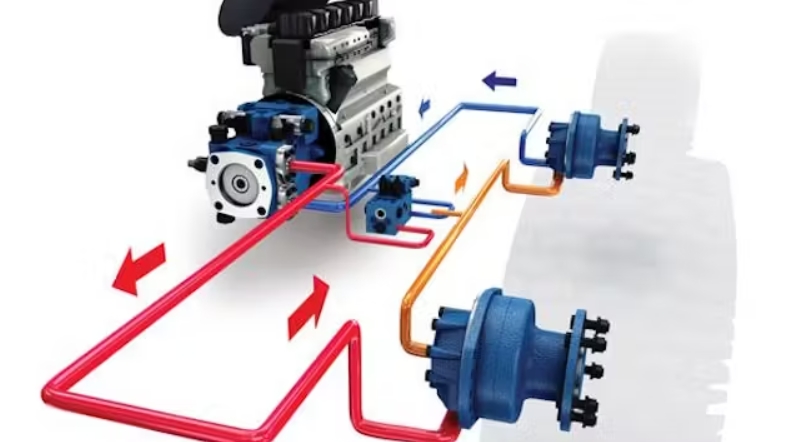

This method involves using a variable displacement pump to control the flow to the motor. It is energy-efficient and commonly used in hydrostatic transmissions.
This configuration is known as a hydrostatic transmission, where the pump flow rate directly influences the motor speed. The energy efficiency of this method makes it suitable for applications where minimizing energy consumption is important.
2. Proportional or Servovalve Control:
This method uses a proportional valve powered by a constant-pressure source. It offers higher responsiveness and is suitable for applications requiring precise speed control.
The use of proportional valves allows for precise control over the flow rate, enabling smooth and accurate speed adjustments. This method is particularly useful in applications where rapid changes in speed are required.
For effective speed control, optimal sizing of components and feedback control methods are essential. Optimal sizing involves selecting the right supply pressure, valve coefficient, and motor displacement to maximize power transfer at the design point. Feedback control ensures a wide speed range and maintains constant speed under varying loads.
Optimal sizing is critical because it ensures that the hydraulic system operates efficiently at its worst-case operating conditions. By designing for the maximum load requirement, the system can handle all other operating conditions effectively. Feedback control, often implemented using sensors and electronic controllers, adjusts the valve settings to maintain a constant speed despite changes in load torque.
In a conveyor drive application, the load can vary significantly, requiring adjustable speed to synchronize with other processes. The design point is determined by the maximum load torque and the required speed at that torque. By optimizing the system for this worst-case scenario, it can handle all other operating conditions efficiently.
Direction control is another critical aspect of hydraulic motor operation. It involves controlling the motor's rotation direction, which is typically achieved using directional control valves.
Directional control valves are used to control the flow direction in hydraulic systems. A common type is the 4/3 directional control valve, which has four ports (pressure, return, and two working ports) and three positions (center block, forward, and reverse).
To control the direction of a hydraulic motor, solenoids activated by switches are used to move the spool in the directional control valve. This allows the motor to rotate in both forward and reverse directions.
In a simulation setup, a 4/3 directional control valve is used with two switches for forward and reverse motion. The motor rotates forward when the forward switch is pressed, and reverse when the reverse switch is activated.
Flow control valves are used to regulate the flow rate to the motor, allowing for speed adjustment. These valves can be adjusted to set the desired flow rate, which directly affects the motor's rotational speed.
Understanding hydraulic symbols is crucial for designing and interpreting hydraulic circuits. ISO 1219-1 provides standardized symbols for hydraulic components, including pumps, motors, valves, and cylinders.
In modern hydraulic systems, advanced control techniques are increasingly used to improve performance and efficiency. These include:
- Proportional-Integral-Derivative (PID) Control: This method uses feedback from sensors to adjust valve settings, maintaining precise control over speed and position.
- Observer-Based Damping: This technique uses mathematical models to predict and compensate for unwanted motions in hydraulic drives, enhancing stability and accuracy.Mechatronic Systems
In mechatronic systems, hydraulic drives are integrated with electronic controls to achieve high performance and precision. These systems require advanced damping techniques to mitigate oscillations and improve stability. Methods such as transducer-based, observer-based, and real-time derivation damping are used to enhance system performance.
Recent innovations in hydraulic technology include the integration of electronics and digital control systems. Electrically controlled hydraulic systems combine the benefits of hydraulic power with the precision and flexibility of electronic control. This integration enables precise motion control, energy optimization, and real-time monitoring.
The push for sustainability and energy efficiency has led to advancements such as variable displacement pumps, energy recovery systems, and regenerative braking techniques. These innovations reduce energy consumption, minimize fluid leakage, and optimize system performance, resulting in greener and more sustainable hydraulic solutions[8].
Modern hydraulic valves incorporate advanced technologies like 3D printing and brushless DC motors. These innovations enable precise control over hydraulic fluid flow and allow for compact, intelligent designs. The use of magnetic position sensing allows for rapid adjustments in valve settings, enhancing responsiveness and efficiency[3].
Hydraulic motors are widely used in industrial applications where high torque and low speed are required. They are particularly beneficial in environments that are harsh, such as foundries or quarries, due to their durability and ability to absorb impacts.
Hydraulic orbital motors are a preferred choice for applications needing high force or torque and low speed. Their durability and ability to operate effectively in challenging environments make them ideal for tasks like powering conveyors and driving screw mechanisms in injection molding machines[2].
In injection molding machines, hydraulic orbital motors are used to apply force to close the dies and hold them closed. They are also used in die casting equipment for similar purposes. Additionally, these motors power augers that move polymer material through heating zones and into mold cavities[2].
Hydraulic motors are used in various industrial applications, including rolling mills, mixers, and augers. Their robust nature and resistance to heat make them suitable for these environments[7].
Modern hydraulic systems are evolving to incorporate advanced technologies that enhance efficiency and sustainability. Innovations include the use of variable speed drives, high-efficiency pumps, and electrification of hydraulic systems to reduce energy losses[4]. Additionally, integrating renewable energy sources and implementing heat recovery systems further improve sustainability[4].
Electrification involves replacing traditional hydraulic actuators with electric ones, reducing energy losses associated with fluid compressibility and resistance. Hybrid hydraulic-electric systems combine the benefits of both technologies, offering improved efficiency and reduced emissions[8].
The use of advanced materials and lubricants enhances efficiency, reduces friction, and extends component lifespan. Materials like composites and alloys provide increased strength-to-weight ratios, corrosion resistance, and durability, enabling hydraulic systems to operate under demanding conditions[8].
Hydraulic motors are versatile components used in various applications, requiring precise control for optimal performance. Speed control methods, such as variable displacement pumps and proportional valves, ensure efficient operation. Direction control using directional control valves allows for forward and reverse motion, while flow control valves adjust the motor speed. Understanding these control methods and hydraulic symbols is essential for designing effective hydraulic systems.
The primary methods for controlling the speed of a hydraulic motor are using a variable displacement pump and a proportional or servovalve powered by a constant-pressure source.
The direction of a hydraulic motor is controlled using a directional control valve, typically a 4/3 valve, which is operated by solenoids activated by switches.
Flow control valves regulate the flow rate to the motor, allowing for speed adjustment by controlling the volume of fluid supplied to the motor.
Load-sensing control is energy-efficient, reduces heat losses, and provides constant flow independent of pump shaft speed variations, improving actuator control.
Common types of hydraulic motors include fixed displacement motors (e.g., gear motors) and variable displacement motors (e.g., piston motors), each suited to different applications based on their torque and speed characteristics.
