Champion motor graders are heavy-duty machines used for road construction and maintenance, requiring precise lubrication to ensure optimal performance and longevity. Hydraulic oil plays a crucial role in these machines, as it powers the hydraulic systems that control the blade, wheels, and other critical components. In this article, we will explore the types of hydraulic oils suitable for Champion motor graders, their characteristics, and maintenance tips.

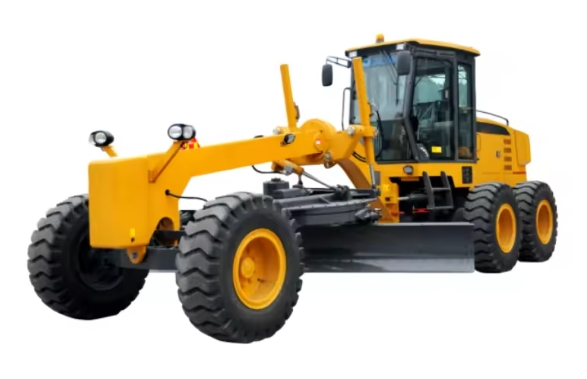

Champion motor graders are part of a broader category of heavy equipment designed for grading and smoothing surfaces. These machines are equipped with a blade that can be adjusted to various angles and positions, allowing for precise control over the grading process. The hydraulic system is central to the operation of these graders, as it provides the power needed to move the blade and other components.
1. Hydraulic System: This includes pumps, valves, cylinders, and hydraulic oil. The hydraulic system is responsible for moving the blade and other parts of the grader.
2. Engine: Provides power to the hydraulic pumps and other systems.
3. Transmission: Transfers power from the engine to the wheels or other components.
4. Blade: The primary tool for grading surfaces.
Champion motor graders typically use hydraulic oils that meet specific standards to ensure compatibility and performance. The most common types include:
- ISO 32 Hydraulic Oil: This is a light viscosity oil suitable for systems requiring low viscosity at startup and good flowability in cold conditions.
- ISO 46 Hydraulic Oil: Offers a higher viscosity than ISO 32, providing better lubrication in systems that operate under higher pressures or temperatures.
- Hydraulic HVI Oils: These have a high viscosity index, meaning their viscosity changes less with temperature variations, providing consistent performance across different operating conditions.
Hydraulic oils for Champion motor graders are formulated with additives to enhance performance:
- Anti-wear Additives: Protect moving parts from wear and tear.
- Anti-oxidant Additives: Prevent oil degradation over time.
- Anti-foam Additives: Reduce foam formation, which can lead to system inefficiencies.
- Anti-corrosion Additives: Protect metal components from corrosion.
Proper maintenance is crucial to extend the life of the hydraulic system and ensure optimal performance:
1. Regular Oil Changes: Follow the manufacturer's schedule for changing hydraulic oil to prevent contamination and degradation.
2. Filter Maintenance: Regularly inspect and replace hydraulic filters to prevent debris from entering the system.
3. System Inspection: Check for leaks and ensure all fittings are secure to prevent oil loss and system damage.
- Symptoms: Discolored oil, presence of water or debris.
- Solution: Drain and replace the oil, clean the system, and check for leaks.
- Symptoms: Oil spills, decreased system pressure.
- Solution: Inspect and tighten all fittings, replace seals if necessary.
Daily maintenance is essential for ensuring the longevity and efficiency of motor graders. Here are some key checks to perform:
1. Pre-start Check: Conduct a walk-around inspection to identify any damaged or worn parts, check for fluid leaks, and inspect the engine's air filter system.
2. Equipment Warm-up: Listen for unusual engine noises while warming up the engine, check gauges, and test the hydraulic system and brakes.
3. Daily Operating Check: Monitor for unusual noises, frequently read gauges, and be aware of changes in equipment performance during operation.
Proper lubrication of moving parts is crucial for maintaining the motor grader's performance and reducing wear and tear. Key lubrication points include:
- Pivot Pins: Regularly grease pivot pins to ensure smooth operation.
- Wheel Cylinders: Lubricate wheel cylinders to prevent corrosion and wear.
- Wheel Bearings: Use EP2 grade grease for wheel bearings to handle heavy loads.
- Knuckle Pivot Pin and King Pin: Regularly grease these points to maintain flexibility and prevent wear.
Performing regular oil analysis is vital for maintaining the health of your motor grader's hydraulic system. This involves checking for metal shavings, fluid leakage, and other contaminants that could indicate system issues. Oil analysis should be conducted at least every month or every 250 hours of operation.
While hydraulic oils are crucial for the hydraulic system, transmission fluids are essential for the transmission system. Champion offers a range of transmission fluids, including universal DEXRON III/MERCON fluids suitable for various automatic transmissions. These fluids provide excellent anti-shudder and anti-friction properties, ensuring smooth transmission performance.
Engine oils are another critical component for motor graders. Champion motor graders typically use engine oils like 15W-40, which provide excellent lubrication and protection for the engine under various operating conditions. These oils are formulated to meet high standards, ensuring long engine life and reduced maintenance needs.
For the clutch master cylinder, Champion recommends using mineral-based fluids. In colder climates, specific fluids like Champion P/N 58440 or Esso Univis N Arctic are recommended to ensure proper operation.
The cooling system is vital for maintaining optimal engine temperatures. Regular checks should include inspecting the coolant level, ensuring proper antifreeze concentration, and checking for leaks in the cooling system.
Proper storage and transportation of motor graders are essential to prevent damage and ensure readiness for operation. When storing, ensure the equipment is clean, lubricated, and protected from the elements. During transportation, secure all loose parts and ensure the machine is properly tied down to prevent movement.
Predictive maintenance involves using data and sensors to predict when maintenance is needed, reducing downtime and improving efficiency. This can include monitoring oil quality, temperature sensors, and vibration analysis to identify potential issues before they become major problems.
Condition-based maintenance focuses on performing maintenance based on the actual condition of the equipment rather than a fixed schedule. This approach can help extend the life of components and reduce unnecessary maintenance costs.
1. Air and Water Contamination: Air and water can enter the system through leaks or improper maintenance, leading to cavitation and corrosion.
2. Temperature Problems: Overheating can cause oil degradation and increased viscosity, while cold temperatures can increase viscosity, making it harder for the oil to flow[3][6].
3. Fluid Levels and Quality: Maintaining proper fluid levels and quality is crucial to prevent system damage[6].
4. Human Error: Incorrect maintenance practices or using the wrong hydraulic oil can lead to system failure[8].
Champion motor graders rely on high-quality hydraulic oils to maintain their performance and longevity. Understanding the types of hydraulic oils used and following proper maintenance procedures are essential for operators. By choosing the right hydraulic oil and adhering to maintenance schedules, operators can ensure their equipment runs efficiently and effectively.
The recommended viscosity depends on the specific model and operating conditions. Common viscosities include ISO 32 and ISO 46.
Oil changes should be performed according to the manufacturer's schedule, typically every few hundred hours of operation.
Using the wrong oil can lead to system damage, reduced performance, and increased wear on components.
Inspect all fittings and hoses regularly, and check for signs of oil spills or decreased system pressure.
ISO 68 is not typically recommended for Champion motor graders; it is more viscous than the usual ISO 32 or ISO 46 oils and may not provide optimal performance.
