Hydraulic motors are crucial components in hydraulic systems, converting hydraulic energy into mechanical energy in the form of rotary motion. This conversion enables the performance of various tasks, such as lifting heavy loads or powering machinery. Understanding what powers a hydraulic motor involves exploring its working principle, components, and applications.
Hydraulic motors are rotary actuators that transform hydraulic energy into mechanical power. They work in tandem with hydraulic pumps, which convert mechanical energy into hydraulic energy. The primary function of a hydraulic motor is to utilize the pressure and flow of hydraulic fluid to generate torque and rotational speed.
A typical hydraulic motor consists of several key components:
- Pistons: These are the moving parts that convert hydraulic pressure into mechanical motion.
- Cam Ring or Gear Set: Depending on the motor type, these components help in converting linear motion into rotary motion.
- Valve Plate: Directs the flow of hydraulic fluid to and from the pistons.
- Shaft: The output shaft that rotates due to the action of the pistons.
The operation of a hydraulic motor involves the following steps:
1. Fluid Flow: Pressurized hydraulic fluid enters the motor through an inlet port.
2. Pressure Application: The fluid applies pressure to the pistons or vanes inside the motor.
3. Mechanical Conversion: This pressure causes the pistons or vanes to move, which is then converted into rotary motion by the cam ring or gear set.
4. Output: The rotary motion is transmitted through the output shaft.
5. Fluid Return: The fluid exits the motor through an outlet port and returns to the reservoir.
Hydraulic motors come in several types, each with its unique characteristics and applications:

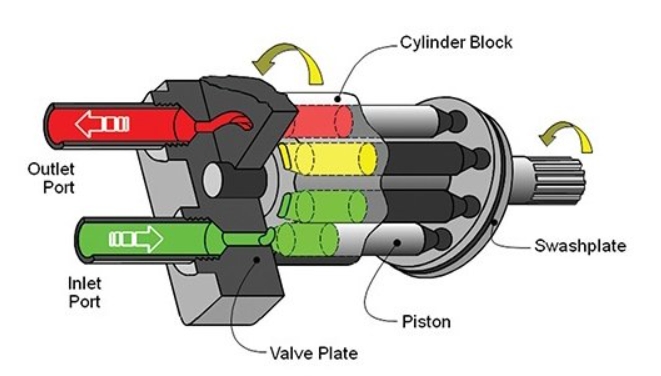

These motors use pistons arranged axially (parallel to the shaft) and are known for high efficiency and compact design. They are commonly used in heavy machinery like excavators.
In these motors, pistons are arranged radially (perpendicular to the shaft). They offer high torque at low speeds and are often used in applications requiring high torque.
Vane motors use vanes that slide in and out of slots in a rotor. They are simpler in design and provide smooth operation but are less efficient than piston motors.

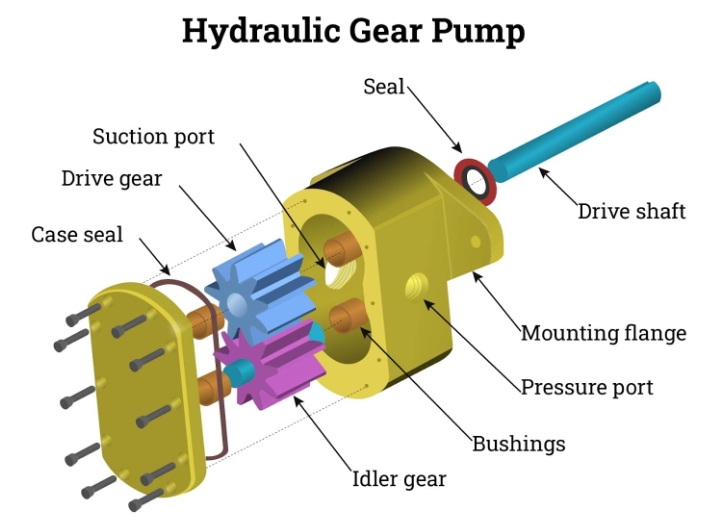

Gear motors use interlocking gears to convert fluid pressure into rotary motion. They are simple, cost-effective, and suitable for low-pressure applications.
Orbital motors, also known as gerotor motors, use an inner and outer rotor with meshing teeth. They are used in applications requiring high torque, such as power steering systems.
Hydraulic motors are used in a wide range of applications due to their ability to provide high torque at low speeds and their robustness:
- Construction Equipment: Excavators, cranes, and bulldozers rely on hydraulic motors for their operation.
- Industrial Machinery: Used in manufacturing processes for tasks like lifting and moving heavy loads.
- Agricultural Machinery: Tractors and harvesters use hydraulic motors for various functions.
- Forestry Equipment: Hydraulic motors power machinery used in logging and wood processing.
- Marine Equipment: Used in winches and other marine applications requiring high torque.

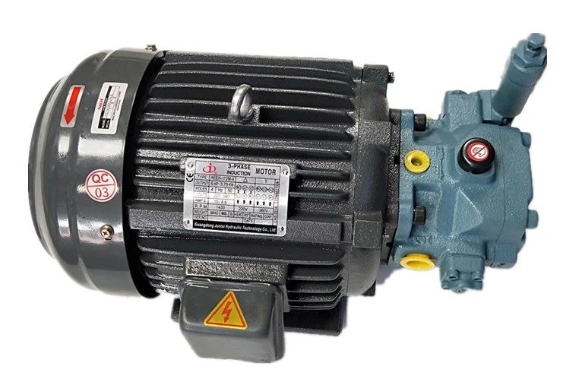

A hydraulic power unit (HPU) is essential for powering hydraulic motors. It consists of a prime mover (like an electric motor), a hydraulic pump, a reservoir, valves, and actuators. The HPU converts mechanical energy into hydraulic energy, which is then used by the motor to perform work.
- Prime Mover: Provides the initial mechanical energy.
- Hydraulic Pump: Converts mechanical energy into hydraulic energy.
- Reservoir: Stores the hydraulic fluid.
- Valves: Control the flow and direction of the fluid.
- Actuators: Convert hydraulic energy back into mechanical energy.
The efficiency of hydraulic motors is crucial for optimizing their performance. Efficiency can be measured in three ways: volumetric, mechanical/hydraulic, and overall efficiency.
- Volumetric Efficiency: This measures the ratio of actual fluid flow to theoretical flow, indicating leakage and wear.
- Mechanical Efficiency: Based on the actual work done compared to theoretical work, it reflects mechanical friction losses.
- Overall Efficiency: The product of volumetric and mechanical efficiency, providing a comprehensive view of motor efficiency.
High-quality radial piston motors can achieve efficiencies of about 95%, while axial piston motors typically reach around 90% efficiency. However, hydraulic systems generally face challenges in achieving high efficiency due to energy losses during fluid transmission.
Recent innovations in hydraulic technology are transforming the industry. Trends include the integration of electronics and digital control systems, energy efficiency improvements, and the adoption of hybrid systems. Electrically controlled hydraulics offer precise motion control and real-time monitoring, enhancing system performance. Additionally, advancements in materials and lubricants improve component lifespan and reduce friction.
The push for sustainability and energy efficiency has led to innovations like variable displacement pumps and regenerative braking techniques. These advancements reduce energy consumption and minimize fluid leakage, contributing to greener hydraulic solutions. Hybrid hydraulic-electric systems also play a significant role in improving efficiency by capturing and reusing energy during deceleration.
The integration of smart technologies and IoT into hydraulic systems allows for real-time monitoring and predictive maintenance. This trend enhances reliability, reduces downtime, and provides valuable insights for proactive system management.
Hydraulic systems are increasingly used in renewable energy applications, such as wave power and wind turbines. In wave power, hydraulic systems convert wave motion into electricity by using hydraulic cylinders to drive motors connected to generators. In wind turbines, hydraulic systems are used for pitch control and yaw control, ensuring optimal energy capture and smooth operation.
Proper installation and maintenance are vital for ensuring the longevity and efficiency of hydraulic motors:
- System Priming: Purge air from the system by cycling the fluid several times.
- Load Testing: Gradually introduce the motor to operational loads, monitoring performance.
- Regular Inspections: Check for leaks, loose fittings, and abnormal wear.
- Lubrication: Follow manufacturer guidelines for lubrication intervals.
- Filter Maintenance: Clean or replace hydraulic filters regularly to maintain fluid quality.
Common issues with hydraulic motors include noise, vibration, and leakage. These problems often indicate mechanical issues or misalignment. Prompt identification and repair of these issues are essential to prevent damage to the motor and surrounding components.
The future of hydraulic motors is marked by trends such as electrification, energy efficiency, and the integration of smart technologies. Electric hydraulic motors are gaining prominence due to their precision and efficiency. Additionally, advancements in materials and manufacturing techniques are leading to more durable and adaptable hydraulic components.
The integration of electric technology into hydraulic systems enhances control precision, reduces noise levels, and contributes to overall system efficiency. This trend aligns with the broader industrial shift towards electrification and sustainability. Companies like Poclain are pushing the boundaries by optimizing torque and energy flow, making hydraulic solutions more precise and efficient[1].
The use of sensors, connectivity, and data analytics in hydraulic systems enables real-time monitoring and predictive maintenance, enhancing reliability and reducing downtime. This integration is crucial for modernizing hydraulic systems and aligning them with emerging industrial technologies[4].
Hybrid systems combining hydraulic and electric technologies offer enhanced control, modularity, and integration, opening new possibilities for off-road applications. These systems leverage the responsiveness of electric motors and the durability of hydraulic systems, providing a balanced approach to energy efficiency and performance[1].
Modernizing hydraulic systems involves integrating advanced technologies such as metal 3D printing, advanced sensors, and cutting-edge control algorithms. These innovations improve control capabilities, reduce material usage, and enhance system efficiency. For instance, Domin's use of 3D printing allows for more complex geometries, improving fluid flow and reducing component size[6].
The global hydraulic motors market is projected to reach a substantial value by 2025, driven by increasing demand across diverse industries. Key trends include a focus on energy efficiency, sustainability, and technological advancements. The market is expected to grow steadily, influenced by factors such as automation, infrastructure development, and environmental regulations[5][7].
Hydraulic motors are powered by the conversion of hydraulic energy into mechanical energy, facilitated by hydraulic pumps and power units. Their versatility and ability to provide high torque make them indispensable in various industries. Understanding the working principle and types of hydraulic motors is crucial for selecting the right motor for specific applications.
A hydraulic motor converts hydraulic energy into mechanical energy in the form of rotary motion, enabling tasks like lifting heavy loads.
Hydraulic motors convert fluid pressure into mechanical energy, whereas hydraulic pumps convert mechanical energy into fluid pressure.
Common types include axial piston, radial piston, vane, gear, and orbital motors, each suited for different applications based on efficiency, torque, and speed requirements.
A hydraulic power unit (HPU) is a self-contained system that converts mechanical energy into hydraulic energy, providing the necessary power for hydraulic motors to operate.
Hydraulic motors are used in construction equipment, industrial machinery, agricultural machinery, and other applications requiring high torque and robust operation.
