Choosing the right size of a hydraulic motor for a winch is crucial for ensuring efficient and reliable operation. Hydraulic winches are widely used in heavy-duty applications, such as construction, marine, and industrial settings, due to their high pulling capacity and durability. In this article, we will explore the key factors to consider when selecting a hydraulic motor for a winch, including the types of hydraulic motors, their components, and how they work.
Hydraulic winches operate by utilizing fluid power to generate mechanical force, enabling the pulling or lifting of heavy loads with ease. They consist of several key components, including a hydraulic pump, hydraulic motor, winch drum, and control valves.
- Hydraulic Pump: Responsible for pressurizing the hydraulic fluid.
- Hydraulic Motor: Converts the hydraulic energy into rotational motion.
- Winch Drum: The drum onto which the cable or rope is wound.
- Control Valves: Regulate the flow of hydraulic fluid to control the winch's speed and direction.
The operation of a hydraulic winch involves the following steps:
1. Hydraulic Pump Activation: The pump pressurizes the hydraulic fluid.
2. Hydraulic Motor Activation: The motor converts the fluid energy into rotational motion.
3. Drum Rotation: The drum rotates, winding or unwinding the cable.
4. Control Valve Regulation: The valves control the speed and direction of the winch.
Hydraulic motors come in various types, including gear motors, vane motors, and piston motors. Each type has its own advantages and is suited for different applications.
Gear motors are simple and cost-effective, making them suitable for low-pressure applications. However, they have lower efficiency compared to other types.
Vane motors offer higher efficiency and are more compact, making them ideal for applications requiring precise control.

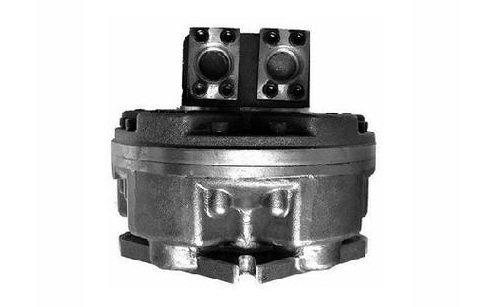

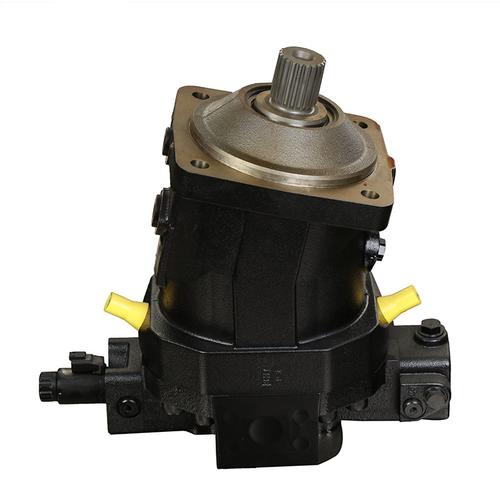

Piston motors provide high torque and are commonly used in heavy-duty applications. They are more complex but offer superior performance.
When choosing a hydraulic motor for a winch, several factors must be considered:
- Flow Rate: The motor must be able to handle the required flow rate to achieve the desired line speed.
- Pressure: The motor should be capable of operating at the system's pressure to ensure sufficient torque.
- Torque: The motor's torque output must match the winch's pulling requirements.
To calculate the required motor size, you need to determine the winch's pulling capacity and the desired line speed. The motor's displacement (in cubic inches per revolution) and the system's flow rate (in gallons per minute) are crucial for this calculation.
Motor Displacement=[Flow Rate (GPM)×231]/Motor Speed (RPM)
For example, if you need a flow rate of 15 GPM and the motor operates at 1000 RPM, the required displacement would be approximately 3.46 cubic inches per revolution.
The efficiency of a hydraulic motor is crucial for optimal performance. Efficiency can be measured in terms of volumetric efficiency, mechanical efficiency, and overall efficiency.
- Volumetric Efficiency: This measures the ratio of actual flow rate to theoretical flow rate, indicating leakage and wear.
- Mechanical Efficiency: This is based on the ratio of actual torque to theoretical torque, affected by mechanical friction.
- Overall Efficiency: The product of volumetric and mechanical efficiencies, providing a comprehensive view of motor efficiency.
High-quality radial piston motors are about 95% efficient, while axial piston motors are about 90% efficient. Maintaining these motors through regular maintenance can help minimize efficiency losses due to internal leakage and friction.
Hydraulic winches offer several advantages over electric winches:
- Higher Pulling Power: Hydraulic winches can exert greater force, making them suitable for heavy-duty applications.
- Constant Torque: Hydraulic systems provide consistent torque output, even at low speeds.
- Heat Resistance: Hydraulic systems are less susceptible to overheating, ensuring reliable operation in demanding conditions.
Hydraulic winches are used in various industries:
- Marine Industry: For lifting and pulling heavy loads on ships and docks. Modern marine hydraulic winches feature advanced safety mechanisms and compact designs, enhancing their versatility and efficiency[1].
- Construction: For moving heavy equipment and materials.
- Industrial Settings: For lifting and moving heavy machinery.
Despite their advantages, hydraulic winches have some challenges:
- High Energy Consumption: Hydraulic winches require a constant power source, which can increase fuel costs.
- Complex Maintenance: The hydraulic system requires regular maintenance to ensure optimal performance.
To address these challenges, it's essential to optimize the hydraulic system design and ensure proper maintenance. Regular checks on hydraulic fluid cleanliness and filter condition can help prevent efficiency losses.
Hydraulic winches can also utilize dynamic braking, where the motor acts as a pump during load lowering, converting kinetic energy into heat. This is particularly useful in applications requiring controlled descent, such as anchor winches on offshore platforms.
Companies like Liebherr offer customized winch systems tailored to specific customer needs, including asynchronous motors and specialized control software. These solutions can enhance the performance and efficiency of hydraulic winches in various applications.
While hydraulic winches excel in heavy-duty applications, electric winches offer advantages in terms of reduced energy consumption and lower maintenance costs. DC electric winches, for example, are gaining popularity due to their precision control and reduced noise[3][7].
Modern hydraulic winches incorporate advanced features such as overload protection, emergency stop functions, and fail-safe braking systems. These features ensure safe operation and prevent accidents during heavy-duty lifting and pulling tasks.
Recent advancements have led to the development of compact and lightweight hydraulic winches, which are easier to install and maneuver, especially in confined spaces. For instance, marine hydraulic winches have seen significant improvements in design, allowing for better integration on vessels and offshore platforms[1].
Hydraulic winches now often include advanced control systems and sensors, allowing for precise and automated operations. This automation enhances operational safety and efficiency by reducing human error[1].
Modern hydraulic winches can be integrated with telemetry and communication systems, enabling centralized control and monitoring of winch operations. This integration facilitates coordinated operations, data logging, and remote diagnostics, optimizing the lifespan and performance of hydraulic winches.
Hydraulic winches, particularly those used in marine environments, pose environmental risks due to potential oil leaks from high-pressure hoses. Regular maintenance and the use of environmentally friendly hydraulic fluids can mitigate these risks.
Hydraulic winches are generally more expensive than electric winches, both in terms of initial cost and maintenance. However, their ability to handle heavy loads continuously makes them a worthwhile investment for industrial applications.
The duty cycle of a hydraulic motor refers to how long it can operate before needing to cool down. Hydraulic winches typically have longer duty cycles than electric ones, allowing them to run continuously as long as the engine is on. When selecting a motor, consider the expected performance needs, load requirements, and operating conditions to ensure optimal performance[8].
To determine the appropriate size of the hydraulic motor for your winch, you can use the following formula:
Motor Size HP=[Load (lbs)×Speed (ft/min)]/33,000
For example, if you want to lift 4,000 lbs at a speed of 10 ft/min:
Motor Size HP=[4000×10]/33,000≈1.21 HP
This formula provides a basic estimate of the horsepower required for your application.
Recent advancements in materials and design have led to the development of higher torque compact motors, such as those offered by Hägglunds Drives. These motors provide increased power output without increasing size, making them suitable for heavy load applications like ROV/UUV winches and anchor handling winches[4].
Choosing the right size of a hydraulic motor for a winch is critical for efficient operation. By understanding the components, types of motors, and factors influencing motor size selection, you can ensure that your hydraulic winch performs optimally in various applications.
A hydraulic winch consists of a hydraulic pump, hydraulic motor, winch drum, and control valves. These components work together to convert hydraulic energy into mechanical force for pulling or lifting heavy loads.
Hydraulic winches operate by pressurizing hydraulic fluid, which is then directed to the hydraulic motor. The motor converts this fluid energy into rotational motion, driving the winch drum to wind or unwind the cable.
When selecting a hydraulic motor size, consider the flow rate, pressure, and torque requirements of the winch. The motor must handle the required flow rate to achieve the desired line speed and operate at the system's pressure to ensure sufficient torque.
Hydraulic winches offer higher pulling power, constant torque, and better heat resistance compared to electric winches. They are suitable for heavy-duty applications and provide reliable operation in demanding conditions.
To optimize performance, ensure proper system design, regular maintenance, and optimal motor sizing. Regularly check and replace worn-out parts, and consider upgrading components if necessary to improve efficiency and reduce downtime.
