Skid steer loaders are versatile machines used in various industries, including construction, landscaping, and agriculture. They are known for their compact size and ability to maneuver in tight spaces, making them ideal for tasks that require precision and flexibility. One of the key components that enable skid steers to operate efficiently is the hydraulic motor. In this article, we will delve into the specifics of hydraulic motors used in skid steers, including their sizes, types, and functionalities.
Skid steer loaders rely on hydraulic systems to power their movements and operations. The hydraulic motor is a crucial part of this system, responsible for converting hydraulic pressure into mechanical energy to drive the wheels. Typically, skid steers use two hydraulic motors, one for each side of the machine, allowing for independent control of the left and right wheels. This setup enables the skid steer to move forward, backward, and turn on its axis.
There are several types of hydraulic motors used in skid steers, including:

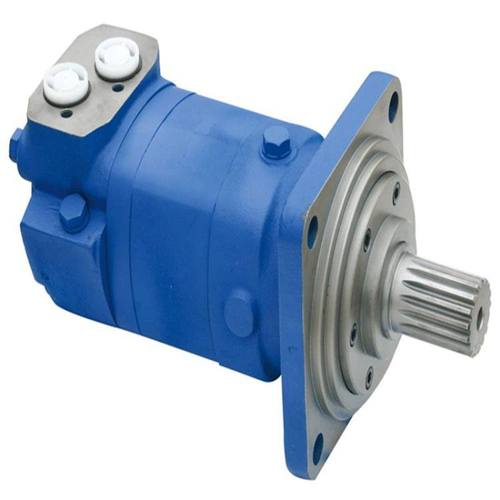

- Gear Motors: These are common in skid steers due to their simplicity and reliability. They use gears to transmit power from the hydraulic fluid to the output shaft.
- Orbit Motors: Also known as gerotor motors, these are used for their high efficiency and smooth operation. They are suitable for applications requiring constant torque over a wide speed range.
- Plunger Motors: These motors are less common in skid steers but are used in some applications for their high power-to-weight ratio.
The size of a hydraulic motor in a skid steer depends on several factors, including the machine's weight, rated operating capacity, and intended use. For example, larger skid steers require more powerful motors to handle heavier loads and achieve higher speeds.
A typical hydraulic motor for a skid steer might have specifications such as:
- Displacement: This refers to the volume of hydraulic fluid that the motor can handle per revolution. Common displacements range from 100 to 400 cm³/rev.
- Maximum Speed: This can vary from 200 to 600 rpm, depending on the motor type and application.
- Maximum Torque: This is crucial for determining the motor's ability to handle heavy loads. Torque values can range from a few hundred to over a thousand N·m.
| Type | Displacement (cm³/rev) | Max. Speed (rpm) | Max. Torque (N·m) |
|---|---|---|---|
| BMV 315 | 333 | 510 | 920 |
| BMV 400 | 419 | 500 | 1180 |
| BMV 500 | 518 | 400 | 1460 |
To better understand how hydraulic motors work in skid steers, watch this video:
Regular maintenance of hydraulic motors is essential to ensure the longevity and efficiency of skid steer loaders. This includes checking for leaks, replacing seals, and maintaining proper oil levels. Neglecting maintenance can lead to costly repairs and downtime.
- Regular Inspection: Check for signs of wear or damage on motor components.
- Proper Lubrication: Ensure that the motor and associated components are well-lubricated.
- Cleanliness: Keep the motor and surrounding area clean to prevent contamination.
Skid steers utilize hydrostatic transmissions, which involve hydrostatic pumps sending oil with varying flows and pressures to hydrostatic motors. This setup provides a steady power curve, infinitely variable speed control, lower power consumption, and a high power-to-weight ratio. The hydraulic system is crucial for operating attachments like brush cutters and drop hammers, as well as for the machine's mobility.
Skid steers can be equipped with either standard-flow or high-flow hydraulic systems. High-flow systems are designed for heavy-duty applications, such as cutting through thick rocks or trees, and can handle more powerful attachments like stump grinders and mulchers. Some machines allow switching between standard and high-flow modes for added versatility.
For example, a standard flow skid steer might produce around 34 HP with 17 GPM at 3,500 PSI, while a high-flow skid steer with 40 GPM at the same pressure can produce over 80 HP of hydraulic power. This increased power is essential for demanding tasks such as milling concrete with a cold planer, which requires a flow rate of 30 to 42 GPM and pressure range of 2,000 to 5,000 PSI.
Skid steers are versatile machines that can be equipped with a variety of attachments to perform different tasks. These include:
- Buckets: For digging and hauling materials.
- Forks: For lifting and moving pallets or heavy objects.
- Brush Cutters: For clearing vegetation.
- Stump Grinders: For grinding tree stumps.
The choice of attachment often determines whether a standard-flow or high-flow hydraulic system is needed.
Manufacturers like Poclain Hydraulics offer compact motors designed specifically for skid steers, providing design flexibility and reducing the machine's footprint. These motors often feature integrated brakes, which enhance efficiency and simplify integration into the hydraulic system.
Recent advancements in hydraulic motor technology focus on improving efficiency, reducing size, and enhancing performance. For instance, orbit motors (gerotor motors) are praised for their constant operating torque over a wide speed range, making them suitable for applications requiring smooth operation and high efficiency.
Many hydraulic motors are customizable to meet specific application needs. This includes varying displacements and configurations to ensure optimal performance in different environments. The ability to customize motors allows manufacturers to tailor their products to specific industries or tasks, enhancing overall machine performance.
Improving operator comfort and machine productivity is also a focus in the development of skid steer loaders. Advanced hydraulic systems can help reduce vibrations and improve control, enhancing the overall user experience and efficiency of the machine. This includes using hydraulic boom cylinders as active suspension elements to dampen vibrations and improve stability during operation.
The construction industry is witnessing a shift towards electric skid steers, which offer significant advantages in terms of operating and maintenance costs. Electric skid steers feature immediate slow speed control and provide instant torque, resulting in faster responsiveness and more precise, controlled movements. They also operate quietly, making them suitable for urban and indoor applications. Additionally, electric skid steers reduce the risk of breakdowns due to their simplified mechanical systems and maintenance-free lithium batteries[7].
Poclain Hydraulics is at the forefront of innovation with its HEVO technologies, which include the HEVO Booster for high-torque applications, HEVO Dual Feed for improved efficiency, and HEVO Edge for enhanced data collection and system optimization. These advancements aim to improve performance and efficiency in skid steer operations[4].
Regular maintenance is crucial for extending the lifespan of skid steers. This includes daily checks on fluid levels, air filters, and hydraulic systems. At the 1,000-hour mark, it's recommended to change the radiator coolant, chain case oil, and hydraulic oil. Proper maintenance not only reduces downtime but also saves on repair costs.
- Fluid Checks: Ensure all fluids, including hydraulic fluid, fuel, coolant, and engine oil, are at the recommended levels.
- Air Filter Inspection: Check and clean or replace air filters as needed.
- Leak Inspection: Look for signs of leaks around hoses and connections.
- 250 Hours: Change engine oil and replace oil filter. Also, change hydraulic filters.
- 500 Hours: Change fuel filter and check chain tension.
- 1,000 Hours: Change radiator coolant, chain case oil, hydraulic oil, and final drive gear oil. Drain, flush, and refill the engine cooling system[6].
In conclusion, the size and type of hydraulic motor used in a skid steer are critical factors that determine the machine's performance and efficiency. Understanding these components and maintaining them properly is essential for maximizing productivity and minimizing downtime.
Skid steers typically use gear motors, orbit motors (gerotor motors), and less commonly, plunger motors. Each type has its advantages and is suited for different applications.
Hydraulic motors convert hydraulic pressure into mechanical energy, powering the wheels of the skid steer. They enable forward, backward, and rotational movement.
The size of a hydraulic motor is determined by factors such as the skid steer's weight, rated operating capacity, and intended use. Larger machines require more powerful motors.
Regular maintenance is crucial to prevent leaks, ensure proper lubrication, and extend the lifespan of the motor. Neglecting maintenance can lead to costly repairs and downtime.
Choosing the right hydraulic motor involves considering the machine's specifications, intended use, and required performance. It's advisable to consult with a professional or refer to the manufacturer's guidelines.
