Maintaining an outboard motor involves several critical steps, one of which is ensuring that the hydraulic systems are properly filled with the right type of oil. Hydraulic systems in outboard motors are essential for functions like trim and tilt, which help adjust the motor's angle to optimize performance and efficiency. In this article, we will explore where and how to put hydraulic oil in an outboard motor, along with some essential tips and precautions.

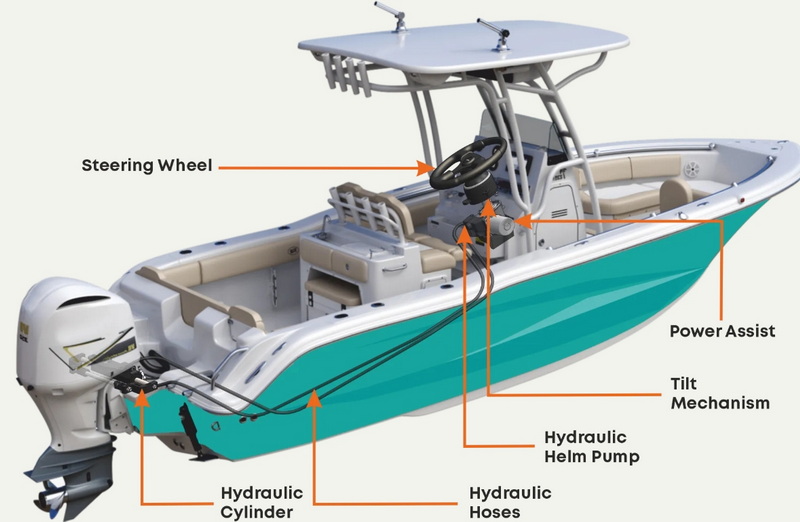

Hydraulic systems in outboard motors rely on hydraulic oil to function smoothly. This oil acts as a lubricant and a medium to transmit pressure, allowing the motor to tilt and trim effectively. The most common hydraulic systems in outboard motors are the trim and tilt systems, which are crucial for adjusting the motor's position relative to the water.
Hydraulic oil is vital for several reasons:
- Lubrication: It reduces friction between moving parts, preventing wear and tear.
- Pressure Transmission: It transmits pressure to move the motor up and down.
- Corrosion Protection: It helps protect metal components from corrosion.
- Temperature Regulation: It can help manage temperature fluctuations within the system.
Adding hydraulic oil to an outboard motor involves several steps. Here's a step-by-step guide:
Ensure the motor is in a suitable position. If it's on a trailer, adjust the trailer so the motor is level. This helps prevent oil from leaking out when you open the system.
Identify the fill screw for the trim and tilt system. This is usually located near the hydraulic reservoir.
Use a large flathead screwdriver to remove the fill screw. Be prepared for any oil that might spill out.
Insert a hose or bottle of hydraulic oil into the fill hole. Slowly add oil until it starts to come out of the system without air bubbles.
To remove air from the system, tilt the motor up and down several times. This helps ensure smooth operation.
Air can cause the system to feel spongy or unresponsive. Bleeding the system regularly helps resolve this issue.
If the oil level is low, the system may not function properly. Always check the oil level before use.
Leaks can lead to oil loss and system failure. Inspect the system regularly for any signs of leaks.
Selecting the correct hydraulic oil is crucial for the longevity and performance of your outboard motor's hydraulic systems. Here are some factors to consider:
- Viscosity: Ensure the oil has the right viscosity for your system's operating temperatures. Using oil with a viscosity that is too high can lead to inadequate lubrication and increased power consumption, while oil with too low viscosity may not maintain sufficient lubrication under high temperatures.
- Compatibility: Use oil that is compatible with your system's materials (e.g., seals, hoses).
- Additives: Look for oils with additives that prevent corrosion and foaming. Zinc-free anti-wear hydraulic oils are a good option as they provide excellent protection without environmental concerns.
Beyond hydraulic oil management, regular maintenance is essential for the overall health of your outboard motor. Here are some key tasks:
Regularly changing the lower unit oil is crucial for maintaining the longevity and performance of your outboard engine. The lower unit oil provides lubrication and cooling to the gears and bearings, protecting them from damage and overheating. It's recommended to change the lower unit oil every 100 hours of use or at least once a year.
Flushing your outboard engine with freshwater after every use helps prevent corrosion and buildup. This is especially important if you operate in saltwater environments.
Regularly check the oil levels in both the powerhead and lower unit. This ensures that all components are properly lubricated and reduces the risk of engine damage.
Inspect and replace spark plugs as needed. Fouled or worn-out spark plugs can lead to rough idling and decreased performance.
Ensure the air filter is clean and free of debris. A dirty air filter can reduce engine performance and lead to increased fuel consumption.
For heavy users, consider sending a sample of your hydraulic oil for analysis every six months. This helps identify any contamination or degradation early on.
Ensure that any cooling systems associated with your hydraulic appliances are functioning correctly. Regularly inspect and maintain components like raw-water impellers and zincs to prevent overheating.
- Incorrect Filter Placement: Avoid placing filters in locations that can restrict oil flow, such as pump inlets or drain lines, as this can reduce pump life and cause system failures.
- Incorrect Oil Changes: Change hydraulic oil based on condition rather than a fixed schedule. Premature changes can be wasteful, while delayed changes can lead to system damage.
If the tilt and trim motor works fine but the engine won't raise or lower, it may indicate issues with the hydraulic pump or valve body assembly. Check the hydraulic fluid reservoir level and inspect for leaks around seals and fittings.
Failed solenoids or relays can also cause problems with the tilt and trim system. Inspect connections and sockets for corrosion, which can disrupt electrical signals.
Regularly inspect electrical connections and components for signs of corrosion. Clean or replace them as necessary to maintain system reliability.
For advanced users, using diagnostic tools can help identify issues within the hydraulic system more efficiently. These tools can detect pressure imbalances and fluid leaks, allowing for quicker repairs.
Create a customized maintenance schedule based on your usage patterns. This ensures that all components are inspected and serviced at optimal intervals.
Consider using eco-friendly hydraulic oils that are biodegradable and non-toxic. These oils reduce environmental impact while maintaining system performance.
Ensure that all waste materials, including used oil and filters, are disposed of responsibly. This helps protect marine ecosystems and complies with environmental regulations.
When storing your outboard motor, ensure it is properly covered to protect it from dust and moisture. Regularly inspect the motor for any signs of corrosion or damage. Store the motor in a dry, well-ventilated area to prevent humidity-related issues[3][6].
When transporting the motor, secure it firmly to prevent movement. Use protective padding to prevent scratches and damage to the motor and surrounding surfaces.
New developments in hydraulic oil technology are focusing on more environmentally friendly options. These oils not only reduce environmental impact but also provide better performance under various operating conditions.
The integration of smart sensors and monitoring systems can enhance the efficiency and reliability of hydraulic systems. These technologies allow for real-time monitoring of system performance and early detection of potential issues.
Apply grease to the tips of the trim rams to prevent wear and quiet any screeching sounds that may occur when the grease wears off[5].
Use a grease gun to apply waterproof grease to the tilt tube's grease fittings. This helps maintain smooth operation and prevents corrosion[5].
Always use the tilt support bracket when the boat is docked or moored with the engine tilted up. This prevents corrosion and fouling on the rams[5].
Some outboard motors, like the STRONGER model, feature a spaced hydraulic system for the trim. This design enhances reliability and convenience by separating the hydraulic cylinder and station, making maintenance easier and more efficient[12].
Maintaining the hydraulic systems of an outboard motor is essential for optimal performance and longevity. By following the steps outlined above and using the right type of hydraulic oil, you can ensure your motor operates smoothly and efficiently. Regular maintenance also helps prevent common issues like air in the system and leaks.
Use hydraulic oil that is compatible with your system's components and has the correct viscosity for your operating conditions. Common types include zinc-free anti-wear hydraulic oils with anti-corrosion and anti-foaming additives.
Check the hydraulic oil level regularly, ideally before each use, to ensure the system is properly filled and functioning smoothly.
Air in the system can cause it to feel spongy or unresponsive. It's essential to bleed the system regularly to remove air and ensure proper operation.
It's generally not recommended to mix different types of hydraulic oil, as this can lead to compatibility issues and affect system performance.
Dispose of used hydraulic oil responsibly by taking it to an oil recycling center or an auto service station that accepts used oil.
