Marine trim motors are crucial for maintaining the stability and performance of boats, especially during varying sea conditions. These systems rely on hydraulic components to adjust the trim angle of the outboard motor, ensuring optimal fuel efficiency and handling. However, like any mechanical system, they can develop issues over time, requiring professional maintenance or repair. In this article, we will explore where and how to fix marine trim motor hydraulic systems, including troubleshooting tips and professional services available.

Introduction to Marine Trim Systems

Marine trim systems are typically composed of an electric motor, a hydraulic pump, and a reservoir/assembly unit. The electric motor powers the hydraulic pump, which forces fluid into cylinders or rams to adjust the motor's position for trimming and trailering. These systems are essential for maintaining boat stability and improving fuel efficiency.

Common Issues with Marine Trim Systems

Common problems with marine trim systems include:

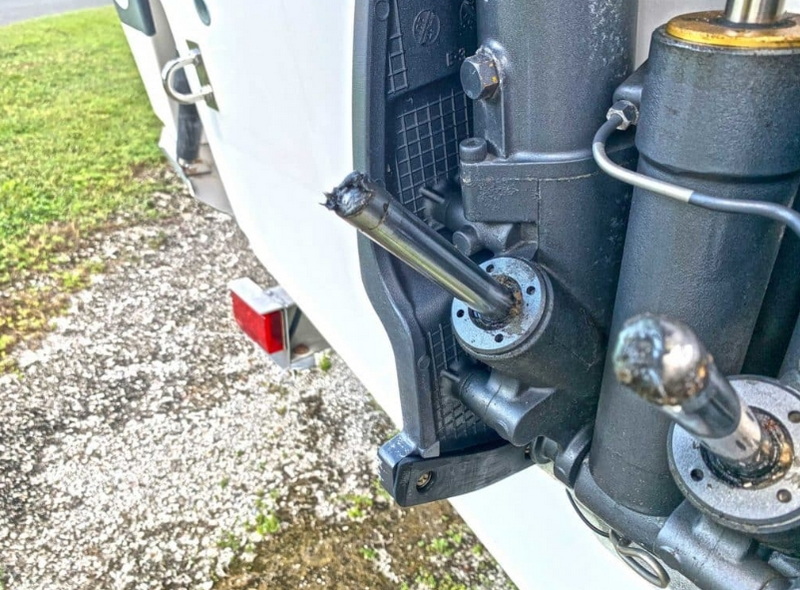

- Hydraulic Fluid Leaks: Leaks in hoses, fittings, or seals can cause the system to lose pressure, leading to poor performance or failure to raise/lower the engine.

- Faulty Electric Motors: Issues with the electric motor can prevent the hydraulic pump from operating, even if the motor itself appears to be functioning.

- Worn Seals and O-Rings: Over time, seals and O-rings can wear out, leading to leaks and performance issues.

- Corrosion: Saltwater environments can cause corrosion on electrical components and metal parts, affecting system reliability.

Troubleshooting Marine Trim Systems

Before seeking professional help, it's beneficial to perform some basic troubleshooting:

1. Check Hydraulic Fluid Level: Ensure the fluid level is adequate. A low level often indicates a leak.

2. Inspect for Leaks: Look for signs of fluid around the piston assembly or other components.

3. Test Electric Motor: Apply power directly to the motor to check if it operates independently of the hydraulic system.

4. Check Electrical Connections: Ensure all connections are secure and free from corrosion.

5. Bleed the System: If air bubbles are present, bleeding the system can help restore hydraulic pressure.

Professional Repair Services

For complex issues or when DIY troubleshooting doesn't resolve the problem, seeking professional services is advisable. Companies like Enginetek Marine and Five Star Marine offer comprehensive diagnostics and repairs for marine hydraulic systems.

Enginetek Marine

Enginetek Marine specializes in the service and repair of marine hydraulic trim systems. Their services include:

- System Diagnostics: Thorough inspections to identify leaks, worn components, and fluid quality issues.

- Fluid Replacement and Bleeding: Replacing old fluid and removing air bubbles to maintain optimal system performance.

- Seal and O-Ring Replacement: Replacing worn seals and O-rings to prevent leaks.

Five Star Marine

Five Star Marine offers rebuilding services for trim and tilt units, extending their lifespan beyond the typical 10-15 years. They provide:

- Rebuilding and Refurbishment: Rebuilding units with new components to improve performance and longevity.

- Customized Solutions: Tailored services to meet specific vessel needs.

DIY Maintenance Tips

Regular maintenance can help prevent issues with your marine trim system:

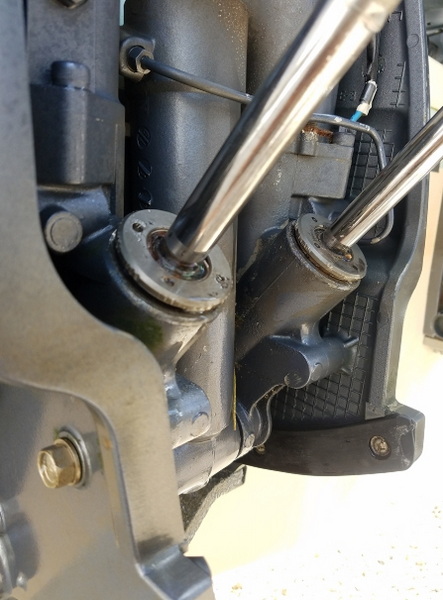

1. Grease Rams and Tilt Tube: Apply grease to reduce wear and noise.

2. Use Support Bracket: Always use the tilt support bracket when the engine is tilted up to prevent corrosion.

3. Check Hydraulic Fluid: Regularly inspect and top off hydraulic fluid levels.

4. Inspect Electrical Components: Regularly check for signs of corrosion on electrical connections and components.

5. Perform Annual Servicing: Schedule annual professional servicing to ensure optimal performance and longevity.

Advanced Troubleshooting Techniques

For more complex issues, advanced troubleshooting may be necessary:

1. Pressure Testing: Use a pressure gauge to check the hydraulic system's pressure levels.

2. Component Replacement: If a component is faulty, consider replacing it with a new or refurbished part.

3. System Overhaul: In severe cases, a complete overhaul of the hydraulic system may be required.

4. Electrical System Checks: Use multimeters to check voltage and resistance in the electrical circuit.

5. Consulting Manufacturer's Manuals: Refer to the manufacturer's manual for specific troubleshooting guidelines and repair procedures.

Preventive Measures

Preventing issues before they arise is key to maintaining a reliable marine trim system:

1. Regular Inspections: Regularly inspect all components for signs of wear or damage.

2. Proper Storage: Store the boat in a dry environment when not in use to reduce corrosion risks.

3. Training and Education: Educate yourself on basic maintenance and troubleshooting techniques.

Conclusion

Maintaining and repairing marine trim motor hydraulic systems requires attention to detail and sometimes professional expertise. By understanding common issues and performing basic troubleshooting, boat owners can extend the lifespan of their systems. For more complex problems, seeking services from experienced marine hydraulic technicians is crucial for ensuring optimal performance and safety.

FAQ

1. What are the primary components of a marine trim system?

A marine trim system typically consists of a 12-volt electric motor, a small hydraulic pump, and a reservoir/assembly unit.

2. How do I identify a hydraulic fluid leak in my trim system?

Check the hydraulic fluid reservoir level. A low level indicates a leak, as hydraulic fluid does not evaporate.

3. What causes a trim motor to make weird noises?

Weird noises can be due to low hydraulic fluid levels or worn components. Check the fluid level and inspect for worn seals or O-rings.

4. Can I manually raise my outboard motor if the tilt/trim motor fails?

Yes, you can manually raise the motor by releasing pressure in the hydraulic system. This requires caution and often assistance.

5. How often should I service my hydraulic trim system?

Regular maintenance should include checking fluid levels, greasing components, and inspecting for leaks. Professional servicing is recommended annually or as needed.
