Hydraulic drive motors are critical components in many types of heavy machinery and industrial equipment. When these motors fail to operate properly, it can lead to costly downtime, reduced productivity, and expensive repairs. Understanding the common causes of hydraulic drive motor problems, how to diagnose them, and the steps to fix or prevent these issues is essential for equipment owners and maintenance professionals.
This comprehensive article will explore the main reasons why a hydraulic drive motor might not be working properly, covering symptoms, troubleshooting tips, maintenance advice, and repair techniques. We will also include illustrative images and videos to help visualize key concepts and procedures.

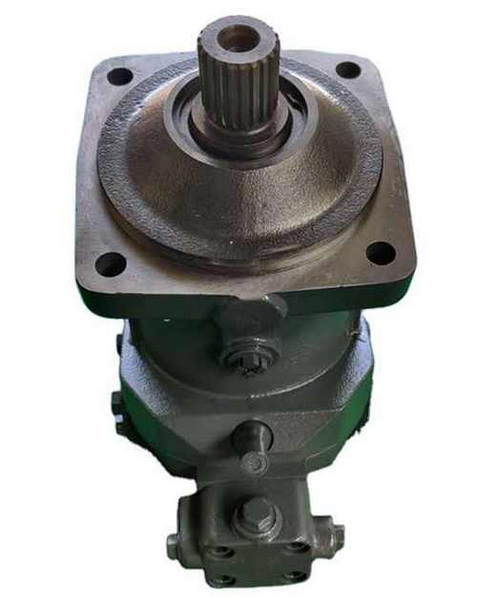

A hydraulic drive motor converts hydraulic energy (fluid pressure) into mechanical energy (rotational motion). It is often used in mobile equipment such as excavators, skid steers, and agricultural machinery to drive wheels, tracks, or other mechanical systems. These motors work in conjunction with hydraulic pumps, valves, and fluid reservoirs to deliver controlled power.
There are several types of hydraulic motors, including gear motors, vane motors, and piston motors, each designed for specific torque, speed, and efficiency requirements.
Before diving into causes and solutions, it's important to recognize the common symptoms that indicate your hydraulic drive motor is not working properly:
- Lack of Power or Weak Rotation: The motor struggles to deliver expected torque or speed.
- Erratic or Unpredictable Operation: The motor speed fluctuates or the motion is jerky.
- Leaks: Hydraulic fluid leaking from seals, fittings, or motor housing.
- Noise, Vibration, or Shuddering: Unusual sounds or vibrations during operation.
- Overheating: Excessive heat generation in the motor or hydraulic system.
- Slow or Crawling Movement: Motor runs sluggishly or stalls intermittently.
The case drain filter is a critical component that removes excess internal leakage fluid from the motor. If this filter becomes clogged, pressure builds up inside the motor casing, leading to seal damage, bearing failure, and even cracking of motor parts. Regular inspection and replacement of the case drain filter can prevent catastrophic failures[1][9].
Hydraulic fluid quality and level are vital. Low fluid levels cause insufficient pressure and flow, leading to weak motor performance[11][14]. Contaminated fluid with dirt, metal shavings, or water can cause internal wear, seal damage, and erratic operation[8][14].
Leaks not only reduce fluid levels but also allow contaminants to enter the system. Common leak points include shaft seals, "O" rings, and housing joints. Worn or damaged seals must be replaced promptly to avoid further damage[1][10][15].
Internal wear or damage to components such as pistons, gears, bearings, and rotors can cause loss of torque, speed fluctuations, or motor failure. This damage can result from contamination, overheating, or improper lubrication[3][10][14].
Using the wrong fluid type or operating at improper temperatures can cause the fluid to be too thick or thin, affecting motor responsiveness and causing cavitation or sluggish operation[3][10].
Air bubbles trapped in the fluid can cause erratic motor behavior, noise, and reduced efficiency. Proper bleeding of the system and ensuring tight connections help prevent air ingress[3][11].
Mechanical factors such as misaligned shafts, over-tightened tracks (in tracked vehicles), or overloading the motor beyond its capacity can cause poor performance and premature failure[4][13][15].
- Check for visible leaks around the motor and hydraulic lines.
- Inspect the case drain filter and replace if clogged.
- Look for signs of overheating such as discoloration or burnt smell.
- Verify fluid level and top off if low.
- Examine fluid color and clarity; replace if contaminated.
- Confirm fluid viscosity matches manufacturer recommendations.
- Observe motor speed and torque under load.
- Listen for unusual noises or vibrations.
- Use pressure gauges to check system pressure and relief valve settings[2][11].
- Disconnect motor hoses and plug them off.
- Attempt to stall the motor by pushing control levers.
- If the engine stalls when the lever is pushed, the pump is likely good; if not, the pump may be faulty[7].
- Disassemble the motor if necessary.
- Check for wear on gears, pistons, bearings, and seals.
- Replace worn parts or perform seal kit replacements as needed[8].
- Regularly check and replace the case drain filter to prevent pressure buildup inside the motor[1][9].
- Maintain proper hydraulic fluid levels and quality, changing fluid according to manufacturer schedules[1][11].
- Fix leaks promptly to prevent contamination and fluid loss[1][10].
- Use the correct hydraulic fluid type and viscosity for your operating temperature and application[3][10].
- Bleed air from the hydraulic system after maintenance or repairs to avoid erratic operation[3].
- Inspect mechanical components such as shafts, couplings, and tracks for alignment and wear[4][15].
- Monitor motor temperature and avoid overheating by ensuring proper cooling and operating conditions[4][11].
- Schedule regular preventive maintenance to catch issues before they lead to failure[1].
Replacing worn or damaged seals is a common repair. A seal kit replacement involves disassembling the motor, cleaning internal parts, inspecting for wear, and installing new seals. This can restore proper sealing and prevent leaks[8][15].
If internal parts like pistons, gears, or bearings are worn or damaged, they must be replaced. This often requires professional service or sending the motor to a specialized repair shop[8][14].
Removing contaminants such as metal shavings or dirt from the motor housing and hydraulic fluid system is essential to prevent further damage[8].
Ensure relief valves, pressure compensators, and flow restrictors are set according to manufacturer specifications to avoid overpressure or insufficient flow[2][11].
Hydraulic drive motors are powerful and reliable components, but like any mechanical system, they can suffer from a range of issues that affect performance. The most common problems stem from clogged filters, contaminated or insufficient hydraulic fluid, leaks, internal wear, and mechanical misalignment or overloading.
Regular maintenance, including checking the case drain filter, maintaining fluid quality, fixing leaks promptly, and monitoring motor operation, can prevent most failures. When problems do occur, systematic diagnosis-starting with visual inspections and fluid checks, followed by operational tests and internal component examination-helps pinpoint the root cause.
Timely repairs such as seal replacements and component rebuilds restore motor function and extend the life of your equipment. Utilizing available resources like instructional videos and manufacturer guidelines further supports effective troubleshooting and maintenance.
By understanding and addressing these factors, you can keep your hydraulic drive motor working properly, minimizing costly downtime and maximizing equipment productivity.
Loss of power is often due to clogged case drain filters, low hydraulic fluid pressure or flow, worn internal components, or mechanical issues like tight tracks or misalignment[1][4][14].
You can isolate the issue by disconnecting the motor and attempting to stall it. If the engine stalls when the control lever is pushed fully forward, the pump is likely good and the motor is at fault. If not, the pump may be the problem[7].
Follow your equipment manufacturer's recommendations, but generally, hydraulic fluid should be checked regularly and changed annually or as contamination is detected. Filters, especially the case drain filter, should be inspected and replaced frequently to prevent clogging[1][11].
Yes, trapped air causes erratic motor operation, noise, and reduced efficiency. Bleeding the system and ensuring tight connections prevent air ingress[3].
Regular inspection for leaks, checking and replacing filters, maintaining proper fluid levels and quality, monitoring temperature, and fixing mechanical issues like misalignment or overloading are key preventive steps[1][11][15].
