Hydraulic motors are critical components in hydraulic systems, converting hydraulic energy into mechanical energy to perform work. Understanding how pressure and flow affect a hydraulic motor's performance is essential for designing and troubleshooting these systems. This article explores the question: Will a hydraulic motor receiving less pressure but the same flow perform effectively? We will delve into the principles of hydraulic pressure and flow, how they interact in motors, and the practical implications of varying these parameters.

Understanding Hydraulic Pressure and Flow

What Is Hydraulic Pressure?

Hydraulic pressure is the force exerted by the hydraulic fluid per unit area within the system. It is generated when the fluid flow encounters resistance, such as a load or restriction in the circuit. Pressure can be classified as:

- Dynamic Pressure: Related to the fluid's kinetic energy when it moves against resistance.

- Static Pressure: Related to the fluid's potential energy when it is trapped and unable to flow.

Pressure is measured in units like PSI (Pounds per Square Inch) or Bar, and it directly correlates to the force the hydraulic system can exert.

What Is Hydraulic Flow?

Hydraulic flow refers to the volume of hydraulic fluid moving through the system over time. It is typically measured in GPM (Gallons per Minute) or LPM (Liters per Minute). Flow determines the speed at which hydraulic components, such as motors and cylinders, operate.

There are different aspects of flow:

- Volumetric Flow: Volume of fluid passing a point per unit time.

- Mass Flow: Mass of fluid passing per unit time.

- Flow Velocity: Speed at which fluid moves through the system.

Flow rate directly influences the rotational speed (RPM) of hydraulic motors.

Relationship Between Pressure, Flow, and Hydraulic Motor Performance

How Pressure and Flow Affect Hydraulic Motors

A hydraulic motor's output torque is primarily dependent on the pressure differential across it, while its speed is controlled by the flow rate supplied. Specifically:

- Torque increases with higher pressure.

- Speed (RPM) increases with higher flow.

If the flow remains constant but pressure decreases, the motor will receive the same volume of fluid but with less force available to do work, resulting in reduced torque.

Will a Hydraulic Motor Run with Less Pressure but Same Flow?

Yes, a hydraulic motor can run if it receives the same flow but less pressure, but its performance will be compromised:

- The speed of the motor will remain roughly the same because flow controls speed.

- The torque output will decrease due to the lower pressure, reducing the motor's ability to drive a load effectively.

This means the motor may spin at the same RPM but will not be able to exert the same force or power on the load.

Detailed Explanation with Examples

Hydraulic Motor Operation Basics

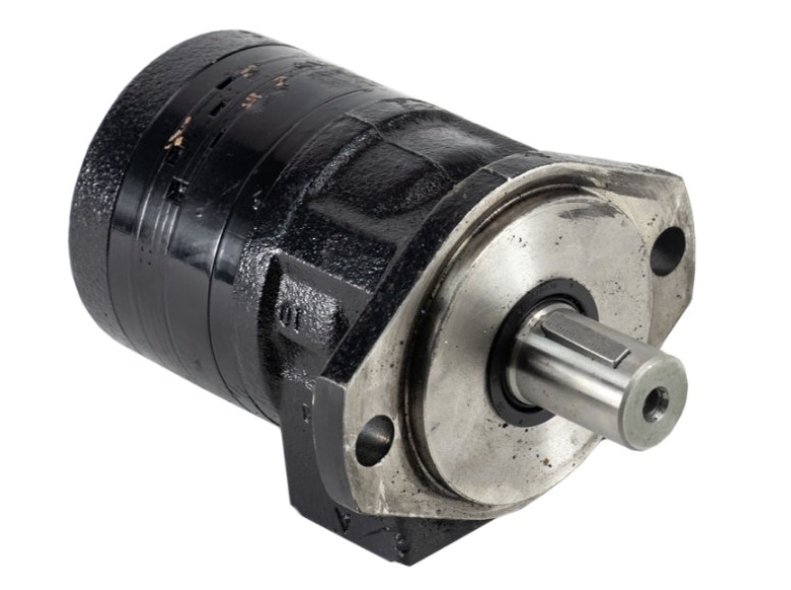

Hydraulic motors convert fluid energy into mechanical rotation. Fluid enters the motor at high pressure, pushing pistons or gears, which rotate the motor shaft. The pressure difference between the inlet and outlet creates torque, while the flow rate determines how fast the motor spins.

Example Scenario

- Scenario 1: Motor receives 10 GPM flow at 1500 PSI pressure.

- Motor speed is proportional to 10 GPM.

- Torque is proportional to 1500 PSI pressure.

- Scenario 2: Motor receives 10 GPM flow at 1000 PSI pressure.

- Motor speed remains similar (due to same flow).

- Torque decreases proportionally with pressure drop.

This illustrates that maintaining flow alone does not guarantee the motor can perform the required mechanical work if pressure is insufficient.

Factors Influencing Pressure and Flow in Hydraulic Systems

System Resistance and Load

Pressure builds up in response to resistance from the load. If the load increases, pressure rises to maintain torque, but flow may decrease if the pump capacity is limited. Conversely, if the load decreases, pressure drops, but flow can remain steady if the pump supplies a constant volume.

Pump Characteristics

Hydraulic pumps deliver flow; pressure results from resistance to flow. A pump's pressure rating is the maximum pressure it can handle safely, while flow rating determines speed capabilities. Pumps can be fixed displacement or variable displacement, with the latter allowing flow and pressure adjustments to optimize system performance.

Valve Settings and Circuit Design

Incorrect valve settings or leaks can cause pressure drops, even if flow remains unchanged, affecting motor performance. Pressure relief valves protect the system from excessive pressure, but if set too low, they can reduce the pressure available to the motor, lowering torque.

Practical Implications of Less Pressure at Same Flow

Reduced Motor Torque

Less pressure means less force to drive the load. For example, in a conveyor system powered by a hydraulic motor, if pressure drops but flow remains the same, the conveyor belt will move at the same speed but may struggle to carry heavy loads, potentially causing slippage or stalling.

Possible Motor Stalling

If the load torque exceeds the available motor torque due to reduced pressure, the motor may stall despite adequate flow. This can lead to system downtime and potential damage if protective measures are not in place.

Energy Efficiency Considerations

Operating at lower pressure with the same flow can lead to inefficiencies. The motor may consume energy without delivering the required mechanical output, wasting hydraulic power and potentially increasing heat generation in the system.

System Stability and Safety

Pressure fluctuations can cause instability in hydraulic systems. Maintaining adequate pressure is crucial for safe and reliable operation, especially in applications like lifting equipment or heavy machinery where torque is critical.

How to Address Low Pressure Issues While Maintaining Flow

Check for Leaks and Blockages

Leaks in hoses, fittings, or seals can reduce system pressure. Similarly, blockages or restrictions in lines can cause pressure drops. Regular maintenance and inspection help identify and resolve these issues.

Adjust Pump Settings or Replace Pump

If the pump cannot maintain required pressure, consider adjusting variable displacement pumps or upgrading to a higher-pressure pump to meet system demands.

Optimize Valve Settings

Ensure pressure relief valves and flow control valves are correctly set to balance pressure and flow according to system requirements.

Use Pressure Boosters or Accumulators

In some systems, pressure boosters or accumulators can help maintain pressure during peak load conditions without compromising flow.

Effects of Pressure and Flow on Hydraulic Motor Performance

Parameter	Effect on Speed	Effect on Torque	Overall Impact
Increase Flow	Increase	No direct effect	Motor spins faster
Decrease Flow	Decrease	No direct effect	Motor spins slower
Increase Pressure	No direct effect	Increase	Motor produces more torque
Decrease Pressure	No direct effect	Decrease	Motor produces less torque

Conclusion

A hydraulic motor receiving less pressure but the same flow will maintain a similar rotational speed but produce less torque. This results in reduced mechanical power output and may impair the motor's ability to perform its intended work. In hydraulic systems, both pressure and flow are crucial and interdependent parameters that must be balanced to ensure optimal motor performance. Understanding their relationship helps in system design, troubleshooting, and achieving efficient operation.

Maintaining adequate pressure ensures the motor can deliver the necessary torque to drive loads effectively, while sufficient flow guarantees the desired speed. Ignoring either parameter can lead to suboptimal performance, increased wear, and potential system failure. Therefore, engineers and technicians must carefully monitor and control both pressure and flow in hydraulic motor applications.

FAQ

1. What happens if a hydraulic motor receives less pressure but the same flow?

The motor will spin at roughly the same speed but with reduced torque, lowering its ability to perform work effectively.

2. Does a hydraulic pump create pressure or flow?

A hydraulic pump creates flow; pressure is generated when this flow meets resistance in the system.

3. How does flow rate affect hydraulic motor speed?

Flow rate directly controls the motor's rotational speed; increasing flow increases speed and vice versa.

4. Why is pressure important in a hydraulic motor?

Pressure determines the torque output of the motor; higher pressure means more force to drive a load.

5. Can a hydraulic motor run without pressure?

No, without pressure (resistance), the motor cannot develop torque and perform mechanical work, even if flow is present.
