Hydraulic motors are the powerhouse behind countless machines, from industrial conveyors to agricultural harvesters. But a common question arises for engineers, technicians, and enthusiasts alike: Will a hydraulic motor spin both ways? This comprehensive guide explores the answer in detail, including how bi-directional hydraulic motors work, the differences from unidirectional motors, practical applications, circuit design, and much more. You'll find expert explanations, diagrams, video tutorials, and answers to the most frequently asked questions.
Hydraulic motors convert fluid power into rotary motion, making them essential for moving, lifting, and rotating in a wide range of machinery. Whether a hydraulic motor can spin both ways depends on its design and the hydraulic circuit controlling it. Understanding this capability is crucial for selecting, installing, and maintaining hydraulic systems.
A hydraulic motor receives pressurized hydraulic fluid, typically oil, from a pump. The fluid's pressure and flow cause internal components (such as gears, vanes, or pistons) to rotate, producing mechanical output at the shaft. The direction of rotation depends on which port receives the pressurized fluid.
Key Points:
- Hydraulic motors convert hydraulic energy into mechanical energy.
- The direction of fluid flow determines the rotation direction.
- Most motors have two ports: one for pressure (inlet) and one for return (outlet).
- Definition: Designed to rotate in a single direction only.
- Applications: Conveyor belts, winches, and other equipment where one-way rotation is sufficient.
- Limitations: Reversing fluid flow can damage the seals or internal components.
- Definition: Engineered to rotate in both clockwise and counterclockwise directions.
- Design Features: Symmetrical internal construction, often with a case drain to handle internal leakage when operating in both directions.
- Applications: Vehicle propulsion, construction equipment, hydraulic winches, and any system requiring reversible motion.
- How They Work: The direction is changed by reversing the flow of hydraulic fluid using a directional control valve.
Most modern hydraulic systems use motors specifically designed for bidirectional operation. These motors can safely and efficiently spin both ways by simply reversing the flow of hydraulic fluid.

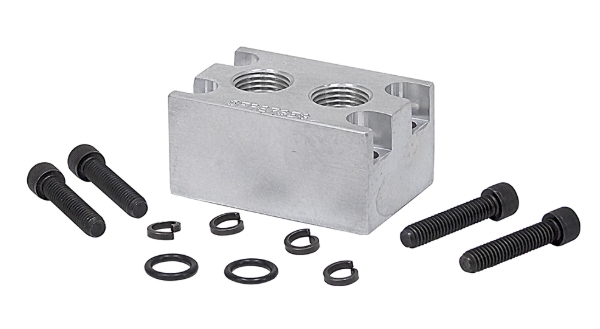

A directional control valve (such as a 4/3 DCV) is used to change the direction of fluid flow, thus reversing the motor's rotation. The valve is actuated manually, electrically, or hydraulically.
- A bidirectional hydraulic motor…is capable of rotating in both clockwise and counterclockwise directions. These motors are designed to accommodate reversible operation and are used in applications where the direction of rotation needs to be changed.
Some gear pumps and motors can be designed or modified for bidirectional operation, but not all. Always check the manufacturer's specifications before reversing rotation.
The most common circuit for bi-directional control uses a closed-loop hydrostatic drive. This setup connects both ports of the pump to both ports of the motor, allowing fluid to flow in either direction as needed.
- The directional control valve determines which port receives pressure.
- Reversing the valve reverses the flow, thus reversing the motor.
- Relief valves protect the system from overpressure.
- A case drain may be required to handle internal leakage in bidirectional operation.
While the basic principle of reversing a hydraulic motor is straightforward, several factors influence whether a particular motor can safely and efficiently spin both ways. These include:
- Symmetry: Bidirectional motors are designed with symmetrical internal components to handle forces in both directions.
- Seal Construction: The seals must be capable of withstanding pressure from either direction.
- Bearing Support: Bearings must be robust enough to handle axial and radial loads in both rotational directions.
- Pressure Ratings: Exceeding the rated pressure in reverse can damage the motor.
- Flow Control: Proper flow control is essential to prevent cavitation when changing directions.
- Lubrication: The hydraulic fluid must provide adequate lubrication regardless of rotation direction.
- Contamination: Reversing direction may stir up contaminants; filtration is critical.
- Check Valves: Incorrectly placed check valves can block flow when reversing.
- Case Drain Lines: Essential for handling internal leakage, especially in bidirectional operation.
- Load Inertia: High-inertia loads may cause pressure spikes when reversing, requiring special circuit design.
- Braking and Stopping: Some applications require additional braking valves or accumulators to control deceleration when changing direction.
Bidirectional hydraulic motors are essential in systems requiring reversible motion, including:
- Vehicle propulsion systems (e.g., skid-steer loaders, forklifts)
- Hydraulic winches and hoists
- Rotating platforms and turntables
- Industrial automation and robotics
- Agricultural machinery (e.g., draper headers, augers)
- Marine applications (e.g., anchor windlasses, bow thrusters)
- Mining equipment (e.g., drilling rigs, conveyor drives)
- Forestry and logging (e.g., log splitters, saw head rotation)
A skid-steer loader uses two bidirectional hydraulic motors to drive its wheels. By reversing the direction of one motor while keeping the other forward, the machine can spin in place, providing exceptional maneuverability.
A hydraulic winch equipped with a bidirectional motor can wind and unwind cable as needed, allowing for both lifting and lowering operations with precise control.
- Check for leaks: Regularly inspect seals, hoses, and fittings.
- Monitor case drain flow: Excessive leakage may indicate worn seals, especially in bidirectional motors.
- Use correct fluid: Ensure the hydraulic fluid meets manufacturer specifications.
- Service directional valves: Faulty valves can cause the motor to spin in the wrong direction or not at all.
- Inspect mounting: Secure mounting ensures proper alignment and prevents vibration or misalignment during direction changes.
- Unidirectional motor run backwards: May cause damage to seals or internal components.
- Incorrect valve operation: The motor may not reverse as expected.
- Insufficient pressure: The motor may stall or run slowly.
- Overheating: Excessive heat may indicate internal leakage or improper fluid selection.
- Noise and vibration: Unusual sounds may signal cavitation, air in the system, or mechanical wear.
1. Check fluid levels and quality.
2. Inspect directional control valve operation.
3. Test system pressure and flow rates.
4. Examine case drain flow for excessive leakage.
5. Listen for abnormal noises during direction changes.
Reversing the direction of a hydraulic motor while under load can cause pressure spikes, mechanical shock, or even damage to the system. Always decelerate the motor before changing direction.
Operators should be trained on the correct use of directional control valves and the specific requirements of the hydraulic system to avoid accidental damage.
- Relief Valves: Protect the system from overpressure during direction changes.
- Braking Valves: Smooth the transition and prevent uncontrolled movement.
- Pressure Gauges: Monitor system health and detect abnormal conditions early.
- Lockout/Tagout: Always isolate hydraulic power before servicing.
- Personal Protective Equipment: Use gloves and eye protection when working with hydraulic systems.
Will a hydraulic motor spin both ways?
The answer is: It depends on the motor's design. Many hydraulic motors are specifically engineered for bidirectional operation and can spin both ways simply by reversing the direction of hydraulic fluid flow using a directional control valve. These motors are widely used in applications requiring reversible motion and are robust enough to handle frequent changes in direction. However, some motors are unidirectional and must not be reversed, as this can cause damage. Always consult the manufacturer's documentation before attempting to reverse a hydraulic motor.
Understanding the difference between unidirectional and bidirectional motors, the role of directional control valves, and the importance of proper maintenance and safety measures is essential for anyone working with hydraulic systems. By following best practices and using the right components, you can ensure reliable, efficient, and safe operation of your hydraulic equipment—no matter which way it needs to spin.
No, not all hydraulic motors are designed to spin both ways. Only bidirectional (or bi-rotational) motors can safely operate in both directions. Unidirectional motors may be damaged if operated in reverse.
The direction is reversed by changing the flow of hydraulic fluid using a directional control valve. This valve redirects the pressurized fluid to the opposite port, causing the motor to spin in the opposite direction.
Running a unidirectional hydraulic motor in reverse can damage internal seals, cause leaks, or even result in catastrophic failure. Always check the specifications before reversing a motor.
Yes, most bidirectional hydraulic motors require a case drain to handle internal leakage and prevent pressure buildup that could damage seals.
Bidirectional hydraulic motors are used in vehicle propulsion, hydraulic winches, rotating platforms, industrial automation, and agricultural machinery where reversible rotation is needed.
