In mechanical systems, gear ratios play a crucial role in determining the efficiency and performance of machinery. A spur gear reducer with an 18-tooth pinion driven at 1500 RPM is a common setup in many industrial applications. Understanding the ideal gear ratio for such a system is essential for optimizing its operation. In this article, we will delve into the principles of gear ratios, explore how they are calculated, and discuss the factors influencing the choice of an ideal gear ratio for an 18-tooth pinion at 1500 RPM.
A gear ratio is defined as the ratio of the number of teeth on the output gear to the number of teeth on the input gear. For a spur gear reducer, this ratio determines how much the rotational speed is reduced and how much torque is increased. The formula for calculating the gear ratio is:
Gear Ratio=(Number of Teeth on Output Gear)/(Number of Teeth on Input Gear)

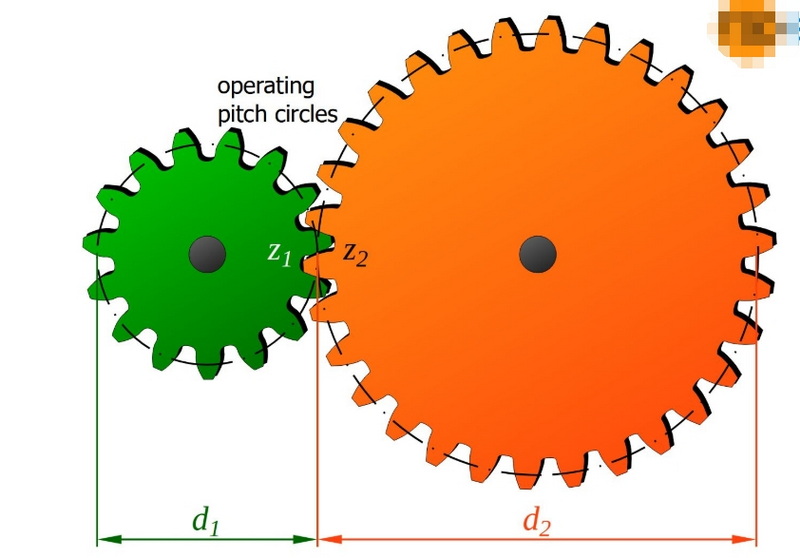

For example, if the output gear has 36 teeth and the input gear (pinion) has 18 teeth, the gear ratio is 2:1. This means that for every rotation of the input gear, the output gear rotates half a turn.
To calculate the gear ratio, you need to know the number of teeth on both the input and output gears. For an 18-tooth pinion, if you want to achieve a specific output speed or torque, you can calculate the required number of teeth on the output gear using the desired gear ratio.
1. Torque and Speed Requirements: Higher gear ratios increase torque but reduce speed, while lower ratios do the opposite. For applications requiring high torque, such as lifting heavy loads, a higher gear ratio is preferable.
2. Efficiency and Noise: The choice of gear ratio can affect the efficiency and noise level of the system. Higher ratios may lead to increased heat generation and noise due to friction.
3. Space Constraints: In compact systems, achieving high gear ratios with fewer stages can be challenging. Adding more stages increases complexity but allows for higher ratios.
4. Material and Durability: The materials used for gears (e.g., steel, aluminum) influence their durability and resistance to wear. Hardened gears can withstand higher loads.
For an 18-tooth pinion driven at 1500 RPM, the ideal gear ratio depends on the specific application. If the goal is to achieve high torque for applications like heavy machinery, a gear ratio of 2:1 or higher might be suitable. However, for applications requiring faster output speeds, a lower gear ratio (e.g., 1.5:1) could be more appropriate.
Example Calculation:
- Input Gear (Pinion): 18 teeth
- Desired Output Speed: 750 RPM (half of the input speed)
- Required Gear Ratio: 2:1
- Output Gear Teeth: 18×2=36 teeth
In systems requiring large gear ratios, compound gears are often used. This involves multiple gear pairs in series, where the total gear ratio is the product of each pair's ratio. For instance, if you need a 10:1 reduction, you could use two stages: a 2:1 reduction followed by a 5:1 reduction.
1. Vehicles: In vehicles, gear ratios are crucial for optimizing power delivery and fuel efficiency. Lower ratios provide more torque for acceleration, while higher ratios improve fuel efficiency at high speeds.
2. Industrial Machinery: In industrial settings, gear ratios are used to match the speed and torque requirements of machinery. For example, a conveyor belt might use a high gear ratio to reduce speed while increasing torque for heavy loads.
3. Robotics: In robotics, precise control over speed and torque is essential. Gear ratios are used to achieve the desired motion characteristics, such as slow and precise movements or fast and powerful actions.
In the automotive industry, gear ratios are critical for optimizing vehicle performance. Different driving conditions require different gear ratios to ensure efficient power delivery. For instance, lower gear ratios are used for better acceleration in city driving, while higher ratios are used for highway cruising to improve fuel efficiency.
In industrial settings, gear ratios are used to match the speed and torque requirements of machinery. For example, a conveyor belt might use a high gear ratio to reduce speed while increasing torque for heavy loads. This ensures that the machinery operates efficiently and safely.
In robotics, precise control over speed and torque is essential. Gear ratios are used to achieve the desired motion characteristics, such as slow and precise movements or fast and powerful actions. The choice of gear ratio in robotics depends on the specific task and environment in which the robot operates.
Optimizing gear ratios involves analyzing the specific requirements of the application, including the required speed, torque, and any load constraints that may impact performance. Choosing the right gear types (e.g., spur, helical, bevel) based on the application needs can improve performance and efficiency.
Compound gear systems involve multiple gear pairs in series. The total gear ratio is the product of each pair's ratio. This allows for achieving high gear ratios with fewer stages, which is beneficial in compact systems.
Example:
If you need a 10:1 reduction, you can achieve this with two stages: a 2:1 reduction followed by a 5:1 reduction. The total gear ratio is 2×5=10.

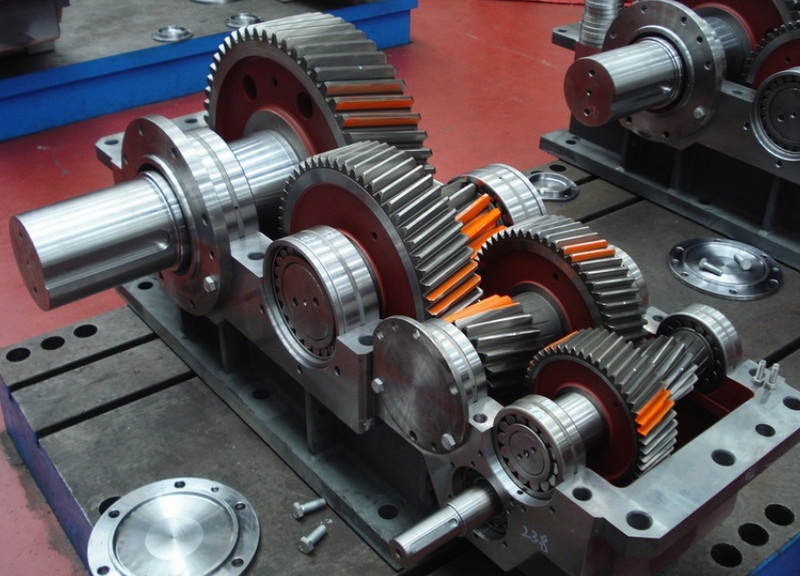

Planetary gear systems offer high gear ratios in a compact design. They consist of a central sun gear, planet gears, and an outer ring gear. These systems are commonly used in applications requiring high torque density, such as in electric vehicles.
In renewable energy systems, such as wind turbines, gear ratios are used to optimize energy output. The gear ratio helps match the turbine's rotational speed to the generator's optimal operating speed, maximizing energy conversion efficiency.
The development of advanced materials with improved strength-to-weight ratios is expected to enhance gear durability and efficiency. These materials can withstand higher loads and operate at higher speeds, leading to more efficient gear systems.
The integration of digital technologies, such as IoT sensors and AI, into gear systems will enable real-time monitoring and optimization of gear ratios. This can lead to improved efficiency, reduced maintenance, and increased lifespan of mechanical systems.
As the world shifts towards sustainable energy sources, gear ratios will play a crucial role in optimizing the performance of renewable energy systems. Innovations in gear technology will be essential for maximizing energy output and efficiency in these systems.
In an industrial setting, a conveyor system required a gear ratio that could handle heavy loads while maintaining efficiency. By using a high gear ratio, the system achieved the necessary torque to move heavy materials without compromising speed.
In electric vehicles, planetary gear systems are often used to achieve high gear ratios in a compact design. This allows for efficient energy transfer from the electric motor to the wheels, enhancing vehicle performance and range.
Textbooks like "Shigley's Mechanical Engineering Design" provide comprehensive coverage of gear design and analysis, including detailed explanations of gear ratios and their applications.
Online courses and tutorials offer interactive learning experiences, allowing students to explore gear ratio concepts through simulations and real-world examples.
Software tools, such as gear design software, enable users to model and analyze gear systems, helping to optimize gear ratios for specific applications.
Gear ratios are a fundamental aspect of mechanical systems, influencing performance, efficiency, and safety. Understanding how to calculate and optimize gear ratios is crucial for designing systems that meet specific requirements across various industries.
- Gear Ratio Calculation: Gear ratios are calculated by dividing the number of teeth on the output gear by the number of teeth on the input gear.
- Factors Influencing Gear Ratio Choice: Torque and speed requirements, efficiency, noise, space constraints, and material durability are key factors.
- Applications: Gear ratios are critical in vehicles, industrial machinery, robotics, and renewable energy systems.
In electric vehicles, gear ratios are crucial for optimizing power delivery and efficiency. Advanced gear systems, such as planetary gears, are used to achieve high torque and speed ratios in compact designs.
In robotics and automation, precise control over speed and torque is essential. Gear ratios are used to achieve the desired motion characteristics, enhancing the performance and efficiency of robotic systems.
In aerospace applications, gear ratios are used in aircraft and spacecraft systems to optimize performance under extreme conditions. High-strength materials and advanced gear designs are critical for these applications.
1. Material Limitations: The strength and durability of gear materials can limit the achievable gear ratios and system performance.
2. Efficiency and Noise: Balancing efficiency and noise reduction is a challenge in gear design, as higher ratios can increase noise and reduce efficiency.
3. Space Constraints: In compact systems, achieving high gear ratios while minimizing space is a significant challenge.
1. Advanced Materials: The development of new materials with improved strength-to-weight ratios offers opportunities for more efficient gear systems.
2. Digital Technologies: The integration of digital technologies, such as AI and IoT, can optimize gear ratio performance in real-time, enhancing efficiency and reducing maintenance.
3. Sustainable Energy: Gear ratios play a crucial role in optimizing renewable energy systems, providing opportunities for more efficient energy conversion.
In early mechanical systems, such as clockwork mechanisms, gear ratios were used to achieve precise control over speed and torque. These innovations laid the foundation for modern mechanical systems.
During the Industrial Revolution, gear ratios played a crucial role in the development of machinery. They enabled the efficient transmission of power, facilitating mass production and industrial growth.
In modern times, advancements in gear ratio technology have led to more efficient and compact systems. Innovations in materials and design have enabled the creation of high-performance gear systems used in aerospace, robotics, and renewable energy applications.
Gear ratios are a fundamental aspect of mechanical systems, influencing performance, efficiency, and safety. Understanding how to calculate and optimize gear ratios is crucial for designing systems that meet specific requirements across various industries.
- Gear Ratio Calculation: Gear ratios are calculated by dividing the number of teeth on the output gear by the number of teeth on the input gear.
- Factors Influencing Gear Ratio Choice: Torque and speed requirements, efficiency, noise, space constraints, and material durability are key factors.
- Applications: Gear ratios are critical in vehicles, industrial machinery, robotics, and renewable energy systems.
Choosing the ideal gear ratio for a spur gear reducer with an 18-tooth pinion at 1500 RPM involves considering factors such as torque requirements, space constraints, and material durability. By understanding how gear ratios work and calculating them based on specific needs, engineers can optimize the performance of mechanical systems.
The gear ratio is calculated by dividing the number of teeth on the output gear by the number of teeth on the input gear.
A higher gear ratio increases torque but reduces speed, while a lower gear ratio does the opposite.
Common materials include steel, aluminum, and various composites, chosen based on the application's load requirements.
If the motor struggles to start or generates excessive heat, the gear ratio may be too high. If it runs at high speed but lacks torque, the ratio may be too low.
Yes, in many systems, gear ratios can be modified by changing gears or adjusting the motor configuration.
