Introduction

A skid steer hydraulic winch is indispensable for professionals in construction, agriculture, and forestry. Unlike standalone winches, these attachments leverage your skid steer's hydraulic system for unmatched power and reliability. This guide combines technical expertise with practical advice to ensure your installation meets industry standards and maximizes operational safety.

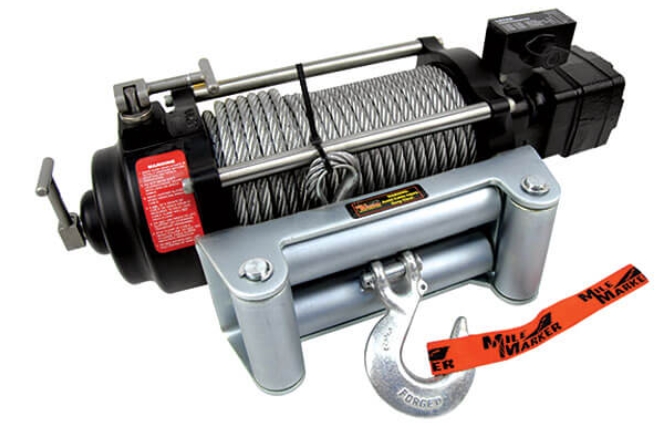

Understanding Skid Steer Hydraulic Winches

Hydraulic winches convert hydraulic energy from your skid steer into mechanical force, enabling controlled pulling of heavy loads. They outperform electric winches in continuous-duty scenarios, such as logging or trenching, where overheating is a risk.

Key Components Explained:

- Drum: Holds up to 100 feet of steel cable or synthetic rope.

- Planetary Gear System: Provides high torque for heavy loads.

- Clutch Mechanism: Allows manual or remote free-spooling.

- Fairlead: Guides the cable and reduces wear.

Tools and Materials Needed

- Hydraulic Winch: Ensure compatibility with your skid steer's SSQA plate and hydraulic specs.

- Torque Wrench: For precise bolt tightening (e.g., 150–200 ft-lbs for mounting bolts).

- Hydraulic Pressure Gauge: To verify system pressure (2,500–3,500 PSI typical).

- Cable Lubricant: Reduces friction and extends cable life.

- Load Binder: For securing loads during testing.

Pro Tip: Use a infrared thermometer to monitor hydraulic hose temperatures during initial tests. Sudden spikes may indicate blockages or incorrect flow rates.

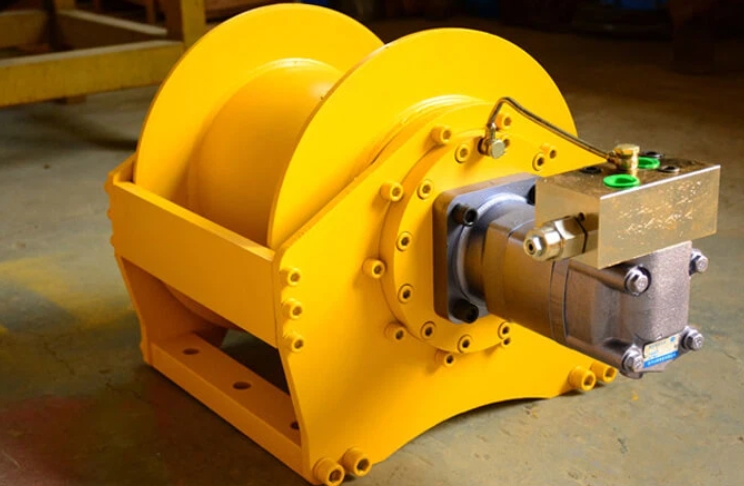

Step 1: Selecting the Right Hydraulic Winch

Capacity Calculations

Calculate your required line pull using:

Line Pull (lbs) = (Gross Load Weight × 1.25) / Number of Cable Parts

For example, to pull a 10,000 lb log with a 2-part line:

(10,000 × 1.25) / 2 = 6,250 lbs → Choose a 7,500 lb winch for a safety margin.

Hydraulic Compatibility Table

Winch Model	Flow Requirement (GPM)	Pressure (PSI)
W7.5-T	8–12	2,500
W12-X	12–18	3,000

1. Depressurize the Hydraulic System:

- Run the engine for 2 minutes after shutdown to release residual pressure.

- Slowly cycle all hydraulic controls to discharge trapped fluid.

2. Inspect the SSQA Plate:

- Check for cracks or wear on the top hooks and side locks.

- Lubricate pivot points with grease to ensure smooth attachment.

Step 3: Mounting the Winch Attachment

SSQA Alignment Tips

- Use a laser level to ensure the skid steer and winch are on the same plane.

- If the attachment wobbles, shim the mounting plate with ¼" steel spacers.

Custom Mounting Solutions

For non-SSQA winches:

1. Weld a ½" steel plate to the winch frame.

2. Drill four ¾" holes matching your skid steer's bolt pattern.

3. Secure with Grade 8 bolts and lock washers.

Step 4: Connecting Hydraulic Hoses and Controls

1. Hose Routing Best Practices:

- Use zip ties to secure hoses 6" apart, avoiding sharp edges.

- Install a hydraulic filter upstream to protect the winch from debris.

2. Electrical Integration:

- For wireless remotes, mount the receiver in a waterproof enclosure.

- Test signal range (aim for 50+ feet) before finalizing wiring.

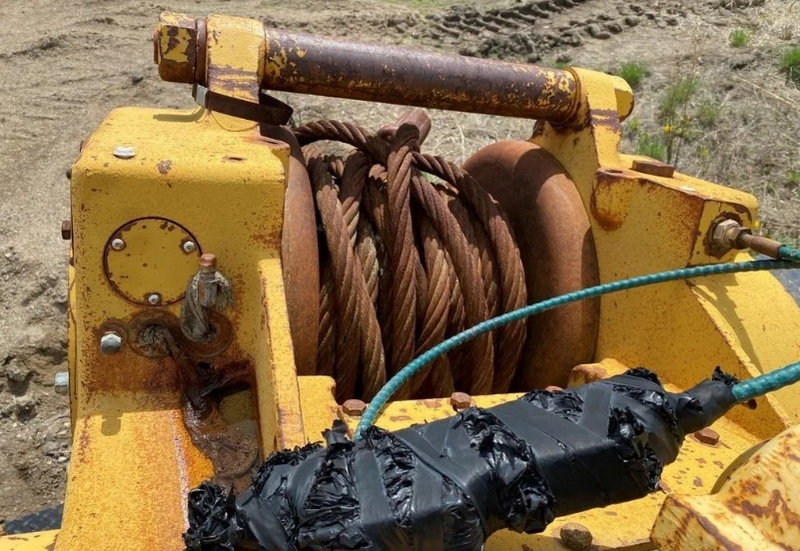

Step 5: Installing and Spooling the Winch Cable

Cable vs. Synthetic Rope

Factor	Steel Cable	Synthetic Rope
Weight Capacity	Higher	Moderate
Safety	Prone to snapping	Safer, less recoil
Maintenance	Regular lubrication	Rinse after use

Spooling Technique:

- Apply 200–300 lbs of tension using a come-along to ensure tight, even wraps.

- Layer cable from bottom to top, avoiding overlaps.

Step 6: Testing and Safety Checks

1. Initial Load Test:

- Attach the winch to a 50% capacity load (e.g., 3,750 lbs for a 7,500 lb winch).

- Pull for 10 feet, then inspect mounts and hoses for stress.

2. Emergency Stop Drill:

- Simulate a cable snap by abruptly releasing the clutch. Verify the safety screen contains debris.

Advanced Operation Techniques

- Double-Line Pull: Double your winch's capacity by threading the cable through a snatch block.

- Anchor Point Selection: Use trees >12" in diameter or buried earth anchors for heavy pulls.

Maintenance and Best Practices

- Weekly: Check hydraulic fluid levels and inspect cable for fraying.

- Monthly: Replace hydraulic filters and test relief valve settings.

- Annually: Disassemble the winch drum, clean internal gears, and repack bearings.

Lubrication Schedule:

Component	Product	Frequency
Drum Shaft	EP2 Grease	Every 50 hours
Cable	Penetrating Oil	After each use

Troubleshooting Common Issues

Symptom	Cause	Solution
Winch Overheating	Low hydraulic fluid	Top off fluid, check leaks
Cable Slipping	Worn clutch	Adjust or replace clutch
Slow Retraction	Contaminated filter	Replace hydraulic filter

Conclusion

Installing a skid steer hydraulic winch elevates your machine's capabilities, but success hinges on meticulous planning, precise installation, and ongoing maintenance. By adhering to the steps above—selecting a compatible winch, securing it with industrial-grade hardware, and prioritizing safety protocols—you'll create a reliable setup ready for the toughest jobs. Always consult your equipment manuals and consider professional training for complex installations.

FAQ

1. Can I use a skid steer hydraulic winch underwater?

Most winches are rated for IP67 water resistance but avoid submerging electrical components. Use synthetic rope to prevent corrosion in wet environments.

2. How do I calculate the winch's power consumption?

Power (HP) = (Flow (GPM) × Pressure (PSI)) / 1,714. Example: 10 GPM × 2,500 PSI = ~14.6 HP.

3. What's the maximum angle for safe winching?

Never exceed a 15-degree side pull angle. Use a snatch block to redirect loads at steep angles.

4. Can I retrofit an old winch to a newer skid steer?

Yes, but ensure hydraulic compatibility. Older winches may require a flow restrictor to match modern high-pressure systems.

5. How do I store the winch long-term?

Drain hydraulic fluid, coat the cable in grease, and store in a dry, climate-controlled area.
