When it comes to ensuring the optimal performance and longevity of your Braden winch hydraulic motor, selecting the right hydraulic fluid is crucial. The hydraulic fluid not only lubricates moving parts but also plays a vital role in heat dissipation, sealing, and protecting internal components from wear and corrosion. This comprehensive guide explores everything you need to know about choosing the best hydraulic fluid for Braden winch motors, including technical specifications, operational tips, and maintenance practices.

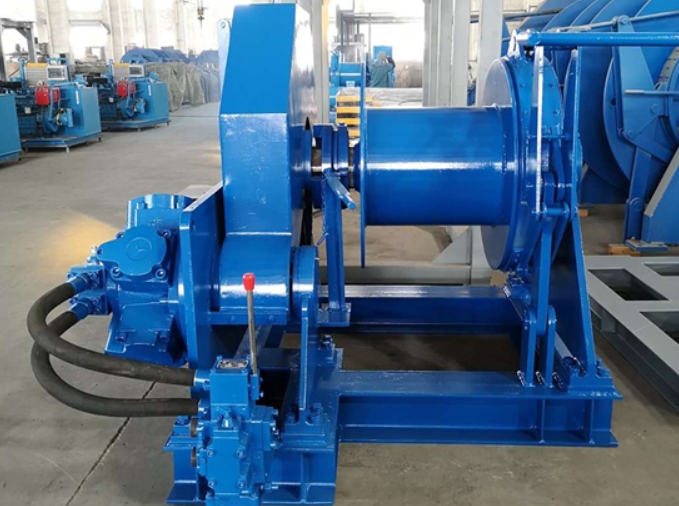

Braden winch hydraulic motors are engineered for demanding applications in industries such as construction, marine, oilfield, and recovery operations. These motors convert hydraulic energy into mechanical motion, enabling precise control over lifting, pulling, and lowering heavy loads. The efficiency and reliability of these motors depend significantly on the quality and characteristics of the hydraulic fluid used.
Braden winch hydraulic motors are designed with robust construction to withstand extreme conditions. Key features include:
- High Torque Output: Capable of handling heavy loads with precision.
- Dynamic Braking System: Ensures safe operation during sudden stops.
- Durable Seals and Bearings: Built to resist contamination and wear.
- Thermal Stability: Maintains performance under fluctuating temperatures.
These motors are often used in critical applications such as offshore anchor handling, mining equipment, and heavy-duty towing. Proper hydraulic fluid selection ensures these systems operate smoothly even under stress.
The hydraulic fluid in your Braden winch motor serves several critical functions:
- Lubrication: Reduces friction and wear between moving parts.
- Heat Transfer: Carries away heat generated during operation.
- Contamination Control: Suspends and transports contaminants to filters.
- Corrosion Protection: Prevents rust and corrosion of internal components.
- Sealing: Helps maintain pressure and prevent leaks.
Using the wrong type of fluid can lead to increased wear, overheating, sluggish performance, and even premature failure of the winch motor. For example, low-viscosity fluids in high-temperature environments may fail to lubricate gears adequately, while thick fluids in cold climates can cause motor stalling.
When selecting hydraulic fluid for your Braden winch hydraulic motor, consider the following essential properties:
Viscosity is a measure of a fluid's resistance to flow. The ideal viscosity ensures smooth operation and adequate lubrication at both high and low temperatures. For Braden winch motors:
- Normal Operating Temperatures: Use oil with a viscosity of 150 to 330 SUS at 100°F (38°C) and a viscosity index of 100 or greater.
- Continuous Operation: Optimum oil temperature should be between 120°F and 140°F (49°C–60°C).
- Maximum Allowable Temperature: Do not exceed 180°F (82°C) at any point in the system.
A high viscosity index (VI) indicates the fluid's resistance to viscosity changes with temperature. A VI above 100 ensures consistent performance in environments with temperature swings, such as desert days or frigid nights.
The pour point should be at least 20°F (11°C) lower than the lowest ambient temperature expected during operation. This ensures the fluid remains pumpable in cold conditions, preventing startup issues.
- Single-Grade Oils: Recommended for Braden winch hydraulic motors due to their stable viscosity profile.
- Anti-Wear Additives: Protect gears and bearings from metal-to-metal contact.
- Detergents and Dispersants: Keep the system clean by suspending sludge and contaminants.
The right grade depends on your operating environment:
| Ambient Temperature Range | Recommended Fluid Type | SAE Grade / ISO VG |
|---|---|---|
| 50°F to 110°F (10–43°C) | Hydraulic Oil | SAE 20W / ISO VG 46–68 |
| 10°F to 90°F (-12–32°C) | Hydraulic Oil | SAE 10W / ISO VG 32 |
| Below 10°F (-12°C) | Contact Braden Product Support | Custom Recommendation |
Note: Multi-viscosity oils (e.g., 10W-30) are not recommended for Braden winch hydraulic motors, as they may compromise performance in extreme conditions.
Replace hydraulic oil every 1,000 operating hours or annually, whichever comes first. For heavy-use systems (over 40 hours/week), change oil every six months.
Use a full-flow hydraulic oil filter with a nominal rating of 10 microns. Replace filters during every oil change or sooner if pressure drops indicate clogging.
- Use sealed storage containers for hydraulic oil to prevent contamination.
- Clean filler caps and funnels before refilling.
- Inspect hydraulic hoses and fittings for leaks or damage.
Install a temperature gauge to monitor fluid heat. If temperatures exceed 180°F (82°C), investigate causes such as blocked coolers or excessive load demands.
1. Warm Up the System: Operate the winch at low speed for 10–15 minutes to thin the fluid.
2. Shut Down and Depressurize: Turn off the system and release pressure via the relief valve.
3. Drain Old Fluid: Position a drain pan under the reservoir and remove the plug.
4. Inspect for Contamination: Look for metal shavings (indicating gear wear) or milky fluid (water contamination).
5. Replace Filter: Install a new 10-micron filter to trap particles as small as 0.001 inches.
6. Refill with Recommended Fluid: Use a funnel to avoid spills and fill to the manufacturer's specified level.
7. Bleed Air from System: Cycle the winch several times to purge air bubbles.
8. Check for Leaks: Inspect fittings and hoses under pressure.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Overheating | Wrong viscosity, low oil | Use correct fluid, top up oil |
| Sluggish Operation | Thick oil, cold weather | Use lower viscosity oil |
| Excessive Wear | Contaminated oil, poor filter | Change oil and filter |
| Oil Leaks | Worn seals, high pressure | Replace seals, check system |
| Noisy Operation | Low oil, air in system | Top up oil, bleed air |
For persistent issues, consult Braden's technical support or a certified hydraulic specialist.
Conduct quarterly oil analysis to detect wear metals, water content, and additive depletion. Labs like Polaris Laboratories provide detailed reports to guide maintenance decisions.
- Use oil heaters or insulated reservoirs in sub-freezing conditions.
- Allow the motor to warm up gradually before applying full load.
Ensure hydraulic fluid is compatible with the motor's elastomeric seals (e.g., nitrile or fluorocarbon). Incompatible fluids can cause swelling or cracking.
A North Sea oil rig experienced frequent failures in their Braden winch hydraulic motors due to saltwater contamination and temperature extremes. By switching to an ISO VG 68 oil with enhanced anti-corrosion additives and installing desiccant breathers on the reservoir, downtime was reduced by 60%.
Choosing the right hydraulic fluid is essential for maximizing the performance, safety, and lifespan of your Braden winch hydraulic motor. Always use a high-quality, single-grade hydraulic oil with the correct viscosity and maintain a rigorous fluid and filter maintenance schedule. By following these guidelines, you'll ensure reliable operation and protect your investment in heavy-duty winching equipment.
The best hydraulic fluid is a single-grade oil with a viscosity of 150–330 SUS at 100°F (38°C). SAE 20W (ISO VG 46–68) suits moderate climates, while SAE 10W (ISO VG 32) is ideal for colder environments.
No. Multi-viscosity oils can destabilize under heavy loads or temperature swings, leading to inconsistent lubrication. Stick to single-grade oils.
Change fluid every 1,000 hours or annually. For harsh conditions (e.g., dusty or humid environments), reduce intervals by 25–30%.
Incorrect viscosity or additives can cause overheating, seal degradation, and accelerated wear. In extreme cases, it may lead to motor seizure.
Signs include darkened oil, metallic particles, foaming, or a burnt odor. Conduct regular visual inspections and oil analysis.
