A Braden hydraulic winch is a cornerstone of heavy-duty lifting and pulling operations across industries such as construction, oil and gas, utilities, and marine applications. Renowned for their reliability, robust engineering, and precise control, Braden hydraulic winches have set industry standards since their inception in the early 20th century. In this comprehensive guide, we'll explore what makes a Braden hydraulic winch unique, how it operates, its key components, maintenance best practices, and much more.
A Braden hydraulic winch is a mechanical device powered by hydraulic fluid pressure, designed to pull, lift, or position heavy loads by winding a cable or rope onto a drum. Unlike electric winches, hydraulic winches are prized for their high power output, durability, and ability to operate continuously under heavy loads without overheating. Braden, a division of PACCAR Winch, is a leading manufacturer, setting benchmarks for safety, innovation, and performance[2].
Braden Steel Corporation was founded in 1924 by Glenn T. Braden in Tulsa, Oklahoma, initially supplying equipment to the burgeoning oil industry. The company's innovations include:
- The original Reliable-Braden (R-B) Hub Winch, integrated into truck wheels for oilfield and utility use.
- The first oil-soaked safety brake (1927), revolutionizing winch safety.
- The first conventional horizontal winch for truck beds (1928).
- The PD Series (1967) and CH Series (1968) hydraulic hoists, with self-contained “power drum” units.
- The patented Braden Brake Valve (1981), enabling precise, efficient, and safe load control[2].

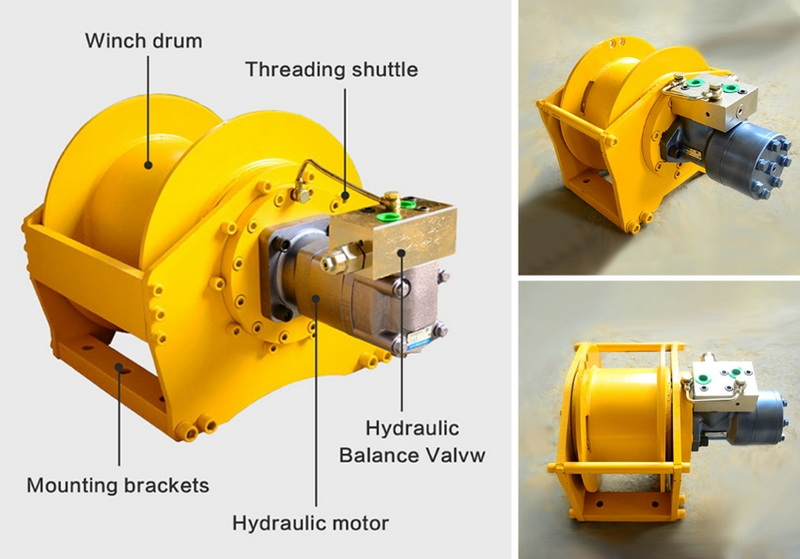

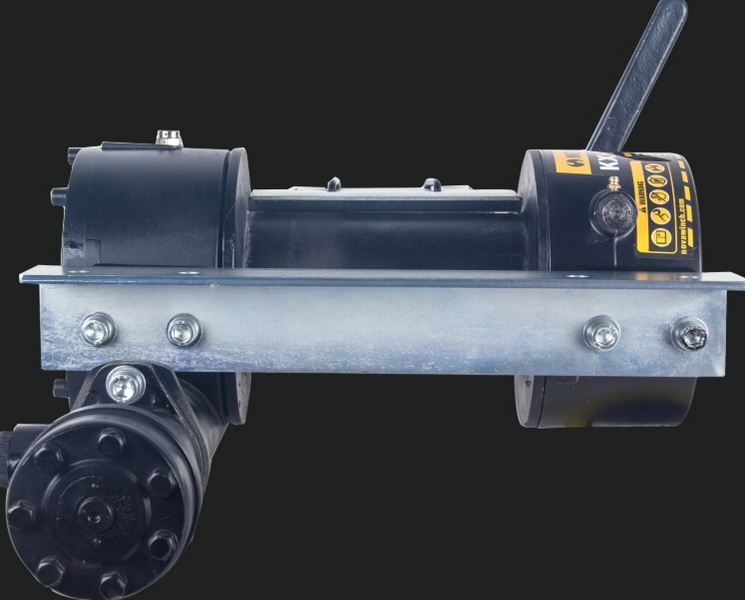

A typical Braden hydraulic winch consists of several key assemblies:
- Hydraulic Motor Assembly and Brake Valve: Converts hydraulic pressure into mechanical rotation to drive the drum and controls braking.
- Cable Drum Assembly: The rotating drum winds or unwinds the wire rope or cable.
- Planetary Gear Train: Multiplies torque and controls drum speed.
- Brake Cylinder and Motor Adapter: Houses the braking system and connects the motor to the winch base.
- Control Valves and Hydraulic Lines: Direct hydraulic fluid to the motor and brakes[8].
The operation of a Braden hydraulic winch is a blend of hydraulic engineering and mechanical ingenuity. Here's a step-by-step breakdown:
1. Hydraulic Power Input: Hydraulic fluid, pressurized by a pump, is directed to the winch's hydraulic motor.
2. Motor Drives Gear Train: The hydraulic motor's shaft is coupled to the sun gear of the primary planetary gear set.
3. Planetary Gear Transmission: The motor's rotation is transmitted through the planetary gears, multiplying torque and reducing speed for controlled drum rotation.
4. Drum Rotation: The drum winds or unwinds the cable, raising or lowering the load.
5. Brake Control: The dual brake system (static and dynamic) ensures safe load holding, smooth lifting, and precise lowering[1][6][8].
- Hoisting: The brake clutch allows free rotation to lift the load; the friction brake remains engaged but does not affect lifting.
- Holding: When lifting stops, the friction brake locks instantly, holding the load securely.
- Lowering: The brake is hydraulically released, and the brake valve modulates hydraulic flow, controlling the rate of descent. The extent to which the brake valve opens determines lowering speed[1][3][6].
The planetary gear train is a core feature of Braden hydraulic winches, providing:
- High Torque Multiplication: Allows the winch to handle heavy loads with a relatively compact motor.
- Smooth Power Transmission: Ensures even, reliable movement of the drum.
- Durability: Distributes load across multiple gears, reducing wear and increasing lifespan[8][9].
- The hydraulic motor drives the sun gear.
- Planet gears orbit the sun gear, transmitting motion to the ring gear machined into the drum.
- The result is powerful, controlled rotation of the drum, ideal for heavy-duty applications.
Braden hydraulic winches are engineered for demanding environments. Key features include:
- Rugged Construction: Designed for continuous, heavy-duty operation[7].
- Enclosed Oil Bath “Wet” Disc Brake: Outstanding load control and durability.
- Low-Speed, High-Torque Hydraulic Motor: Efficient power delivery and precise control.
- Universal Mounting Options: Flexible installation on various vehicles and platforms.
- Patented Brake Valve: Industry-leading safety and smooth operation.
- Corrosion-Resistant Components: For long service life in harsh conditions.
- Synthetic Rope Compatibility: Lighter, safer, and easier to handle than steel cable[2][7].
Braden hydraulic winches are used in a wide range of industries and applications, including:
- Utility and Service Trucks: For lifting, pulling, and recovery operations.
- Oil and Gas: Hoisting equipment and materials on rigs and in the field.
- Construction: Lifting heavy materials, equipment, and structures.
- Marine and Offshore: Mooring, anchor handling, and deck operations.
- Forestry and Mining: Equipment recovery and material handling[2][10].
Proper installation is crucial for safe and efficient operation:
- Mounting Orientation: The winch drum should be horizontal; use all mounting holes with high-grade bolts[8].
- Fleet Angle: The winch should be perpendicular to the line of pull for even spooling.
- Hydraulic Line Sizing: Ensure lines are sized to minimize back pressure for optimal motor performance.
- Vent Plug Position: Always above the drum centerline to prevent oil leaks and maintain ventilation.
- Surface Flatness: The mounting surface must not flex or distort under load, as this can cause gear binding and premature wear[8].
Routine maintenance is vital for reliability and longevity:
- Daily Checks: Inspect wire rope, drum clutch, oil levels, and hydraulic lines for damage or leaks.
- Weekly: Check gear oil, lubricate fittings, inspect breather, and check mounting fasteners.
- Monthly: Inspect clutch and brake components, check hydraulic relief valve, replace filters as needed.
- Yearly: Replace gear oil and perform a comprehensive inspection[5][8].
Safety Tips:
- Never service the winch with the hydraulic system pressurized or load on the drum.
- Always use recommended lubricants and genuine Braden parts.
- Maintain a minimum of five wraps of wire rope on the drum for safety[8].
Braden hydraulic winches are robust, but issues can arise:
- Winch Will Not Lower Load Smoothly: Check for plugged pilot orifice, defective brake cylinder seal, or damaged brake discs.
- Brake Will Not Hold Load: Excessive system back pressure, worn brake discs, or slipping clutch.
- Winch Will Not Hoist Rated Load: Uneven mounting surface, low relief valve setting, excessive hydraulic temperature.
- Wire Rope Does Not Spool Evenly: Incorrect mounting distance, improper rope lay, or overloaded drum[8].
Braden hydraulic winches have earned their reputation as the industry's most reliable and advanced winching solutions. Their robust construction, innovative brake systems, and precise control make them indispensable for heavy-duty lifting and pulling tasks worldwide. By understanding their operation, maintenance, and safety protocols, operators can maximize performance and ensure safe, efficient handling of even the most demanding loads.
Braden hydraulic winches use hydraulic fluid pressure to generate power, enabling continuous operation under heavy loads without overheating. They offer higher torque, smoother control, and greater durability compared to electric winches, making them ideal for demanding industrial applications[2][7].
The patented Braden Brake Valve provides dynamic braking by modulating hydraulic fluid flow during load lowering. This ensures smooth, controlled descent, prevents runaway loads, and minimizes heat buildup in the brake system, setting a new standard for winch safety and efficiency[1][3][4].
Key maintenance tasks include daily inspection of wire rope and hydraulic lines, regular gear oil changes, lubrication of bearings and clutch, checking hydraulic filters, and ensuring all mounting hardware is secure. Following a strict maintenance schedule is essential for safe and reliable operation[5][8].
Yes, many Braden hydraulic winches are compatible with synthetic rope, which is lighter and safer than steel cable. Braden's TRS Synthetic Rope is specifically engineered for use with their winches, reducing overall equipment weight and improving handling[2].
If the winch is not holding a load, check for excessive system back pressure, worn or damaged brake discs, or a slipping brake clutch. Ensure the correct gear oil is used and that the winch is mounted on a flat, rigid surface. Consult the service manual for troubleshooting and repair procedures[8].
