Braden hydraulic winches are renowned for their strength, reliability, and versatility across industries such as oilfield, construction, towing, and recovery. However, like any complex mechanical system, these winches are subject to wear and tear. Understanding which Braden hydraulic winch parts most commonly fail is crucial for preventive maintenance, minimizing downtime, and ensuring safe operation.

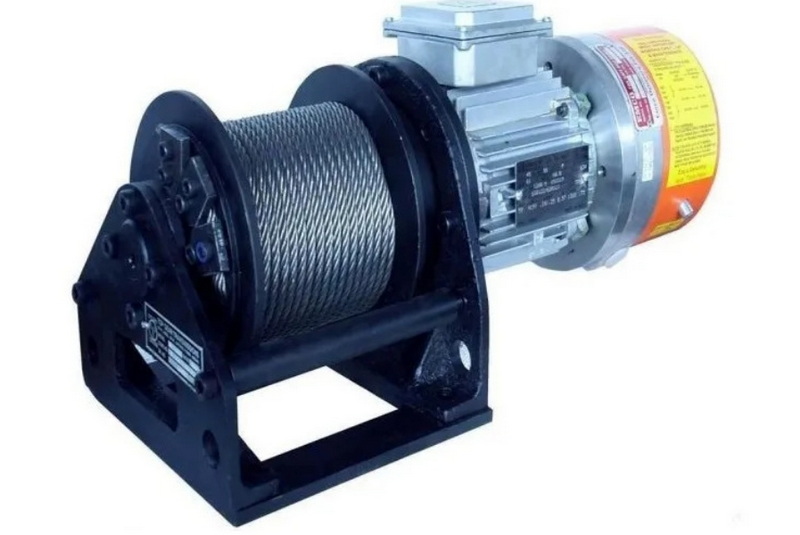

A Braden hydraulic winch consists of several interconnected systems and components, each playing a vital role in performance:
- Hydraulic motor
- Brake assembly (including brake discs and cylinder seals)
- Planetary gear train
- Cable drum and anchor
- Bearings and bushings
- Seals and O-rings
- Control valves and relief valves
- Vent relief (breather) valve
Below, we explore the most failure-prone Braden hydraulic winch parts, the symptoms of their failure, and best practices for inspection and replacement.
Hydraulic motor seals and O-rings degrade due to heat cycles and contamination. Failure symptoms include fluid leaks, power loss, and erratic operation. Use pressure gauges to verify hydraulic system integrity during inspections.
These seals maintain brake pressure. Leaks from vent plugs or delayed brake release signal failure. Test brake holding capacity monthly under load.
Worn discs cause slipping and noise. Measure disc thickness quarterly using calipers – replace if below manufacturer specifications.
Failed bearings produce grinding noises and overheating. Implement thermal imaging scans during routine checks to detect early failure signs.
Drum seal failures lead to oil contamination. Use UV dye in hydraulic fluid to pinpoint leak sources quickly.
Clogged valves cause pressure buildup. Clean during oil changes and replace every 2-3 years in dusty environments.
Sticking valves disrupt hydraulic flow. Conduct flow rate tests annually to ensure proper valve function.
Deformed wedges cause rope slippage. Inspect drum surfaces for scoring after heavy-load operations.
Five primary factors drive component failures:
1. Cyclic Stress: Repeated load cycles fatigue metal components
2. Contamination: 1 gram of dirt per liter of oil can reduce bearing life by 50%
3. Improper Torque: 38% of gear failures stem from incorrect bolt tightening
4. Chemical Degradation: Hydraulic fluid breakdown accelerates seal hardening
5. Thermal Shock: Rapid temperature changes crack elastomeric seals
Hydraulic Motor Analysis:
- Check pressure drop across motor (should not exceed 10% of rated pressure)
- Use stethoscopes to detect cavitation noises
Brake System Evaluation:
- Measure brake release time (optimal: 0.5-1.5 seconds)
- Test holding power at 125% rated load
Gear Train Inspection:
- Measure gear backlash with dial indicators
- Analyze oil for ferrous wear particles
Valve Performance Testing:
- Record response times using digital pressure loggers
- Verify relief valve cracking pressure quarterly
Hydraulic Fluid Analysis:
- Test viscosity, water content, and particle count monthly
- Implement ISO 4406 cleanliness standards
Bearing Maintenance:
- Repack bearings every 500 operating hours
- Use lithium complex grease with EP additives
Seal Conditioning Program:
- Apply fluorocarbon-based seal preservatives
- Rotate shaft seals quarterly to prevent compression set
Environmental Protection:
- Install marine-grade coatings for saltwater applications
- Use desiccant breathers in humid climates
A North Sea drilling operation reduced hydraulic motor failures by 62% through:
1. Installing dual-stage filtration (β₅≥1000)
2. Implementing weekly seal inspections
3. Switching to synthetic ester-based hydraulic fluid
4. Adding vibration sensors to planetary gears
| Component | MTBF (Genuine) | MTBF (Aftermarket) | Cost Differential |
|---|---|---|---|
| Hydraulic Motor Seal | 8,000 hrs | 3,500 hrs | +220% |
| Brake Disc Set | 15,000 cycles | 9,000 cycles | +180% |
| Planetary Bearing | 12,000 hrs | 6,500 hrs | +250% |
1. Decontamination:
- Steam clean exterior
- Flush hydraulic system with ISO 15 fluid
2. Component Inspection:
- Magnaflux critical gears
- Measure seal grooves with profilometers
3. Precision Reassembly:
- Torque fasteners using calibrated wrenches
- Lap valve seats to 0.0005" flatness
4. Performance Validation:
- Conduct 24-hour burn-in test
- Verify load-speed curves match OEM specs
Braden hydraulic winch parts require systematic maintenance combining traditional inspections with advanced diagnostics. By implementing fluid analysis, thermal monitoring, and precision rebuild techniques, operators can extend component life by 40-60%. Genuine OEM parts remain critical for maintaining safety margins in heavy-load applications. A well-executed maintenance program typically delivers 300% ROI through reduced downtime and repair costs.
Replace every 2,000 operating hours or annually, with more frequent changes in high-contamination environments. Always perform particle count analysis before changing.
Refer to Braden's technical manual – typical values range from 85-120 ft-lbs for M12 fasteners depending on thread treatment.
Yes. A single failed bearing can generate metal debris that destroys seals and gears within 50 operating hours.
Keep in climate-controlled conditions (40-80°F, <60% RH). Coat metal surfaces with cosmoline and store elastomers in UV-resistant bags.
Standard parts ship within 3-5 business days. Custom-engineered components may require 6-8 weeks for manufacturing.
