Views: 222 Author: Ella Publish Time: 2025-04-19 Origin: Site
Content Menu
● Understanding the Hydraulic Winch Control Valve
● Why Maintenance Is Essential
● Routine Inspection Procedures
>> 3. Hydraulic Line and Connection Check
>> 3. Contamination Prevention
● Troubleshooting Common Issues
>> 1. Internal or External Leaks
>> 2. Sluggish or Erratic Operation
>> 3. Valve Spool Fails to Move
>> 4. Incorrect Winch Direction or No Movement
● Preventive Maintenance Checklist
● FAQ: Hydraulic Winch Control Valve Maintenance
>> 1. What are the signs that a hydraulic winch control valve needs repair?
>> 2. How often should I inspect and maintain my hydraulic winch control valve?
>> 3. What type of hydraulic oil should I use for my winch control valve?
>> 4. How do I prevent contamination in my hydraulic winch control valve?
>> 5. What should I do if my hydraulic winch control valve is not responding?
Hydraulic winch systems are essential in industries ranging from marine and construction to forestry and mining. At the heart of these systems lies the hydraulic winch control valve, a precision component responsible for directing fluid flow, regulating pressure, and ensuring safe, reliable winch operation. Like all hydraulic components, the control valve requires regular maintenance to guarantee optimal performance, prevent costly breakdowns, and extend the service life of the entire winch system.
In this comprehensive guide, we'll explore in detail the maintenance requirements for a hydraulic winch control valve. We'll cover inspection routines, cleaning procedures, troubleshooting, lubrication, and best practices for both preventive and corrective maintenance. Throughout, you'll find illustrative diagrams, video resources, and practical tips to help you keep your hydraulic winch control valve—and your entire hydraulic winch system—running smoothly.

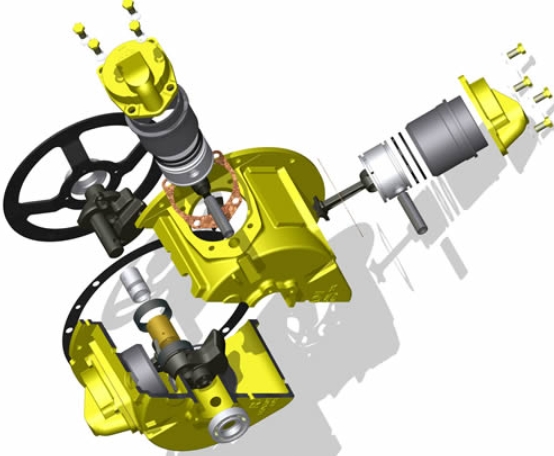

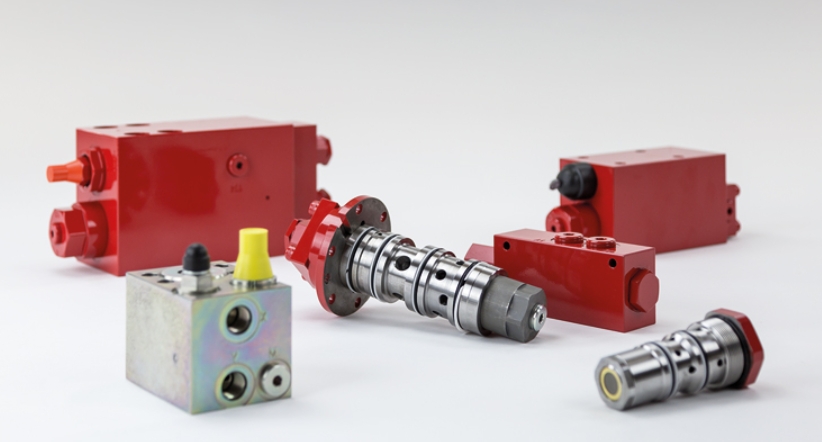

A hydraulic winch control valve is a specialized directional valve that manages the flow and pressure of hydraulic fluid to the winch motor, controlling the direction and speed of the winch drum. It is typically operated manually, electrically, or hydraulically, and may incorporate features such as pressure relief, load holding, and flow control.
Key Functions:
- Directs hydraulic fluid to wind or unwind the winch drum
- Regulates flow rate for speed control
- Maintains safe operating pressure
- Prevents overloads via relief mechanisms
Hydraulic winch control valves operate under high pressure and are exposed to contaminants, vibration, and temperature fluctuations. Without regular maintenance, these valves can develop issues such as internal or external leaks, sluggish operation, or complete failure, leading to system downtime and safety hazards[1][9].
Benefits of Regular Maintenance:
- Prevents unexpected breakdowns and costly repairs[9]
- Ensures operator safety and system reliability[1][6]
- Extends the lifespan of both the valve and the entire winch system[9]
- Maintains peak efficiency and performance
- Check the hydraulic winch control valve for visible signs of wear, corrosion, or physical damage.
- Inspect for oil leaks around the valve body, fittings, and connections[3][9].
- Ensure all mounting bolts and fasteners are secure[10].
- Verify the winch responds correctly to control lever or switch inputs.
- Listen for abnormal noises, which may indicate internal wear or contamination.
- Check for sluggish or jerky movement, which can signal valve spool sticking or hydraulic fluid issues[8].
- Inspect hoses and fittings for leaks, cracks, or loose connections[2][7].
- Tighten any loose fittings; replace damaged hoses immediately.
- Clean the exterior of the hydraulic winch control valve regularly to prevent dirt and debris from entering the system[3][10].
- Use air, steam, or pure water for cleaning, as appropriate for the environment and valve materials[1].
- If the valve must be disassembled, do so in a clean environment to avoid introducing contaminants[10].
- Lubricate moving parts of the valve as recommended by the manufacturer, using suitable hydraulic or marine-grade lubricants[3].
- Avoid over-lubrication, which can attract dust and debris.
- Check hydraulic fluid levels regularly and top up as needed[7][10].
- Use only the manufacturer-recommended hydraulic oil to prevent excessive wear, overheating, or loss of performance[6].
- Replace hydraulic fluid at intervals specified by the manufacturer, typically every 1,000 hours or sooner in harsh environments[7][10].
- Inspect and replace hydraulic filters according to the maintenance schedule or when filter indicators show clogging[7][10].
- Keep spare filter elements on hand for timely replacement.
- Always keep breather caps, fill screens, and breather filters clean and intact to prevent dirt ingress[7].
- Ensure the area around the reservoir and valve is free from dust and debris during maintenance.
Hydraulic winch control valves can experience a range of issues, often signaled by abnormal operation, leaks, or loss of control. Here's how to address the most common problems:
- Symptoms: Drop in fluid level, visible oil leaks, reduced winch performance.
- Action: Inspect seals, gaskets, and valve body for damage. Replace worn seals and tighten fittings as needed[9].
- Symptoms: Slow or jerky winch movement, delayed response.
- Action: Check for contamination in the hydraulic fluid; flush and replace if necessary. Inspect the valve spool for sticking due to dirt or wear[8][11].
- Symptoms: Winch does not respond to control inputs.
- Action: Disassemble and clean the valve, checking for blocked drains or pilot pressure issues. Verify solenoid or actuator function if electrically operated[8][11].
- Symptoms: Winch drum turns the wrong way or not at all.
- Action: Check for incorrect piping, electrical faults, or mechanical binding. Ensure control levers and solenoids are functioning correctly[2][8].
When inspection and troubleshooting reveal significant wear or damage, replacement or repair of the hydraulic winch control valve may be necessary.
- Disassemble the valve in a clean workspace.
- Replace worn or damaged seals, springs, or spools.
- Clean all internal components thoroughly before reassembly[9].
- Always use a valve that matches the original specifications for flow, pressure, and mounting.
- Inspect new valves for shipping damage before installation[1].
- Test the system thoroughly after installation to confirm correct operation.
To ensure your hydraulic winch control valve remains in top condition, follow this preventive maintenance checklist:
- Perform visual inspections weekly for leaks, wear, and corrosion
- Test valve operation and winch response monthly
- Check and top up hydraulic fluid levels as needed
- Replace hydraulic oil every 1,000 hours or per manufacturer's recommendation
- Inspect and replace filters regularly
- Clean the valve exterior and surrounding area frequently
- Lubricate moving parts as specified
- Document all maintenance actions for future reference
Sample Preventive Maintenance Schedule
| Task | Frequency |
|---|---|
| Visual Inspection | Weekly |
| Operational Test | Monthly |
| Fluid Level Check | Weekly |
| Oil Change | 1,000 hours |
| Filter Replacement | As indicated |
| Valve Cleaning | Monthly |
| Lubrication | Per schedule |
Step-by-step guide to removing and maintaining hydraulic valve detents.
Proper maintenance of your hydraulic winch control valve is critical for the safety, reliability, and efficiency of your winch system. By implementing regular inspection, cleaning, lubrication, and hydraulic fluid management routines, you can prevent most common issues, minimize downtime, and extend the lifespan of your equipment. Always follow manufacturer guidelines, use quality parts and fluids, and document your maintenance activities for best results. With diligent care, your hydraulic winch control valve will continue to deliver dependable performance in even the most demanding environments.
Common signs include internal or external leaks, sluggish or erratic operation, failure to respond to controls, and abnormal noises. A drop in hydraulic fluid level or excessive heat generation may also indicate valve issues[9].
Perform visual inspections weekly, operational tests monthly, and replace hydraulic fluid every 1,000 hours or as recommended. Filter changes and lubrication should follow the manufacturer's schedule or be done more frequently in harsh environments[7][10].
Always use the hydraulic oil type and grade specified by the winch or valve manufacturer. The wrong oil can cause increased friction, overheating, and reduced pulling capacity[6].
Keep the valve and surrounding area clean, regularly check and replace filters, and ensure breather caps and fill screens are intact. Always work in a clean environment when opening the hydraulic system[7][10].
Check for electrical or mechanical faults, ensure all hydraulic lines and connections are secure, and inspect for contamination or blockage in the valve. If necessary, disassemble and clean the valve, or replace it if significant wear or damage is found[2][8][11].
