Choosing the right winch is critical for any heavy-duty recovery, industrial, marine, or off-road application. The debate between hydraulic and electric winches is ongoing, with each system offering unique advantages and drawbacks. This comprehensive guide explores the differences between hydraulic and electric winches, including their working principles, performance, applications, installation, maintenance, and the best hydraulic winch options available today.
Winches are indispensable tools in industries ranging from construction and marine to off-road recovery and agriculture. The two most popular types-hydraulic and electric winches-differ primarily in their power sources and operational characteristics. Understanding these differences is essential to select the best winch for your needs, whether you require the relentless power of the best hydraulic winch or the convenience of an electric model[1][3][12].
A hydraulic winch operates by harnessing the power of pressurized hydraulic fluid, typically supplied by a vehicle's power steering pump or a dedicated hydraulic power unit. This fluid is directed through high-pressure hoses to a hydraulic motor, which turns the winch drum and spools the cable[7][14][18].
Key Components:
- Hydraulic Pump: Pressurizes the hydraulic fluid.
- Hydraulic Motor: Converts fluid pressure into rotational force.
- Winch Drum: Holds and spools the cable.
- Control Valves: Regulate fluid flow, controlling speed and direction.
Working Principle:
When activated, the hydraulic pump sends pressurized fluid to the motor. The motor's rotation turns the winch drum, pulling in or letting out the cable. Control valves allow precise adjustment of speed and direction[7][18].
An electric winch uses an electric motor-powered by a vehicle battery or a dedicated power supply-to drive the winch drum. The system is typically controlled by a wired or wireless remote, offering user-friendly operation[1][12][15].
Key Components:
- Electric Motor: Provides rotational force.
- Winch Drum: Spools the cable.
- Control System: Remote or switch to operate the winch.
Working Principle:
When the user activates the control, the electric motor turns the drum, pulling or releasing the cable. Electric winches often feature variable speed controls, programmable stops, and safety features like automatic brakes[2][12].
| Feature | Hydraulic Winch | Electric Winch |
|---|---|---|
| Power Source | Hydraulic fluid (vehicle pump or HPU) | Vehicle battery or mains electricity |
| Pulling Capacity | Higher, suited for heavy-duty/continuous use | Moderate, best for light to medium tasks |
| Duty Cycle | Continuous, no overheating | Limited by battery/heat, intermittent use |
| Installation | Complex, requires hydraulic system | Simple, plug-and-play on most vehicles |
| Maintenance | High, needs regular checks for leaks and wear | Low, mainly electrical checks |
| Environmental Impact | Risk of hydraulic fluid leaks | Clean, no fluid risk |
| Cost | Higher initial and maintenance costs | Lower upfront and maintenance costs |
| Control | Manual levers or basic controls | Advanced remotes, programmable features |
| Portability | Less portable, integrated into hydraulic systems | Highly portable, easy to move between vehicles |
| Noise | Moderate, depends on hydraulic pump | Quiet operation |
- Hydraulic winches excel in heavy-duty, continuous operations and harsh environments, providing consistent pulling power without the risk of overheating[1][3][8].
- Electric winches are ideal for lighter, intermittent tasks where ease of installation and portability are priorities[1][2][12].

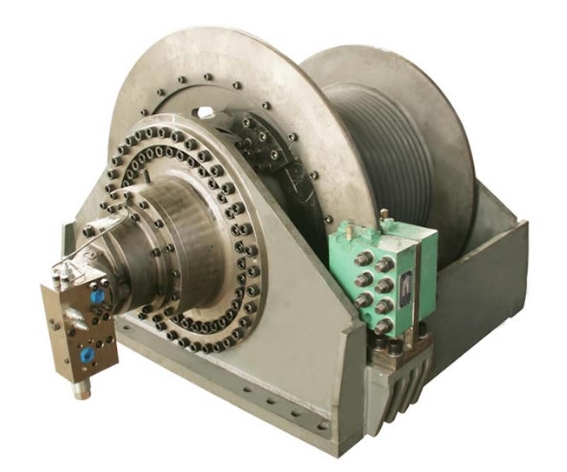

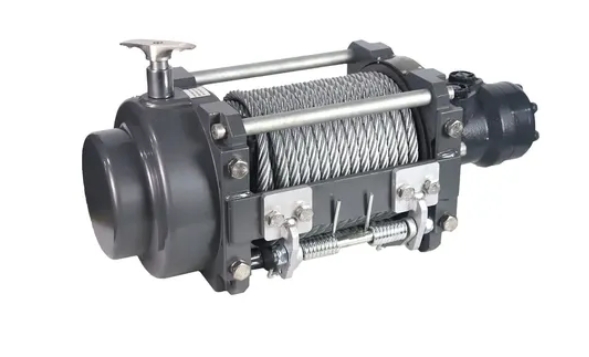

Selecting the best hydraulic winch depends on your specific needs. Here are some top-rated models for 2025[8]:
| Model | Pulling Capacity | Best For | Key Features |
|---|---|---|---|
| Mile Marker 70-52000C H Series | 12,000 lbs | Off-road, heavy trucks | Two-speed motor, continuous duty, rugged |
| WARN 30281 Series 9 | 9,000 lbs | Industrial, commercial | Reliable, durable, easy integration |
| Prowinch 10 Ton Hydraulic | 20,000 lbs | Industrial, extreme recovery | Wireless remote, steel roller, massive power |
Example: Mile Marker 70-52000C H Series
- Pulling Capacity: 12,000 lbs
- Two-Speed Motor: Fast line recovery and precision pulling
- Durability: Built for mud, water, and sand
- Continuous Duty: No overheating, even under extreme loads
- Off-road Recovery: Pulling vehicles from mud, sand, or steep terrain[4][8].
- Marine and Shipping: Mooring, anchor handling, and towing vessels[3][4].
- Construction: Lifting heavy equipment, positioning materials[4].
- Forestry and Logging: Skidding logs, loading/unloading timber[4].
- Oil & Gas, Mining: Equipment handling, pipe laying, underground hauling[4].
- Vehicle Recovery: Light to medium-duty pulling for trucks, SUVs, ATVs[1][2].
- Recreational Boating: Raising anchors, docking assistance[15].
- Construction: Lifting lighter loads, hoisting tools[12].
- General Utility: Portable use on trailers, workshops, and more[1][2].
- Installation: Requires integration with a hydraulic system, often needing professional setup. May involve mounting hydraulic pumps, routing hoses, and ensuring system compatibility[1][14][18].
- Maintenance: Regular checks for leaks, hose wear, and hydraulic fluid quality. More complex and time-consuming than electric winches[1][11].
- Installation: Straightforward, usually bolted to bumpers or mounts with simple wiring to the battery[1][2].
- Maintenance: Minimal-mainly involves checking battery connections, cleaning, and occasional lubrication[2][10][15].
- Hydraulic winches pose a risk of hydraulic fluid leaks, which can be hazardous to the environment, especially in marine and sensitive areas[2][11].
- Electric winches are cleaner, with no risk of fluid leaks and lower noise levels, making them preferable for eco-sensitive operations[2][12].
- Hydraulic winches have higher upfront costs due to the need for hydraulic systems and more expensive components. Maintenance costs are also higher, given the complexity and potential for leaks or system failures[1][11].
- Electric winches are more affordable to purchase and maintain, with lower installation costs and fewer parts requiring regular attention[1][2][12].
Both hydraulic and electric winches have distinct strengths, making them suitable for different scenarios. If you require continuous, heavy-duty pulling power-such as in industrial, marine, or extreme off-road environments-the best hydraulic winch is the superior choice, offering unmatched durability and consistent performance[1][3][8]. However, if portability, ease of installation, and lower cost are your priorities, an electric winch is likely the better fit[1][2][12].
Carefully assess your specific needs, the typical loads you'll encounter, and the environment in which the winch will operate. Investing in the right winch will ensure safety, reliability, and efficiency for years to come.
Hydraulic winches provide higher and more consistent pulling power, making them ideal for continuous, heavy-duty operations without the risk of overheating. They are also more durable in harsh environments[1][3][8].
Yes. Hydraulic winches require integration with a hydraulic system, which can be complex and may need professional installation. Electric winches, in contrast, are typically easier to install and require only basic wiring[1][2][14].
Electric winches are generally more eco-friendly, as they do not use hydraulic fluid and thus eliminate the risk of leaks that can harm the environment[2][11][12].
Not without significant modifications. Hydraulic winches require a hydraulic power source, so you would need to install a hydraulic pump and related components if your vehicle doesn't already have them[1][14].
Hydraulic winches require regular checks for leaks, hose integrity, and fluid quality, while electric winches need minimal maintenance, mainly involving electrical connections and occasional cleaning[1][2][11].
