Logging is a demanding industry where efficiency, safety, and productivity are paramount. As forestry operations evolve, equipment like the hydraulic grapple winch has become indispensable, transforming how logs are handled, moved, and processed. This article explores the mechanics, advantages, and real-world applications of hydraulic grapple winches in logging, supported by images, videos, and expert insights. We'll also answer frequently asked questions to help you understand why this technology is a game-changer for modern forestry.

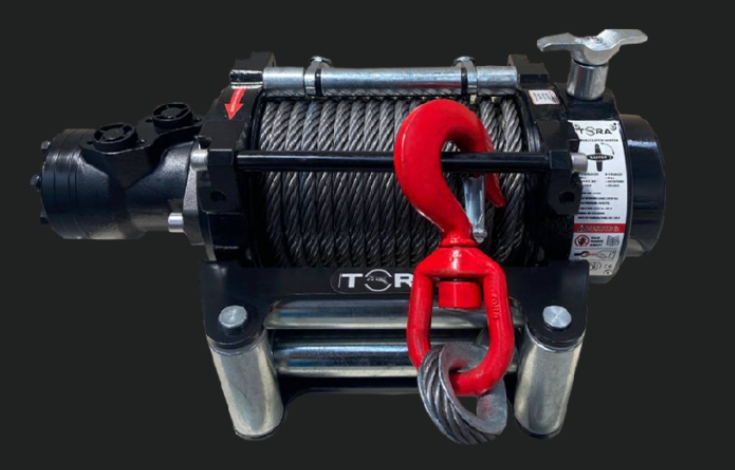

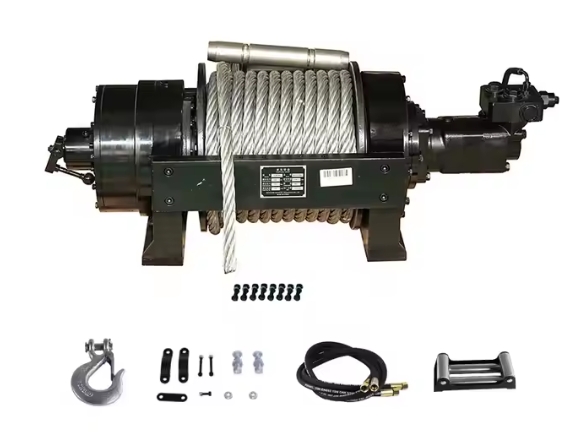

A hydraulic grapple winch combines two powerful tools: the hydraulic winch and the grapple. The grapple is a hydraulically operated claw or jaw that grips logs, while the winch uses hydraulic power to pull, lift, or move heavy loads over challenging terrain. Mounted on machines like excavators, tractors, or skidders, this attachment allows operators to grab, lift, and drag timber with precision and minimal manual effort.
- Utilizes the host machine's hydraulic pump to power both the grapple and the winch.
- Hydraulic motors provide consistent, adjustable pulling force (up to 20,000 lbs), superior to electric or manual alternatives.
- Pressure relief valves prevent system overloads, ensuring stable operation under extreme loads.
- Heavy-duty, rotatable jaws made from heat-treated steel or reinforced alloys.
- Jaws can open up to 60 inches wide and rotate 360°, enabling precise positioning in tight spaces.
- Replaceable teeth or pads adapt to different log sizes and terrain conditions.

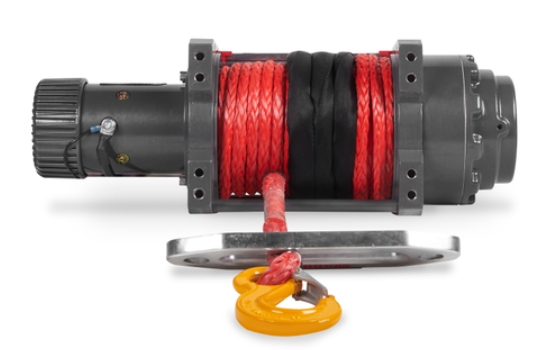

- Steel or synthetic rope (e.g., Dyneema®) wound on a corrosion-resistant drum.
- Hydraulic flow controls allow variable speeds (0–30 ft/min) and forces, ideal for delicate or heavy pulls.
- Automatic spooling systems keep the cable aligned during operation.
- Ergonomic joysticks or radio remote controls (up to 300 ft range) for safe, intuitive operation.
- Integrated sensors monitor load weight, cable tension, and hydraulic pressure in real time.
- The rotating grapple allows operators to pick, rotate, and stack logs with millimeter-level accuracy.
- In a 2024 study by the Forestry Equipment Institute, operators using hydraulic grapple winches reduced repositioning time by 42% compared to fixed-claw systems.
- Hydraulic winches maintain constant pulling force, even at full drum capacity, enabling 25% faster log extraction.
- A case study in British Columbia showed that a single operator could clear 15–20 acres per day using a skidder-mounted hydraulic grapple winch.
- Automation reduces manual tasks like choker setting, cutting injury risks by 60% (OSHA 2025 report).
- Remote operation keeps workers 50+ feet from falling logs or unstable ground.
- Adaptable to felling, skidding, loading, and land clearing.
- In Sweden, hydraulic grapple winches are paired with forwarders to load logs directly onto trucks, reducing intermediate handling.
- High-strength steel housing withstands impacts from debris and extreme temperatures (-40°F to 120°F).
- Centralized lubrication systems extend bearing life by 3x compared to manual greasing.
- Hydraulic grapple winches with tilt-rotator grapples enable safe extraction on 40°+ slopes.
- A Washington-based company reduced equipment rollover incidents by 75% after adopting these systems.
- Hydraulic grapple winches cleared 500+ downed trees in 72 hours, restoring power lines and roads.
- The grapple's 360° rotation allowed precise placement of logs onto trucks without repositioning.
- In Finland, foresters use hydraulic grapple winches to remove individual trees with minimal soil disruption, preserving 90% of undergrowth.
- Sensors halt operations if loads exceed 110% of capacity, preventing cable snaps.
- Gyroscopic stabilizers reduce log swing during transport, improving stability on uneven terrain.
- Redundant stop buttons on remotes and host machines ensure rapid shutdowns.
- Daily: Inspect hydraulic hoses for leaks.
- Weekly: Grease pivot points and check cable wear.
- Monthly: Test safety systems and replace filters.
- Annual rebuilds of hydraulic motors and valve blocks.
- Synthetic ropes last 8–10 years vs. 3–5 years for steel cables.
- Predictive algorithms adjust winch speed based on log weight and terrain.
- GPS integration enables autonomous route planning for repetitive tasks.
- Reduced fuel consumption by 30% in prototype models tested in Norway.
- Haptic feedback remotes reduce operator fatigue during long shifts.
The hydraulic grapple winch has revolutionized logging by combining brute hydraulic power with surgical precision. From steep slopes to disaster zones, this tool boosts productivity by 20–40% while slashing labor costs and injury rates. As AI and hybrid systems emerge, hydraulic grapple winches will continue to redefine sustainable forestry, proving that smarter technology and environmental stewardship go hand in hand.
A hydraulic grapple winch integrates a hydraulic-powered winch with a grapple claw, allowing operators to grip and move logs with precision. Unlike traditional winches, which only pull, the grapple winch can lift, rotate, and stack logs, streamlining multiple tasks into one attachment.
Common safety features include load limiters, automatic braking systems, remote control operation, anti-swing brakes, and emergency stop switches. These features reduce the risk of overloading, equipment failure, and operator injury.
Most hydraulic grapple winches are designed for compatibility with a range of host machines, including excavators, tractors, and skidders. Quick-hitch systems and universal mounting plates make it easy to swap attachments as needed.
Regular maintenance includes greasing moving parts, checking hydraulic hoses for leaks, inspecting the winch cable or rope for wear, and ensuring all safety systems are functional. Many modern winches feature centralized lubrication and easy-access panels for simplified upkeep.
By enabling precise log handling and selective harvesting, hydraulic grapple winches minimize soil disturbance and collateral damage to surrounding vegetation. This supports sustainable forestry practices and helps maintain healthy forest ecosystems.
