Hydraulic winch brakes are critical safety mechanisms in industries requiring precise load control, such as marine operations, construction, and oil rigging. By leveraging hydraulic pressure to regulate drum movement, these systems ensure safe deceleration and holding of heavy loads. This article explores their mechanics, types, advantages, and maintenance protocols, supplemented with diagrams and real-world examples.

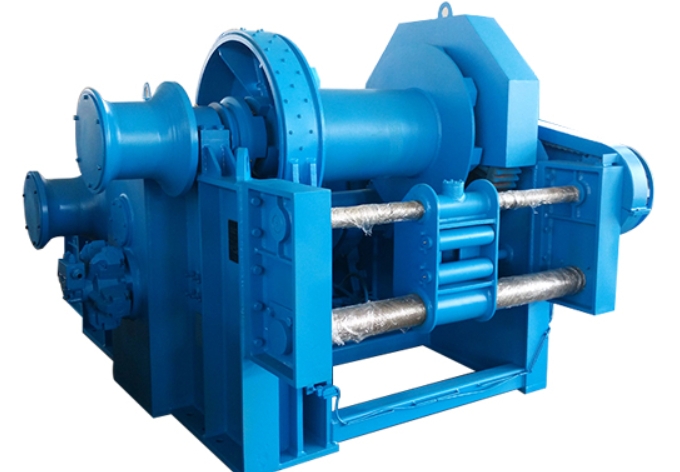

Hydraulic winches are robust lifting devices powered by pressurized fluid systems. Unlike electric winches, they excel in extreme environments due to their resistance to water, dust, and overheating. Their core components include:
1. Hydraulic Pump
Converts mechanical energy (from an engine or motor) into hydraulic pressure. Common types include gear pumps (for low-pressure tasks) and piston pumps (for high-pressure operations).
Gear pumps are suitable for low-flow applications, while axial piston pumps offer high efficiency and reliability in demanding environments.
2. Hydraulic Motor
Transforms hydraulic energy back into rotational motion to drive the winch drum. Axial piston motors are widely used for their high torque-to-weight ratio, making them ideal for heavy-duty lifting operations.

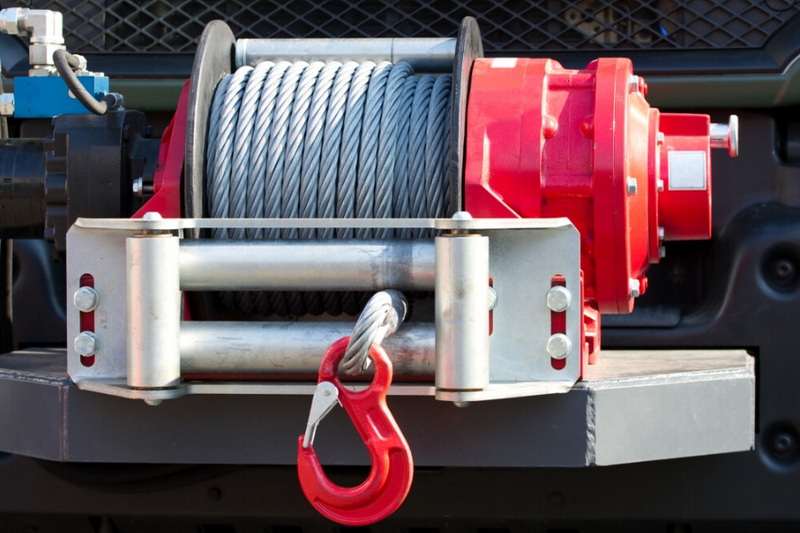

3. Winch Drum
Typically made of hardened steel, it spools synthetic rope or steel cable. Larger drums (e.g., 24-inch diameter) accommodate longer cable lengths for deep-sea applications.
4. Control Valves
Directional valves manage fluid flow to adjust speed and direction. Proportional valves enable fine-tuned load positioning, crucial for precision tasks like ship-to-shore cargo transfer.
Hydraulic brakes use pressurized fluid to engage friction components, ensuring controlled deceleration. Here's a step-by-step breakdown:
When the operator releases the winch control lever, hydraulic pressure drops in the master cylinder. This triggers spring-loaded calipers to clamp brake pads against a rotor attached to the drum shaft.
Brake pads (often composite materials like ceramic or sintered metal) create friction, converting kinetic energy into heat. Multi-disc systems (used in offshore winches) distribute heat evenly, preventing warping.
A dual-circuit balance valve maintains residual pressure in the system, preventing unintended drum rotation even if hydraulic pressure is lost. This ensures fail-safe load holding during power failures.
While hydraulic brakes dominate modern systems, other designs serve niche applications:
Ratchet and Pawl Systems:
Simple and fail-safe, these are common in manual winches. A spring-loaded pawl locks into a gear-toothed wheel during emergencies.
Limitation: Not suitable for dynamic loads.
Band Brakes:
A steel band tightens around the drum via a lever. Used in forestry winches but prone to wear in high-cycle operations.
- Wet Multi-disc Brakes
Submerged in hydraulic fluid, these handle extreme loads (e.g., 50-ton mining winches). Fluid acts as a coolant, extending pad life.
- Spring-Applied, Hydraulically Released (SAHR) Brakes
Automatically engage during power failures, critical for offshore cranes.
- Converts motor into a generator, dissipating energy through resistors. Common in hybrid electric-hydraulic systems for energy recovery.
Hydraulic brakes outperform mechanical and electric alternatives in three key areas:
1. Torque Consistency
Hydraulic pressure ensures uniform braking force regardless of load fluctuations. Tests show <5% torque variance under 100–500 kN loads.
2. Thermal Stability
Wet disc systems operate at 200°C+ without fade, unlike dry brakes that lose 30% efficiency at 150°C.
3. Durability
Sealed hydraulic systems resist corrosion in saltwater environments. Average service life: 10,000+ hours vs. 3,000 hours for mechanical brakes.
- Challenge: Saltwater corrosion + 500-ton loads.
- Solution: Titanium-coated discs and phosphate ester fluid (fire-resistant).
- Challenge: Debris accumulation.
- Solution: Enclosed disc brakes with automatic cleaning nozzles.
- Challenge: Silent operation.
- Solution: Polymer-composite pads reducing noise by 15 dB.
Follow this checklist to maximize brake lifespan:
1. Weekly Checks
- Fluid level (ISO VG 46 recommended)
- Hose integrity (replace if cracked/swollen)
2. Monthly Tasks
- Measure pad thickness (replace if <3mm)
- Flush fluid if particle count exceeds NAS 1638 Class 8
3. Annual Overhauls
- Rebuild caliper seals
- Test balance valve response time (<0.5 seconds)
- Brake Drag: Check for excessive fluid pressure or misaligned brake pads.
- Leakages: Inspect hoses and seals for damage.
- Inconsistent Braking: Adjust balance valve settings or replace worn pads.
- Smart Brakes: IoT sensors predict failures by monitoring vibration and temperature patterns.
- Magnetorheological Fluids: Adjust viscosity electronically for instant torque changes.
- Challenge: Lifting 100-ton turbine components in harsh marine conditions.
- Solution: Custom hydraulic winch with SAHR brakes for reliable load holding during power outages.
- Outcome: Successful installation with zero safety incidents.
- Challenge: Heavy-duty hauling in dusty environments.
- Solution: Enclosed hydraulic winches with wet multi-disc brakes for consistent braking performance.
- Outcome: Reduced maintenance downtime by 40%.
Hydraulic winch brakes combine mechanical robustness with precise fluid-driven control, making them indispensable for heavy industries. By understanding their operation and adhering to strict maintenance schedules, operators can ensure decades of reliable service while minimizing downtime.
Yes. SAHR brakes default to engaged position during power loss, ensuring fail-safe load holding.
Use ISO VG 32 hydraulic fluid for temperatures below -20°C to maintain flow rates.
Replace every 2,000 operating hours or annually, whichever comes first.
Yes, when using non-sparking materials (e.g., aluminum bronze) and fire-resistant fluids (e.g., HFDU).
Hydraulic systems cost 20–30% more upfront but have 50% lower lifecycle costs due to durability.
