Hydraulic winches are powerful tools used in various industries, including construction, off-roading, and marine operations. They utilize hydraulic fluid to generate immense force and torque, making them ideal for lifting and pulling heavy loads. In this article, we will delve into the working principle of hydraulic winches, their components, advantages, and common applications.

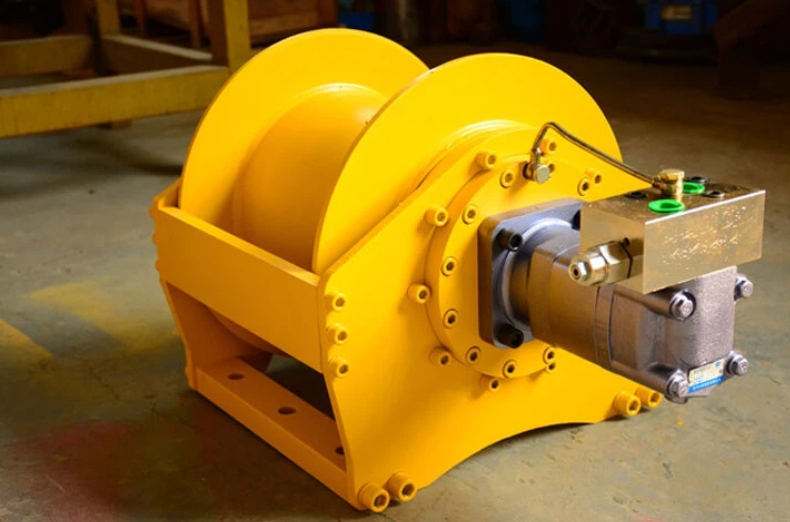

Hydraulic winches operate on the principle of fluid power, where hydraulic fluid is pressurized to create mechanical force. This force is then transmitted through the system to drive the winch mechanism, allowing for the efficient lifting or pulling of heavy objects.
1. Hydraulic Pump: This is responsible for pressurizing the hydraulic fluid. In some cases, a vehicle's power steering pump is used to create the necessary pressure differential for operation.
2. Hydraulic Motor: Converts the hydraulic energy into rotational motion, which drives the winch drum.
3. Winch Drum: The drum onto which the cable or rope is wound. As the drum rotates, it winds or unwinds the cable, depending on the direction of fluid flow controlled by the valves.
4. Control Valves: Regulate the flow of hydraulic fluid to control the winch's speed and direction.
5. Planetary Gearbox: Used in many hydraulic winches to regulate speed and torque by manipulating the arrangement of gears.
The working principle involves the following steps:
1. Activation of the Hydraulic Pump: The pump pressurizes the hydraulic fluid, creating a pressure differential that drives the system.
2. Direction to Hydraulic Motor: The pressurized fluid is directed to the hydraulic motor, which converts the fluid energy into rotational motion.
3. Rotation of Winch Drum: This rotational motion drives the winch drum, causing it to wind or unwind the cable, depending on the direction of fluid flow.
4. Control by Valves: The control valves manage the flow of hydraulic fluid, allowing operators to control the speed and direction of the winch.
Hydraulic winches offer several advantages over electric winches:
- Higher Pulling Power: Hydraulic winches can exert greater force, making them suitable for heavy-duty applications.
- Constant Torque: Hydraulic systems provide consistent torque output, even at low speeds.
- Heat Resistance: Hydraulic systems are less susceptible to overheating, ensuring reliable operation in demanding conditions.
- Adaptability: Hydraulic winches can be integrated into various hydraulic systems, offering versatility in application.
Hydraulic winches are widely used in:
- Marine Operations: For lifting and moving heavy loads on ships and docks.

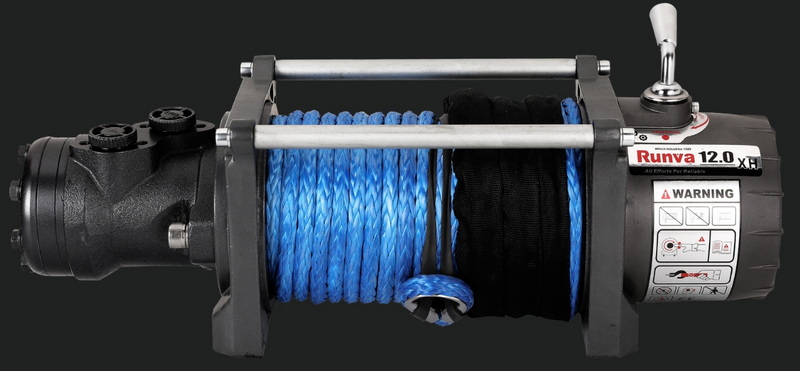

- Off-Road Recovery: Used in vehicles for recovering stuck vehicles in challenging terrains.
- Construction: For lifting heavy construction materials and equipment.
Despite their robust design, hydraulic winches can encounter issues such as fluid leaks, overheating, and motor malfunctions. Regular maintenance and troubleshooting are crucial to prevent downtime and ensure efficient operation.
1. Fluid Leaks: Check all connections and replace any damaged seals or hoses.
2. Overheating: Ensure adequate cooling and ventilation. Reduce load or speed if necessary.
3. Motor Malfunction: Inspect for worn-out parts and replace them as needed.
Regular maintenance is essential to prolong the service life of hydraulic winches and prevent breakdowns. Key maintenance tasks include:
- Hydraulic Fluid Management: Maintain the cleanliness and quality of hydraulic fluid. Use the manufacturer's recommended fluid and change it according to prescribed intervals.
- Filter Replacement: Regularly replace hydraulic filters to prevent contaminants from circulating within the system.
- Lubrication: Ensure that all moving parts are adequately lubricated using high-quality lubricants suitable for the application.
- Pressure Checks: Periodically measure hydraulic pressure to ensure it falls within the recommended range.
Regular inspections are crucial for identifying signs of wear, tear, or damage. Pay attention to the hydraulic system, drum, wire rope, brakes, clutches, and gears. Replace any worn or damaged parts promptly to prevent system malfunctions.

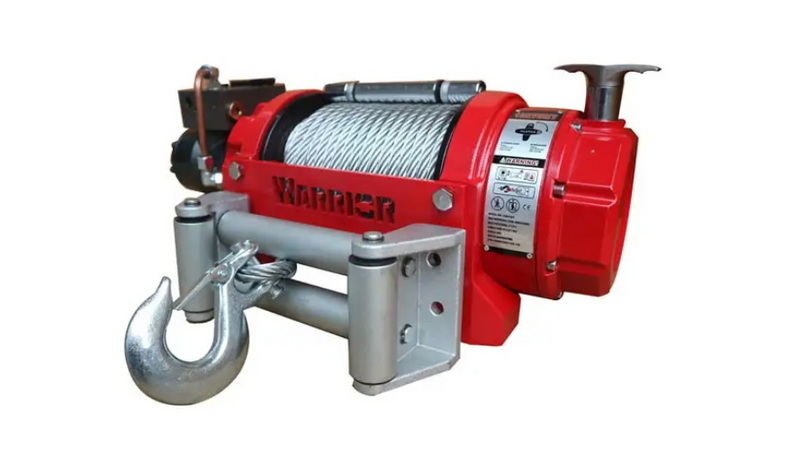

Hydraulic towing winches offer distinct advantages in terms of power, control, efficiency, and versatility:
- Power and Performance: They generate high pulling forces, making them ideal for heavy-duty towing applications.
- Precise Control and Safety: Hydraulic systems allow for fine-tuned control over line speed, direction, and tension, enhancing operational safety.
- Efficiency and Reliability: Hydraulic systems transmit power effectively, minimizing energy loss and maximizing efficiency.
- Versatility and Adaptability: These winches can be easily integrated into various vehicles or machinery, accommodating different accessories and attachments.
Hydraulic towing winches excel in challenging environments, offering excellent resistance to extreme temperatures, corrosion, and moisture. This makes them well-suited for marine and offshore applications.
When operating hydraulic winches, safety is paramount. Ensure that operators are trained and follow all safety guidelines:
- Proper Training: Operators should be well-trained in the operation and maintenance of hydraulic winches.
- Safety Gear: Use appropriate safety gear, such as gloves and safety glasses, to protect against potential hazards.
- Load Calculation: Always calculate the load to ensure it is within the winch's capacity.
- Regular Inspections: Conduct regular inspections to identify any potential issues before they become major problems.
Hydraulic winches can have environmental implications, particularly in marine environments. Ensure that all operations are conducted in compliance with environmental regulations to minimize ecological impact.
Advancements in hydraulic winch technology are ongoing, focusing on improving efficiency, reducing environmental impact, and enhancing safety features. Innovations include more efficient hydraulic systems, advanced materials for components, and integrated safety systems.
Hydraulic winches are powerful tools that leverage fluid power to generate mechanical force, making them indispensable in various industries. Understanding their working principle, components, advantages, and common applications is crucial for maximizing their performance and efficiency. Regular maintenance and troubleshooting can help mitigate common issues and ensure reliable operation.
- The main components include a hydraulic pump, hydraulic motor, winch drum, control valves, and planetary gearbox.
- Hydraulic winches offer higher pulling power and constant torque, but they are generally heavier and require a running engine to operate.
- Hydraulic winches are used in marine operations, off-road recovery, and construction for lifting and moving heavy loads.
- Check for fluid leaks, ensure proper fluid levels, inspect wiring connections, and verify that the engine is running if applicable.
- Regularly check hydraulic fluid levels, inspect for leaks, replace worn-out parts, and maintain clean filters to maintain efficiency and prevent malfunctions.
