Hydraulic winches are powerful tools used in various industries, including construction, marine, and off-road applications. They utilize hydraulic circuits to generate the mechanical force needed for lifting or pulling heavy loads. Understanding how these circuits work is crucial for optimizing the performance and efficiency of hydraulic winches.
Hydraulic winches are favored for their high pulling capacity, smooth operation, and ability to handle heavy-duty tasks. Unlike electric winches, hydraulic winches can operate continuously without overheating, making them ideal for prolonged use in demanding environments.

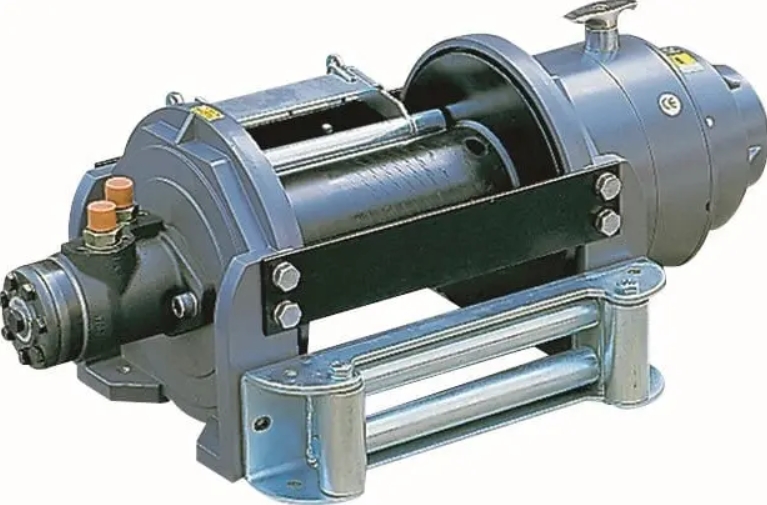

A hydraulic winch consists of several key components:
1. Hydraulic Pump: This is responsible for pressurizing the hydraulic fluid, converting mechanical energy into hydraulic energy.
2. Hydraulic Motor: Converts the hydraulic energy back into mechanical energy, driving the winch drum.
3. Winch Drum: The drum onto which the cable or rope is wound. It rotates to wind or unwind the cable.
4. Control Valves: These regulate the flow and pressure of hydraulic fluid to control the winch's speed and direction.
The working principle of a hydraulic winch involves the following steps:
1. Activation of the Hydraulic Pump: The pump is activated, pressurizing the hydraulic fluid.
2. Conversion of Hydraulic Energy: The pressurized fluid is directed to the hydraulic motor, which converts it into rotational motion.
3. Rotation of the Winch Drum: The rotational motion drives the winch drum, winding or unwinding the cable.
4. Control by Valves: The control valves manage the flow and pressure of hydraulic fluid to control the winch's operation.
Hydraulic winches offer several advantages over electric winches:
- Higher Pulling Power: Hydraulic winches can exert greater force, making them suitable for heavy-duty applications.
- Constant Torque: Hydraulic systems provide consistent torque output, even at low speeds.
- Heat Resistance: Hydraulic systems are less susceptible to overheating, ensuring reliable operation in demanding conditions.
- Adaptability: Hydraulic winches can be integrated into various hydraulic systems, offering versatility in application.
Hydraulic winches are used in a variety of applications:
1. Marine Industry: For anchoring, mooring, and cargo handling on ships.
2. Construction: For lifting heavy materials and equipment.
3. Off-Road Vehicles: For recovery operations in challenging terrains.
4. Forestry and Logging: Used in logging trucks and forestry machinery to skid logs, drag felled trees, and assist in loading and unloading operations.
5. Oil and Gas Industry: Employed on offshore oil platforms for tasks such as pipe laying, rigging, and equipment handling.
6. Mining and Quarrying: Utilized for hauling heavy loads, pulling equipment, and lifting materials.
7. Agriculture and Farming: Often used for pulling heavy machinery, operating irrigation systems, and moving large bales of hay.
Recent technological advancements have significantly improved the efficiency and safety of winches:
1. Automatic Brake Systems: These systems automatically stop the winch if certain thresholds are exceeded, enhancing safety during operations[5].
2. Load Sensing Technology: This technology prevents overloading by detecting the weight being pulled and adjusting the winch's pulling force accordingly[7].
3. Remote Monitoring: Allows for real-time monitoring of winch operations, enabling proactive maintenance and reducing downtime[5].
4. Synthetic Rope Technology: Offers lighter, more flexible alternatives to traditional steel cables, improving safety and efficiency[2].
5. Smart Technology Integration: Enables remote monitoring and predictive maintenance through IoT connectivity, enhancing operational efficiency and safety[2].
6. Energy Efficiency and Sustainability: Innovations focus on reducing energy consumption and environmental impact through features like variable frequency drives and regenerative braking systems[2].
Hydraulic circuits in winches are designed to optimize performance and efficiency:
1. Multi-Motor Systems: Some hydraulic winches use multiple motors connected in parallel, allowing for adjustable operation and efficient braking[1].
2. Stage Valves: These allow for selective operation of motor chambers, enabling flexible control over the winch's power output[1].
3. Pilot-Controlled Valves: These valves manage pressure and speed, ensuring safe and efficient operation by limiting maximum pressure and speed[1].
4. Cooling Systems: Essential for maintaining optimal operating temperatures, especially in high-duty cycles[4].
5. Digital Displacement Motors (DDMs): These motors offer improved efficiency by reducing leakage and friction losses, making them suitable for offshore applications[3].
Regular maintenance is crucial for extending the lifespan of hydraulic winches:
1. Hydraulic Fluid: Ensure the fluid is clean and at the recommended level. Use the manufacturer's recommended fluid and change it according to prescribed intervals.
2. Filter Replacement: Regularly replace hydraulic filters to prevent contaminants from circulating within the system.
3. Inspection: Regularly inspect the winch for signs of wear or damage. Pay special attention to the hydraulic system, drum, wire rope, brakes, clutches, and gears.
4. Lubrication: Ensure all moving parts are adequately lubricated using high-quality lubricants suitable for marine applications.
Common issues include low hydraulic pressure, clogged filters, or worn-out parts. Troubleshooting involves identifying and addressing these problems promptly.
Safety is paramount when operating hydraulic winches:
1. Operate Safely: Stand clear of the cable or rope and keep hands away from moving parts. Use controls carefully, following manufacturer instructions.
2. Avoid Overloading: Never exceed the rated capacity of the winch. Overloading can cause failure and lead to accidents.
3. Use Personal Protective Equipment (PPE): Wear gloves and safety glasses to protect against potential hazards.
4. Regular Inspections: Inspect the winch regularly for damage or wear, especially before each use.
Digital displacement motors (DDMs) have revolutionized offshore winch operations by significantly reducing energy losses associated with conventional hydraulic systems. These motors achieve higher efficiency by controlling the flow to each piston individually, minimizing leakage and friction[3]. A case study involving an offshore crane using DDMs could highlight how these motors enhance operational efficiency and reduce environmental impact.
The adoption of synthetic ropes in construction has transformed winch operations by offering lighter, more flexible alternatives to traditional steel cables. This innovation has improved safety by reducing the risk of recoil in case of rope failure and enhanced efficiency by allowing for easier handling and transportation[2]. A detailed analysis of how synthetic ropes have impacted construction projects could provide valuable insights into their benefits and challenges.
Hydraulic winches are powerful tools that rely on hydraulic circuits to generate the force needed for lifting or pulling heavy loads. Understanding their components and working principle is essential for optimizing their performance and efficiency. Regular maintenance and proper operation are key to extending their lifespan and ensuring reliable operation.
Hydraulic winches consist of a hydraulic pump, hydraulic motor, winch drum, and control valves. These components work together to convert hydraulic energy into mechanical force for lifting or pulling loads.
Hydraulic winches provide higher pulling power, constant torque, heat resistance, and adaptability, making them suitable for heavy-duty applications where electric winches may not suffice.
Hydraulic winches are used in the marine industry for anchoring and mooring, in construction for lifting heavy materials, in off-road vehicles for recovery operations, and in various other industries such as forestry, oil and gas, mining, and agriculture.
Regular maintenance includes checking and maintaining hydraulic fluid levels, replacing filters, inspecting for wear or damage, lubricating moving parts, and ensuring proper cooling system operation.
Control valves regulate the flow and pressure of hydraulic fluid to control the winch's speed and direction, allowing for precise and controlled movements.
