Mini excavators have transformed construction, landscaping, and numerous other sectors by offering substantial power in a compact form. Crucial to these machines is the hydraulic motor, a key component that converts hydraulic fluid pressure into the mechanical energy needed to drive the excavator's movements. A thorough understanding of the strength and capabilities of these hydraulic motors is paramount for optimizing the efficiency and productivity of mini excavators.
Hydraulic motors serve multiple critical functions within a mini excavator:
- Driving the Tracks: They are responsible for the movement of the tracks, enabling the excavator to traverse various terrains. This is achieved through the conversion of hydraulic pressure into rotational force, allowing the machine to move forward, backward, and turn.
- Rotating the Upper Structure: These motors facilitate the 360-degree rotation of the excavator's upper body, offering operational flexibility. This rotation is vital for tasks that require the excavator to work in different directions without needing to reposition the entire machine.
- Operating the Digging Arm and Bucket: They control the movement of the digging arm and bucket, delivering the necessary force for digging and material handling. This precise control enables operators to perform intricate tasks with accuracy.
Several factors determine the strength of a hydraulic motor in a mini excavator:
- Displacement: Measured in cubic centimeters per revolution (cm3/rev), displacement is the volume of fluid the motor can displace in one revolution. A higher displacement usually translates to a stronger motor capable of producing more torque. This is because a larger displacement means the motor can convert more hydraulic fluid volume into rotational force per revolution.
- Pressure Rating: Hydraulic motors have maximum pressure ratings, usually measured in bars or megapascals (MPa). The higher the pressure rating, the more force the motor can generate. Operating within the specified pressure rating is crucial for preventing damage and ensuring the motor's longevity.
- Torque Output: Torque is the rotational force produced by the motor, typically measured in Newton-meters (N·m). A higher torque output allows the motor to handle heavier loads and more challenging digging conditions. The torque output is directly proportional to the motor's displacement and the hydraulic pressure.
- Speed: The speed of a hydraulic motor is measured in revolutions per minute (RPM). While speed is important, torque is often the primary consideration in applications requiring high force. The motor's speed is influenced by the hydraulic flow rate.
- Hydraulic Flow: Measured in liters per minute (LPM), hydraulic flow indicates the volume of hydraulic fluid passing through the motor per minute. Sufficient flow is crucial for maintaining the motor's speed and torque output. If the flow is insufficient, the motor may operate slowly or stall under heavy loads.
Table of Hydraulic Motor Specifications
Specification | Unit | Value Range |
Displacement | cm3/rev | 80 - 500 |
Max. Speed | RPM | 142 - 988 |
Max. Torque | N·m | 190 - 990 |
Max. Output | kW | 9 - 23.5 |
Max. Pressure Drop | MPa | 12 - 22.5 |
Max. Flow | L/min | 65 - 90 |
These values are indicative and can vary based on the specific model and manufacturer.
Various types of hydraulic motors are utilized in mini excavators, each with distinct strengths and applications:
- Gear Motors: These are simple, cost-effective motors suitable for less demanding applications. They provide moderate torque and speed capabilities. Gear motors are often used in applications where precise control is not critical.
- Vane Motors: Vane motors offer higher efficiency and smoother operation compared to gear motors. They are often used for applications requiring more precise control and smoother movements.

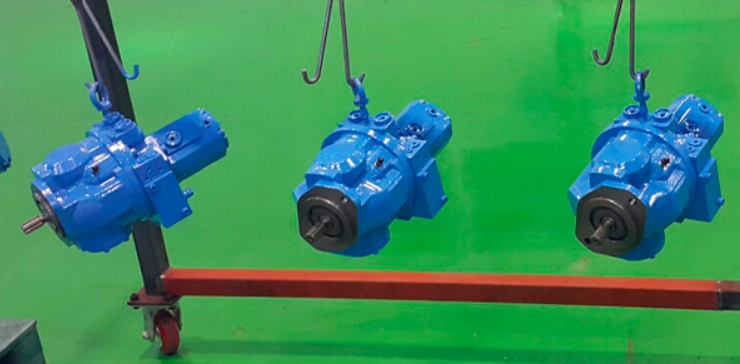

- Piston Motors: Piston motors are the most powerful and efficient type, capable of delivering high torque at various speeds. They are ideal for heavy-duty applications. Piston motors are more complex and expensive than gear or vane motors but offer superior performance in demanding conditions.
Assessing the strength of a mini excavator's hydraulic system involves evaluating several factors:
1. Check the Hydraulic Pressure: Use a hydraulic pressure gauge to measure the pressure in the system. Ensure it meets the manufacturer's specifications. Low pressure can indicate a problem with the hydraulic pump, motor, or other components.
2. Inspect the Hydraulic Motor: Look for signs of wear, leaks, or damage. A malfunctioning motor can significantly reduce the excavator's performance. Common signs of motor failure include excessive noise, overheating, and reduced torque output.
3. Evaluate the Hydraulic Fluid: Check the fluid level and condition. Contaminated or low fluid can impair the system's efficiency. Contaminants can cause wear and damage to the hydraulic components, while low fluid levels can lead to cavitation and reduced performance.
4. Assess the Excavator's Performance: Observe the excavator's digging force, lifting capacity, and speed. Any noticeable decline in performance could indicate a problem with the hydraulic system. Compare the current performance with the manufacturer's specifications to identify any discrepancies.
To further appreciate the strength and functionality of a mini excavator's hydraulic motor, it's important to understand the core components and their roles:
1. Housing: The housing protects the internal components of the motor from external elements and provides structural support.
2. Rotating Group: This assembly includes the components responsible for converting hydraulic energy into mechanical energy. In gear motors, it consists of gears; in vane motors, it includes vanes and a rotor; and in piston motors, it comprises pistons and a swashplate or bent axis.
3. Shaft: The shaft transmits the rotational force produced by the motor to the excavator's tracks, swing mechanism, or digging arm.
4. Seals: Seals prevent hydraulic fluid from leaking out of the motor and ensure that the system maintains optimal pressure.
5. Bearings: Bearings support the rotating components and reduce friction, allowing for smooth and efficient operation.
Modern mini excavators often incorporate advanced hydraulic system technologies to enhance performance, efficiency, and control:
- Load-Sensing Hydraulics: This technology adjusts the hydraulic flow and pressure based on the load demand, optimizing fuel efficiency and reducing wear on the hydraulic components.
- Proportional Control Valves: These valves allow for precise control of the hydraulic flow, enabling operators to perform intricate tasks with greater accuracy.
- Electronic Control Systems: Electronic control systems monitor and regulate the hydraulic system's performance, providing real-time feedback and diagnostics.
- Regenerative Hydraulics: This system captures and reuses energy during deceleration, improving fuel efficiency and reducing heat generation.
The HZC Power DKB880 mini excavator is equipped with a Koop diesel engine (12 hp) and a hydraulic system that operates at a working pressure of 160 bar. It delivers a digging force of 5.5 kN and can lift up to 150 kg. This model is well-suited for small to medium-sized construction and landscaping projects. The hydraulic system's design ensures efficient power delivery to the digging arm and tracks, enabling operators to perform tasks quickly and effectively.
The TMG Industrial mini excavator is powered by a 9.5 HP Kohler Command Pro CH395 engine and an Eaton hydraulic motor. It features a dual-pump confluence hydraulic system for precise control and a 360° rotating capacity, making it ideal for navigating tight spaces. The Eaton hydraulic motor is known for its reliability and performance, providing the necessary power to operate the excavator in demanding conditions.
Swing motors for mini excavators, such as the 250CC Swing Motor, are designed to provide efficient and reliable rotation of the excavator's upper structure. These motors often include features like a relief valve and can withstand temperatures from -30℃ to 90℃. The relief valve protects the motor from overpressure, ensuring its longevity and reliability.
The choice of hydraulic motor significantly impacts the overall performance of a mini excavator. Selecting the correct motor involves considering the specific tasks the excavator will perform, the operating environment, and the excavator's overall design.
- Matching Motor to Application: For heavy-duty applications, such as digging in hard soil or lifting heavy loads, a piston motor with high torque output is essential. For lighter tasks, such as landscaping or light construction, a gear or vane motor may be sufficient.
- Ensuring Compatibility: The motor's specifications, including displacement, pressure rating, and flow requirements, must be compatible with the excavator's hydraulic system. Incompatible motors can lead to reduced performance, damage to the hydraulic system, and premature motor failure.
- Optimizing Efficiency: Selecting a motor with high efficiency can reduce fuel consumption and lower operating costs. Efficient motors convert more hydraulic energy into mechanical energy, minimizing energy losses due to friction and heat.
To ensure the longevity and strength of hydraulic motors in mini excavators, follow these maintenance tips:
1. Regularly Inspect and Replace Hydraulic Filters: Clean hydraulic fluid is crucial for preventing wear and damage to the motor. Hydraulic filters remove contaminants from the fluid, protecting the motor's internal components.
2. Monitor Hydraulic Fluid Levels and Condition: Keep the fluid at the recommended level and replace it according to the manufacturer's schedule. Low fluid levels can lead to cavitation and reduced performance, while contaminated fluid can cause wear and damage.
3. Check for Leaks and Repair Them Promptly: Leaks can reduce hydraulic pressure and cause the motor to work harder, leading to premature failure. Leaks can also lead to environmental contamination and increased operating costs.
4. Avoid Overloading the Excavator: Exceeding the excavator's maximum load capacity can strain the hydraulic system and damage the motor. Overloading can lead to excessive stress on the motor's internal components, causing premature failure.
5. Properly Train Operators: Ensure operators are trained on the correct operation and maintenance procedures for the excavator. Properly trained operators are more likely to operate the excavator safely and efficiently, reducing the risk of damage to the hydraulic system.
6. Implement a Preventive Maintenance Program: Regular inspections, fluid analysis, and timely repairs can help prevent costly breakdowns and extend the life of the hydraulic motor. A well-designed preventive maintenance program can identify potential problems early, allowing for proactive maintenance and preventing major failures.
The field of hydraulic motor technology is constantly evolving, with ongoing research and development focused on improving performance, efficiency, and reliability. Some key trends include:
- Advanced Materials: The use of advanced materials, such as high-strength alloys and composites, is enabling the development of lighter and more durable hydraulic motors.
- Smart Hydraulics: Integration of sensors and electronic control systems is enabling the development of smart hydraulic motors that can monitor their own performance and adjust their operating parameters to optimize efficiency and prevent failures.
- Hybrid Systems: Hybrid systems that combine hydraulic motors with electric motors or other energy sources are being developed to improve fuel efficiency and reduce emissions.
The hydraulic motor is a vital component of any mini excavator, providing the power and control necessary for a wide range of tasks. By understanding the factors that determine the strength of these motors, as well as implementing proper maintenance practices, operators can maximize the performance and lifespan of their machines. Regular inspection, timely repairs, and adherence to manufacturer guidelines are essential for maintaining the hydraulic motor's strength and ensuring the excavator operates at its full potential.
The primary causes of hydraulic motor failure include contamination of hydraulic fluid, overloading the excavator beyond its capacity, operating the motor at excessively high temperatures, and lack of regular maintenance. Contaminants can cause wear and damage to the internal components of the motor, while overloading can lead to excessive stress and premature failure.
The frequency of hydraulic fluid replacement depends on the manufacturer's recommendations and the operating conditions of the excavator. Generally, it is advisable to replace the hydraulic fluid every 1,000 to 2,000 hours of operation, or at least once a year. Regular fluid analysis can help determine the optimal replacement interval based on the fluid's condition.
Upgrading the hydraulic motor is possible, but it requires careful consideration to ensure compatibility with the excavator's hydraulic system and overall design. It is essential to consult with a qualified technician or the excavator manufacturer to determine the appropriate motor specifications and any necessary modifications to the hydraulic system.
Signs of a failing hydraulic motor include reduced digging force, slower operating speeds, unusual noises (such as whining or grinding), overheating of the hydraulic system, and hydraulic fluid leaks. If any of these symptoms are observed, it is important to inspect the hydraulic motor and system promptly to prevent further damage and costly repairs.
Selecting the right hydraulic motor involves considering factors such as the excavator's operating weight, hydraulic system pressure and flow, and the types of tasks the excavator will be performing. It is crucial to match the motor's specifications to the excavator's requirements to ensure optimal performance and reliability. Consulting with a hydraulic motor supplier or the excavator manufacturer can help ensure the correct motor is selected.
