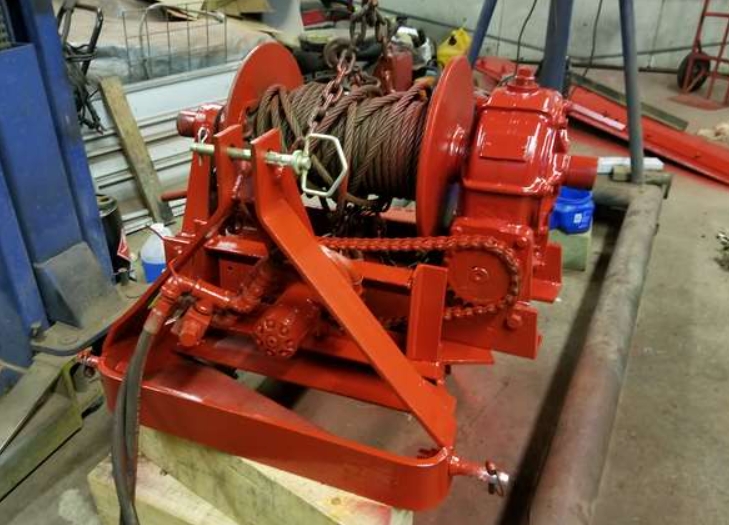

Building a hydraulic winch is a complex project that requires careful planning, precise execution, and a good understanding of hydraulic systems. Hydraulic winches are powerful tools used in various industries for lifting and pulling heavy loads. They are favored for their durability and ability to operate continuously as long as the engine is running. In this article, we will guide you through the process of building a hydraulic winch, highlighting key components, installation steps, and safety precautions.

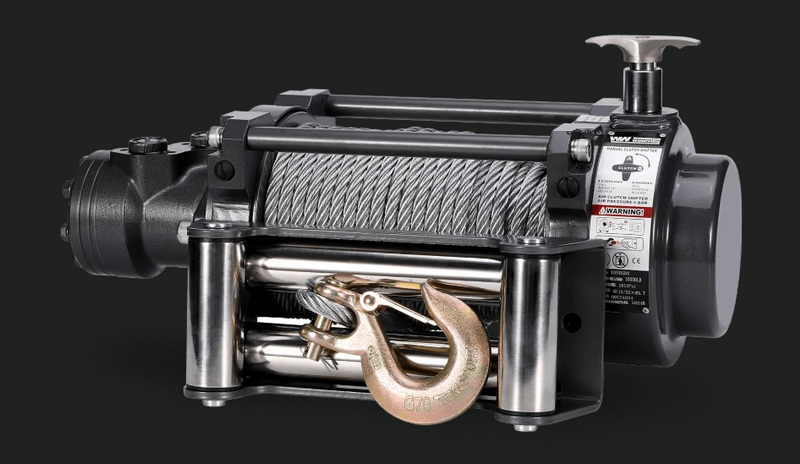

Hydraulic winches utilize fluid power to perform tasks, making them ideal for heavy-duty applications. They consist of a hydraulic pump, motor, and lines that transmit pressurized fluid to the winch motor, converting hydraulic pressure into mechanical power to turn the winch drum.
1. Hydraulic Pump: Typically driven by a motor, it generates hydraulic pressure.
2. Hydraulic Lines: Carry pressurized fluid to the winch motor.
3. Winch Motor: Converts hydraulic pressure into mechanical power.
4. Drum and Gearbox: The drum holds the cable, and the gearbox allows for speed adjustments.
5. Brake System: Essential for controlling the load.
The base is crucial as it must support the weight of the winch and the load. Ensure it is level and securely fastened to the ground.
Choose a motor with sufficient power for your application. For a DIY project, a hydromotor in the 8-10 HP range is recommended.
Use a power steering pump as it is readily available and suitable for most applications.
Ensure all connections are secure to prevent leaks.
Secure the drum to the gearbox and ensure proper alignment.
A closed multi-disc brake is common in hydraulic winches for reliable load control.
After installation, test the winch under controlled conditions to ensure it operates smoothly and safely.
Recent advancements in hydraulic winch technology have led to the development of compact and lightweight designs. These designs allow for easier installation and greater versatility in confined spaces, making them ideal for marine and offshore applications.
Modern hydraulic winches feature high-pressure pumps and advanced valves, enabling them to handle heavier loads while maintaining precise control and safety.
Advanced hydraulic control systems, combined with electronic controls and sensors, provide precise and synchronized winch operations. These systems offer features such as variable speed control, load sensing, and position feedback, ensuring accurate load handling and positioning.
- Wear Protective Gear: Always wear safety glasses and gloves when working with hydraulic systems.
- Avoid Overload: Ensure the winch is rated for the load you are lifting.
- Regular Maintenance: Check for leaks and wear on moving parts regularly.
Choose a location that is level, stable, and free from obstructions. Ensure the winch is not exposed to extreme weather conditions.
The base must be strong enough to support the winch and the load. It should be level and square, secured to the ground with bolts or concrete.
Properly connect the hydraulic lines to prevent leaks. Ensure they are securely attached to both the winch and the hydraulic power source.
Wrap the rope around the drum and secure it properly to prevent slipping. Ensure the rope is of suitable material and size for the intended load.
After installation, test the winch under controlled conditions to ensure smooth operation and safety. Check for any leaks or unusual noises during operation.
Regularly inspect hydraulic lines for signs of wear or damage. Check the brake system for proper function and adjust as necessary. Ensure the winch drum is clean and free of debris to prevent line tangles.
When designing a hydraulic winch, several factors must be considered to ensure optimal performance and safety.
The drum size is critical for efficient operation. A larger drum can handle more rope, but it also increases the overall size and weight of the winch. The drum should be designed to minimize line tangles and ensure even spooling. For applications where space is limited, a narrower drum might be used, but this requires a level-wind system to prevent line digs.
Custom-made flow control valves are often necessary for precise control over line tension and speed. Standard valves may not provide the desired level of control, requiring custom machining to achieve a half-turn valve for optimal performance.
A large hydraulic reservoir is essential to manage heat buildup and oil foaming. Smaller reservoirs can lead to inadequate de-gassing of the hydraulic fluid, affecting system performance.
To determine the power required for a hydraulic winch, you need to calculate the tension and speed of the line. The formula for power calculation is HP=GPM×PSI×0.000583, assuming an efficient pump. For less efficient systems, consider adding 15% to account for losses.
Using a two-stage pump allows for both high and low-pressure operations. This setup can provide a higher flow rate at low pressure and a lower flow rate at high pressure, making it versatile for different applications.
Hydraulic winches are used in various industries, including marine, construction, and firefighting. Their ability to handle heavy loads with precision makes them indispensable in these sectors.
In marine environments, hydraulic winches are used for tasks such as anchoring and towing. Their compact design and high load capacity make them ideal for offshore operations.
In construction and firefighting, hydraulic winches are used for lifting and moving heavy equipment or vehicles. Their reliability and power ensure safe and efficient operations.
As technology advances, hydraulic winches are becoming more efficient and safer. The integration of electronic controls and sensors allows for precise operation and real-time monitoring, reducing the risk of accidents and improving productivity.
The future of hydraulic winches involves integrating IoT technology to enable remote monitoring and control. This allows operators to track performance, receive alerts for maintenance needs, and optimize operations based on real-time data.
Modern hydraulic winches are designed with environmental considerations in mind. They use eco-friendly hydraulic fluids and are built to minimize waste and reduce energy consumption.
The use of advanced materials in hydraulic winches has significantly improved their performance and durability. For instance, using high-strength steel alloys for the drum and gearbox components enhances the winch's load capacity while reducing weight. Additionally, advanced coatings and treatments can protect these components from corrosion, extending the lifespan of the winch.
For those interested in building or operating hydraulic winches, it is crucial to undergo proper training and certification. This ensures that operators understand safety protocols, maintenance procedures, and operational best practices. Many industries require certification for winch operators to ensure compliance with safety standards.
Hydraulic winches have a significant environmental impact due to the use of hydraulic fluids. However, modern designs focus on minimizing fluid leakage and using eco-friendly fluids. This shift towards sustainability is crucial for industries aiming to reduce their environmental footprint.
The global market for hydraulic winches is growing due to increasing demand in construction, marine, and offshore industries. Technological advancements and the need for efficient heavy-duty lifting solutions drive this growth. Companies are investing in research and development to create more efficient and environmentally friendly hydraulic winches.
Building a hydraulic winch requires careful planning and execution. It is a rewarding project for those who enjoy DIY engineering and need a powerful tool for heavy-duty tasks. Always follow safety guidelines and ensure all components are properly installed and tested.
Hydraulic winches are more durable and can operate continuously as long as the engine is running, making them ideal for heavy-duty applications.
You can increase the pulling power by using a snatch block, which doubles the capacity but halves the speed.
Always wear protective gear, ensure proper installation to avoid leaks, and test the winch under controlled conditions.
The key components include a hydraulic pump, motor, lines, drum, gearbox, and brake system.
Choose a motor with sufficient horsepower for your application. For most DIY projects, an 8-10 HP motor is suitable.
