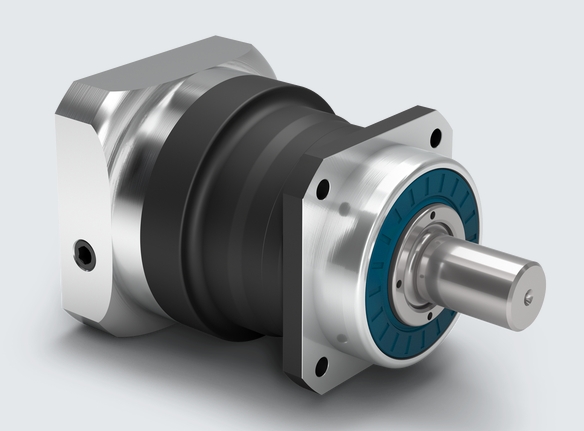

Planetary gearboxes are widely used in various applications due to their compact design and ability to provide high gear ratios. Calculating the gear ratio of a multi-stage planetary gearbox involves understanding the basic principles of planetary gears and how they interact in a multi-stage setup. This article will guide you through the process of calculating the gear ratio for a three-stage planetary gearbox, including explanations, formulas, and examples.

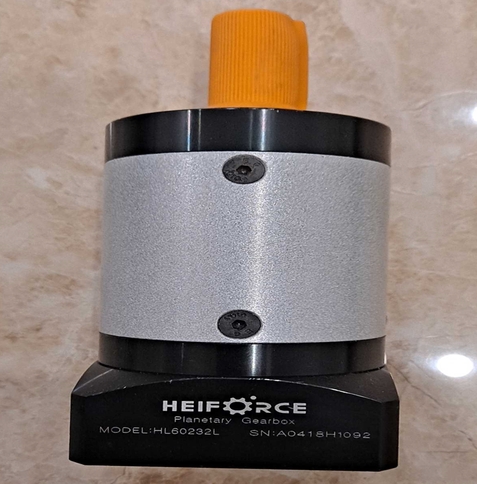

Planetary gearboxes consist of three main components: the sun gear, the planet gears, and the ring gear. The planet gears orbit around the sun gear and are attached to a carrier. The ring gear is an internal gear that surrounds the sun gear and the planet gears. The gear ratio is determined by which component is fixed, which is the input, and which is the output.
- Sun Gear: The central gear around which the planet gears rotate.
- Planet Gears: These gears rotate around the sun gear and are attached to the carrier.
- Ring Gear: An internal gear that surrounds the sun gear and the planet gears.
- Carrier: Holds the planet gears and rotates as they orbit the sun gear.
To calculate the gear ratio in a planetary gearbox, you need to know the number of teeth on the sun gear (S) and the ring gear (R). The formula for the gear ratio depends on which component is fixed and which is the input or output.
The Willis equation is a fundamental formula used to describe the motion of planetary gears. It relates the rotational speeds of the sun gear, planet gear, and carrier:
(R+S)×ωp=R×ωr+S×ωs
Where:
- ωp denotes the rotational speed of the planet gear,
- ωr is the rotational speed of the ring gear,
- ωs is the rotational speed of the sun gear.
This equation helps in determining the relationship between the speeds of different components based on the number of teeth and the constraints applied (e.g., which component is fixed).
Suppose we have a planetary gearbox with a sun gear having 30 teeth and a ring gear having 90 teeth. If the carrier is fixed and the sun gear is the input, the ring gear will rotate in the opposite direction. The gear ratio can be calculated as follows:
Gear Ratio=Number of Teeth on Ring/Number of Teeth on Sun=90/30=3:1
This means the ring gear will turn once for every three turns of the sun gear.

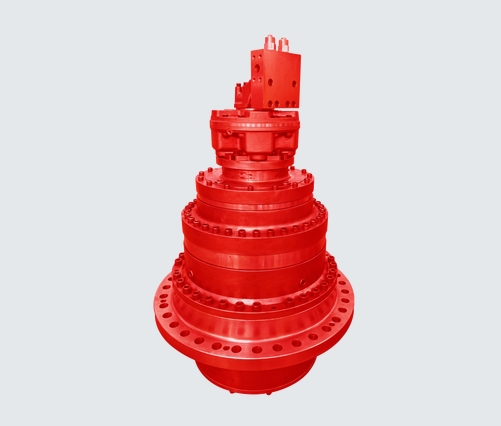

In a multi-stage planetary gearbox, the gear ratios of each stage are multiplied together to achieve the total gear ratio. This allows for much higher ratios than single-stage gearboxes.
- Higher Gear Ratios: By combining multiple stages, very high gear ratios can be achieved without the need for large gears.
- Compact Design: Despite high ratios, the design remains compact and coaxial.
- Flexibility: Different configurations can be used to achieve various gear ratios.
- Higher Torque Capacity: Each stage can multiply the torque of the previous stage, making them suitable for high-torque applications.
- Complex Design: Multi-stage gearboxes are more complex and harder to design.
- Lower Efficiency: Each additional stage reduces the overall efficiency due to increased friction and energy loss.
- Higher Cost and Maintenance: They require more components and maintenance compared to single-stage gearboxes.
To calculate the gear ratio of a three-stage planetary gearbox, follow these steps:
1. Determine the Gear Ratio for Each Stage: Use the Willis equation or similar formulas to calculate the gear ratio for each stage based on the number of teeth on the sun and ring gears and the constraints applied.
2. Multiply the Ratios: The total gear ratio is the product of the ratios of each stage.
Suppose we have a three-stage planetary gearbox with the following configurations:
- Stage 1: Sun gear with 20 teeth, ring gear with 60 teeth (fixed carrier).
- Stage 2: Sun gear with 30 teeth, ring gear with 90 teeth (fixed carrier).
- Stage 3: Sun gear with 15 teeth, ring gear with 45 teeth (fixed carrier).
The gear ratios for each stage are calculated as follows:
- Stage 1: 60/20 = 3:1
- Stage 2: 90/30 = 3:1
- Stage 3: 45/15 = 3:1
The total gear ratio is:
3×3×3=27:1
This means the output will turn once for every 27 turns of the input.
When designing a multi-stage planetary gearbox, several factors need to be considered:
- Space Constraints: Despite their compact nature, multi-stage gearboxes can be larger than single-stage ones due to the additional stages.
- Efficiency: Each stage adds to the overall efficiency loss, so minimizing friction and optimizing gear design is crucial.
- Torque Requirements: The ability to multiply torque makes multi-stage gearboxes suitable for applications requiring high torque output.
Multi-stage planetary gearboxes are used in a variety of applications where high gear ratios and torque are required, such as:
- Wind Turbines: To convert the slow rotational speed of the turbine blades into a higher speed for the generator.
- Robotics: For precise control and high torque in robotic arms.
- Aerospace: In aircraft and spacecraft systems where compactness and high gear ratios are essential.
For more complex scenarios, the Willis equation can be used to calculate gear ratios based on angular velocities and diameters of the gears. This is particularly useful when dealing with different input and output conditions.
Suppose we have a planetary gearbox where the carrier is rotating and the sun gear is fixed. The ring gear has 60 teeth, and the sun gear has 20 teeth. If the planetary gears have a combined effect of 80 teeth (sum of sun and ring gear teeth), the gear ratio can be calculated as follows:
- Carrier Input: The ratio is 60/80, which translates to a 3:4 ratio.
This example illustrates how different input conditions can affect the gear ratio.
To optimize the efficiency of a multi-stage planetary gearbox, designers focus on minimizing friction losses and ensuring smooth power transmission across each stage. Advanced materials and lubrication techniques are used to reduce wear and tear on moving parts.
- Friction Losses: Each stage introduces additional friction, reducing overall efficiency.
- Optimized Gear Design: Careful design of gear teeth and surfaces can minimize friction and maximize efficiency.
In recent years, optimization techniques such as multi-objective genetic algorithms have been applied to planetary gearbox design. These methods aim to minimize weight and power loss while maintaining performance. Parameters such as the number of teeth on sun, planet, and ring gears, as well as face width and input shaft diameter, are optimized to achieve better efficiency and reliability.
Recent advancements in material science and manufacturing technologies have led to significant improvements in planetary gearbox designs. High-strength alloys and composite materials enhance durability and reduce weight, while optimized gear geometries minimize noise and vibration. Additionally, the integration of smart technologies allows for real-time monitoring and predictive maintenance, further enhancing operational efficiency.
Planetary gearboxes are versatile and are used across various industries:
- Sugar Industry: For heavy-duty machinery requiring high torque and efficiency.
- Mining and Drilling: Where reliability and power transmission are critical.
- Renewable Energy: In wind turbines for converting low-speed rotational energy into high-speed energy.
- Robotics: For precise control and high torque in robotic arms, especially in collaborative robots.
As technology advances, planetary gearboxes are expected to become even more efficient and versatile. Innovations like 3D printing and artificial intelligence will play a significant role in enhancing their design and performance. The integration of IoT and smart sensors will enable real-time monitoring and predictive maintenance, reducing downtime and improving overall efficiency.
- 3D Printing: Allows for complex geometries and rapid prototyping, enabling faster development of new gearbox designs.
- Artificial Intelligence: AI can optimize gearbox performance by analyzing operational data and predicting potential issues before they occur.
- Smart Technologies: Integration with IoT enables remote monitoring and predictive maintenance, enhancing operational efficiency.
Calculating the gear ratio of a multi-stage planetary gearbox involves understanding the basic principles of planetary gears and applying them to each stage. By multiplying the gear ratios of each stage, very high ratios can be achieved in a compact design. However, multi-stage gearboxes are more complex and less efficient than single-stage ones.
The main components of a planetary gearbox are the sun gear, the planet gears, and the ring gear. The planet gears are attached to a carrier that rotates as they orbit the sun gear.
The gear ratio is calculated based on the number of teeth on the sun and ring gears and which component is fixed. The Willis equation is often used to relate the speeds of different components.
Multi-stage planetary gearboxes offer higher gear ratios, compact designs, and flexibility in achieving various ratios. They are also coaxial, meaning the input and output shafts can be aligned.
The main disadvantages are complex design, lower efficiency due to increased stages, and higher friction losses.
The total gear ratio is calculated by multiplying the gear ratios of each stage together.
