Converting a PTO (Power Take-Off) winch to a hydraulic system can offer several advantages, including better control and the ability to operate the winch without the need for a direct mechanical connection to the vehicle's engine. This conversion involves replacing the mechanical drive with a hydraulic motor and integrating it into the vehicle's hydraulic system. Below is a comprehensive guide on how to achieve this conversion.

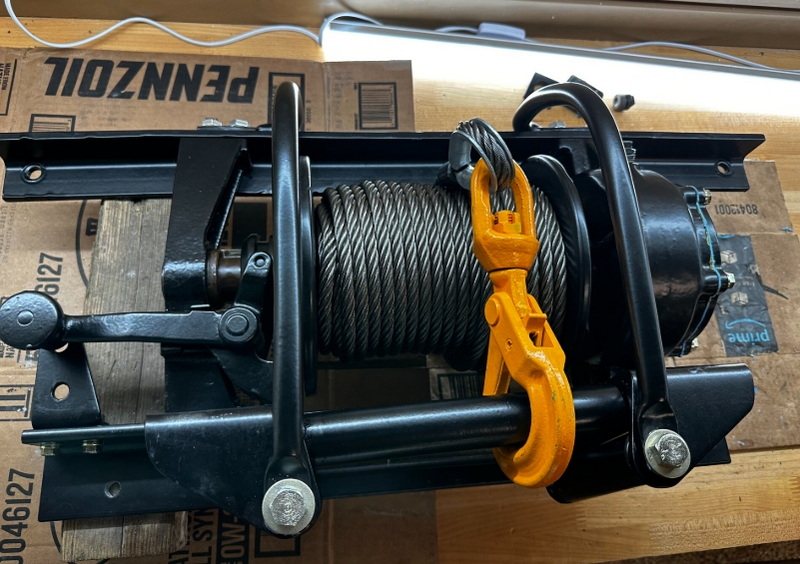

PTO winches are commonly used on vehicles like tractors and trucks for tasks such as towing and lifting heavy loads. They are powered by the vehicle's engine through a PTO shaft, which transmits power from the engine to the winch. However, this setup requires the vehicle's engine to be running and the PTO engaged, which can be inconvenient in certain situations.
Converting a PTO winch to hydraulic offers several benefits:
- Improved Control: Hydraulic systems provide smoother and more precise control over the winch's operation.
- Flexibility: The winch can be operated independently of the vehicle's engine, allowing for more versatile use.
- Reduced Wear: Hydraulic systems can reduce mechanical wear on the winch and associated components.
Before starting the conversion, ensure that your vehicle has a suitable hydraulic system capable of powering the winch. This includes evaluating the hydraulic pump's capacity, pressure, and flow rate. For example, a typical hydraulic system might operate at 19 GPM (gallons per minute) and 3450 psi (pounds per square inch).
Assessment Checklist:
- Hydraulic System Specifications: Ensure the system can provide sufficient pressure and flow for the winch.
- Space and Mounting: Determine if there is enough space to mount a hydraulic motor and any necessary components.
- Power Requirements: Calculate the power needed to operate the winch hydraulically.
Selecting the right hydraulic motor is crucial. The motor should match the power output of the original PTO setup. For instance, if the PTO winch is driven by a 20 HP engine, you'll need a hydraulic motor that can handle similar power levels. Consider factors like motor displacement, pressure rating, and flow requirements.
Hydraulic Motor Selection Tips:
- Power Equivalence: Ensure the hydraulic motor matches the power output of the PTO setup.
- Compatibility: Verify that the motor is compatible with your vehicle's hydraulic system.
You will need to fabricate or purchase an adapter plate to mount the hydraulic motor to the winch. This plate must securely attach the motor and ensure proper alignment with the winch's input shaft.
Mounting Considerations:
- Stability: Ensure the mounting system is stable and can withstand operational stresses.
- Alignment: Proper alignment is crucial for efficient operation and to prevent damage.
Install hydraulic lines to connect the motor to the vehicle's hydraulic system. You may also need to add control valves to manage the flow of hydraulic fluid to the motor.
Hydraulic Line Installation:
- Routing: Route lines to avoid interference with other components.
- Valve Selection: Choose valves that can handle the system's pressure and flow requirements.
After completing the installation, thoroughly test the system to ensure it operates smoothly and efficiently. Check for leaks, proper motor function, and winch performance.
Testing Checklist:
- Leak Inspection: Inspect all connections for leaks.
- Performance Test: Operate the winch under load to verify performance.
While converting a PTO winch to hydraulic offers many benefits, there are challenges to consider:
- Cost: The conversion can be expensive, especially if purchasing new components.
- Complexity: Hydraulic systems require careful setup and maintenance.
- Space Constraints: Finding space for the hydraulic motor and associated components can be challenging.
A user on TractorByNet is converting a Wallenstein log winch from PTO to hydraulic. They are using a CTL with a hydraulic system that provides 19 GPM at 3450 psi. The conversion involves selecting a suitable hydraulic motor and ensuring compatibility with the existing hydraulic system.
A video on YouTube shows the installation of a hydraulic pump driven by a PTO for a winch. The setup involves attaching the pump to the vehicle's PTO and connecting it to a control lever inside the cabin. This allows for precise control over the winch's operation while driving.

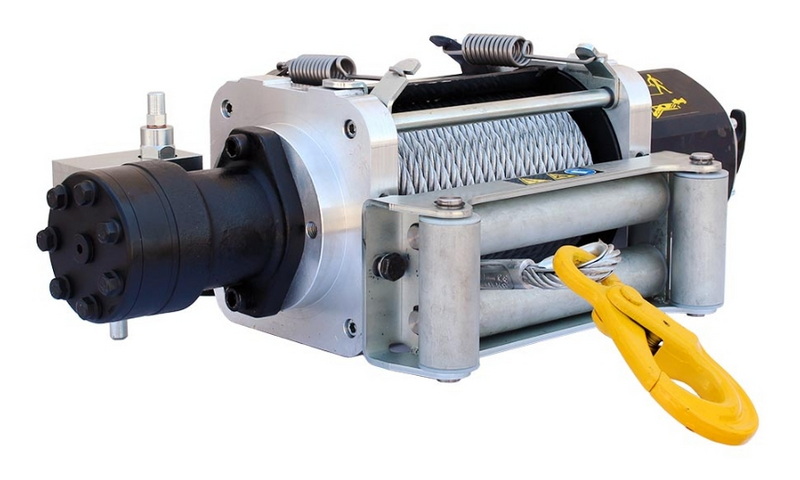

Hydraulic winches operate by converting hydraulic fluid flow and pressure into pulling force. The system includes a hydraulic pump, control valves, and a motor that drives the winch drum. The fluid flow is controlled by valves, allowing the operator to manage the direction and speed of the winch.
When designing a hydraulic system for a winch, it's crucial to consider the entire system's specifications. This includes the pump's capacity, the motor's power output, and the control valves' ability to manage fluid flow. Ensuring that all components are compatible and properly sized is essential for efficient operation.
Hydraulic systems require regular maintenance to ensure optimal performance. This includes checking fluid levels, inspecting for leaks, and replacing worn components. Troubleshooting common issues like low pressure or overheating can help prevent system failures.
While the initial cost of converting a PTO winch to hydraulic can be high, it's important to consider the long-term benefits. These include reduced wear on mechanical components, improved control, and increased versatility in operation.
In certain environments, such as water obstacles, hydraulic winches offer advantages over electric or PTO systems. However, they require the engine to be running, which can be a disadvantage in situations where the vehicle is stalled or submerged.
As technology advances, we can expect to see more efficient and cost-effective solutions for hydraulic winch conversions. Innovations in hydraulic motor design and control systems may further enhance the benefits of hydraulic winches.
Hydraulic winches are particularly useful in off-road recovery situations where precise control is needed. They can operate independently of the vehicle's engine, making them ideal for scenarios where the engine might stall.
In construction or forestry, hydraulic winches provide the power and control needed for heavy lifting tasks. Their ability to operate smoothly under load makes them suitable for delicate operations.
While the initial cost of converting to a hydraulic system can be high, long-term benefits such as reduced wear and improved control can offset these costs.
Regularly check hydraulic fluid levels and inspect for leaks to prevent system failures.
Identify common issues like low pressure or overheating early to prevent major repairs.
Provide links to guides or tutorials on designing hydraulic systems for winches. These resources can help readers understand the technical aspects of hydraulic system design.
Mention conversion kits available for specific winch models, such as the PIERCE electric to hydraulic conversion kit. These kits can simplify the conversion process for some users.
Converting a PTO winch to a hydraulic system requires meticulous planning and execution. By understanding the benefits, challenges, and technical requirements, individuals can successfully enhance their winching capabilities.
Hydraulic winches operate by using hydraulic fluid to transmit power from a pump to a motor, which then drives the winch drum. The system's efficiency depends on the pump's capacity, the motor's power output, and the control valves' ability to manage fluid flow.
Choosing the right hydraulic fluid is crucial for optimal performance. The fluid must be compatible with the system's components and operate effectively within the expected temperature range.
Understanding the system's pressure and flow requirements is essential for selecting the right components. For example, a system operating at high pressure may require specialized valves and lines to handle the stress.
Control valves play a critical role in managing the direction and speed of the winch. They must be capable of handling the system's pressure and flow rates while providing precise control over the winch's operation.
Leaks can significantly reduce system efficiency and lead to premature wear. Use leak detection kits or visual inspections to identify leaks early.
Low pressure can result from a variety of issues, including clogged filters or malfunctioning pumps. Use pressure gauges to diagnose the problem and address it accordingly.
Overheating can damage hydraulic components. Ensure adequate cooling systems are in place, and monitor fluid temperature during operation.
As technology advances, we can expect to see more efficient and environmentally friendly hydraulic winch systems. Innovations in materials and design may lead to lighter, more powerful winches that are easier to maintain.
Some future systems may integrate electric motors with hydraulic components, offering improved efficiency and reduced environmental impact.
Advanced control systems using sensors and AI can optimize winch performance, predict maintenance needs, and enhance safety.
Converting a PTO winch to a hydraulic system requires careful planning, precise execution, and a good understanding of hydraulic principles. While it presents several advantages, it also involves significant costs and complexity. However, for those who need more control and flexibility in their winching operations, this conversion can be highly rewarding.
The primary benefits include improved control over the winch's operation and the ability to use the winch independently of the vehicle's engine.
To determine the appropriate hydraulic motor size, you need to match the power output of the original PTO setup. Consider factors like motor displacement, pressure rating, and flow requirements.
While some systems use engine oil, it's generally recommended to use hydraulic fluid for hydraulic systems. Engine oil may not provide the necessary lubrication and protection for hydraulic components.
Common challenges include the high cost of components, space constraints for mounting the hydraulic motor, and ensuring compatibility with the vehicle's hydraulic system.
Yes, ensure all hydraulic lines are properly secured, and the system is tested for leaks before operation. Always follow safety guidelines when working with hydraulic systems.
