Hydraulic winches dominate heavy-load handling across industries due to their unmatched power density and reliability. Unlike electric winches limited by motor heat dissipation, hydraulic systems leverage pressurized fluid (typically 2,000-6,000 PSI) to deliver continuous torque output. This makes them indispensable for offshore rigging, mining operations, and rescue vehicles where failure isn't an option.
The HPU acts as the system's "heart," comprising:
- Axial piston pump: Delivers 40-200 L/min flow at 95% volumetric efficiency
- Accumulator: Maintains pressure during pump switching (N₂-charged bladder type)
- Filtration system: Dual 10μ & 3μ filters with contamination sensors
Critical torque calculations:
T = (ΔP × V)/20π
Where:
T = Output torque (Nm)
ΔP = Pressure differential (bar)
V = Motor displacement (cm³/rev)

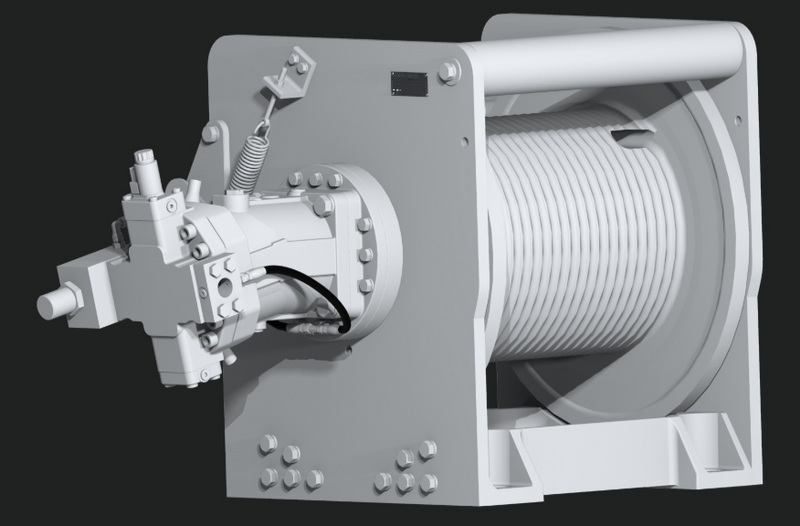

Common motor configurations:
| Type | Construction | Breaking Strength | Fatigue Life |
|---|---|---|---|
| 6x36 WS IWRC | 6 strands | 200 kN/mm² | 50,000 cycles |
| 8x19 Seale | 8 strands | 220 kN/mm² | 35,000 cycles |
| Dyneema® SK90 | Synthetic | 285 kN/mm² | 100,000+ cycles |
Design parameters follow DIN 15020 standards:
- Minimum drum diameter: 18 × cable diameter (wire rope)
- Safety factor: 5:1 for general use, 7:1 for personnel lifting
- Layer efficiency: 85% for first layer, decreasing 5% per subsequent layer

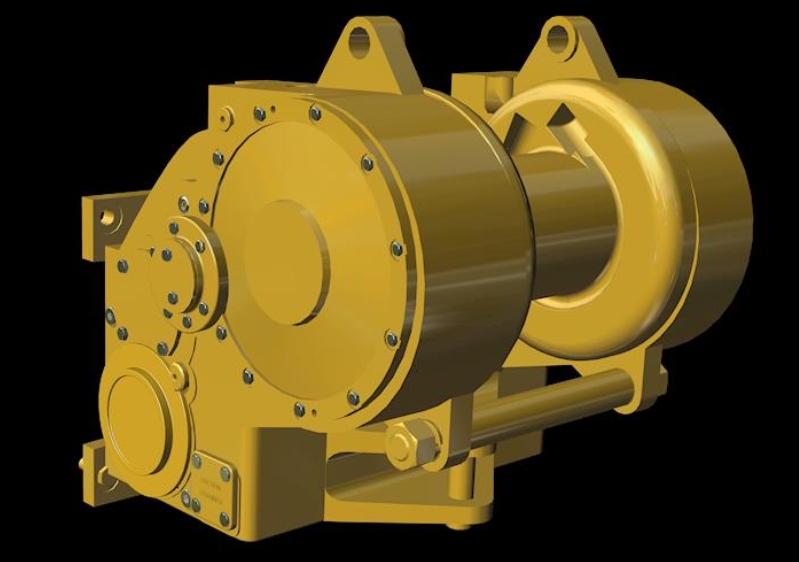

Modern design workflows incorporate:
1. Finite Element Analysis (FEA)
- Stress mapping on drum flanges
- Modal analysis for vibration resistance
2. Computational Fluid Dynamics (CFD)
- Hydraulic oil flow optimization
- Thermal management modeling
Intelligent control systems feature:
- CAN Bus Integration: J1939 protocol for vehicle-mounted systems
- PID Controllers: Maintain line speed within ±2% of setpoint
- Load Moment Indicators (LMI): Strain gauge-based overload protection
Essential safety evaluations include:
- FMEA (Failure Modes & Effects Analysis)
- FAT (Factory Acceptance Testing)
- Proof Load Testing: 125% SWL for 10 minutes
Compliance requirements:
- DNVGL-ST-0378 standard
- 100% corrosion resistance (salt spray test 2000hrs)
- Active heave compensation (±5m wave motion)
Specialized features:
- Radio remote control (2.4 GHz FHSS)
- 270° rotating fairlead
- Chain saw-resistant guards (AR500 steel)
Extreme environment adaptations:
- -55°C to +85°C operation
- Kevlar-reinforced hoses
- Explosion-proof solenoids
Components:
1. Load-Holding Valve: Prevents uncontrolled descent
2. Crossport Reliefs: Protect against shock loads
3. Flow Combiner: Enables high-speed retract
| Parameter | Mineral Oil | HFD-R | Bio-Based |
|---|---|---|---|
| Fire Resistance | Poor | Excellent | Good |
| Biodegradability | 20% | 5% | 95% |
| Viscosity Index | 95 | 130 | 150 |
| Oxidation Stability | 1,500 hrs | 3,000 hrs | 800 hrs |
- Drum concentricity: 0.5mm
- Oil Condition Monitoring: Water content 85°C
1. Replace all O-rings (FKM material)
2. Rebuild pump/motor to OEM specs
3. Flush system with flushing oil (ISO VG 32)
4. Re-calibrate pressure sensors (±1% accuracy)
- Standardize hydraulic ports (SAE J518)
- Modular sub-assemblies for easier repair
- Coatings selection based on actual environment
Typical 10-year ownership costs:
- Initial purchase: 35%
- Energy consumption: 40%
- Maintenance: 20%
- Disposal: 5%
- Real-time physics-based simulation
- Predictive remaining useful life (RUL) calculations
- Topology-optimized brackets (30% weight reduction)
- On-demand spare parts production
- Self-healing hydraulic seals
- Magnetorheological brake fluids
Designing hydraulic winches requires multidisciplinary expertise in mechanical engineering, fluid dynamics, and control systems. By adopting modern simulation tools, advanced materials, and IoT-enabled monitoring, engineers can achieve 99.5% operational availability with mean time between failures (MTBF) exceeding 20,000 hours. Always validate designs through prototype testing and iterative refinement.
V = (Q × 1000)/(60 × A)
Where:
V = Line speed (m/min)
Q = Flow rate (L/min)
A = Drum cross-section area (cm²)
- 1,500 cycles @ 80% SWL (ISO 4309)
- 800 cycles @ 100% SWL
- Replace if 10% broken wires in any strand
- Pressure rating: 1.25× max system pressure
- Temperature rating: Exceed fluid temp by 20°C
- Abrasion resistance: 500+ cycles on SAE J343 test
- 40% reduction in downtime
- 25% longer component life
- 60% fewer catastrophic failures
- Double lip seals with tertiary wipers
- Conformal coating on PCBs
- Pressurized junction boxes
