Hydraulic motors are crucial components in various industrial applications, providing the necessary rotational power to drive machinery. Understanding how to find the revolutions per minute (RPM) of a hydraulic motor is essential for optimizing performance and ensuring efficient operation. This article will explore the methods and formulas used to calculate hydraulic motor RPM, factors influencing RPM, practical examples, and additional insights into hydraulic systems.
RPM, or revolutions per minute, measures how many times a motor's shaft completes a full rotation in one minute. In hydraulic systems, RPM is influenced by factors such as flow rate, motor displacement, and system pressure. Accurately measuring and calculating RPM is vital for maintaining equipment efficiency and performance.
The volume of hydraulic fluid delivered to the motor per minute directly impacts its speed. Higher flow rates result in faster rotations.
This refers to the volume of hydraulic fluid required for one complete revolution of the motor, typically measured in cubic inches per revolution (cu in/rev). A larger displacement means that more fluid is needed to achieve one rotation, which can affect speed.
The pressure within the hydraulic system can affect the efficiency and speed of the motor. Higher pressure can lead to increased torque but may also cause inefficiencies if not managed properly.
Losses due to friction, leakage, and other inefficiencies can reduce actual RPM. Understanding the efficiency rating of a hydraulic motor helps predict its performance under various conditions.
External loads applied to the motor can also affect its speed. Increased load may slow down the motor unless compensated by higher flow rates or pressures.
To calculate the RPM of a hydraulic motor, you can use the following formula:
RPM=231×Flow Rate GPM/Motor Displacement cu in rev
This equation allows you to determine the theoretical speed of the motor based on flow rate and displacement.
Suppose you have a hydraulic motor with:
- Flow Rate = 10 GPM
- Motor Displacement = 1.5 cu in/rev
Using the formula:
RPM=(231×10)/1.5=1540
Thus, under these conditions, the motor will rotate at 1,540 RPM.
If we increase the flow rate to 15 GPM while keeping the same displacement:
RPM=(231×15)/1.5=2310
This increase results in a higher speed of 2,310 RPM.
If the efficiency of the system is only 85%, you can adjust your calculated RPM:
Actual RPM=Theoretical RPM×Efficiency
For our previous example:
Actual RPM=2310×0.85=1964
This adjustment provides a more accurate representation of how the motor will perform under real-world conditions.
There are several tools and methods available for measuring the RPM of hydraulic motors:

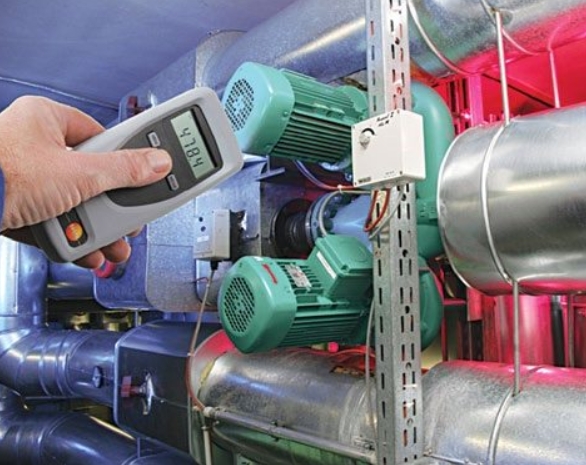

1. Tachometers: These devices measure shaft speed directly by detecting rotational movement. They can be mechanical or digital and provide real-time data on RPM.
2. Multimeters with Frequency Mode: These can measure electrical frequency generated by sensors attached to the motor. By converting frequency to RPM, you can monitor performance effectively.
3. Shaft Encoders: High-resolution devices that provide precise rotational data by counting pulses generated as the shaft rotates. They are particularly useful in applications requiring high accuracy.
4. Proximity Sensors: These detect shaft rotation by counting pulses from a target object attached to the shaft (like a gear or magnet). They are often used in conjunction with controllers for automation purposes.
5. Optical Sensors: These sensors use light beams to detect rotation and can provide very high precision measurements over time.
In practical applications, knowing how to measure and calculate RPM is essential for ensuring that hydraulic motors operate efficiently within their designed parameters. This knowledge helps in troubleshooting performance issues and optimizing system design for specific tasks.
Hydraulic motors are widely used across various industries, including:
- Construction: In excavators and cranes where high torque is essential.
- Agriculture: In tractors and harvesters that require reliable power.
- Manufacturing: In conveyor systems and robotic arms where precision is key.
- Marine: In winches and thrusters where robust performance is necessary.
Each application demands specific considerations regarding flow rates, pressures, and load conditions that directly impact RPM calculations.
Understanding how to find and calculate RPM also aids in troubleshooting common issues that may arise with hydraulic motors:
1. Low Speed: If a hydraulic motor runs slower than expected, check for low flow rates or leaks in hoses or fittings that may reduce pressure.
2. Overheating: Excessive heat may indicate inefficient operation due to high loads or inadequate cooling systems; ensure proper fluid levels and check for blockages in cooling lines.
3. Vibration: Excessive vibration may signal misalignment or wear in bearings; regular maintenance checks can help identify these issues early.
4. Noise: Unusual noises may indicate cavitation or air trapped within the system; bleeding air from lines can often resolve this issue.
5. Inconsistent Performance: Fluctuations in speed may point to variable flow rates; consider inspecting pumps or valves for proper operation.
Understanding how to find and calculate the RPM of hydraulic motors is vital for anyone working with hydraulic systems. By considering key factors such as flow rate, displacement, efficiency, and load conditions, operators can ensure optimal performance and longevity of their equipment. Regular monitoring using appropriate measurement tools helps maintain efficiency while troubleshooting potential issues before they escalate into significant problems.
Knowing a hydraulic motor's RPM helps optimize performance and ensures that machinery operates within safe limits.
Higher flow rates increase the volume of fluid delivered to the motor, resulting in faster rotations.
Yes, you can estimate RPM manually by counting revolutions over a set time period using a stopwatch; however, this method lacks precision compared to electronic measurement tools.
Efficiency accounts for losses due to friction and leakage; it adjusts theoretical calculations to reflect real-world performance accurately.
Yes, common sensors include tachometers, multimeters with frequency measurement capabilities, shaft encoders, proximity sensors, and optical sensors—each offering varying levels of accuracy based on application needs.
