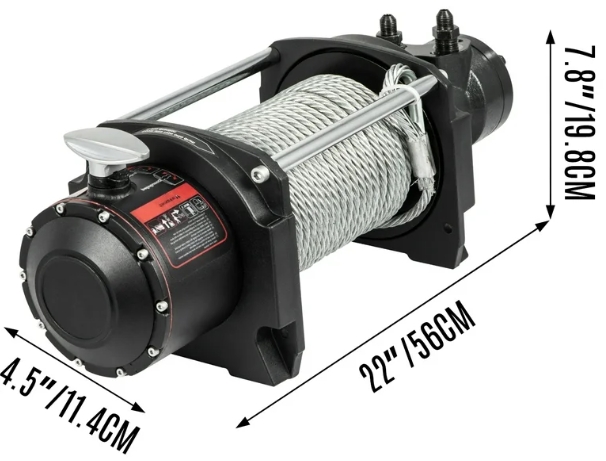

Installing a hydraulic winch is a complex process that requires careful planning, precise execution, and adherence to safety protocols. Hydraulic winches are powerful tools used in marine vessels, heavy-duty vehicles, construction equipment, and off-road applications. They offer robust, reliable solutions for towing, lifting, and anchoring heavy loads. This guide provides a comprehensive walkthrough of the installation process, including advanced tips, safety measures, and maintenance practices.
| Feature | Hydraulic Winch | Electric Winch |
|---|---|---|
| Power Source | Hydraulic system (3,000 PSI) | 12V/24V battery |
| Continuous Runtime | Unlimited (with engine on) | 5-10 minutes (thermal limits) |
| Peak Load Capacity | 15,000-50,000 lbs | 8,000-20,000 lbs |
| Maintenance Costs | $200-500/year | $100-300/year |
- Marine: ISO 9001-certified corrosion-resistant components
- Mining: ATEX-rated explosion-proof motors
- Forestry: Self-cleaning drum mechanisms
Use this formula to calculate minimum mounting plate thickness:
Where:
- t = Thickness (inches)
- W = Maximum load (lbs)
- L = Bolt spacing (inches)
- σ = Material yield strength (psi)
- b = Plate width (inches)
Example: For a 20,000 lb winch on A36 steel (σ=36,000 psi):
- Flow Rate: 4-8 GPM per 10,000 lbs capacity
- Reservoir Size: 3× pump flow rate (e.g., 24 gal for 8 GPM pump)
Hose Diameter:
For 8 GPM: 0.64 × 2.83 = 1.81" → Use 2" hose

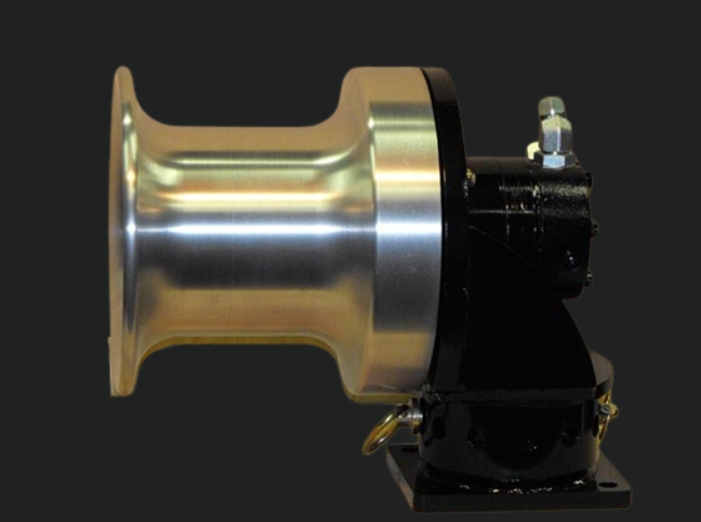

- Materials: ASTM A572 Grade 50 steel
- Welding: 7018 rods at 220-250 amps
- Bracing: 45° gusset plates at stress points
- PTO Connection: SAE 6-bolt flange with 0.002" runout tolerance
- Drive Belts: Gates® Polychain® GT4 for 400% overload capacity
- Alignment: Laser-align shafts within 0.005" parallelism
Hose Routing:
- Max bend radius = 10× hose diameter
- Support every 24" with cushioned clamps
Fitting Types:
- JIC 37° flare for high pressure (3,000+ PSI)
- ORFS for vibration resistance
Torque Sequence:
1. Center bolts → 150 ft-lbs
2. Perimeter bolts → 125 ft-lbs (star pattern)
- Vibration Damping: LORD® TicoFlex™ mounts reduce noise by 12 dB
- J1939 Protocol: Monitor winch parameters via vehicle dashboard
Sensor Package:
- Load cells (0.5% accuracy)
- Temperature sensors (-40°C to 125°C range)
- Rope tension monitors
- Pressure Relief Valves: Set to 110% of max working pressure
- Deadman Switch: Auto-brake engages after 2 seconds of no input
- Emergency Unspool: Manual override with 4:1 mechanical advantage
Sampling Intervals:
- Every 250 hours: Particle count test
- Every 500 hours: Viscosity and water content
Filtration Standards:
- ISO 4406 18/16/13 cleanliness level
- Beta 1000=75 filter rating
| Condition | Steel Cable | Synthetic Rope |
|---|---|---|
| Lubrication | Monthly (Linseed oil) | Not required |
| UV Protection | N/A | Apply 303® Aerospace |
| Retirement Criteria | 6 broken wires per lay | 10% diameter reduction |
- Fluid: Mobil DTE 732 Arctic (Viscosity Index 320)
- Materials: Nickel-plated components resist embrittlement
- Operation: Pre-heat system to 20°C before use
- Cathodic Protection: Zinc anodes replace every 12 months
Corrosion Prevention:
- DuPont™ Teflon® coatings
- 316L stainless steel hardware
| Symptom | Diagnostic Procedure | Repair Protocol |
|---|---|---|
| Erratic Speed | 1. Check fluid viscosity | 1. Replace fluid if out of spec |
| 2. Test pressure relief valve | 2. Adjust/Replace PRV | |
| 3. Inspect pump wear ring clearance | 3. Rebuild pump if >0.008" clearance | |
| Load Slippage | 1. Measure brake lining thickness | 1. Replace if <0.125" remaining |
| 2. Check planetary gear backlash | 2. Shim gears to 0.003-0.005" |
This comprehensive guide equips professionals with technical specifications, advanced installation methods, and specialized maintenance protocols. Properly installed hydraulic winches provide 10,000+ hours of reliable service when following these engineering-grade procedures. Always consult OEM documentation and adhere to ASME B30.7 safety standards during installation and operation.
Requires 3L+ diesel or 5L+ gasoline engines to maintain 2,500 PSI at 6 GPM. Smaller engines need auxiliary pumps.
Use:
Efficiency (%) = (Output Torque × Speed) / (Flow × Pressure) × 100
Aim for 85-92% efficiency in properly maintained systems.
Yes (e.g., Shell Naturelle HF-E 46), but requires 30% more frequent changes due to hygroscopic properties.
- Cycle 50% load 20 times
- 75% load 10 times
- Full load 5 times
- Inspect bolts and fluid after each stage
- Coat steel cables with Cosmoline®
- Pressurize system with nitrogen to prevent moisture ingress
- Rotate drum quarterly to prevent flat spots
