Hooking up a hydraulic winch involves several steps, from selecting the right location to testing the winch. This process requires careful planning and execution to ensure safe and efficient operation. Below is a comprehensive guide on how to install and hook up a hydraulic winch, along with essential tips and safety precautions.

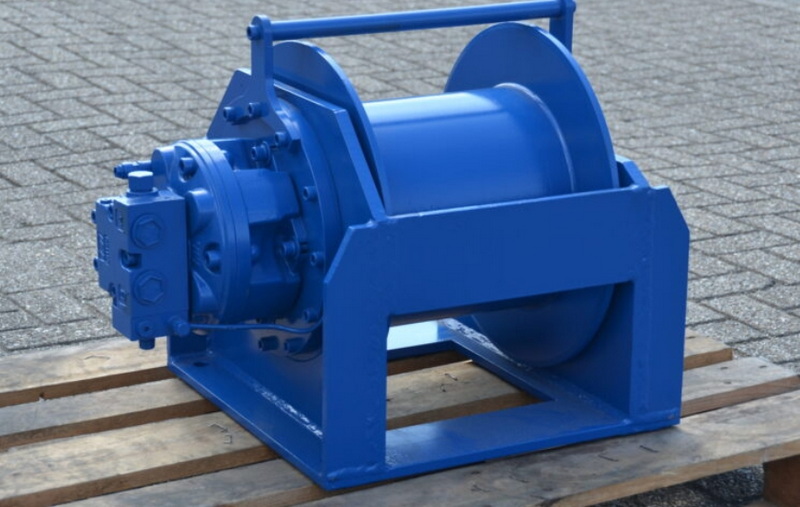

Hydraulic winches are powerful tools used in various applications, including marine, industrial, and off-road environments. They utilize fluid power to operate, making them ideal for handling heavy loads. A typical hydraulic winch consists of a motor, gearbox, drum, and brake system, which work together to provide the necessary torque and control for lifting or pulling heavy objects.
A basic hydraulic winch includes:
- Motor: Provides the power needed to operate the winch.
- Gearbox: Allows for speed adjustments and increases torque.
- Drum: Holds the cable or rope used for lifting or pulling.
- Brake System: Ensures safety by preventing the load from falling.
Selecting the right location for your hydraulic winch is crucial. Ensure it is level, stable, and free from obstructions. For marine applications, common locations include the bow or stern of the boat. Consider the winch's weight and the load it will handle to ensure the structure can support it.
If the chosen location lacks a suitable mounting surface, install a winch mounting plate or bracket. Ensure it can support the winch's load and is compatible with the structure. Use high-strength bolts and washers to secure the plate firmly.
1. Mount the Hydraulic Pump: Securely mount the pump near the power source, such as an engine or generator. Ensure proper alignment and secure fastening.
2. Connect to Power Source: Use belts, pulleys, or direct coupling to connect the pump to the power source. This step requires careful alignment to prevent vibration and wear.
3. Attach the Hydraulic Reservoir: Position it for optimal fluid circulation. The reservoir should be accessible for maintenance and filling.
4. Fill with Hydraulic Fluid: Use the recommended type and amount of hydraulic fluid. Always refer to the manufacturer's guidelines for specifications.
- Connect hoses from the pump to the winch, ensuring compatibility and proper sizing. Typically, two lines are needed: one for the motor and another for the brake.
- Use high-pressure hydraulic hoses and fittings to prevent leaks and ensure reliable operation.
Place the hydraulic winch onto the mounting plate and fasten it securely using bolts, washers, and nuts. Ensure proper alignment and centering to prevent uneven wear.
Wire the control system to the electrical system. Ensure connections are secure, insulated, and protected from moisture. Use waterproof connectors and sealants to prevent corrosion.
1. Engage the Clutch: Disengage the drum if applicable to prevent accidental operation.
2. Operate the Winch: Test in both directions to ensure smooth operation and proper brake function.
3. Check for Leaks: Address any hydraulic system leaks promptly to prevent damage.
4. Test Controls: Ensure responsiveness and safety features are functioning correctly.
After successful testing, ensure all components are securely fastened and protected. Regularly inspect the winch and its components for wear and tear.
- Wear Protective Gear: Safety glasses and gloves are essential when working with hydraulic systems.
- Avoid Wet Conditions: Do not use the winch in wet or icy conditions to prevent accidents.
- Regular Maintenance: Check for wear and tear regularly and replace worn-out parts promptly to extend the lifespan of the winch.
Regular maintenance is crucial to ensure that your hydraulic winch operates efficiently and safely. Here are some additional tips:
- Check Hydraulic Fluid Levels Regularly: Keeping an eye on fluid levels is vital as low fluid can lead to overheating or system failure.
- Inspect Hoses and Fittings: Look for signs of wear or damage on hydraulic hoses and fittings regularly. Any sign of leaks or cracks should be addressed immediately by replacing damaged components.
- Clean Your Winch: Keeping your winch clean helps prevent corrosion that can occur due to dirt accumulation or exposure to saltwater in marine environments.
- Lubricate Moving Parts: Apply lubricant as recommended by your manufacturer on moving parts like gears or bearings to reduce friction.
- Conduct Regular Load Tests: Periodically conduct load tests under controlled conditions to ensure that your hydraulic winch can handle its rated capacity without issues.
When selecting a hydraulic winch, understanding load ratings is essential:
- Working Load Limit (WLL) indicates how much weight a winch can safely handle during regular use.
- Breaking Strength (BS) is typically much higher than WLL; however, operating at this limit may lead to rapid wear or failure.
Always choose a hydraulic winch with a WLL that exceeds your maximum expected load by at least 25% as a safety measure.
Even with regular maintenance, you might encounter some issues with your hydraulic winch:
1. Winch Does Not Operate: Check power connections, fuses, or circuit breakers first.
2. Slow Operation: This could indicate low hydraulic fluid levels or air trapped in lines; check both conditions.
3. Overheating: Ensure that there's adequate ventilation around your hydraulic pump; overheating can lead to catastrophic failure if not addressed promptly.
4. Strange Noises: Unusual sounds may indicate mechanical problems; stop operation immediately until you can diagnose further.
For more complex issues, consider the following advanced troubleshooting techniques:
- Pressure Testing: Use a pressure gauge to check if the hydraulic system is operating within the recommended pressure range. Low pressure might indicate leaks or insufficient fluid.
- Flow Rate Analysis: Measure the flow rate of the hydraulic fluid to ensure it matches the specifications. Incorrect flow rates can affect performance and efficiency.
- Component Inspection: Inspect individual components like the motor, gearbox, and brake system for signs of wear or damage. Replace any faulty parts promptly.
To ensure your hydraulic winch remains in optimal condition over time, follow these best practices:
- Store Properly: When not in use, store the winch in a dry, clean environment. Cover it to protect from dust and moisture.
- Monitor Usage: Keep a log of usage to track wear and tear. This helps in scheduling maintenance and replacements more effectively.
- Train Operators: Ensure all operators are trained on proper use and maintenance procedures to prevent misuse and accidents.
Installing a hydraulic winch requires careful planning and execution to ensure safe and efficient operation. By following these steps—choosing an ideal location, setting up your hydraulic system correctly, securing all components properly—you can effectively hook up your hydraulic winch for various applications while adhering to safety guidelines.
Regular maintenance checks will help prolong its lifespan while troubleshooting common issues will keep your operations running smoothly.
A hydraulic winch consists of a motor, gearbox, drum, and brake system. These components work together to provide necessary power and control for lifting or pulling heavy loads.
Hydraulic winches use fluid power to operate by relying on a hydraulic system with a motor pump that transmits power from a generator or engine directly to operate the winch mechanism.
Hydraulic winches are used in demanding tasks such as anchor retrieval in marine applications, mooring boats, towing heavy vehicles off-road, as well as cargo handling in industrial settings.
Always wear safety glasses and gloves during installation; avoid using it in wet or icy conditions; ensure all components are securely fastened before operation begins.
Regular maintenance is crucial—check for wear every few months depending on usage frequency; replace worn-out parts promptly; conduct thorough inspections at least twice yearly.
