Connecting a hydraulic pump to a hydraulic motor is a crucial process in many industrial and mechanical applications. This comprehensive guide will walk you through the steps to properly hook up a hydraulic pump to a hydraulic motor, ensuring optimal performance and longevity of your hydraulic system.
Before diving into the connection process, it's essential to understand the basics of hydraulic systems. A hydraulic system typically consists of a hydraulic pump, hydraulic motor, reservoir, valves, and hydraulic lines. The pump generates pressure in the hydraulic fluid, which is then used to power the hydraulic motor, converting hydraulic energy into mechanical energy.

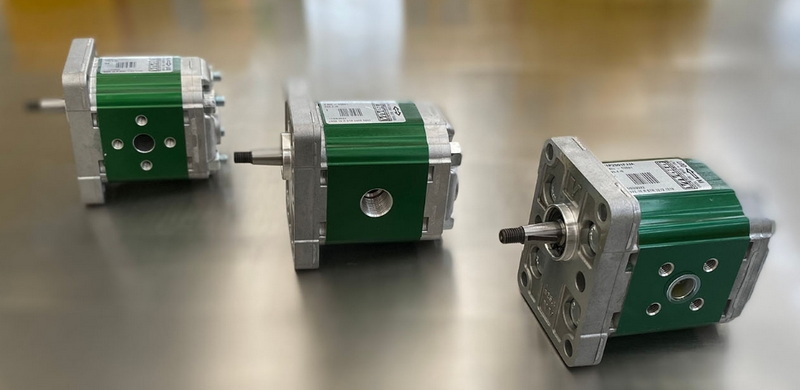

There are several types of hydraulic pumps commonly used in industrial applications:
1. Gear Pumps: Simple and cost-effective, suitable for low to medium pressure applications.
2. Vane Pumps: Offer good efficiency and are often used in mobile hydraulic systems.
3. Piston Pumps: Provide high efficiency and are capable of handling high pressures, making them ideal for heavy-duty applications.
Similarly, hydraulic motors come in various designs:
1. Gear Motors: Compact and economical, suitable for low to medium torque applications.
2. Vane Motors: Offer smooth operation and are often used in low-speed, high-torque applications.
3. Piston Motors: Provide high efficiency and can handle high pressures, making them versatile for various applications.
Understanding the characteristics of different pump and motor types will help you make informed decisions when selecting components for your hydraulic system.
Choosing the appropriate hydraulic pump and motor for your application is crucial. Factors to consider include:
1. Flow rate requirements
2. Pressure ratings
3. Displacement
4. Efficiency
5. Environmental conditions
Ensure that your pump and motor are compatible in terms of pressure and flow ratings to avoid system inefficiencies or damage.
When selecting a hydraulic pump and motor combination, it's essential to match their specifications closely. Here are some key points to consider:
- Flow Rate: The pump's flow rate should meet or slightly exceed the motor's flow requirements.
- Pressure Rating: Both the pump and motor should be capable of handling the system's maximum operating pressure.
- Speed Range: Ensure that the motor's speed range is compatible with the pump's output capabilities.
- Displacement: Match the pump's displacement to the motor's requirements for optimal efficiency.
By carefully considering these factors, you can ensure that your hydraulic system operates at peak efficiency and reliability.
Before beginning the installation process, gather all necessary tools and materials. This may include:
- Wrenches and sockets
- Hydraulic fittings and adapters
- Hydraulic fluid
- Hoses or rigid tubing
- Mounting hardware
- Safety equipment (gloves, safety glasses)
Cleanliness is crucial when working with hydraulic systems. Even small particles can cause significant damage to hydraulic components. Follow these steps to ensure a clean work environment:
1. Clean the work area thoroughly before starting the installation.
2. Use lint-free cloths to wipe down components.
3. Cover open ports and connections to prevent contamination.
4. Use clean containers for hydraulic fluid.
5. Wash your hands and wear clean gloves when handling hydraulic components.
Secure the hydraulic pump to a stable mounting surface. Ensure proper alignment with the power source (e.g., electric motor or engine) to prevent unnecessary stress on the pump shaft.
Misalignment can lead to premature wear and reduced efficiency. Use these techniques to ensure proper alignment:
- Use a straight edge to check for parallel alignment between the pump and power source shafts.
- Employ a dial indicator to measure and adjust angular alignment.
- Consider using flexible couplings to compensate for minor misalignments.
Mount the hydraulic motor in its designated location. Pay attention to the motor's orientation and ensure it's securely fastened to prevent vibration during operation.
- Ensure the mounting surface is flat and rigid to minimize vibration.
- Use appropriate mounting brackets or adapters if necessary.
- Consider the direction of rotation when positioning the motor.
Use appropriate hydraulic hoses or rigid tubing to connect the pump to the motor. Follow these guidelines:
- Connect the pump's outlet (pressure port) to the motor's inlet port.
- Connect the motor's outlet port back to the hydraulic reservoir or through a return line filter.
- Ensure all connections are tight and properly sealed to prevent leaks.
Selecting the appropriate hydraulic lines is crucial for system performance and safety:
- Consider the system's pressure rating when choosing hoses or tubing.
- Ensure the inner diameter of the lines is sufficient to handle the required flow rate.
- Use SAE or JIC fittings for secure connections.
- Consider using stainless steel lines for high-pressure applications or corrosive environments.
If your system requires directional control or pressure regulation, install the necessary control valves between the pump and motor. This may include:
- Directional control valves
- Pressure relief valves
- Flow control valves
Proper valve placement is essential for optimal system performance:
- Install pressure relief valves as close to the pump outlet as possible.
- Place directional control valves near the actuators they control.
- Consider using manifolds to simplify plumbing and reduce potential leak points.

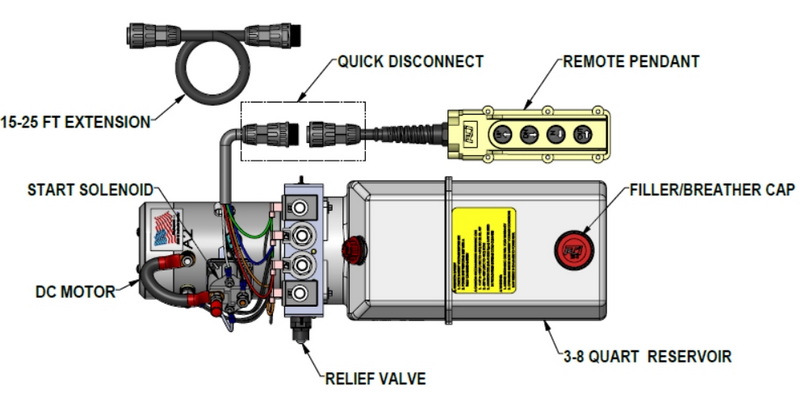

For electrically driven pumps, follow these steps:
1. Connect the battery ground cable to the DC motor's ground terminal.
2. Connect the positive cable from the battery to the start solenoid.
3. Install any necessary circuit protection, such as fuses or circuit breakers.
When working with electrical components:
- Always disconnect the power source before working on electrical connections.
- Use properly sized wires and connectors to handle the system's current requirements.
- Install emergency stop switches in easily accessible locations.
- Consider using variable frequency drives (VFDs) for improved control and energy efficiency in AC motor-driven systems.
Fill the hydraulic reservoir with the appropriate hydraulic fluid, following the manufacturer's recommendations. Be sure not to overfill, as this can lead to issues during operation.
Selecting the appropriate hydraulic fluid is crucial for system performance and longevity:
- Consider the system's operating temperature range.
- Choose a fluid with the correct viscosity for your application.
- Look for fluids with good anti-wear and anti-foaming properties.
- Consider biodegradable options for environmentally sensitive applications.
Prime the hydraulic pump to remove any air from the system:
1. Disconnect the pressure line from the pump outlet.
2. Manually rotate the pump shaft or jog the electric motor to expel air from the pump.
3. Reconnect the pressure line once a steady stream of fluid is observed.
Proper priming is essential to prevent cavitation and ensure smooth system operation:
- Bleed air from the highest points in the system.
- Use vacuum pumps for large or complex systems to ensure complete air removal.
- Consider installing air bleed valves at high points in the system for easier maintenance.
1. Start the system and run it at low pressure.
2. Check for leaks and unusual noises.
3. Gradually increase the system pressure to operating levels.
4. Adjust control valves and pressure settings as needed.
5. Monitor fluid temperature and system performance during initial operation.
Utilize these tools to ensure your system is operating correctly:
- Pressure gauges at key points in the system
- Flow meters to verify proper fluid circulation
- Temperature sensors to monitor fluid and component temperatures
- Vibration sensors to detect potential mechanical issues
To ensure optimal performance and longevity of your hydraulic system:
1. Regularly check and maintain proper fluid levels.
2. Replace hydraulic filters according to the manufacturer's schedule.
3. Monitor system temperature and pressure during operation.
4. Perform regular inspections of hoses, fittings, and seals for signs of wear or leakage.
A well-structured preventive maintenance program can significantly extend the life of your hydraulic system:
1. Develop a maintenance schedule based on operating hours or calendar time.
2. Regularly analyze hydraulic fluid samples to detect contamination or degradation.
3. Use thermal imaging to identify potential hot spots or areas of excessive wear.
4. Keep detailed maintenance records to track component performance and predict potential failures.
If you encounter problems during or after installation, consider these common issues and solutions:
1. Insufficient pressure: Check for leaks, proper pump rotation, and correct valve settings.
2. Excessive noise: Look for air in the system, cavitation, or misalignment issues.
3. Overheating: Ensure proper fluid levels, check for restrictions in the return line, and verify the cooling system is functioning correctly.
For more complex issues, consider these advanced troubleshooting methods:
- Use flow meters to verify proper fluid circulation and identify restrictions.
- Employ pressure transducers and data loggers to capture and analyze system performance over time.
- Utilize ultrasonic testing to detect internal leaks in valves and cylinders.
- Consider vibration analysis to identify potential mechanical issues before they lead to failure.
Always prioritize safety when working with hydraulic systems:
- Wear appropriate personal protective equipment (PPE).
- Never attempt to adjust or disconnect components while the system is pressurized.
- Be aware of the potential for high-pressure fluid injection injuries.
- Follow all manufacturer safety guidelines and local regulations.
Develop and communicate clear emergency procedures for hydraulic system failures:
1. Identify and mark emergency shut-off locations.
2. Train personnel on proper emergency response techniques.
3. Keep appropriate spill containment materials readily available.
4. Establish clear communication protocols for reporting and addressing hydraulic system emergencies.
Hooking up a hydraulic pump to a hydraulic motor requires careful planning, proper component selection, and attention to detail during installation. By following the steps outlined in this guide and adhering to best practices, you can ensure a safe and efficient hydraulic system that will provide reliable performance for years to come. Regular maintenance and monitoring are key to preventing issues and extending the life of your hydraulic components.
Remember that while this guide provides a comprehensive overview, each hydraulic system is unique. Always consult manufacturer specifications and consider seeking professional assistance for complex installations or troubleshooting. With proper care and attention, your hydraulic system will serve as a reliable and powerful tool in your industrial or mechanical application.
The choice of hydraulic fluid depends on several factors, including the system's operating temperature range, pressure requirements, and component materials. Consult your equipment manufacturer's recommendations and consider factors such as viscosity, anti-wear properties, and compatibility with seals and hoses.
The frequency of hydraulic fluid changes depends on the system's usage, operating conditions, and the type of fluid used. As a general rule, consider changing the fluid annually or every 2000 operating hours, whichever comes first. However, regular fluid analysis can help determine the optimal change interval for your specific system.
Cavitation occurs when the pump inlet pressure drops below the fluid's vapor pressure, causing bubbles to form and collapse. This can damage pump components and reduce efficiency. To prevent cavitation:
- Ensure proper fluid levels in the reservoir
- Use appropriately sized inlet lines
- Maintain clean filters
- Consider using a boost pump for high-altitude or high-temperature applications
To size a hydraulic pump correctly, consider the following factors:
- Required flow rate for your application
- Maximum system pressure
- Operating speed of the prime mover (e.g., electric motor or engine)
- Duty cycle and efficiency requirements
- Environmental conditions
Calculate the required displacement based on these factors and select a pump that meets or exceeds your system's needs while providing a safety margin for optimal performance.

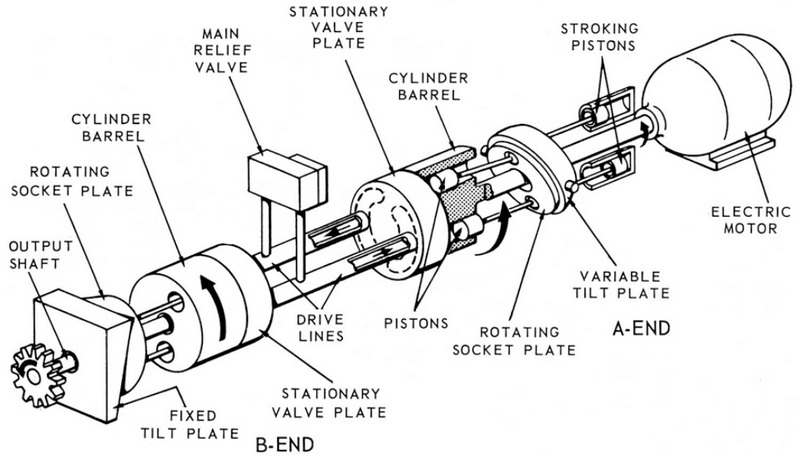

Closed-loop hydraulic systems offer several advantages:
- Improved efficiency due to lower heat generation
- Reduced reservoir size requirements
- Better contamination control
- More precise control of motor speed and direction
- Simplified plumbing and fewer components
However, closed-loop systems can be more complex to design and maintain, and may require specialized components such as charge pumps and flushing valves.
