Views: 222 Author: Ella Publish Time: 2025-03-17 Origin: Site
Content Menu
● Introduction to Mile Marker Hydraulic Winches
>> Key Components of a Mile Marker Hydraulic Winch
● Step-by-Step Installation Guide
>> 3. Assembling Winch Components
>> 6. Connecting Hydraulic Hoses
● FAQs
>> 1. What tools are required for the installation?
>> 2. How do I secure the solenoid valve assembly?
>> 3. What precautions should I take when handling hydraulic hoses?
>> 4. How do I properly wire the winch?
>> 5. What safety measures should I take during winch operation?
Installing a Mile Marker hydraulic winch requires careful planning and execution to ensure a safe and effective operation. This guide will walk you through the steps necessary to install a Mile Marker hydraulic winch, highlighting key components and considerations.
Mile Marker hydraulic winches are designed to utilize the power steering system of your vehicle, providing a reliable and efficient way to recover your vehicle or pull heavy loads. These winches are popular among off-road enthusiasts due to their robust construction and ease of use. Unlike electric winches, hydraulic winches do not drain the vehicle's battery and offer consistent performance even in extreme conditions.

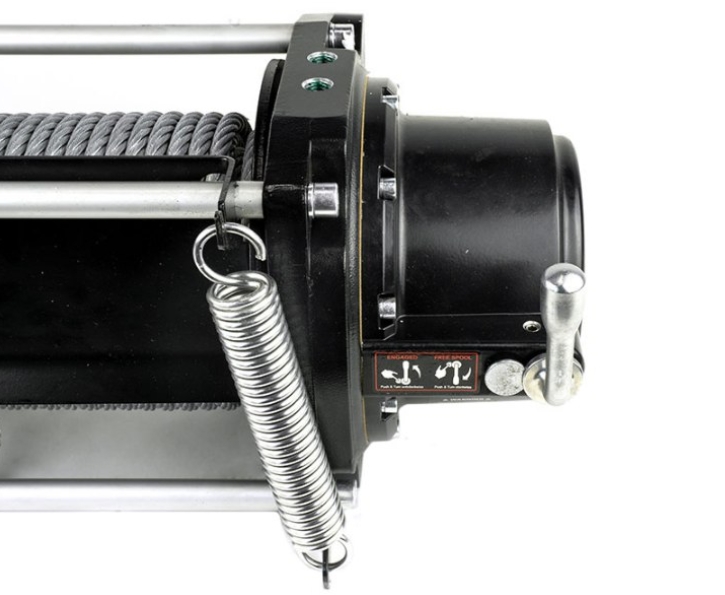

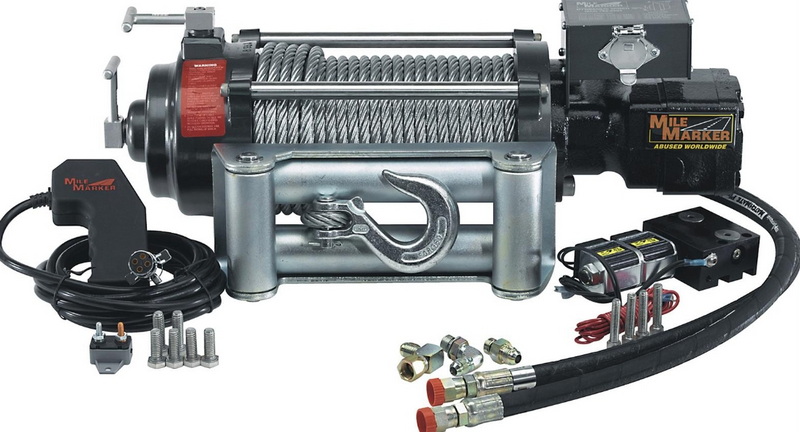

- Winch Body: The main unit that houses the drum and motor.
- Solenoid Valve Assembly: Controls the flow of hydraulic fluid to the winch.
- Hydraulic Hoses: Connect the winch to the vehicle's power steering system.
- Roller Fairlead: Guides the cable onto the drum.
- Control Box: Manages electrical connections for the winch.
Before starting, ensure all components are included and refer to the manual for specific instructions.
1. Unpack and Inventory: Compare your parts with the shipping list to ensure everything is included.
2. Tools Needed:
- Floor jack
- Socket wrench
- Allen wrench
- Pliers
- Safety gloves
- Torque wrench
3. Safety Precautions:
- Always wear protective gear like gloves and safety glasses.
- Ensure the vehicle is securely supported by jack stands before starting work underneath.
1. Position the Mount: Place the Extreme Mount between the brackets on your vehicle. Use a floor jack to support the weight.
2. Secure the Mount: Insert 1/2" bolts through the mount, bracket, washer, and nut. Tighten to 70 ft-lbs using a 3/4" socket and wrench.
3. Check Mount Alignment: Ensure the mount is level and aligned properly with the vehicle's frame to prevent uneven stress on the winch.
1. Remove Plugs and O-Rings: Take out the red plugs from the hydraulic motor and re-seat the O-rings.
2. Solenoid Valve Assembly:
- Remove the rubber band and washer from the solenoid.
- Flip the solenoid over the hydraulic motor, ensuring the washer doesn't fall out.
- Use a dab of grease to hold the washer in place.
- Secure with Allen head bolts and thread lock.
3. Hydraulic Motor Testing: Before final assembly, test the hydraulic motor by applying hydraulic pressure to ensure smooth operation.
1. Straight Hydraulic Fitting: Screw into the "P" port and tighten completely.
2. Elbow Fitting: Screw into the "T" port but do not tighten yet.
3. Hydraulic Hose Routing: Ensure hoses are routed away from heat sources and moving parts to prevent damage.
1. Place the Winch: Set the winch onto the mount without bolting it down yet.
2. Install Fairlead: Mount the roller fairlead using bolts from the inside and tighten the nuts on the outside.
3. Winch Alignment: Align the winch with the fairlead to ensure proper cable spooling.
1. Replace Stock Hose: Remove the hydraulic hose from the hydro-boost to the power steering box. Replace it with two hoses:
- One from hydro-boost to the solenoid valve box.
- Another from the solenoid valve box to the power steering box.
2. Tighten Hoses: Tighten fittings ¼ turn past finger tight to avoid leaks.
3. Hydraulic System Bleeding: After installation, bleed the hydraulic system to remove air pockets that could cause malfunction.
1. Connect Wires: Plug the black wire into the input side and the white wire into the output side.
2. Mount Circuit Breaker: Connect the green wire to the circuit breaker and the red wire to a 12V power source.
3. Electrical System Testing: Test the electrical connections to ensure proper winch operation.
- Winch Maintenance: Regularly inspect the winch cable for damage and clean the winch body to maintain performance.
- Vehicle Modifications: Consider upgrading your vehicle's cooling system if you plan to use the winch extensively, as it can generate additional heat.
- Winch Cable Care: Always keep the winch cable clean and well-lubricated to prevent corrosion and wear.
1. Cable Inspection: Regularly check the cable for signs of wear or damage. Replace the cable if you notice any fraying or corrosion.
2. Cable Cleaning: Use a mild detergent and water to clean the cable. Avoid using harsh chemicals that could damage the cable.
3. Cable Lubrication: Apply a lubricant specifically designed for winch cables to prevent rust and corrosion.
Before installing the winch, ensure your vehicle is prepared for the additional load and stress:
1. Frame Reinforcement: Consider reinforcing the vehicle's frame if it is not designed to handle heavy winching loads.
2. Battery and Electrical System: Ensure your vehicle's electrical system can handle the additional load. Consider upgrading the battery and alternator if necessary.
3. Cooling System Upgrade: If you plan to use the winch extensively, consider upgrading your vehicle's cooling system to handle the increased heat generated by the winch.
- Cable Safety: Always ensure at least five wraps of cable remain on the drum during operation to prevent drum damage.
- Personnel Safety: Keep bystanders away from the winch cable during operation to avoid injury from snapping cables.
- Environmental Considerations: Be mindful of the environment when winching, avoiding damage to trees or other natural features.
Installing a Mile Marker hydraulic winch requires attention to detail and careful execution. By following these steps and ensuring all components are properly secured, you can enjoy reliable and efficient winching capabilities. Always refer to the manufacturer's manual for specific instructions tailored to your winch model.
- Floor jack
- Socket wrench
- Allen wrench
- Pliers
- Safety gloves
- Torque wrench
Use Allen head bolts and thread lock to secure the solenoid valve to the hydraulic motor. Apply a dab of grease to hold the washer in place during installation.
Ensure fittings are tightened ¼ turn past finger tight to prevent leaks. Route hoses away from moving parts and hazards.
Connect the black wire to the input side and the white wire to the output side. Mount the circuit breaker and connect it to a 12V power source.
Always wear gloves when handling the winch cable. Ensure five wraps of cable remain on the drum at all times. Direct personnel to stand clear of the winch cable during operation.
