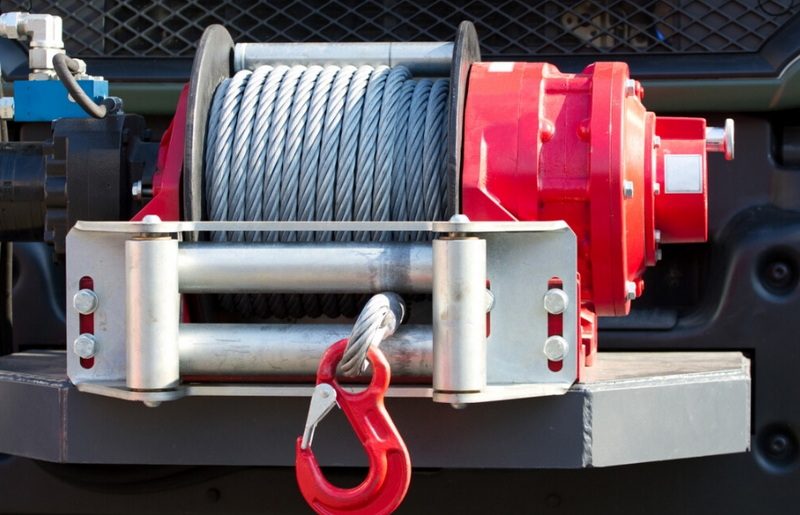

Installing a small hydraulic winch on a truck can significantly enhance its off-road capabilities and recovery options. Hydraulic winches are particularly beneficial for continuous heavy-duty use, as they do not require cool-down periods like electric winches. Here's a comprehensive guide to help you install a small hydraulic winch on your truck.
Hydraulic winches operate using hydraulic fluid pressure to generate mechanical energy, making them ideal for heavy-duty applications. They are more reliable in extreme conditions and can run continuously without overheating, unlike electric winches.
- Continuous Operation: Hydraulic winches can operate continuously without overheating, making them perfect for heavy-duty recovery tasks.
- No Cool Down Period: Unlike electric winches, hydraulic winches do not require cool-down periods during heavy use.
- High Torque: Hydraulic winches provide high torque, which is essential for pulling heavy loads.
Before installing the winch, ensure your truck is prepared for the installation process.
If your truck's bumper obstructs the mounting area, you may need to remove it temporarily. This will provide clear access to the frame where the winch mounting plate will be secured.
Ensure the frame is free from debris and rust. Clean the area thoroughly to ensure a secure mount.
Typically, the winch is mounted on the front bumper or a specially designed mounting plate. Ensure the location is sturdy enough to support the winch's load capacity.
The mounting plate is crucial as it provides a secure base for the winch.
Align the mounting plate with the existing holes on your truck's frame or drill new holes if necessary.
Use high-grade bolts to attach the mounting plate to the frame. Ensure the bolts are tightened to the specified torque setting to prevent loosening during use.
Now that the mounting plate is secure, you can attach the winch.
Carefully lift the winch and position it on the mounting plate, aligning it with the pre-drilled holes.
Insert the provided bolts through the winch and into the mounting plate. Tighten these bolts securely to ensure the winch does not shift during use.
Hydraulic lines are essential for the winch's operation.
Locate the input and output lines on both the winch and your truck's hydraulic system.
Route the lines carefully to avoid rubbing against sharp edges or moving parts. Secure all connections tightly to prevent leaks.
Connecting Hydraulic Lines
Most hydraulic winches come with a wired control system.
Mount the control switch in a convenient location inside the vehicle.
Connect the wires from the control system to the winch and the vehicle's power source, following the manufacturer's wiring diagram.
Ensure the hydraulic fluid levels are adequate for smooth operation.
Inspect the hydraulic fluid reservoir to ensure it is filled to the recommended level.
If necessary, top off the reservoir with the appropriate type of hydraulic fluid, avoiding air bubbles.
Before using the winch for heavy loads, perform a basic test.
Engage the hydraulic system and use the control to test the winch's operation.
Check the hydraulic lines for any signs of leaks or misalignment.
Ensure that your truck's hydraulic system is compatible with the winch. Some trucks may require additional components like a hydraulic pump or reservoir to support the winch.
Regularly inspect the winch and its components for wear and tear. Lubricate moving parts and replace worn-out cables or hydraulic lines as needed.
Always use proper safety gear when operating the winch, including gloves and safety glasses. Ensure bystanders are at a safe distance during operation.
Be mindful of environmental conditions. Avoid using the winch in extremely cold or hot conditions without proper precautions.
Consider adding accessories like a winch cover or a remote control for easier operation.
If your truck requires a custom mounting solution, consult with a professional fabricator to ensure the mount is sturdy and secure.
If your truck does not have a built-in hydraulic system, consider upgrading with a dedicated hydraulic pump and reservoir specifically designed for winch operation.
Choose a winch with a capacity that exceeds your expected load by at least 20% to ensure safe and reliable operation.
Use a cable management system to keep the winch cable organized and prevent damage during operation.
Installing a small hydraulic winch on your truck can significantly enhance its capabilities, especially for off-road enthusiasts. By following these steps and ensuring proper installation, you can enjoy reliable and continuous operation of your winch.
Here are some frequently asked questions about installing a small hydraulic winch:
Hydraulic winches offer continuous operation without overheating and do not require cool-down periods, making them ideal for heavy-duty use.
Choose a location that is sturdy enough to support the winch's load capacity, typically on the front bumper or a specially designed mounting plate.
Always wear safety glasses and gloves, ensure the winch is properly secured before use, and never overload the winch.
Identify the input and output lines, route them carefully to avoid damage, and secure all connections tightly to prevent leaks.
Use the type of hydraulic fluid recommended by the winch manufacturer to ensure smooth operation and prevent damage to the system.
