Installing a planetary gearbox on a stepper motor is a precise process that requires careful attention to detail to ensure proper alignment and secure connection. This guide will walk you through the steps involved in installing a planetary gearbox on a stepper motor, highlighting key considerations and providing visual aids where possible.

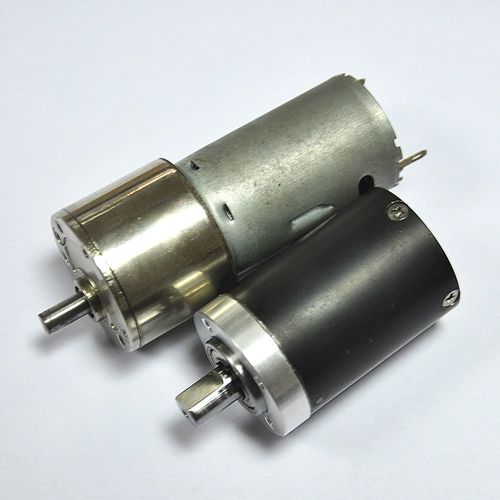

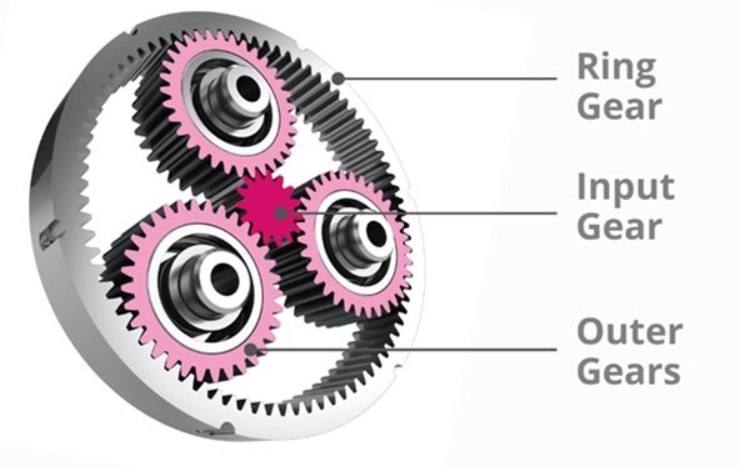

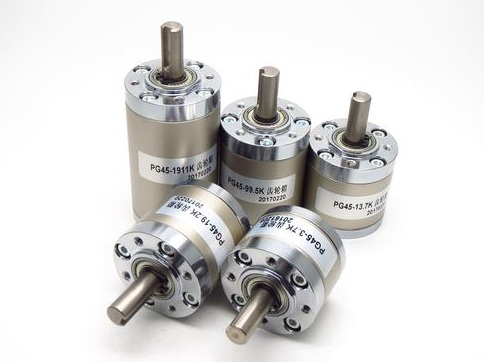

Planetary gearboxes are widely used in industrial applications due to their compact design, high torque density, and low backlash. They consist of a sun gear, planetary gears, a ring gear, and a carrier, which together enable efficient power transmission with high gear ratios. Before installing a planetary gearbox, it's essential to understand its components and how they interact.
- Sun Gear: The central gear that drives the planetary gears.
- Planetary Gears: These gears orbit around the sun gear and mesh with it and the ring gear.
- Ring Gear: The outer gear that surrounds the planetary gears.
- Carrier: Holds the planetary gears in place and rotates with them.
Ensure the stepper motor and gearbox are in good condition. Remove any motor key if present, as it can interfere with the installation process. Verify that the dimensions of each part connected to the motor and gearbox match, including the size of the motor's projection and the gearbox's groove, and check the fit tolerance.
Check for any foreign objects in the connection area between the motor and gearbox. Clean both mounting surfaces to ensure a smooth connection. Note that there may be a small amount of anti-rust oil in the gearbox, which will not affect the installation and operation.
Adjust the coupling on the gearbox's input side to align with the mounting holes. Remove any dust covers to facilitate this process. Ensure that an Allen wrench can be inserted into the process hole on the input flange.
Align the motor's output shaft with the gearbox's input shaft, ensuring they are on the same centerline and the flanges are parallel. Connect them securely without applying excessive force.
Insert screws into the threaded holes but do not tighten them yet. Lightly tighten diagonal screws in sequence, then fully tighten them to ensure even fastening. This process helps prevent unevenness and jamming.
Insert an Allen wrench into the process hole on the gearbox's input flange and secure the clamping bolts on the coupling inside the gearbox. Tighten screws alternately in two steps to ensure secure fastening.
Once the installation is complete, reinstall any dust covers to protect the gearbox from debris.
- Avoid Excessive Force: Never use a hammer or apply excessive axial or radial forces, as this can damage the gearbox's bearings or gears.
- Use Proper Tools: Always use the correct tools, such as an Allen wrench or adjustable wrench, to avoid damaging components.
- Check Alignment: Ensure all components are properly aligned to prevent uneven wear and ensure smooth operation.
Some common mistakes during installation include ignoring environmental factors, incorrect wiring, failing to secure the motor properly, and forgetting to calibrate the control system. Environmental factors such as temperature and humidity can significantly affect the performance and longevity of the gearbox.
Lubrication is crucial for maintaining the efficiency and longevity of planetary gearboxes. Ensure that the lubricating oil used meets the specifications and is applied correctly to prevent gear wear and damage. Regular maintenance involves checking the oil level and condition, ensuring proper alignment, and monitoring for signs of wear or damage.
1. Regular Inspection: Perform routine visual inspections of the gearbox to identify any signs of wear, damage, or leaks.
2. Lubrication: Follow the manufacturer's guidelines regarding the type of lubricant to use and the recommended intervals for oil changes.
3. Oil Analysis: Periodically analyze the condition of the gearbox oil by conducting oil sampling and testing.
4. Seal Inspection: Inspect seals regularly to ensure they are intact and functioning correctly.
5. Bearing Maintenance: Planetary gearboxes often incorporate bearings that require maintenance attention as well. Regularly inspect bearings for signs of wear or damage, such as excessive noise, vibration, or heat generation.
6. Cleaning: Keep external surfaces clean from dirt, dust, and debris accumulation. Regular cleaning prevents contaminants from entering internal components which can cause premature wear or damage.
7. Torque Checks: Over time, vibrations may cause fasteners, such as bolts, to loosen. Check torque levels periodically and tighten if necessary. Follow manufacturer's recommendations on torque specifications.
- Gear Wear: Insufficient lubrication or incorrect gear meshing can lead to gear wear. Regularly inspect gears for signs of wear and replace them if necessary.
- Noise and Vibration: Misalignment or improper installation can cause excessive noise and vibration. Check alignment and ensure all components are securely fastened.
- Oil Leaks: Check for loose bolts or damaged seals, which can cause oil leaks. Tighten bolts and replace seals as needed.
In applications like 3D printing, planetary gearboxes are used to enhance the precision and stability of the Z-axis. For example, upgrading the Z-axis stepper motor with a planetary gearbox can improve print quality by reducing vibrations and increasing torque.
1. Increased Precision: Planetary gearboxes help maintain precise movement, which is crucial for detailed prints.
2. Reduced Vibration: By providing higher torque and stability, they minimize vibrations that can distort prints.
3. Improved Reliability: Enhanced durability ensures consistent performance over time.
Planetary gearboxes are also used in robotics, CNC machines, and medical devices due to their compact size and high efficiency. They offer flexibility in design and can be customized for specific applications.
Ensure that the operating environment is suitable for the gearbox. High temperatures or humidity can affect performance and longevity. Regularly inspect the gearbox for signs of environmental stress, such as corrosion or moisture accumulation.
Avoid overloading the gearbox beyond its rated capacity. Overloading can lead to premature wear on gears and bearings, reducing the gearbox's lifespan. Monitor the load conditions and adjust as necessary to stay within recommended limits.
Provide regular training to maintenance personnel on proper installation, maintenance, and troubleshooting techniques. This ensures that any issues are addressed promptly and correctly, minimizing downtime.
As technology advances, planetary gearboxes are becoming more efficient and compact. Stay updated on new designs and materials that can enhance performance and reduce maintenance needs.
1. Oil Leaks: Check for loose bolts or damaged seals. Tighten bolts and replace seals as needed.
2. Temperature Rise: Use high-quality lubricants and ensure proper lubrication. Check for bearing damage and replace if necessary.
3. Noise and Vibration: Check alignment and ensure all components are securely fastened. Inspect bearings for wear and replace if necessary.
Installing a planetary gearbox on a stepper motor requires precision and attention to detail. By following these steps and ensuring proper alignment and secure connections, you can achieve efficient and reliable operation. Remember to handle components with care and use appropriate tools to avoid damage.
A planetary gearbox consists of a sun gear, planetary gears, a ring gear, and a carrier. These components work together to provide high torque density and efficient power transmission.
Proper alignment involves ensuring the motor's output shaft and gearbox's input shaft are on the same centerline and that the flanges are parallel. Use visual aids and tools to verify alignment.
Avoid using excessive force or tools like hammers. Always handle components gently and use the correct tools to secure connections without applying undue stress.
Lubrication helps reduce wear on moving parts, extending the gearbox's service life. It ensures smooth operation by minimizing friction between gears.
Yes, planetary gearboxes can be used with various motors, including servo motors, DC motors, and stepper motors, making them versatile in industrial applications.
