Creating a hydraulic motor system involves understanding the key components, their functions, and how to assemble them effectively. This article provides a comprehensive guide on constructing a hydraulic motor system, detailing each component's role and offering practical insights.
Hydraulic systems are widely used in various applications, from construction equipment to automotive systems, due to their efficiency and power-to-weight ratio. Understanding how to build a hydraulic motor system can empower you to create custom solutions for specific tasks or enhance existing machinery. These systems harness the power of fluid dynamics to achieve precise and powerful movements, making them essential in modern engineering and technology. The purpose of this guide is to provide you with a detailed understanding and practical steps to create your own hydraulic motor system, tailored to your specific requirements and applications.
A hydraulic motor system consists of several essential components, each playing a crucial role in the overall operation of the system:
Hydraulic Pump: The heart of the hydraulic system, converting mechanical energy into hydraulic energy by moving fluid from a reservoir under pressure. There are several types of hydraulic pumps, including gear pumps, vane pumps, and piston pumps, each with different efficiencies, pressure capabilities, and applications. Gear pumps are simple and cost-effective but less efficient, while piston pumps are more complex but offer higher pressure and efficiency. The choice of pump depends on the specific requirements of your system, such as flow rate, pressure, and efficiency.

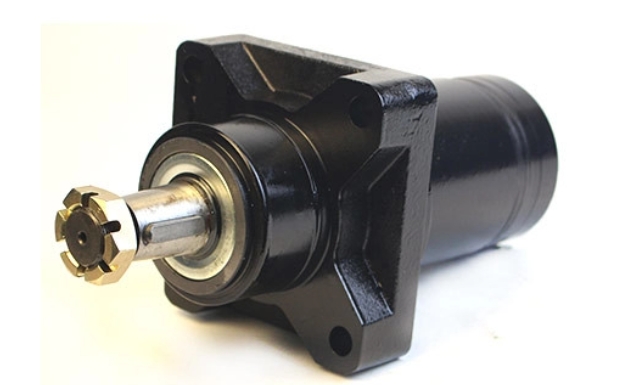

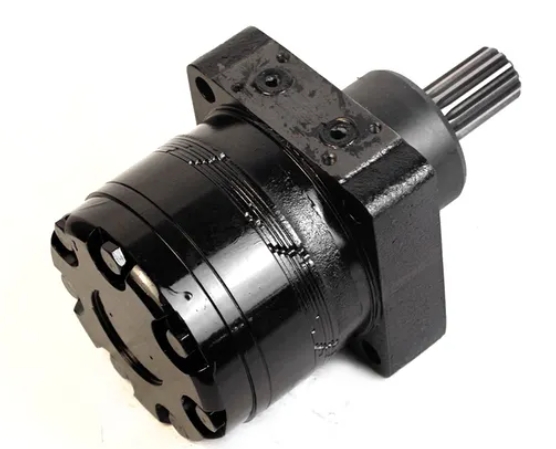

Hydraulic Motor: The counterpart to the hydraulic pump, converting hydraulic energy back into mechanical energy, providing torque and motion. Hydraulic motors come in various designs, including gear motors, vane motors, and piston motors. Gear motors are typically used for low-speed, high-torque applications, while piston motors are preferred for high-speed, high-power applications. Understanding the torque and speed requirements of your application is essential for selecting the appropriate hydraulic motor.
Control Valves: These regulate the flow and pressure of the hydraulic fluid, allowing precise control over the speed and direction of the hydraulic motor. Control valves include directional control valves, pressure control valves, and flow control valves. Directional control valves determine the direction of fluid flow, allowing you to control the direction of movement of the hydraulic motor. Pressure control valves regulate the pressure in the system, preventing damage from overpressure. Flow control valves control the rate of fluid flow, allowing you to adjust the speed of the hydraulic motor.
Reservoir: The reservoir stores the hydraulic fluid needed for operation. It is essential to choose a reservoir of adequate size to accommodate the fluid volume changes that occur during operation and to allow for proper heat dissipation. The reservoir should also be equipped with a filter to remove contaminants from the fluid, ensuring the longevity and reliability of the system.

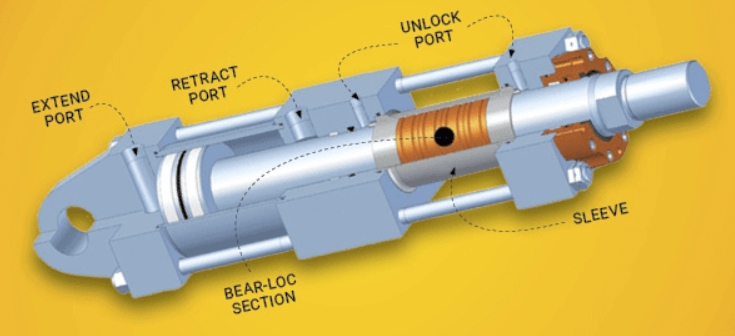

Actuators: Actuators convert hydraulic energy into mechanical work, such as linear motion (using cylinders) or rotary motion (using motors). Actuators are the output devices of the hydraulic system, providing the force and movement required to perform a specific task. Hydraulic cylinders are used for linear motion applications, such as lifting heavy objects or pushing mechanisms. Hydraulic motors are used for rotary motion applications, such as driving wheels or rotating equipment.
Hydraulic Fluid: The lifeblood of the hydraulic system, transmitting power from the pump to the motor. The fluid must be compatible with all components of the system and provide adequate lubrication and heat transfer. Different types of hydraulic fluids are available, including mineral oil-based fluids, synthetic fluids, and water-based fluids. Mineral oil-based fluids are the most common type and offer good performance and compatibility. Synthetic fluids provide improved performance in extreme conditions, such as high temperatures or pressures. Water-based fluids are environmentally friendly but may require special considerations for corrosion protection.
Hydraulic motors operate on Pascal's principle, which states that pressure applied to a confined fluid is transmitted undiminished throughout the fluid. This principle is fundamental to the operation of hydraulic systems, allowing for the transmission of force and power over distances.
The hydraulic motor uses this principle to convert fluid power into rotational motion. High-pressure fluid enters the motor, exerting force on internal components such as gears, vanes, or pistons. This force causes the motor's output shaft to rotate, providing mechanical power that can be used to drive machinery or equipment. The speed and torque of the motor can be controlled by adjusting the flow rate and pressure of the hydraulic fluid entering the motor.
The specific design of the hydraulic motor determines its performance characteristics, such as torque, speed, and efficiency. Gear motors are simple and robust but may have lower efficiency compared to vane or piston motors. Vane motors offer a good balance of performance and cost, while piston motors provide the highest performance and efficiency but are more complex and expensive.
Before you start building your hydraulic motor system, gather the following materials:
Hydraulic Pump: Select a pump that matches your system's flow rate and pressure requirements. Consider the type of pump (gear, vane, or piston) based on your application and budget.
Hydraulic Motor: Choose a motor with the appropriate torque and speed characteristics for your application. Consider the type of motor (gear, vane, or piston) based on your performance requirements.
Control Valves: Select directional control valves, pressure control valves, and flow control valves that are compatible with your system's pressure and flow rate. Ensure that the valves are rated for the operating pressure of your system.
Hydraulic Tubing and Fittings: Choose tubing and fittings that are compatible with your system's pressure and fluid type. Use high-quality fittings to prevent leaks and ensure reliable operation.
Reservoir (Tank): Select a reservoir of adequate size to accommodate the fluid volume changes that occur during operation. Ensure that the reservoir is equipped with a filter to remove contaminants from the fluid.
Hydraulic Fluid (Oil): Choose a hydraulic fluid that is compatible with all components of the system and provides adequate lubrication and heat transfer. Consider the operating temperature range of your system when selecting the fluid.
Piston or Actuator (if applicable): If your application requires linear motion, select a hydraulic cylinder of appropriate size and stroke length. Ensure that the cylinder is rated for the operating pressure of your system.
Pressure Gauge: Install a pressure gauge to monitor the pressure in the system and ensure that it is operating within the specified range.
Seals and Gaskets: Use high-quality seals and gaskets to prevent leaks and ensure reliable operation.
1. Design Your System: Before you start assembling the components, create a detailed schematic of your hydraulic system. This will help you plan the layout of the components and ensure that they are properly connected.
2. Select Your Components: Based on your system design, choose a hydraulic pump and motor that match your application requirements. Consider factors such as flow rate, pressure, torque, and speed.
3. Prepare the Reservoir: Ensure the reservoir is clean and free from contaminants. Install a filter to remove any particles that may damage the pump or motor.
4. Mount the Pump: Secure the pump to a stable surface, ensuring it is aligned with your power source (e.g., electric motor). Use flexible couplings to reduce vibration and noise.
5. Connect the Motor: Attach the hydraulic motor to your actuator or machinery. Ensure that the motor is properly aligned and securely mounted.
1. Plan Tubing Layout: Plan your tubing layout to minimize bends and ensure efficient flow. Avoid sharp bends that can restrict flow and cause pressure drops.
2. Cut Tubing: Cut the hydraulic tubing to the required lengths using a tubing cutter. Deburr the ends of the tubing to remove any sharp edges.
3. Install Fittings: Use appropriate fittings to connect tubing between the pump, motor, and reservoir. Ensure that the fittings are properly tightened to prevent leaks.
4. Secure Tubing: Secure the tubing to prevent vibration and movement. Use clamps or supports to keep the tubing in place.
5. Install Control Valves: Position control valves strategically for easy access during operation. Ensure that the valves are properly connected and oriented.
1. Fill Reservoir with Fluid: Pour hydraulic fluid into the reservoir until it reaches the recommended level. Use a funnel to avoid spills.
2. Bleed the System: Bleed the system to remove any air pockets in the lines. Air can cause cavitation and reduce the efficiency of the system.
3. Check Connections: Inspect all connections for leaks or loose fittings. Tighten any fittings that are leaking.
4. Power Up: Start your pump and observe the system for any irregularities in operation. Monitor the pressure gauge to ensure that the system is operating within the specified range.
5. Adjust Control Valves: Fine-tune control valves for optimal performance. Adjust the flow rate and pressure to achieve the desired speed and torque.
6. Monitor Temperature: Monitor the temperature of the hydraulic fluid. Overheating can damage the pump and motor.
7. Test Under Load: Test the system under load to ensure that it is performing as expected. Monitor the pressure and temperature during the test.
Hydraulic motors are utilized in various applications across different industries:
Construction Machinery: Excavators, bulldozers, loaders, and cranes rely on hydraulic motors for their powerful and precise movements.
Agricultural Equipment: Tractors, harvesters, and sprayers use hydraulic motors for driving wheels, operating implements, and controlling various functions.
Industrial Machinery: Conveyor systems, presses, and machine tools utilize hydraulic motors for their high torque and speed control capabilities.
Automotive Systems: Braking systems, power steering, and suspension systems employ hydraulic motors for their reliability and efficiency.
Marine Applications: Winches, steering systems, and propulsion systems in boats and ships use hydraulic motors for their robustness and ability to operate in harsh environments.
Aerospace Industry: Hydraulic motors are used in aircraft landing gear, flight control systems, and other critical applications where precision and reliability are paramount.
Building a hydraulic motor system requires careful planning and knowledge of each component's function within the system. By following this guide, you can create an efficient hydraulic system tailored to your specific needs. Remember to prioritize safety, use high-quality components, and thoroughly test your system before putting it into operation. With the right knowledge and tools, you can harness the power of hydraulics to create innovative solutions for a wide range of applications.
Hydraulic motors come in various types, including gear motors, vane motors, and radial piston motors. Each type has its own advantages and disadvantages in terms of efficiency, torque, speed, and cost.
Select hydraulic fluid based on viscosity requirements and compatibility with system components. Consider factors such as operating temperature, pressure, and environmental conditions.
Regularly check fluid levels, inspect for leaks, and replace filters as needed. Keep the system clean and free from contaminants.
No, ensure that the pump's specifications match those required by your hydraulic motor for optimal performance. The pump must be able to deliver the required flow rate and pressure.
Always wear protective gear, ensure proper ventilation when working with fluids, and follow manufacturer guidelines during assembly. Never work on a pressurized system.
