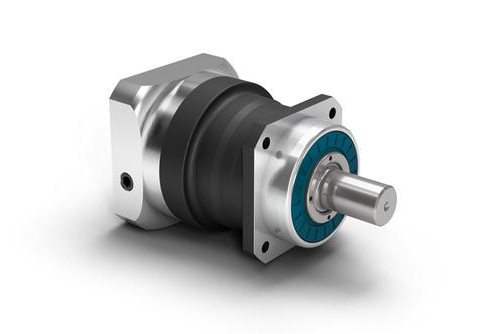

Planetary gearboxes are intricate mechanical systems used to transmit power and torque from an input shaft to an output shaft, often providing significant speed reduction and torque multiplication. They are widely used in robotics, automotive systems, and industrial machinery due to their compact size and high efficiency. In this article, we will explore the components of a planetary gearbox, the principles behind its operation, and a step-by-step guide on how to design and build one using 3D printing technology.
A planetary gearbox consists of four main components:
- Sun Gear: Located at the center, it drives the planet gears.
- Planet Gears: These orbit around the sun gear and are mounted on a carrier.
- Planet Carrier: Holds the planet gears and rotates around the sun gear.
- Ring Gear: A stationary ring that encloses the sun and planet gears.
- Sun Gear: The central gear that drives the planet gears. It is typically smaller than the other gears and meshes with the planet gears to transmit power efficiently.
- Planet Gears: These gears orbit around the sun gear and are mounted on the planet carrier. They play a crucial role in achieving the desired gear ratio by meshing with both the sun gear and the ring gear.
- Planet Carrier: A cylindrical structure that holds the planet gears and allows them to rotate around the sun gear. It helps distribute the load evenly among the gears.
- Ring Gear: A stationary ring-shaped gear that encloses the sun and planet gears. It provides a fixed point for the planet gears to mesh against, allowing the gearbox to achieve its desired gear ratio.
Designing a planetary gearbox involves several steps, including choosing the gear ratio, selecting materials, and creating a 3D model. Here's a simplified guide using Fusion 360 or similar software:
The gear ratio is determined by the number of teeth on the sun gear, planet gears, and ring gear. A common configuration is a 1:4 ratio for each stage, which can be achieved with a sun gear having 20 teeth, planet gears with 20 teeth each, and a ring gear with 80 teeth.
- Design: Use a cylindrical shape with a hole for the motor shaft.
- Teeth: Add 20 teeth to the sun gear using the gear tool in your software.
- Design: Similar to the sun gear but slightly smaller.
- Teeth: Also 20 teeth for each planet gear.
- Design: A ring-shaped gear with 80 teeth.
- Function: Provides a fixed point for the planet gears to mesh against.
- Design: A cylindrical structure with holes to hold the planet gears.
- Function: Allows the planet gears to rotate around the sun gear.
- Use software to assemble all components, ensuring proper alignment and meshing of gears.
- Export the design as STL files for 3D printing.

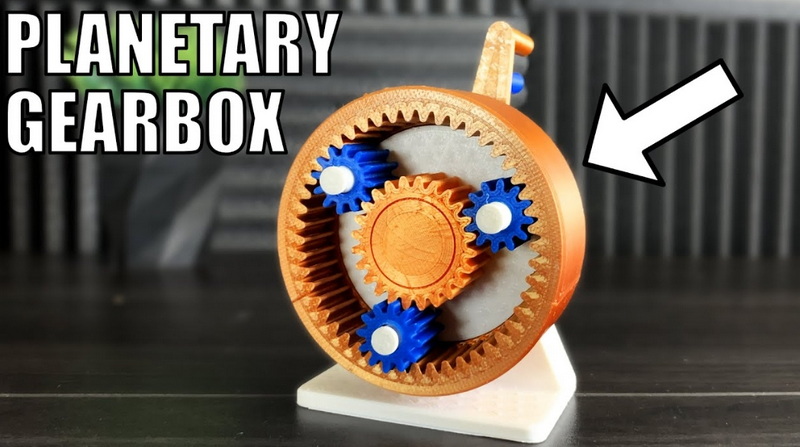

Once you have your design ready, you can proceed to 3D print the components. Here are some tips:
- Materials: Use PET-G or ABS for the gears and housing due to their durability and resistance to wear.
- Supports: Use supports for overhanging parts like the planet carrier.
- Raft: Use a raft to prevent warping and ensure a smooth bottom surface.
After printing, assemble the gearbox by following these steps:
1. Install Planet Gears: Mount the planet gears on the carrier using shafts or bushings.
2. Install Sun Gear: Attach the sun gear to the motor shaft.
3. Install Ring Gear: Secure the ring gear to the housing.
4. Add Bearings: Use bearings to support the sun gear and output shaft for smooth operation.
5. Lubricate: Apply lubricant to reduce friction and wear.
Once assembled, test the gearbox by attaching a motor and observing its operation. Ensure smooth rotation and minimal backlash.
When designing a planetary gearbox, several advanced considerations must be taken into account:
- Gear Ratio Calculation: The gear ratio is calculated based on the number of teeth on each gear. For a simple planetary gearbox, the ratio can be determined by the formula:
Gear Ratio=(Ring Gear Teeth+Sun Gear Teeth)/Sun Gear Teeth
However, this formula assumes a fixed carrier. Different configurations can alter the gear ratio significantly.
- Tooth Spacing: The planet gears should be equally spaced to ensure balanced load distribution. This requires the total number of teeth on the sun and ring gears to be a multiple of the number of planet gears.
- Material Selection: The choice of material affects the gearbox's durability and efficiency. Common materials include steel for high-strength applications and 3D printed plastics like PET-G or ABS for prototyping.
- Bearings and Lubrication: Proper bearing selection and lubrication are crucial for reducing friction and ensuring smooth operation. Ball bearings are commonly used for supporting the sun gear and output shaft.
Planetary gearboxes are versatile and used in a variety of applications:
- Automotive Systems: They are used in hybrid vehicles and electric cars for their compact size and high efficiency. In automatic transmissions, they help manage speed and torque efficiently.

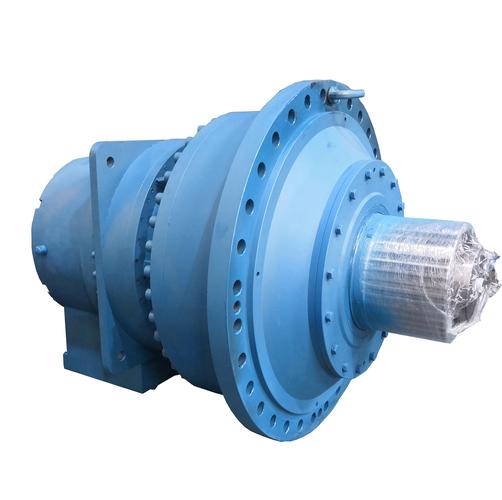

- Industrial Machinery: Found in machines like conveyors, mixers, and printing presses due to their ability to handle high torque and speed.
- Robotics: Used in robotic arms and grippers where precise control and high torque are necessary. Their compact design allows for smooth and accurate motion control.
- Aerospace: Advanced planetary gearboxes are used in aircraft for their reliability and efficiency. They provide precise control and high torque in a lightweight design.
- Renewable Energy: Indispensable in wind turbines, they convert slow rotational speeds into high-speed rotations needed for electricity generation.
- Mining Industry: Planetary gearboxes play a crucial role in the mining industry, particularly in heavy-duty equipment such as crushers and conveyors. These gearboxes provide high torque, essential for efficient material handling operations. By utilizing them, mining equipment can achieve high gear ratios and torque multiplication, making it easier to move and process large amounts of material with minimal effort. The durability and reliability of these gearboxes make them popular for mining operations, where equipment downtime can result in significant financial losses[3].
- Construction Machinery: In the construction industry, excavators and bulldozers are crucial in digging and lifting heavy loads. They utilize planetary gearboxes that provide the necessary torque to perform these tasks efficiently. These gearboxes consist of a central sun gear, which meshes with three or more planet gears that rotate around it. The planet gears, in turn, mesh with a ring gear, which forms the external part of the gearbox. The design of planetary gear systems allows them to handle high torque loads while maintaining a compact size, making them ideal for construction machinery[3].
For specific gear ratios, different configurations can be used:
- 2:1 Gear Ratio: This can be achieved by fixing the carrier and using the sun gear as the input and the annulus (ring gear) as the output. The gear ratio is determined by the relationship between the sun and ring gears. For example, if the sun gear has 32 teeth and the ring gear has 64 teeth, with four planet gears each having 16 teeth, this setup can provide the desired ratio while ensuring efficient power transmission[1].
To achieve a 2:1 gear ratio, you might use a configuration where the sun gear has fewer teeth than the ring gear. The number of teeth on the sun and ring gears must be a multiple of the number of planet gears to ensure equal spacing and balanced load distribution[1].
When 3D printing and assembling a planetary gearbox, consider the following tips:
- Use Appropriate Filament: PET-G or ABS are recommended for their strength and durability.
- Ensure Proper Alignment: Use software to ensure all gears mesh correctly before printing.
- Lubricate Gears: Apply lubricant to reduce friction and wear during operation.
Maintaining a planetary gearbox is crucial for ensuring its longevity and optimal performance:
- Regular Inspection: Perform routine visual inspections to identify signs of wear, damage, or leaks. Check for oil leaks, loose bolts, and abnormal noises during operation.
- Lubrication: Proper lubrication is essential for smooth operation. Follow the manufacturer's guidelines for lubricant type and oil change intervals.
- Oil Analysis: Periodically analyze the gearbox oil to identify contaminants or wear particles that may indicate potential issues.
- Bearing Maintenance: Regularly inspect bearings for signs of wear or damage, such as excessive noise or vibration. Replace worn-out bearings promptly.
Common issues with planetary gearboxes include:
- Overloading: Higher loads can cause tension in gears, leading to wear and tear. Use larger gearboxes for larger loads.
- Improper Installation: Misalignment can cause breakdowns. Ensure proper alignment and installation of the gearbox.
- Temperature Management: High speeds can generate heat. Use cooling systems like heat exchangers or fans to manage temperature.
Planetary gearboxes offer several benefits, including high efficiency, compact design, and versatility in achieving various gear ratios. They provide high power and torque density, making them ideal for applications requiring precise control and high torque output.
Planetary gearboxes are highly efficient due to the balanced load distribution among multiple gears. This efficiency is crucial in applications where energy conservation is important.
Their compact size allows them to be used in applications where space is limited, such as in robotics and aerospace.
The ability to achieve different gear ratios by changing the input and output components makes them versatile for various applications.
Building a planetary gearbox is a rewarding project that combines mechanical engineering principles with modern 3D printing technology. By following the steps outlined in this guide, you can create a functional gearbox suitable for various applications. Remember to choose appropriate materials and ensure precise assembly for optimal performance.
A planetary gearbox consists of four main components: the sun gear, planet gears, planet carrier, and ring gear. Each component plays a crucial role in achieving the desired gear ratio and torque multiplication.
The gear ratio is determined by the number of teeth on the sun gear, planet gears, and ring gear. A common configuration is a 1:4 ratio for each stage, achieved with specific tooth counts for each gear.
PET-G and ABS are recommended due to their durability and resistance to wear. These materials ensure that the gears and housing can withstand mechanical stress.
Lubrication reduces friction between moving parts, ensuring smooth operation and minimizing wear on the gears and bearings. This is crucial for maintaining efficiency and extending the lifespan of the gearbox.
Yes, planetary gearboxes are suitable for high-torque applications due to their ability to multiply torque. They are commonly used in heavy-duty machinery and robotics where high torque output is required.
